Massey Ferguson EU Tractor 6400 Series 6485-6490-6495-6497-6499 Dyna-6 Operator Instruction Manual

Description

Massey Ferguson EU Tractor 6400 Series 6485-6490-6495-6497-6499 Dyna-6 Operator Instruction Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Tractor 6400 Series 6485-6490-6495-6497-6499 Dyna-6 Operator Instruction Manual – PDF DOWNLOAD

Part No. 4315075M2

Foreword :

• We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of high quality. This Operator Instruction Book contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully. The pages that follow contain vital information on your tractor; please read them carefully.
• Your Massey Ferguson dealer will provide you with quality servicing and all the assistance you need. When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Please leave this Operator Instruction Book in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this Book are up to date at the time of publication. However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this Book relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor.

Introduction:

• The purpose of this book is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use.Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and servicing instructions are properly understood.
• Always consult the Massey Ferguson dealer if there is any part of this book that you do not understand. It is important that these instructions are understood and followed. This book does not cover all operation and safety instructions relevant to the implements and attachments that may be fitted at the time of tractor delivery or later. It is essential that operators use and understand the Operator Instruction Books relating to these implements and attachments.

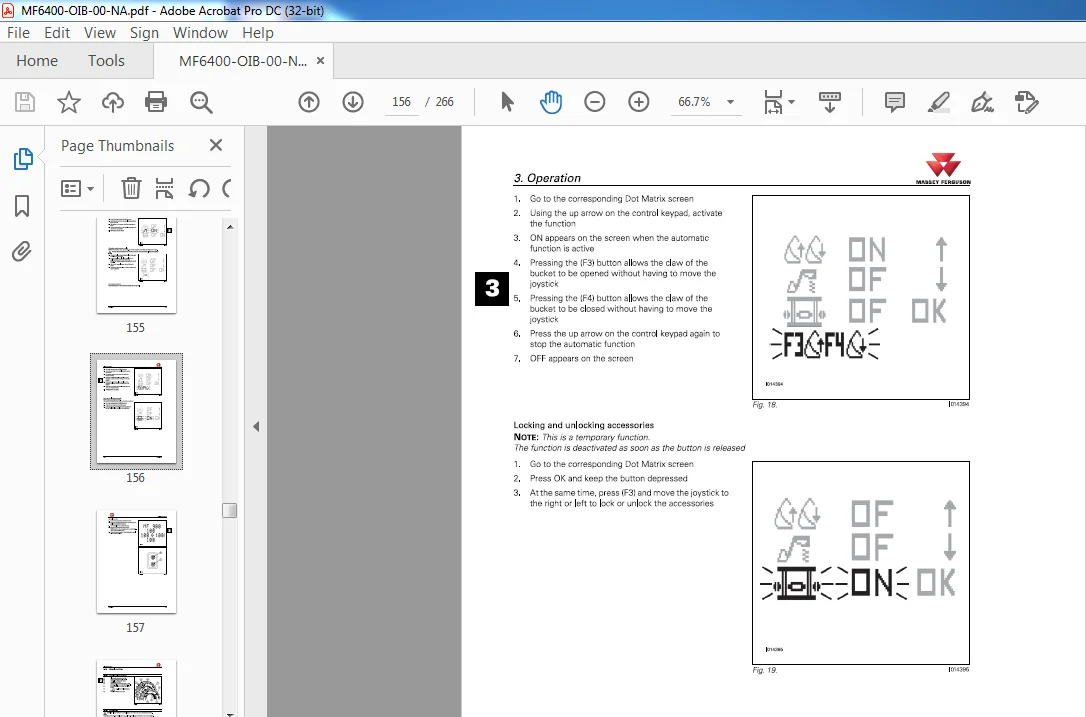

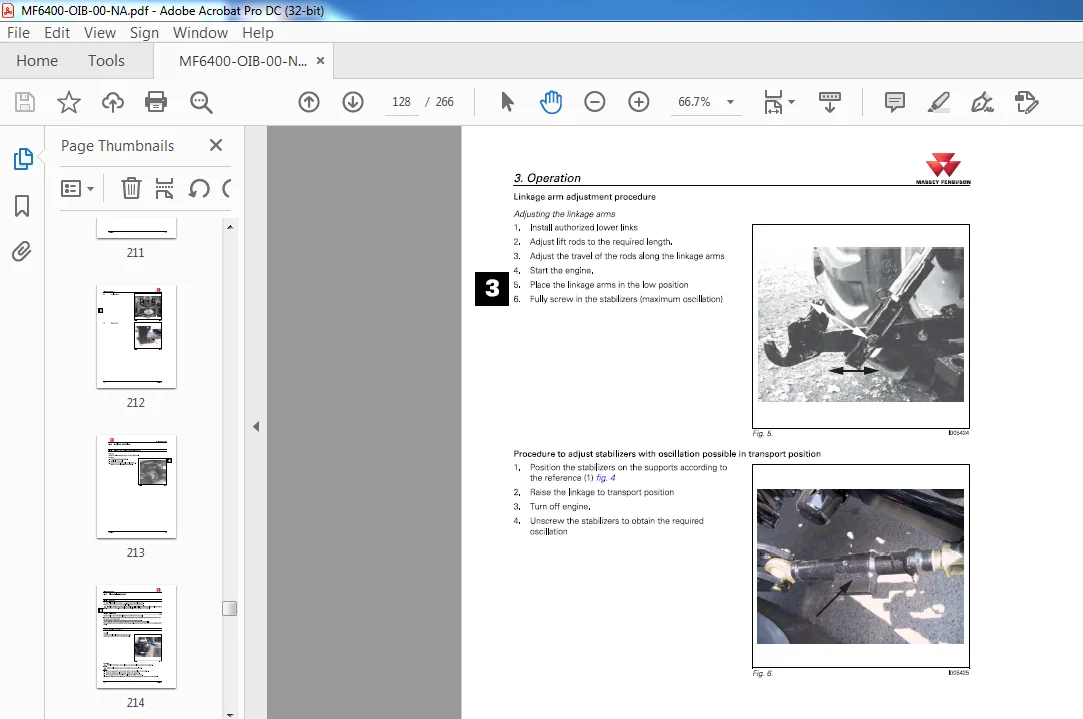

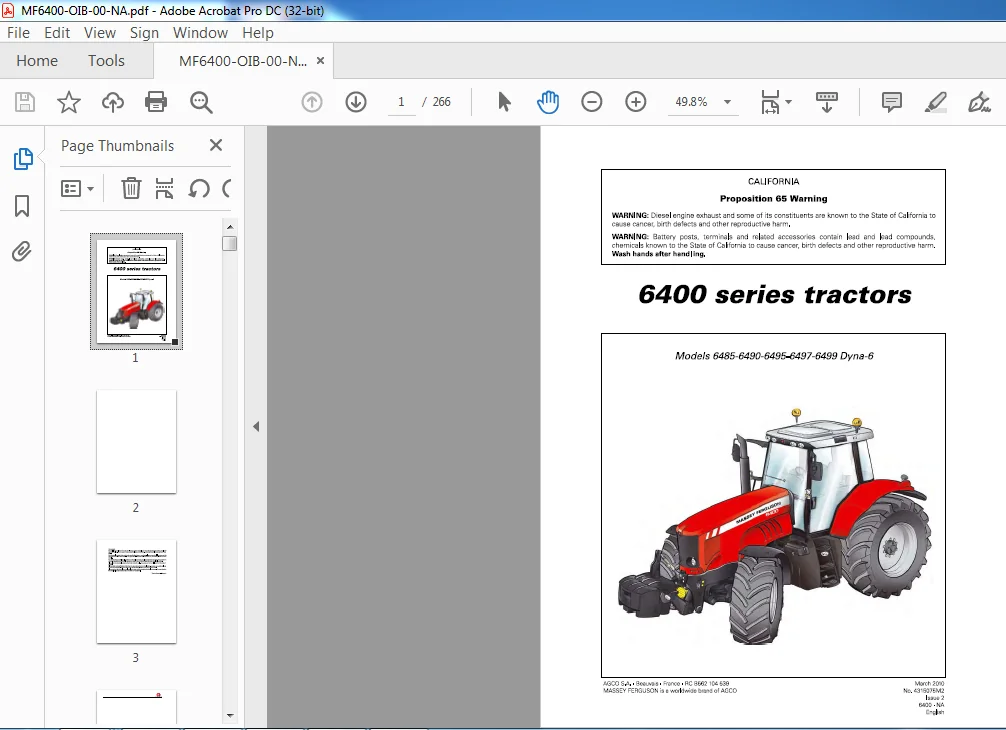

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Massey Ferguson EU Tractor 6400 Series 6485-6490-6495-6497-6499 Dyna-6 Operator Instruction Manual – PDF DOWNLOAD

1 Tractor identification 11
1 1 Locating serial numbers 13
1 1 1 Locating serial numbers 13
1 2 Your tractor identification details 14
1 2 1 Your tractor identification details 14
2 Safety instructions and safety points – Warranty 15
2 1 Introduction 17
2 1 1 Introduction – Safety instructions 17
2 2 Safety – Symbols and terms 18
2 2 1 Safety – Symbols and terms 18
2 3 Safety signs and instructions 19
2 3 1 Checking and replacing the safety signs and instructions 19
2 3 2 Presentation and location of the safety signs and instructions 20
2 4 General safety instructions 25
2 4 1 Awareness of the safety instructions and symbols 25
2 4 2 Operator familiarity in the use of the tractor 25
2 4 3 Filling the fuel tank 26
2 4 4 Getting into and out of the cab 26
2 4 5 Mandatory procedure before dismounting the tractor 26
2 5 Special safety instructions for preparing the tractor for use 2 7
2 5 1 Protective clothing 2 7
2 5 2 Safety devices and items 27
2 5 3 Checking the tractor 28
2 6 Specific safety instructions for starting the tractor 29
2 6 1 Protection of persons other than the operator 29
2 6 2 Start up safely 29
2 6 3 Checks to be carried out after start-up 30
2 7 Specific safety instructions for using the tractor 31
2 7 1 General instructions 31
2 7 2 Protection of persons other than the operator 32
2 7 3 Overturning 3 2
2 7 4 Tractor towing 34
2 7 5 Road use 34
2 7 6 Power take-off 35
2 7 7 Implements 36
2 7 8 Front-end loader 38
2 8 Specific safety instructions for servicing the tractor 39
2 8 1 Pollution warning to observe when servicing the tractor 39
2 8 2 General instructions 39
2 8 3 Special instructions for cleaning the tractor 39
2 9 Protective structures 40
2 9 1 Protective structures: use and accreditation 40
2 9 2 Cab or ROPS (depending on model) 40
2 9 3 Seat belt 40
2 9 4 Instructor seat 41
2 10 Warranty 42
2 10 1 General 42
2 10 2 Pre-delivery inspection and commissioning at the user’s premises 42
2 10 3 Warranty procedure 42
2 10 4 Procedure to follow if changing region 42
2 10 5 Servicing during and after the warranty period 43
3 Operation 45
3 1 Cab 4 7
3 1 1 Steering console 4 7
6400- NA 5
Instrument panel 48
Control unit 5 1
Start switch 5 1
Pedals 5 2
Steering Wheel 5 2
Seat 5 3
Right-hand console 5 7
Work lights modules 5 8
Multi-function armrest 5 8
Left-hand console 5 9
Upper console 6 0
Air conditioning 6 1
Accessories sockets 6 8
Sun visor 6 9
Roof hatch 7 0
Suspended cab 7 1
Cab safety 71
Wheel chock(s) (optional) 7 2
DOT Matrix screen 7 4
Monitoring display 7 4
DOT Matrix screen 75
Right-hand digital display screen 7 5
DOT Matrix left-hand digital display screen 7 7
Body 8 2
Opening the hood 8 2
Engine 8 3
Running-in 8 3
Start-up 8 3
Start-up sheet 8 4
Cold weather starting 8 5
Stopping the engine 8 5
Engine speed 8 5
Transmission 8 8
General information about the Dyna-6 transmission 8 8
Start-up 8 8
Selecting speeds 8 8
Power Shuttle 8 9
Shifting direction of travel 8 9
Automatic operation (Speedmatching) 9 0
Automatic operation (AutoDrive option) 9 1
Creeper gearbox (optional) 9 5
Tractor towing 9 5
Brakes 9 6
Brake pedals 9 6
Hydraulic trailer brake 9 6
Pneumatic trailer brake 9 7
Parking brake 9 8
Electromechanically controlled brake on the steering column(Parklock) 9 9
Steering 1 0 1
Steering 10 1
Front axle 1 0 2
Four-wheel drive front axle 10 2
Suspended front axle 1 0 3
Differential lock 1 0 5
Differential lock 10 5
Power take-off 1 0 6
Power take-off 10 6
Power take-off protection 10 6
Zuidberg front power take-off 10 6
Rear power take-off (PTO) 10 8
Power take-off external control 110
Shiftable 540 and 1000 rpm PTO 110
Shiftable 540 and 1000 rpm PTO 111
Interchangeable shaft end-fitting (flanged shaft) 113
Economy PTO 113
6400-NA
MAS&EY FERGUSON
Power take-off electronic controls 114
Linkage 11 5
Front linkage: General 115
Front linkage: Operation 115
Front linkage: Permissible loads on the front axle 117
Front linkage: Hitching an implement 118
Front linkage: Driving on the road 119
Rear linkage: Electronic controls 119
Attaching an implement from the operator’s seat 120
Attaching an implement using external controls 120
Adjusting the lowering speed 121
Adjusting the raised stop of the rear linkage 122
Wheel slip control 122
Rear linkage: Setting the depth limit 123
Setting the rear linkage in transport position 123
Rear linkage: Active transport control system 123
Rear linkage: Quick soil engagement 123
Using the rear linkage in working position 123
Rear linkage operation at headlands 124
Linkage 125
Three-point linkage General 125
Three-point linkage Lower links 125
Three-point linkage lift rods 126
Three-point linkage stabilizers 126
Swinging drawbar 129
Roller type swinging drawbar 129
Auxiliary hydraulics 130
General 130
Hose connection 132
Disconnecting the hoses 132
Configuration of spool valves depending on the hydraulic equipment 133
Connection of hydraulic accessories 135
Locking/unlocking hydraulic spool valve controls 138
Setting flow rates and time delay 141
Control levers 141
“SMS” control (FingerTip) 143
Emergency manual spool valve control 144
Front-end loader function 146
Using the front-end loader 146
Layout of components 146
Using the front-end loader controls 148
Wheels and tires 1 58
Agricultural tire markings 158
Wheel studs 158
Adjusting the front wheel track width 158
Adjusting the rear wheel track width 160
Dual wheels 161
Tire pressures 162
Radial loads and standard inflation pressures 165
Ballasting the tractor 166
Liquid ballasting 166
Changing wheel positions 167
Adjustment of wheel position on the shaft 167
4 Maintenance 171
4 1 Service guide 173
4 1 1 SERVICE GUIDE 173
4 2 Cab 176
4 2 1 Air-conditioning system: Condenser 176
4 2 2 Air-conditioning system: Checking the air conditioning system 176
4 2 3 Air-conditioning system: dryer 177
4 2 4 Cab air filter 177
4 2 5 Cab suspension 178
4 2 6 ROPS or cab attachment 178
4 2 7 Windshield washer 178
6400- NA 7
Table of contents MASSEY FERGUSON
4 2 8 Hinge and lock lubrication 17 9
4 3 Engine 18 0
4 3 1 Recommended products 18 0
4 3 2 6-cylinder Perkins engine 18 1
4 3 3 Engine oil level check 18 2
4 3 4 Draining the engine oil 18 3
4 3 5 Replacing the engine oil filter 18 3
4 3 6 Fuel system: Fuel prefilter 18 3
4 3 7 FUEL SYSTEM Bleeding the prefilter 18 4
4 3 8 Fuel system: SISU engine fuel filter 18 4
4 3 9 FUEL SYSTEM Perkins engine bleeding 18 4
4 3 10 Fuel system: Water filter (optional) 18 5
4 3 11 FUEL SYSTEM Fuel injection pump, regulator and injectors 18 6
4 3 12 FUEL SYSTEM Fuel tank 18 6
4 3 13 Air filter 18 7
4 3 14 Cooling system 18 8
4 3 15 Checking the fan/alternator belt 18 9
4 3 16 Fuel 19 0
4 4 Transmission 19 3
4 4 1 Recommended products 19 3
4 4 2 Checking the transmission oil level 19 3
4 4 3 Draining the transmission oil 19 3
4 4 4 25-micron circuit closer filtering (5 0 km/h ( 31 mile/h) version only) 19 5
4 4 5 High-pressure 15 micron filtering 19 5
4 4 6 Power Shuttle 19 6
4 4 7 Rear axle final drive units (sealed) 19 7
4 4 8 Transmission oil cooler (according to version) 19 7
4 4 9 Lubricating the rear wheel bearings 19 8
4 5 Brakes 19 9
4 5 1 Bleeding the brake system 19 9
4 6 Power take-off 20 0
4 6 1 Recommended products 20 0
4 6 2 Lubrication 20 0
4 6 3 Trac Equipment front PTO 20 0
4 6 4 Zuidberg front power take-off 20 0
4 7 Front axle and steering 20 2
4 7 1 Recommended products 20 2
4 7 2 Four-wheel drive front axle Checks and lubrication 20 2
4 7 3 Four-wheel drive front axle: Checking the front axle beam oil level 20 3
4 7 4 Four-wheel drive front axle: draining the oil from the front axle beam 20 3
4 7 5 Four-wheel drive front axle: Final drives 20 4
4 7 6 Suspended front axle 20 5
4 7 7 Four-wheel drive front axle: LUBRICATION 20 5
4 8 Linkage 20 9
4 8 1 Three-point linkage lubrication 20 9
4 9 Linkage 210
4 9 1 Recommended products 210
4 9 2 Three-point linkage lubrication 210
4 9 3 Front linkage: lubrication 211
4 10 Auxiliary hydraulics 213
4 10 1 Filtering the auxiliary hydraulic system 213
4 11 Electrical equipment 214
4 11 1 Batteries 214
4 11 2 Alternator 214
4 11 3 Start-up assistance 214
4 11 4 Socket (ASAE) 215
4 11 5 Adjusting the headlights 216
4 11 6 Adjusting Xenon work lights (optional) 216
4 11 7 Fuses 217
4 11 8 Replacing fuses 220
4 11 9 Battery isolator 223
4 12 Pressure washing 225
4 12 1 Pressure washing 225
4 13 Storing your tractor 226
4 13 1 Storing your tractor 226
8 6400-NA
MAS&EY FERGUSON Table of contents
5 Technical specifications 22 7
5 1 General specifications 229
5 1 1 Model 6485 229
5 1 2 Model 6490 229
5 1 3 Model 6495 230
5 1 4 Model 6497 231
5 1 5 Model 6499 232
5 2 Cab 233
5 2 1 N oise levels (dBA) at operator’s ears 233
5 3 Engine 234
5 3 1 Engine specifications 234
5 3 2 Fuel system and air filter 234
5 3 3 COOLIN G 235
5 3 4 Tightening torques 235
5 4 Transmission 236
5 4 1 Forward speed for models 6485/6490/6495 with Dyna-6 transmission and 20 8R42 tires 236
5 4 2 Forward speed for models 6485/6490/6495 with Dyna-6 transmission, creeper speed
option, and 20 8R42 tires 237
Forward speed for models 6497/6499 with Dyna-6 transmission and 20 8R42 tires 238
Forward speed for model 6499 with Dyna-6 transmission, creeper speed option, and
20 8R42 tires 239
Gearbox 239
Final drives 239
Rear differential lock 239
Brakes 240
Brake technical specifications 240
Front axle and steering 241
Four-wheel drive front axle 241
Steering 241
Tightening torques 241
Power take-off 242
Specifications 242
Tightening torques 242
Linkage 243
Rear linkage 243
Auxiliary hydraulics (according to specification or country) 244
Closed center system with flow and pressure control 244
Electrical equipment 245
Electrical equipment 245
Wheels and tires 246
Wheels 246
Tires 246
Tightening torques 246
Capacities and dimensions 247
Capacities 24 7
Dimensions and weights 248
SISU engine attachment points 25 0
6 Accessories 25 1
6 1 Cab accessories 25 3
6 1 1 Cab accessories 25 3
6 2 Engine accessories 25 4
6 2 1 Engine accessories 25 4
6 3 Transmission accessories 25 5
6 3 1 Transmission accessories 25 5
6 4 Front axle and steering accessories 25 6
6 4 1 Front axle and steering accessories 25 6
6 5 Power take-off accessories 257
6 5 1 Power take-off accessories 257
6 6 Linkage accessories 25 8
6 6 1 Linkage accessories 25 8
6 7 Auxiliary hydraulics accessories 25 9
6 7 1 Auxiliary hydraulics accessories 25 9
6 8 Electrical equipment accessories 26 0
6 8 1 Electrical equipment accessories 26 0
6400- NA 9
Table of contents MASSEY FERGUSON
6 9 Wheels and tires accessories 26 1
6 9 1 Wheels and tires accessories 26 1
7 Appendix 26 3
7 1 Conversion table 26 5
7 1 1 Conversion table 26 5

MASSEY FERGUSON EU TRACTOR 6400 SERIES 6485-6490-6495-6497-6499 DYNA-6 OPERATOR INSTRUCTION MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
