Massey Ferguson EU Tractor DANA 770-618 8650 8660 8670 8680 8690 Tier 3 Service Manual – PDF DOWNLAOD

Description

Massey Ferguson EU Tractor DANA 770-618 8650 8660 8670 8680 8690 Tier 3 Service Manual – PDF DOWNLAOD

DESCRIPTION:

Massey Ferguson EU Tractor DANA 770-618 8650 8660 8670 8680 8690 Tier 3 Service Manual – PDF DOWNLAOD

INTRODUCTION:

• The efficiency and continued operation of mechanical units de- ili pend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed.
• The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed. All the information needed for correct disassembly, checks and assembly of each individual component is set out below. In order to remove the differential unit from the vehicle, the manuals provided by the vehicle manufacturer should be consulted. In describing the following operations it is presumed that the unit has already been removed from the vehicle.

• All the disassembled mechanical units should be thoroughly cleaned with appropriate products and restored or replaced if damage, wear, cracking or seizing have occurred. In particular, thoroughly check the condition of all moving parts (bearings, gears, crown wheel and pinion, shafts) and sealing parts (0-rings, oil shields) which are subject to major stress and wear.
• n any case, it is advisable to replace the seals every time a component is overhauled or repaired. During assembly, the sealing rings must be lubricated on the sealing edge. In the case of the crown wheel and pinion, replacement of one component requires the replacement of the other one. During assembly, the prescribed pre-loading, backlash and torque of parts must be maintained.

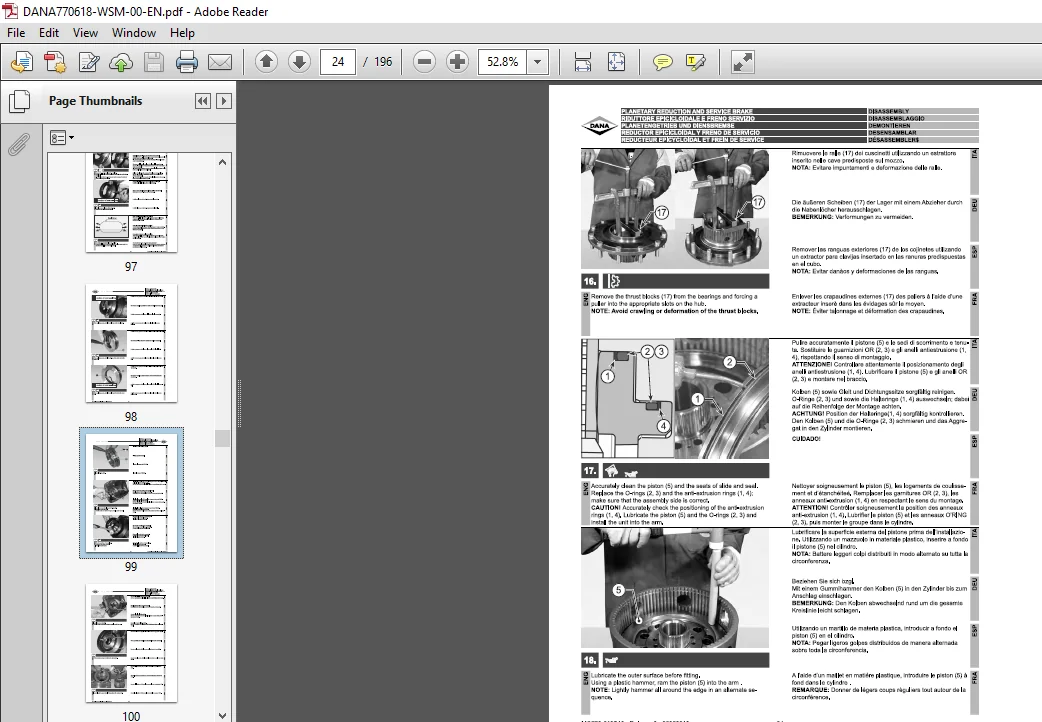

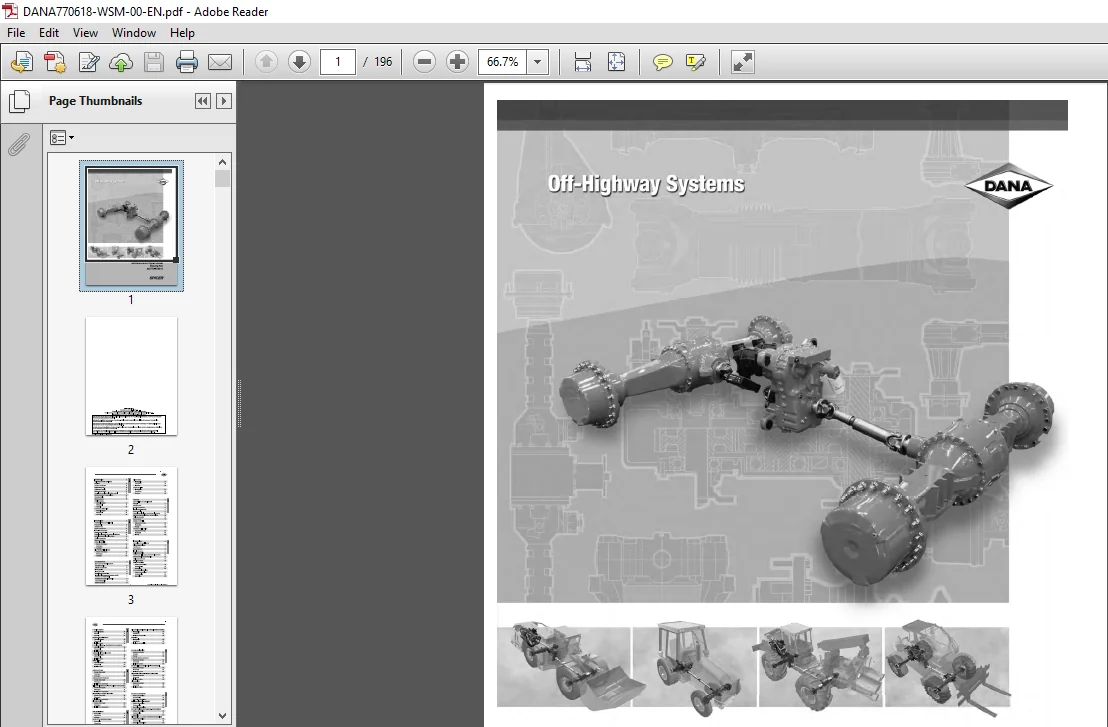

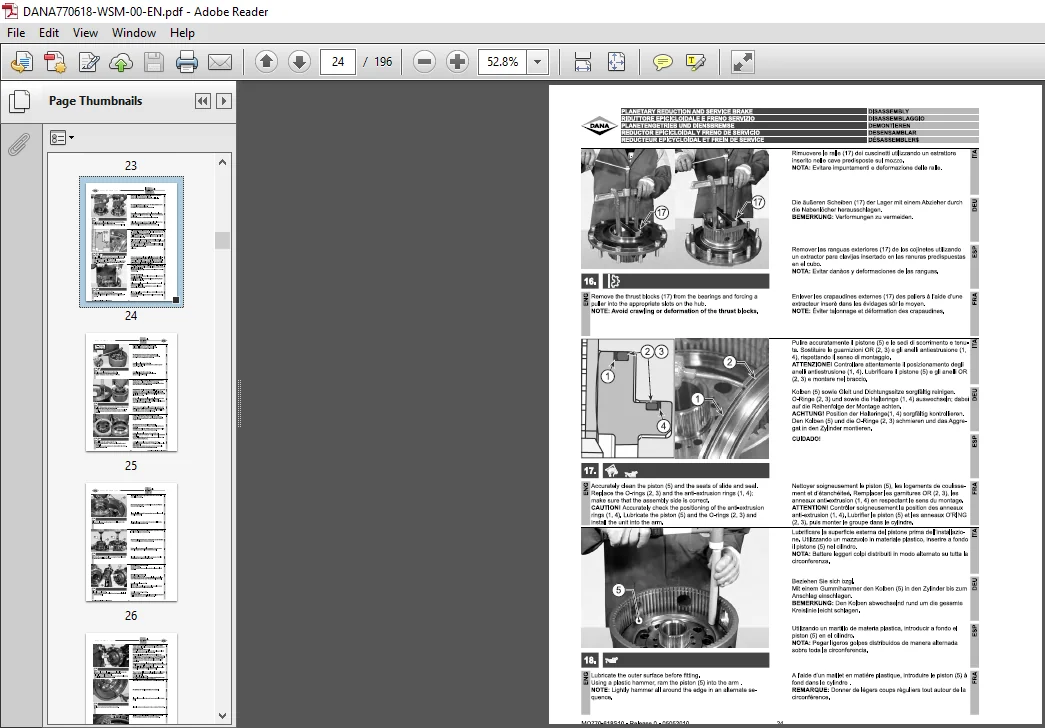

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Massey Ferguson EU Tractor DANA 770-618 8650 8660 8670 8680 8690 Tier 3 Service Manual – PDF DOWNLAOD

INTRODUCTION
MAINTENANCE AND LUBRICANT
Data plate
Definition of vieWpoints
Maintenance points
Maintenance intervals
Adjustment and checks
Screw—locking, sealing and lubricating materials
