Massey Ferguson EU Tractor MF 6600 Series MF6614 MF6615 MF6616 Dyna-VT Operator’s Manual – DOWNLOAD

Description

Massey Ferguson EU Tractor MF 6600 Series MF6614 MF6615 MF6616 Dyna-VT Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Tractor MF 6600 Series MF6614 MF6615 MF6616 Dyna-VT Operator’s Manual – PDF DOWNLOAD

FOREWORD:

• We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully.
• The pages that follow contain vital information on your tractor; please read them carefully. Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need. When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied.
• Please leave this Operator’s Manual in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication. However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This Operator’s Manual complies with Directive 2010/52 EC.

Operator’s Manual:

• The purpose of this manual is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use. Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. Use for any other activity (particularly forestry work) is considered to be contrary to the intended use.
• The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and service instructions are properly understood. Always consult the Massey Ferguson dealer if there is any part of this manual that you do not understand.
• It is important that these instructions are understood and followed. This manual does not cover all operation and safety instructions relevant to the implements and accessories that may be fitted at the time of tractor delivery or later. It is essential that operators use and understand the Operator’s Manuals relating to these implements and accessories.

TABLE OF CONTENTS:

Massey Ferguson EU Tractor MF 6600 Series MF6614 MF6615 MF6616 Dyna-VT Operator’s Manual – PDF DOWNLOAD

1 Safety instructions and safety points – Warranty 9
1 1 Introduction 11
1 1 1 Introduction – Safety instructions 11
1 2 Safety – Symbols and terms 13
1 2 1 Safety – Symbols and terms 13
1 3 Safety signs and instructions 14
1 3 1 Checking and replacing the safety signs and instructions 14
1 3 2 Presentation and location of the safety signs and instructions 15
1 4 General safety instructions 20
1 4 1 Awareness of the safety instructions and symbols 20
1 4 2 Operator familiarity in the use of the tractor 20
1 4 3 Filling the fuel tank 21
1 4 4 Getting into and out of the cab 22
1 4 5 Mandatory procedure before dismounting the tractor 22
1 5 Special safety instructions for preparing the tractor for use 23
1 5 1 Protective clothing 23
1 5 2 Activated carbon filter information 23
1 5 3 Safety devices and items 25
1 5 4 Checking the tractor 26
1 6 Specific safety instructions for starting the tractor 28
1 6 1 Protection of persons other than the operator 28
1 6 2 Start up safely 28
1 6 3 Checks to be carried out after start-up 29
1 7 Specific safety instructions for using the tractor 30
1 7 1 General instructions 30
1 7 2 Protection of persons other than the operator 31
1 7 3 Overturning 31
1 7 4 Tractor towing 33
1 7 5 Road use 33
1 7 6 Power take-off 35
1 7 7 Implements 36
1 7 8 Front-end loader 38
1 8 Specific safety instructions for servicing the tractor 39
1 8 1 Pollution warning to observe when servicing the tractor 39
1 8 2 General instructions 39
1 8 3 Handling instructions 40
1 8 4 Special instructions for cleaning the tractor 41
1 9 Protective structures 43
1 9 1 Protective structures: use and accreditation 43
1 9 2 Cab or ROPS (depending on model) 43
1 9 3 Seat belt 43
1 9 4 Instructor seat 44
1 10 Warranty 45
1 10 1 General 45
1 10 2 Pre-delivery inspection and commissioning at the user’s premises 45
1 10 3 Warranty procedure 45
1 10 4 Procedure to follow if changing region 45
1 10 5 Servicing during and after the warranty period 46
1 10 6 California emission control warranty statement 46
1 10 7 California emission reduction control warranty for the United States and
Canada 48
2 Maintenance 53
2 1 Service guide 55
2 1 1 Service guide 55
2 2 Cab 59
2 2 1 Air-conditioning system: Condenser 59
2 2 2 Air-conditioning system: Checking the air conditioning system 59
2 2 3 Cab air filter 59
2 2 4 Cab attachment 60
2 2 5 Windshield washer 61
2 3 Engine 62
2 3 1 Recommended products 62
2 3 2 Fuel 62
2 3 3 Biodiesel fuel 64
2 3 4 DE F 65
2 3 5 SisuDiesel 4-cylinder engine 66
2 3 6 Engine oil level check 66
2 3 7 Draining the engine oil 66
2 3 8 Replacing the engine oil filter 67
2 3 9 Replacing the urea filter 67
2 3 10 Fuel system: Fuel prefilter 69
2 3 11 Fuel system: Fuel filter 69
2 3 12 Checking and cleaning the fuel cooler 69
2 3 13 Fuel system: water separator prefilter 70
2 3 14 Fuel system: bleeding 71
2 3 15 Fuel system: Fuel injection pump, regulator and injectors 71
2 3 16 Fuel system: Fuel tank 71
2 3 17 Fuel system: e3 SCR Technology engine injection 72
2 3 18 Air filter 72
2 3 19 Cooling system 73
2 3 20 Checking the fan/alternator/air conditioning Poly-V belt 74
2 3 21 Replacing the fan/alternator/air conditioning belts 75
2 4 Transmission 77
2 4 1 Recommended products 77
2 4 2 Checking the transmission oil level 77
2 4 3 Draining the transmission oil 78
2 4 4 Filtering the transmission hydraulic system 79
2 4 5 Checking the level of the rear final drive units 80
2 4 6 Draining the final drives 81
2 4 7 Checking and cleaning the transmission oil cooler 81
2 4 8 Lubricating the rear PTO shaft 82
2 5 Auxiliary hydraulics 83
2 5 1 Recommended products 83
2 5 2 Checking the auxiliary hydraulic system oil level 83
2 5 3 Draining the auxiliary hydraulic system 84
2 5 4 Filtering the auxiliary hydraulic system 86
2 5 5 Checking and cleaning the auxiliary hydraulic system oil cooler 88
2 6 Brakes 90
2 6 1 Recommended products 90
2 6 2 Checking the regulator filter 90
2 6 3 Bleeding the brake system 90
2 6 4 Compressed air system protection 92
2 7 Front power take-off 93
2 7 1 Recommended products 93
2 7 2 Draining oil 93
2 7 3 Lubricating the front PTO shaft 93
2 8 Front axle and steering 94
2 8 1 Recommended products 94
2 8 2 Four-wheel drive front axle: Checking the front axle beam oil level 94
2 8 3 Four-wheel drive front axle: draining the oil from the front axle beam 94
2 8 4 Four-wheel drive front axle: checking the oil level in the final drives 95
2 8 5 Four-wheel drive front axle: draining the oil in the final drives 95
2 8 6 Four-wheel drive front axle: lubrication 96
Linkage 98
2 9 1 Lift rams: lubrication 98
2 9 2 Recommended products 98
2 9 3 Check the linkage shaft oil level 98
Linkage 100
2 10 1 Recommended products 100
2 10 2 Three-point linkage lubrication 100
2 10 3 Front linkage: lubrication 100
2 10 4 Ball hitch: lubrication 101
Electrical equipment 103
2 11 1 Batteries 103
2 11 2 Alternator 103
2 11 3 Power socket (ASAE) 103
2 11 4 Adjusting the headlights 105
2 11 5 Fuse box description 105
2 11 6 Additional fuses 115
2 11 7 Battery isolator 115
Pressure washing 117
2 12 1 Pressure washing 117
Storing your tractor 118
2 13 1 Storing your tractor 118
2 13 2 Storing DEF 118
Faults and solutions 119
2 14 1 General table of faults 119
2 14 2 Indicator light panel 121
2 14 3 Indication of faults 125
2 14 4 Instrument panel error codes 127
2 14 5 SisuDiesel Tier 4i engine error codes 128
2 14 6 Dyna-VT transmission error codes 141
2 14 7 4WD/differential lock error codes for Dyna-VT 146
2 14 8 PTO error codes for Dyna-VT 146
2 14 9 Suspended front axle error codes 148
2 14 10 Error codes for linkage with multifunction armrest 148
2 14 11 Suspended cab error codes 149
2 14 12 Arm rest error codes 149
2 14 13 Hydraulic valve error codes 149
2 14 14 Air conditioning error codes 150
3 Technical specifications 153
3 1 General specifications 155
3 1 1 Model MF 6614 Dyna-VT 155
3 1 2 Model MF 6615 Dyna-VT 155
3 1 3 Model MF 6616 Dyna-VT 156
3 2 Cab 158
3 2 1 Noise levels (dB(A)) at operator’s ears 158
3 2 2 Level of vibration felt through the seat 158
3 3 Engine 159
3 3 1 Engine specifications 159
3 3 2 Fuel system and air filter 159
3 3 3 Fuel 160
3 3 4 COOLING 160
3 3 5 Tightening torques 160
3 4 Transmission 161
3 4 1 Forward speed for all models with transmission in Dyna-VT mode 161
3 4 2 Forward speed for all models with transmission in Dyna-Step mode 162
3 4 3 Gearbox 165
3 4 4 Final drives 165
3 4 5 Rear differential lock 166
3 5 Auxiliary hydraulics 167
3 5 1 Hydraulic system 167
6600 Dyna-VT – NA
7060550M1
7
Table of contents MASSEY FERGUSON
3 6 Linkage 1 68
3 6 1 Rear linkage 1 68
3 7 Brakes 1 69
3 7 1 Brake technical specifications 1 69
3 8 Front axle and steering 1 70
3 8 1 Four-wheel drive front axle 1 70
3 8 2 Steering 1 70
3 9 Power take-off 1 71
3 9 1 Specifications 1 71
3 9 2 Tightening torques 1 71
3 10 Electrical equipment 1 72
3 10 1 Electrical equipment technical specifications 1 72
3 11 Wheels and tires 1 73
3 11 1 Rim 1 73
3 11 2 Tires 1 73
3 11 3 Tightening torques 1 73
3 12 Capacities and dimensions 1 74
3 12 1 Capacities 1 74
3 12 2 Dimensions and weights 1 74
3 12 3 Attachment points: Dyna-VT models without front linkage 1 77
3 12 4 Attachment points: Dyna-VT models with front linkage 1 78
4 Accessories 1 81
4 1 Cab 1 83
4 1 1 Cab accessories 1 83
4 2 Engine 1 84
4 2 1 Engine accessories 1 84
4 3 Front axle and steering 1 85
4 3 1 Front axle and steering accessories 1 85
4 4 Power take-off 1 86
4 4 1 Power take-off accessories 1 86
4 5 Linkage 1 87
4 5 1 Linkage accessories 1 87
4 6 Auxiliary hydraulics 1 88
4 6 1 Auxiliary hydraulics accessories 1 88
4 7 Wheels and tires 1 89
4 7 1 Wheels and tires accessories 1 89
5 Appendix 1 91
5 1 Conversion table 1 93
5 1 1 Conversion table 1 93

MASSEY FERGUSON EU TRACTOR MF 6600 SERIES MF6614 MF6615 MF6616 DYNA-VT OPERATOR’S MANUAL – DOWNLOAD:

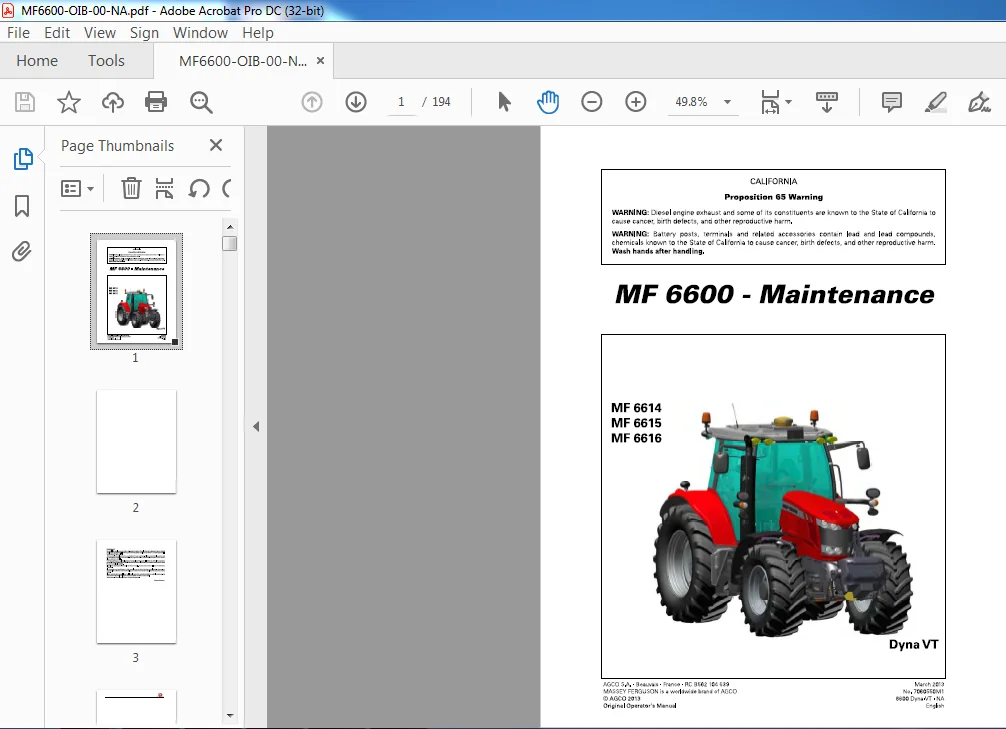

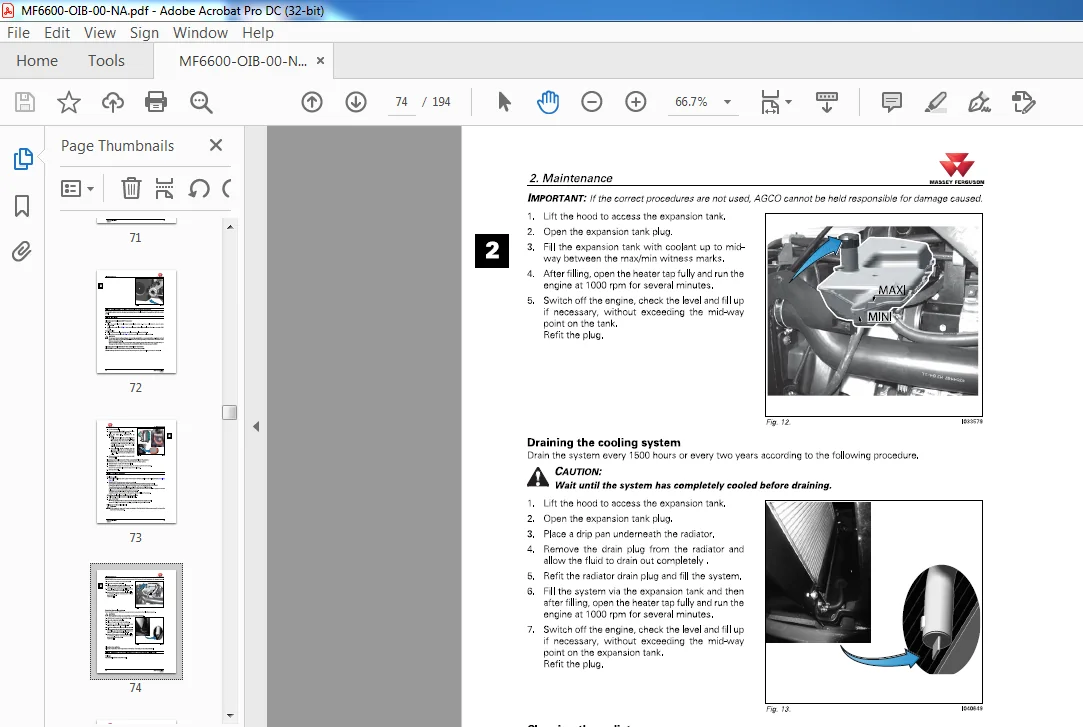

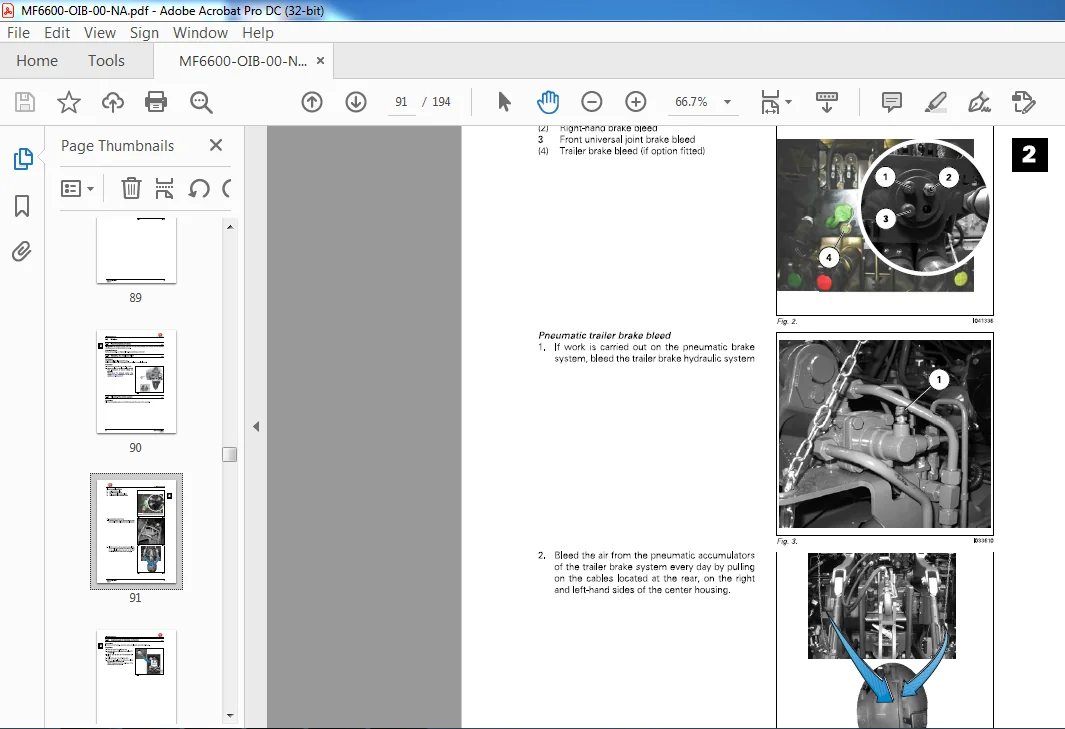

IMAGES PREVIEW OF THE MANUAL:
