Massey Ferguson EU Tractor MF3400 S With Power Shuttle Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Massey Ferguson EU Tractor MF3400 S With Power Shuttle Workshop Manual – PDF DOWNLOAD
Size: 200 MB
Pages : 717
Format: PDF
Language: English
Brand: Massey Ferguson
DESCRIPTION:
Massey Ferguson EU Tractor MF3400 S With Power Shuttle Workshop Manual – PDF DOWNLOAD
INTRODUCTION:
The purpose of this workshop manual is to provide instruction for repair technicians and a practical guide to improving the quality of repairs. This manual enables repair technicians to acquire a thorough knowledge of the machine, indicating the correct methods for fault diagnosis, for working in safety and for accurate dimensional checks and visual inspections. The instructions also indicate the products to use, the tightening torques and the adjustment data. The technical material contained in this manual is reserved to Authorised Dealers and Service Centres who will be duly informed of any technical changes to the machines in question through the issue of documents regarding modifications, updates and supplements for optional equipment. All technicians and their colleagues are expressly forbidden from reproducing any part of this manual in any form or from communicating the contents to third parties without the express written permission of the Manufacturer, who remains the sole owner of this document with all rights reserved in accordance with applicable laws.
GENERAL SAFETY RULES:
1 – Even if you have a thorough knowledge of the machine as regards its components, operation and controls, always take particular care when carrying out the following operations; remember that the machine you are working on is in need of repair or overhaul and consequently may not always behave as expected.
2 – Before starting work, clean the machine thoroughly to remove all mud, dust and road dirt. Also clean the cab to remove all traces of oil, snow and ice from the access steps and grab rails.
3 – When climbing up to or down from the cab, always ensure you maintain three points of contact at a time (foot or handholds) in order to keep your balance and prevent accidental falls.
4 – Always take special care when carrying out fault diagnosis operations; these operations often require two persons, who must never stand in front of the wheels when the engine is running.
5 – When carrying out checks and repairs, wear close-fitting clothing, safety goggles and protective gloves that are suitable for the task (cleaning, draining fluids, repairs). When working near moving parts, long hair should be gathered up and secured safely under a cap to prevent the risk of entanglement and sever injury.
6 – Do not allow anyone who is not directly involved in the work to come near the machine; ensure that they remain at a safe distance.
7 – Keep well clear of moving parts; when the engine is running, some moving parts are not easily visible and therefore present a risk of entanglement, even if protected by safety guards.
8 – Ensure that the area is well ventilated before starting the engine in order to avoid the formation of dangerous concentrations of toxic gases; always connect suitable fume extraction equipment to the exhaust pipe.
9 – Under no circumstances start the engine with the safety guards removed; all repair and adjustment operations must be carried out with the engine stopped.
10 – Do not top up fuel, oil or coolant levels when the engine is running.
1 1 – Never smoke and ensure there are no naked flames nearby when topping up fuel or oil. Always remove the battery from the machine before recharging.
1 2 – Before checking or removing the battery, stop the engine and remove the key from the starter switch.
1 3 – Remove the battery and recharge in a well-ventilated area where the temperature exceeds 0°C.
1 4 – When checking or recharging the battery, do not smoke or allow naked flames in the vicinity as the hydrogen gas given off by the battery is highly explosive.
15 – The liquid (electrolyte) contained in the battery is very harmful if it comes into contact with the skin and the eyes; for this reason, always wear gloves and safety goggles with side shields when checking or topping up the battery. Should any electrolyte accidentally come into contact with your skin, wash the affected parts immediately with copious amounts of water; if electrolyte comes into contact with your clothing, this should be removed as soon as possible. In case of accidental ingestion of electrolyte, drink copious amounts of water, milk or vegetable oil and take antacids such as magnesium, bicarbonate, etc. and seek medical attention immediately.
HOW THE MANUAL IS STRUCTURED :
SECTION00 Contains the general safety rules, information on how to use and update the manual, the symbols used, the products required, the standard tightening torques and a conversion table for units of measurement.
SECTION 10 Contains technical descriptions and information regarding the mechanical and hydraulic operation of machine components, the designations of the various components, hydraulic diagrams and general technical data.
SEZIONE20 Contains information on the tractor’s electrical and electronic systems, the procedures for putting into service, the list of alarms and a guide to the use of the software required for tractor and engine configuration and access to diagnostic codes.
SECTION30 Contains the methods, checks and adjustments regarding the external components; the operations dealt with in this section do not require removal of the various assemblies that form the tractor frame and cab.
SECTION 40 Contains information and diagrams regarding the machine’s electrical and electronic systems.
MASSEY FERGUSON EU TRACTOR MF3400 S WITH POWER SHUTTLE WORKSHOP MANUAL – PDF DOWNLOAD:

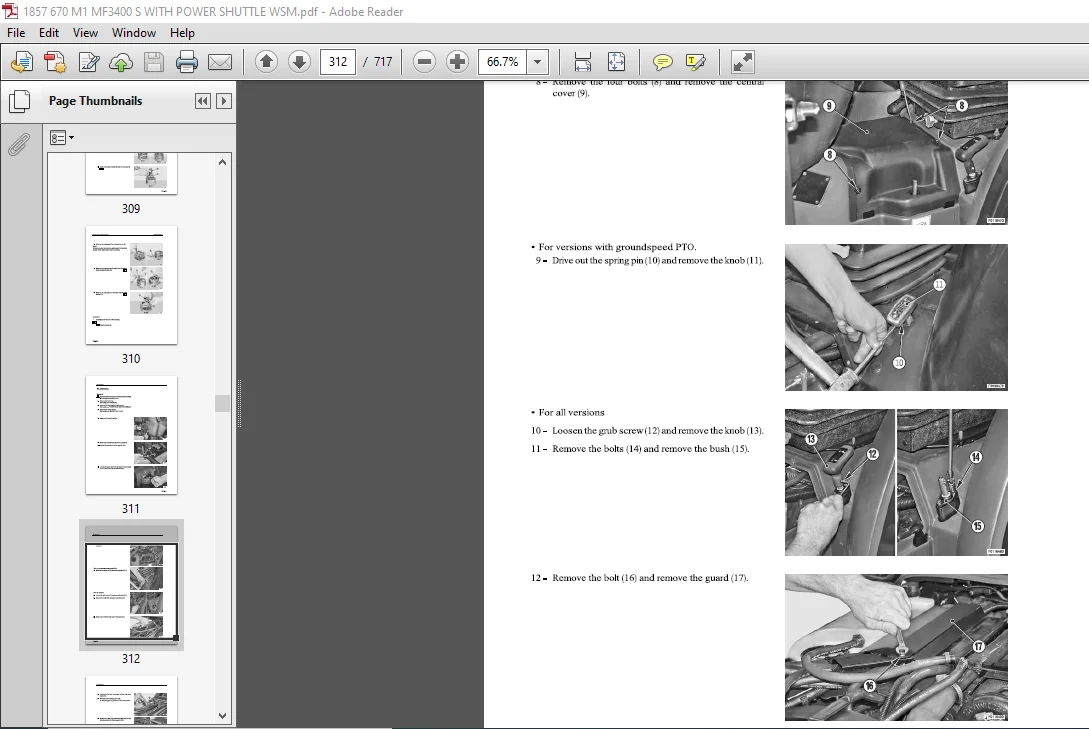

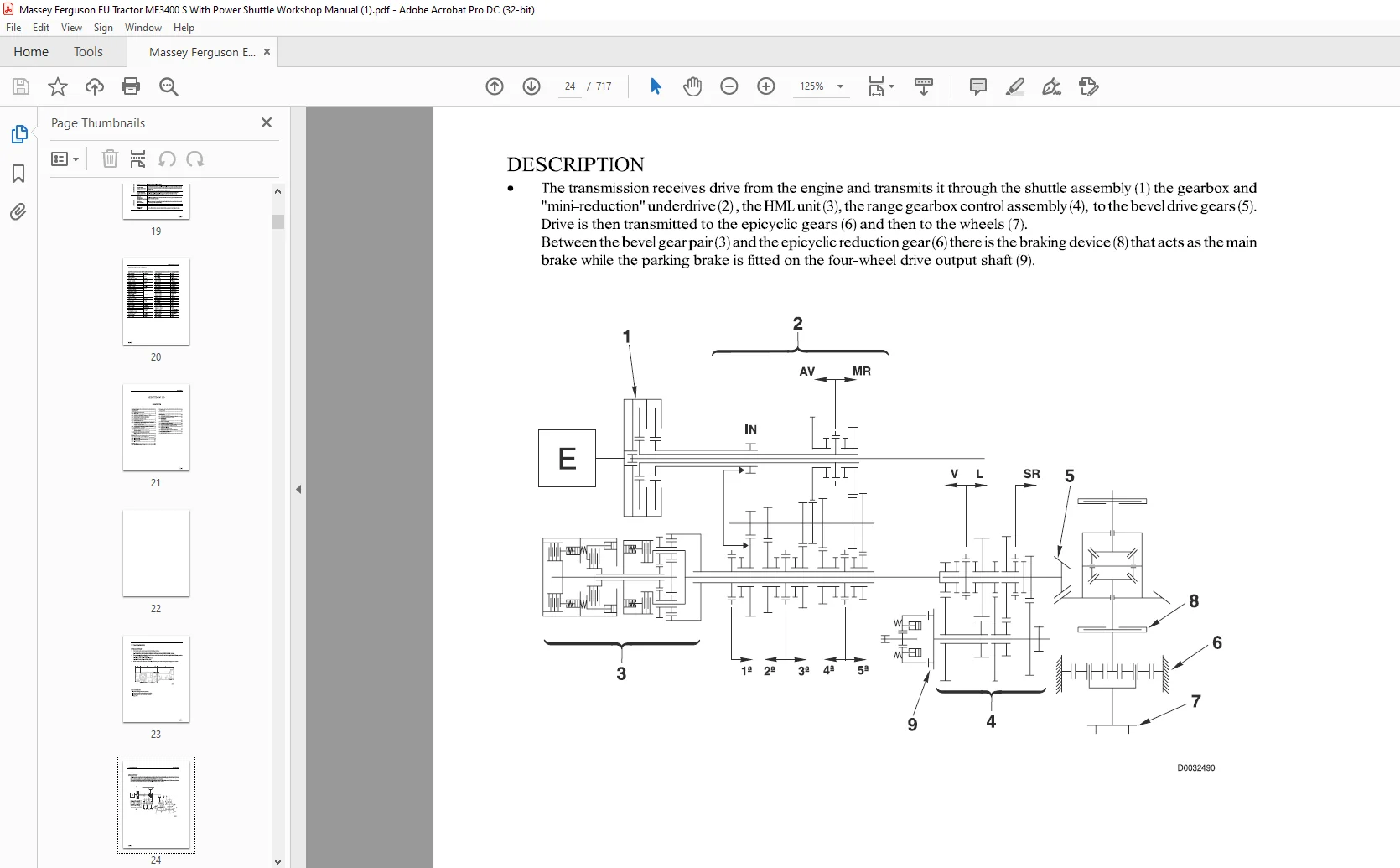

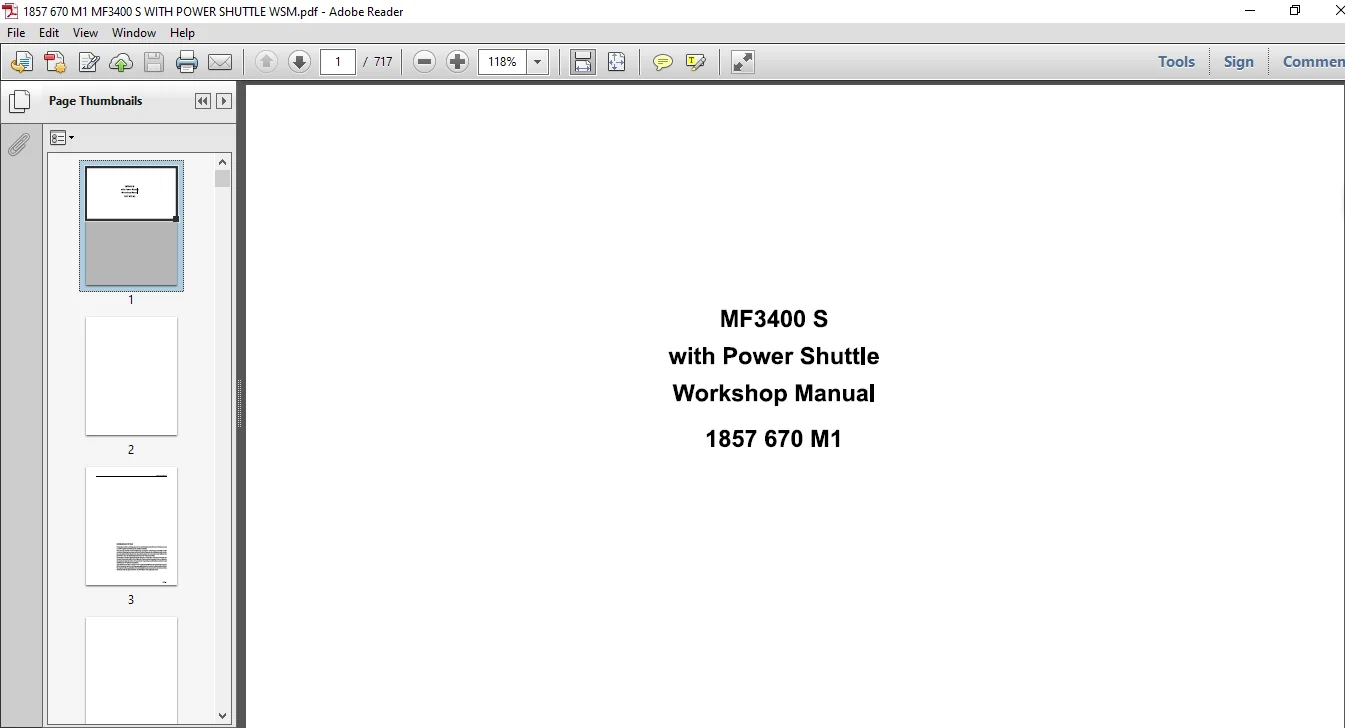

IMAGES PREVIEW OF THE MANUAL:
