Massey Ferguson EU Tractor MF7700 Series MF 7715 MF 7716 MF 7718 Dyna-VT Operator’s Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Tractor MF7700 Series MF 7715 MF 7716 MF 7718 Dyna-VT Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Tractor MF7700 Series MF 7715 MF 7716 MF 7718 Dyna-VT Operator’s Manual – PDF DOWNLOAD

Part. No. ACT0009710

Foreword :

• We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully. The pages that follow contain vital information on your tractor; please read them carefully.
• Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need. When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Please leave this Operator’s Manual in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication.
• However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This Operator’s Manual complies with Directive 2010/52 EC.

Introduction – Safety instructions
Operator’s Manual:

• The purpose of this manual is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use. Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. Use for any other activity (particularly forestry work) is considered to be contrary to the intended use. The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and service instructions are properly understood.
• Always consult the Massey Ferguson dealer if there is any part of this manual that you do not understand. It is important that these instructions are understood and followed. This manual does not cover all operation and safety instructions relevant to the implements and accessories that may be fitted at the time of tractor delivery or later. It is essential that operators use and understand the Operator’s Manuals relating to these implements and accessories.
• This chapter in the Operator’s Manual highlights certain basic safety-related situations that may be encountered during normal operation and servicing of the tractor and provides the information needed to handle these situations. This chapter supplements any safety instructions given in other chapters of this manual. It may be necessary to take additional precautions, depending on the implements and accessories used and the working conditions on-site or in the service area. Massey Ferguson can under no circumstances exercise direct control over the commissioning, operation, inspection, lubrication, or servicing of the tractor. It is therefore YOUR responsibility to take suitable safety precautions in such areas.

TABLE OF CONTENTS:

Massey Ferguson EU Tractor MF7700 Series MF 7715 MF 7716 MF 7718 Dyna-VT Operator’s Manual – PDF DOWNLOAD

1 Safety instructions and safety points – Warranty 9
1 1 Introduction 11
1 1 1 Introduction – Safety instructions 11
1 2 Safety – Symbols and terms 13
1 2 1 Safety – Symbols and terms 13
1 3 Safety decals and instructions 14
1 3 1 Checking and replacing the safety decals and instructions 14
1 3 2 Presentation and location of the safety decals and instructions 15
1 4 General safety instructions 20
1 4 1 Awareness of the safety instructions and symbols 20
1 4 2 Operator familiarity in the use of the tractor 20
1 4 3 Filling the fuel tank 21
1 4 4 Mounting and dismounting the operator’s seat 21
1 4 5 Mandatory procedure before dismounting the tractor 22
1 5 Special instructions 23
1 5 1 Specific recommendations for agricultural and forestry tractors 23
1 6 Special safety instructions for preparing the tractor for use 25
1 6 1 Protective clothing 25
1 6 2 Activated carbon filter information 25
1 6 3 Safety devices and items 27
1 6 4 Checking the tractor 28
1 7 Specific safety instructions for starting the tractor 30
1 7 1 Protection of persons other than the operator 30
1 7 2 Start up safely 30
1 7 3 Checks to be carried out after start-up 31
1 8 Specific safety instructions for using the tractor 32
1 8 1 General instructions 32
1 8 2 Protection of persons other than the operator 33
1 8 3 Overturning 33
1 8 4 Tractor towing 36
1 8 5 Regulatory data on maximum permitted trailed weights 36
1 8 6 Road use 36
1 8 7 Emergency hand brake (on models fitted with the Parklock option) 38
1 8 8 Power take-off 38
1 8 9 Implements 39
1 8 10 Front-end loader 41
1 9 Specific safety instructions for servicing the tractor 43
1 9 1 Pollution warning to observe when servicing the tractor 43
1 9 2 General instructions 43
1 9 3 Handling instructions 44
1 9 4 Special instructions for cleaning the tractor 45
1 10 Protective structures 4 7
1 10 1 Protective structures: use and accreditation 47
1 10 2 ROPS (Roll Over Protective Structure) 47
1 10 3 Cab 47
1 10 4 Seat belt 48
1 10 5 Instructor seat 48
1 11 Warranty 49
1 11 1 General 49
1 11 2 Pre-delivery inspection and commissioning on the user’s premises 49
1 11 3 Warranty procedure 49
1 11 4 Procedure to follow if changing region 49
1 11 5 Servicing during and after the warranty period 50
7700 Dyna-VT-EAME
ACT0009710 – 1
Table of contents MASSEY FERGUSON
2 Maintenance 51
2 1 Service guide 53
2 1 1 Service guide 53
2 2 Cab 56
2 2 1 Air conditioning system: condenser
2 2 2 Air conditioning system: checking the air conditioning system
2 2 3 Cab air filter
2 2 4 Cab attachment
2 2 5 Windscreen washer
Engine
Recommended products 59
Fuel 59
Biodiesel fuel
AdBlue™ or DE F
6-cylinder SisuDiesel engine
Engine oil level check
Draining the engine oil
Replacing the engine oil filter
Draining the AdBlue™ or DE F tank
Replacing the AdBlue™ or DE F filter
Fuel system: fuel prefilter
Fuel system: fuel filter
Checking and cleaning the fuel cooler
Fuel system: Water separator prefilter
Fuel system: bleeding
Fuel system: injection pump, regulator and injectors
Fuel system: T4F SCR engine injection
Air filter
Cooling system 72
Check and replace the main fan/alternator Poly-V belt 74
Check and replace the air conditioning/alternator Poly-V accessories belt 75
Check and replace the air compressor (pneumatic braking) Poly-V
accessories belt 76
Transmission 78
2 4 1 Recommended products 78
2 4 2 Checking the transmission oil level 78
2 4 3 Draining the transmission oil 78
2 4 4 Filtering the transmission hydraulic system 79
2 4 5 Checking the level of the rear final drive units 80
2 4 6 Draining the rear final drives 81
2 4 7 Checking and cleaning the transmission oil cooler 81
2 4 8 Lubricating the rear PTO shaft 82
Brakes 83
2 5 1 Recommended products 83
2 5 2 Checking the regulator filter 83
2 5 3 Bleeding the brake system 83
2 5 4 Compressed air system protection 84
Front power take-off 85
2 6 1 Recommended products 85
2 6 2 Checking and cleaning the oil cooler of the front PTO 85
2 6 3 Draining oil 85
2 6 4 Lubricating the front PTO shaft 86
Rear power take-off (PTO) 87
2 7 1 Lubricating the rear PTO shaft 87
Front axle and steering 88
2 8 1 Recommended products 88
2 8 2 Four-wheel drive front axle: Checking the front axle beam oil level 88
2 8 3 Four-wheel drive front axle: draining the oil from the front axle beam 88
2 8 4 Four-wheel drive front axle: checking the oil level in the final drives 89
2 8 5 Four-wheel drive front axle: draining the oil in the final drives 89
2 8 6 Four-wheel drive front axle: lubrication 90
7700 Dyna-VT-EAME
ACT0009710 – 1
MASSEY FERGUSON Table of contents
2 9 Rear linkage 91
2 9 1 Recommended products 91
2 9 2 Lubricating the linkage shaft 91
2 9 3 Three-point linkage: lubrication 91
2 10 Front linkage 93
2 10 1 Recommended products 93
2 10 2 Front linkage: lubrication 93
2 11 Towing equipment 95
2 11 1 Recommended products 95
2 11 2 Ball hitch: lubrication 95
2 11 3 4-wheel trailer clevis hitch: lubrication 95
2 11 4 Auto-hitch: lubrication 97
2 12 Auxiliary hydraulics 98
2 12 1 Recommended products 98
2 12 2 Checking the auxiliary hydraulic system oil level 98
2 12 3 Draining the auxiliary hydraulic system 99
2 12 4 Filtering the auxiliary hydraulic system 100
2 13 Electrical equipment 102
2 13 1 Batteries 102
2 13 2 Alternator 102
2 13 3 Power socket (ISO) 103
2 13 4 Adjusting the headlights 104
2 13 5 Fuse box description 105
2 13 6 Battery isolator 115
2 14 Pressure washing 116
2 14 1 Pressure washing 116
2 15 Storing your tractor 117
2 15 1 Storing your tractor 117
2 15 2 Storing AdBlue TM or DEF 117
2 16 Faults and solutions 118
2 16 1 General table of faults 118
2 16 2 Indicator light panel 120
2 16 3 Indication of faults 124
2 16 4 Description of error code format 126
2 16 5 Instrument panel error codes 127
2 16 6 SisuDiesel Tier 4f engine error codes 128
2 16 7 Dyna-VT transmission error codes 146
2 16 8 Front axle/differential lock error codes 150
2 16 9 Power take-off error codes for Dyna-VT 150
2 16 10 Error codes for the high-pressure braking 152
2 16 11 Rear linkage error codes 153
2 16 12 Front power lift error codes 154
2 16 13 Arm rest error codes 154
2 16 14 Hydraulic valve error codes 155
2 16 15 Air conditioning error codes 156
2 16 16 Error codes of the keypad in the pillar 159
3 Technical specifications 161
3 1 General specifications 163
3 1 1 Model MF 7715 Dyna-VT 163
3 1 2 Model MF 7716 Dyna-VT 163
3 1 3 Model MF 7718 Dyna-VT 164
3 2 Cab 166
3 2 1 Noise levels (dB(A)) at operator’s ears 166
3 2 2 Level of vibration felt through the seat 166
3 3 Engine 167
3 3 1 Engine specifications 167
3 3 2 Fuel system and air filter 167
3 3 3 Cooling 167
3 3 4 Tightening torques 168
3 4 Transmission 169
3 4 1 Forward speed for all models with transmission in Dyna-VT mode 169
3 4 2 Gearbox
3 4 3 Final drives
3 4 4 Rear differential lock
Brakes
3 5 1 Brake system technical specifications
3 5 2 Regulatory data on maximum permitted trailed weights
Front axle and steering
3 6 1 Four-wheel drive front axle
3 6 2 Steering
Power take-off
3 7 1 Specifications
3 7 2 Tightening torques
Linkage
3 8 1 Rear linkage
Auxiliary hydraulics
3 9 1 Hydraulic system
Electrical equipment
3 10 1 Electrical equipment technical specifications
Wheels and tires
3 11 1 Rim
3 11 2 Tyres
3 11 3 Tightening torques
Capacities and dimensions
3 12 1 Capacities
3 12 2 Dimensions and weights
3 12 3 Attachment points: Dyna-VT models without front linkage
3 12 4 Attachment points: Dyna-VT models with front linkage
4 Accessories 185
8
4 1 Cab 187
4 1 1 Cab accessories 187
4 2 Engine 188
4 2 1 Engine accessories 188
4 3 Power take-off 189
4 3 1 Power take-off accessories 189
4 4 Linkage 190
4 4 1 Linkage accessories 190
4 5 Auxiliary hydraulics 191
4 5 1 Auxiliary hydraulics accessories 191
4 6 Wheels and tyres 192
4 6 1 Wheels and tyres accessories 192

MASSEY FERGUSON EU TRACTOR MF7700 SERIES MF 7715 MF 7716 MF 7718 DYNA-VT OPERATOR’S MANUAL – PDF DOWNLOAD:

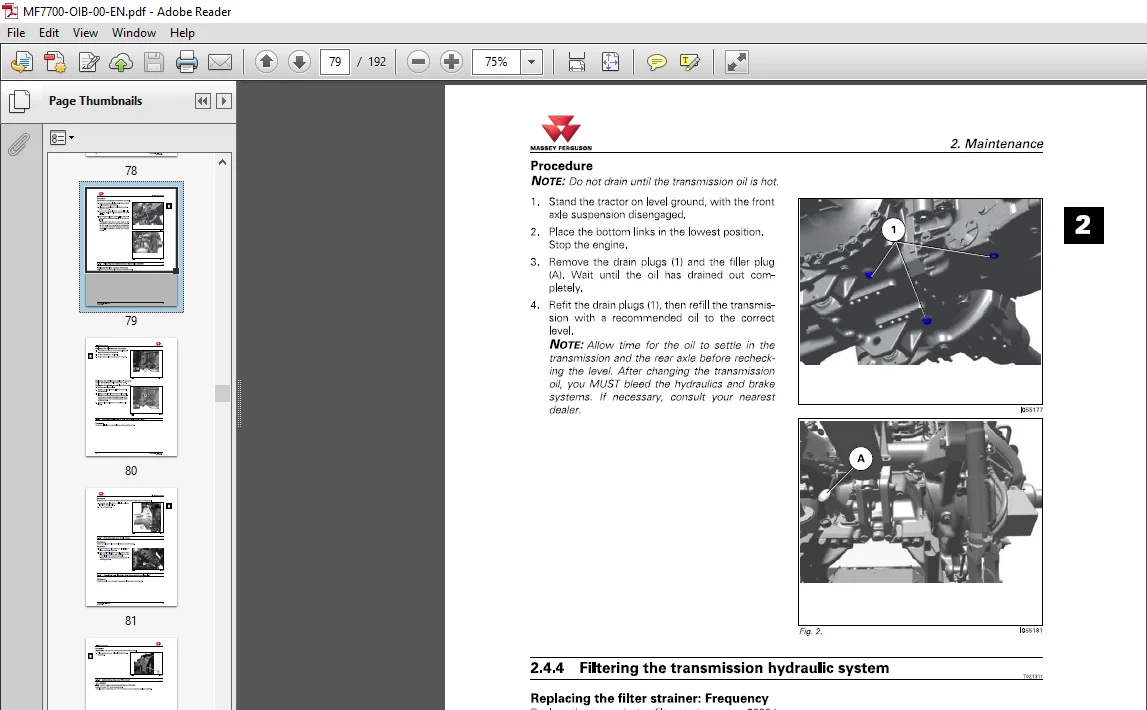

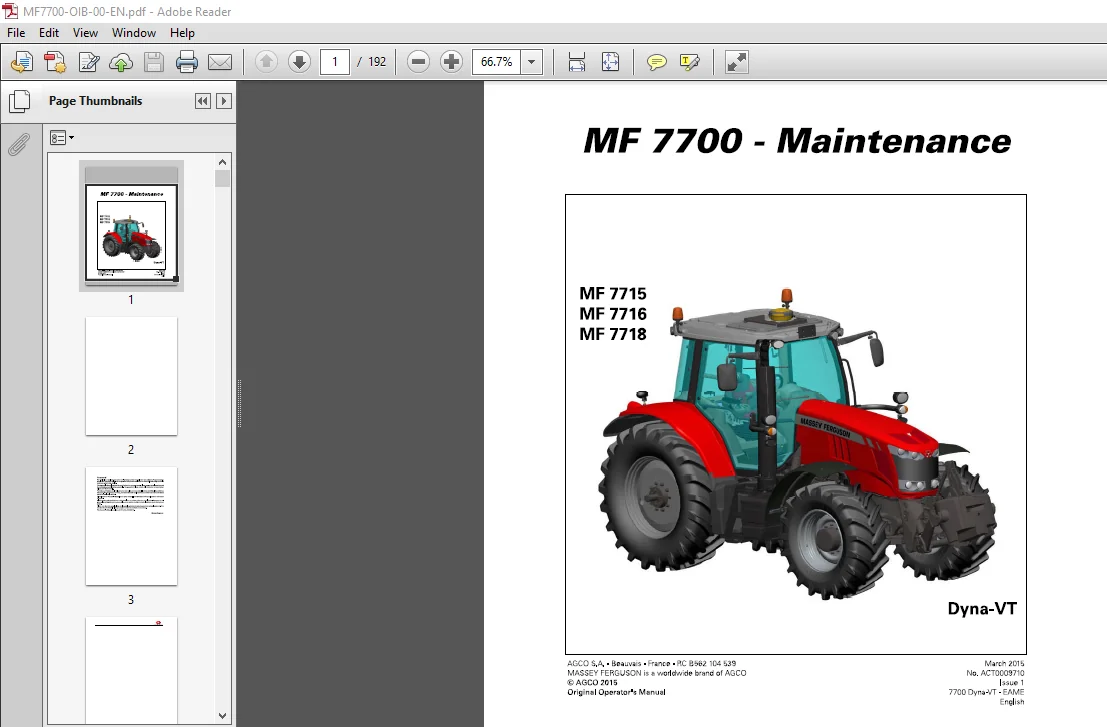

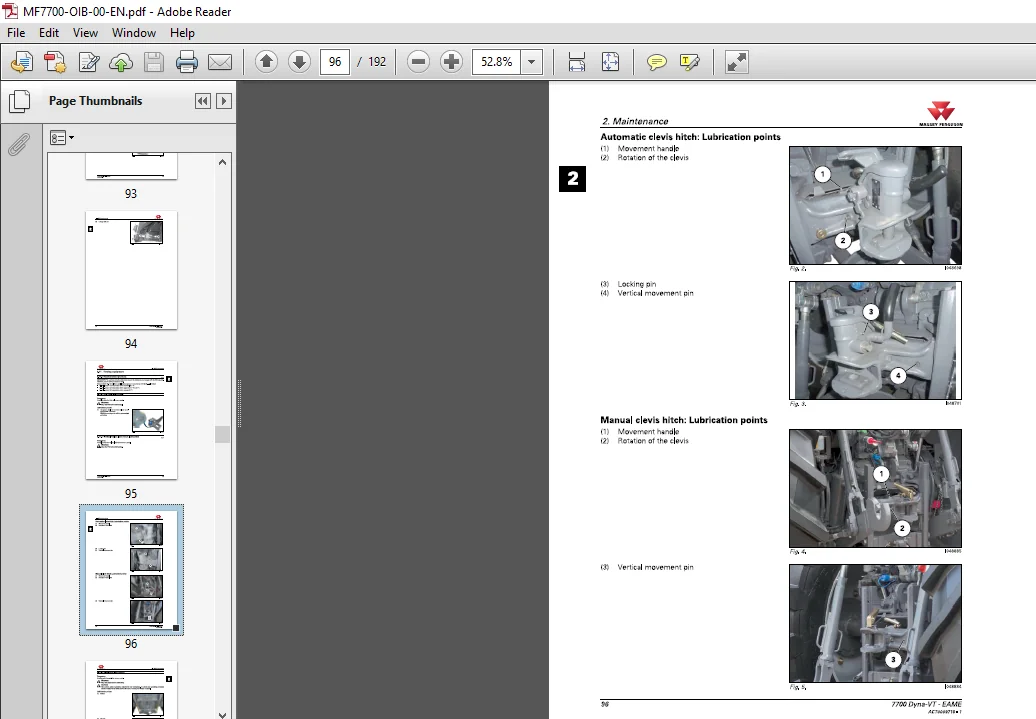

IMAGES PREVIEW OF THE MANUAL:
