DESCRIPTION:

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-6 Operator’s Manual – PDF DOWNLOAD

FOREWORD:

We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully. The pages that follow contain vital information on your tractor; please read them carefully.

• This Operator’s Manual contains the specifications for your new equipment. Please ensure that all operators read the instructions and follow them carefully. This will allow you to benefit from a long service life with complete safety and peace of mind. The pages that follow contain vital information about your new equipment; please read them carefully. Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need.
• When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Your Massey Ferguson dealer will guarantee you all the assistance you need. Please leave this Operator’s Manual in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication.
• However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This Operator’s Manual complies with European Directive 2 00 3/ 3 7 EC which applies to all vehicles with a maximum speed of less than or equal to 4 0 km/h. This Operator’s Manual complies with the German Road Traffic Licensing Regulations (StVZO) Directive which applies to all vehicles with a maximum speed greater than or equal to 4 0 km/h.

Operator’s Manual:

• This Operator‘s Manual is widely published and distributed and the availability of the attachments indicated, whether fitted to the basic tractor or as an accessory, may vary depending on the country or region in which the tractor is used. To find out which attachments are available in a given region, contact a Massey Ferguson dealer. The purpose of this manual is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use.
• Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. Use for any other activity (particularly forestry work) is considered to be contrary to the intended use. The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and service instructions are properly understood.
• Always consult the Massey Ferguson dealer if there is any part of this manual that you do not understand. It is important that these instructions are understood and followed. This manual does not cover all operation and safety instructions relevant to the implements and accessories that may be fitted at the time of tractor delivery or later. It is essential that operators use and understand the Operator’s Manuals relating to these implements and accessories.

TABLE OF CONTENTS:

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-6 Operator’s Manual – PDF DOWNLOAD

1 Safety instructions and safety points – Warranty 11
1 1 Introduction 13
1 1 1 Introduction – Safety instructions 1 3
1 2 Safety – Symbols and terms 15
1 2 1 Safety -Symbols and terms 1 5
1 3 Safety decals and instructions 16
1 3 1 Checking and replacing the safety decals and instructions 1 6

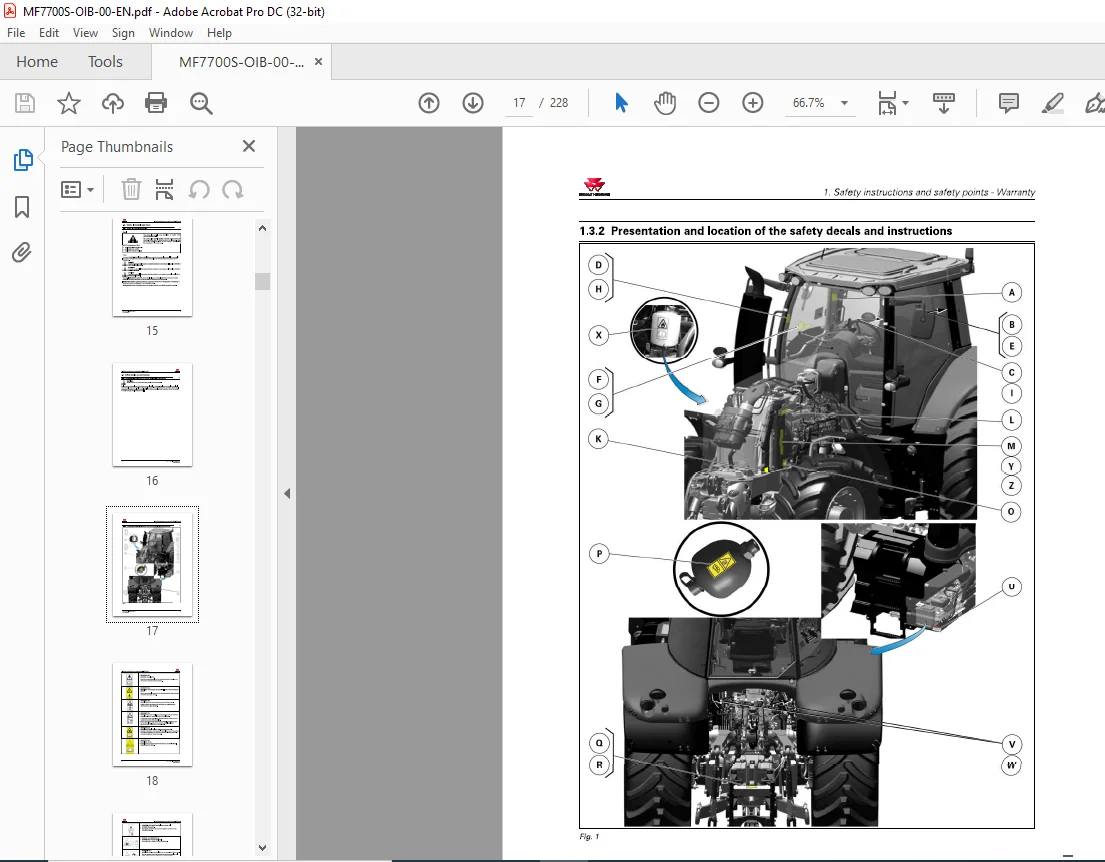

1 3 2 Presentation and location of the safety decals and instructions 1 7
1 4 General safety instructions 21
1 4 1 Awareness of the safety instructions and symbols 2 1
1 4 2 Operator familiarity in the use of the tractor 2 1
1 4 3 Filling the fuel tank 22
1 4 4 Mounting and dismounting the operator’s seat 22
1 4 5 Mandatory procedure before dismounting the tractor 2 3
1 5 Special instructions 24
1 5 1 Specific recommendations for agricultural and forestry tractors 24
1 6 Special safety instructions for preparing the tractor for use 26
1 6 1 Protective clothing 2 6
1 6 2 Activated carbon filter information 2 6
1 6 3 Safety devices and items 2 9
1 6 4 Checking the tractor 2 9
1 7 Specific safety instructions for starting the tractor 31
1 7 1 Protection of persons other than the operator 3 1
1 7 2 Start up safely 3 1
1 7 3 Starting the tractor with jump start cables 32
1 7 4 Checks to be carried out after start-up 3 3
1 8 Specific safety instructions for using the tractor 34
1 8 1 General instructions 34
1 8 2 Protection of persons other than the operator 3 5
1 8 3 Overturning 3 5
1 8 4 Tractor towing 3 8
1 8 5 Regulatory data on maximum permitted trailed weights 3 8
1 8 6 Road use 4 0
1 8 7 Instructions and Legislation for the Towing of Implements 4 1
1 8 8 Parking brake 4 3
1 8 9 Power take-off 4 3
1 8 1 0 Implements 44
1 8 1 1 Front-end loader 4 6
1 9 Specific safety instructions for servicing the tractor 47
1 9 1 Pollution warning to observe when servicing the tractor 4 7
1 9 2 General instructions 4 7
1 9 3 Handling instructions 4 8
1 9 4 Special instructions for cleaning the tractor 50
1 10 Protective structures 51
1 10 1 Protective structures – Use and accreditation 5 1
1 1 0 2 Cab 5 1
1 1 0 3 Seat belt 5 1
1 1 0 4 Instructor seat 52
1 11 Warranty 53
1 1 1 1 General 5 3
MF 7700 S – Maintenance
ACT0032640
Table of contents
1 1 1 2 Pre-delivery inspection and commissioning on the user’s premises 5 3
1 1 1 3 Warranty procedure 5 3
1 1 1 4 Procedure to follow if changing region 5 3
1 1 1 5 S ervicing during and after the warranty period 54
2 Maintenance 55
2 1 Service Guide 59
2 1 1 Service guide 59
2 2 Operator environment 6 3
2 2 1 Air conditioning system: condenser 6 3
2 2 2 Air-conditioning system: Checking the air conditioning system 6 3
2 2 3 Cab air filter 6 3
2 2 3 1 Standard-roof air filter: Procedure 6 3
2 2 3 2 High-visibility-roof air filter: Procedure 64
2 2 4 Cab attachment 64
2 2 5 Windscreen washer 6 5
2 3 Engine 6 6
2 3 1 Recommended products 6 6
2 3 2 Fuel 6 7
2 3 3 Biodiesel fuel 6 8
2 3 4 AdBlue™ or D E F 70
2 3 5 6-cylinder SisuDiesel engine 7 1
2 3 6 Engine oil level check 7 1
2 3 6 1 Procedure 72
2 3 7 Draining the engine oil 72
2 3 8 Replacing the engine oil filter 7 3
2 3 9 Draining the Diesel Exhaust Fluid ( D E F) tank 7 3
2 3 9 1 Procedure 7 3
2 3 1 0 Replacing the Diesel Exhaust Fluid ( D E F) filter 74
2 3 1 0 1 Procedure 74
2 3 1 1 Fuel system: Fuel prefilter 7 7
2 3 1 1 1 Draining the water: Procedure 7 7
2 3 1 1 2 Replacing the filter element: Frequency 7 8
2 3 1 1 3 Replacing the filter element: Procedure 7 8
2 3 1 2 Fuel system: fuel filter 7 8
2 3 1 3 Checking and cleaning the fuel cooler 79
2 3 14 Fuel system: Water separator prefilter 79
2 3 14 1 Procedure for draining the water 80
2 3 14 2 Replacing the filter element: Frequency 80
2 3 14 3 Replacing the filter element: Procedure 80
2 3 1 5 Fuel system: bleeding 80
2 3 1 6 Fuel system: Injector pump, regulator and injectors 8 1
2 3 1 7 Fuel system: 3rd generation T4 F SC R engine injection 8 1
2 3 1 8 Air filter 8 1
2 3 1 8 1 Cleaning and replacement o f the main filter: Procedure 8 1
2 3 1 8 2 Cleaning and replacement o f the secondary filter: Procedure 82
2 3 1 9 Cooling system 8 3
2 3 1 9 1 Checking the level and quality o f the coolant 8 3
2 3 1 9 2 Filling t o top u p the coolant level 8 3
2 3 1 9 3 Draining the cooling system 84
2 3 1 9 4 Cleaning the radiator: Frequency 84
2 3 1 9 5 Procedure for cleaning the radiator 84
2 3 2 0 Check and replace the main fan/alternator Poly-V belt 8 5
2 3 2 0 1 Tension o f the Poly-V main belt 8 5
2 3 2 0 2 Replacing the Poly-V main belt 86
2 3 2 1 Check and replace the air conditioning/alternator Poly-V accessories belt 86
2 3 2 1 1 Tension of the Poly-Vaccessories belt 86
MF 7700 S – Maintenance
ACT0032640
Table of contents
2 3 2 1 2 Replacing the Poly-V accessory belt 87
2 3 22 Check and replace the air compressor (pneumatic braking) Poly-V accessories
belt 87
2 3 22 1 Tension of the Poly-V accessories belt 8 8
2 3 22 2 Replacing the Poly-V accessory belt 8 8
2 4 Transmission 89
2 4 1 Recommended products 89
2 4 2 Checking the transmission oil level 89
2 4 3 Draining the transmission oil 89
2 4 4 Filtering the Closed Center hydraulic system 90
2 4 4 1 Filtering the transmission system 90
2 4 4 2 Replacing the 1 5-micron filter – closed center: Procedure 9 1
2 4 5 Transmission breather 9 1
2 4 6 Checking the level of the rear final drives (depending on model) 9 1
2 4 6 1 Procedure 92
2 4 7 Draining the rear final drives (depending on model) 9 3
2 4 8 PowerShuttle filtration 9 3
2 4 9 Checking and cleaning the transmission oil cooler 94
2 4 1 0 Lubricating the rear axle shaft bearings 9 5
2 4 1 1 Lubricating the rear PTO shaft 9 5
2 5 Brakes 96
2 5 1 Recommended products 96
2 5 2 Checking the regulator filter 96
2 5 3 Bleeding the brake system 96
2 5 4 Compressed air system protection 9 8
2 5 4 1 Procedure 9 8
2 5 5 2 5-micron filtration for the high-pressure braking 9 8
2 6 Front power take-off 99
2 6 1 Recommended products 99
2 6 2 Checking and cleaning the oil cooler of the front PTO 99
2 6 3 Draining oil 99
2 6 3 1 Procedure 99
2 6 4 Lubricating the front PTO shaft 1 00
2 7 Front axle and steering 101
2 7 1 Recommended products 1 0 1
2 7 2 4-wheel drive front axle: Checking the front axle beam oil level 1 0 1
2 7 2 1 Procedure 1 0 1
2 7 3 4-wheel drive front axle: Draining the front axle beam oil 1 0 1
2 7 3 1 Procedure 1 0 1
2 7 4 4-wheel drive front axle: Checking the oil level in the final drives 1 02
2 7 4 1 Procedure 1 02
2 7 5 Draining the oil from the final drives of the 4-wheel drive front axle 1 02
2 7 5 1 Procedure 1 02
2 7 6 Lubrication of the 4-wheel drive front axle 1 0 3
2 8 Rear linkage 105
2 8 1 Recommended products 1 0 5
2 8 2 Lubricating the three-point linkage 1 0 5
2 9 Front linkage 107
2 9 1 Recommended products 1 0 7
2 9 2 Lubricating the front linkage 1 0 7
2 10 Towing equipment 109
2 1 0 1 Recommended products 1 0 9
2 1 0 2 4-wheel trailer clevis hitch: lubrication 1 0 9
2 1 0 3 Auto-hitch: lubrication 1 1 0
2 11 Electrical equipment 112
2 1 1 1 Batteries 1 12
MF 7700 S – Maintenance
ACT0032640
Table of contents
2 11 2 Alternator 112
2 11 3 Power socket (ISO) 113
2 11 4 Adjusting the headlights 114

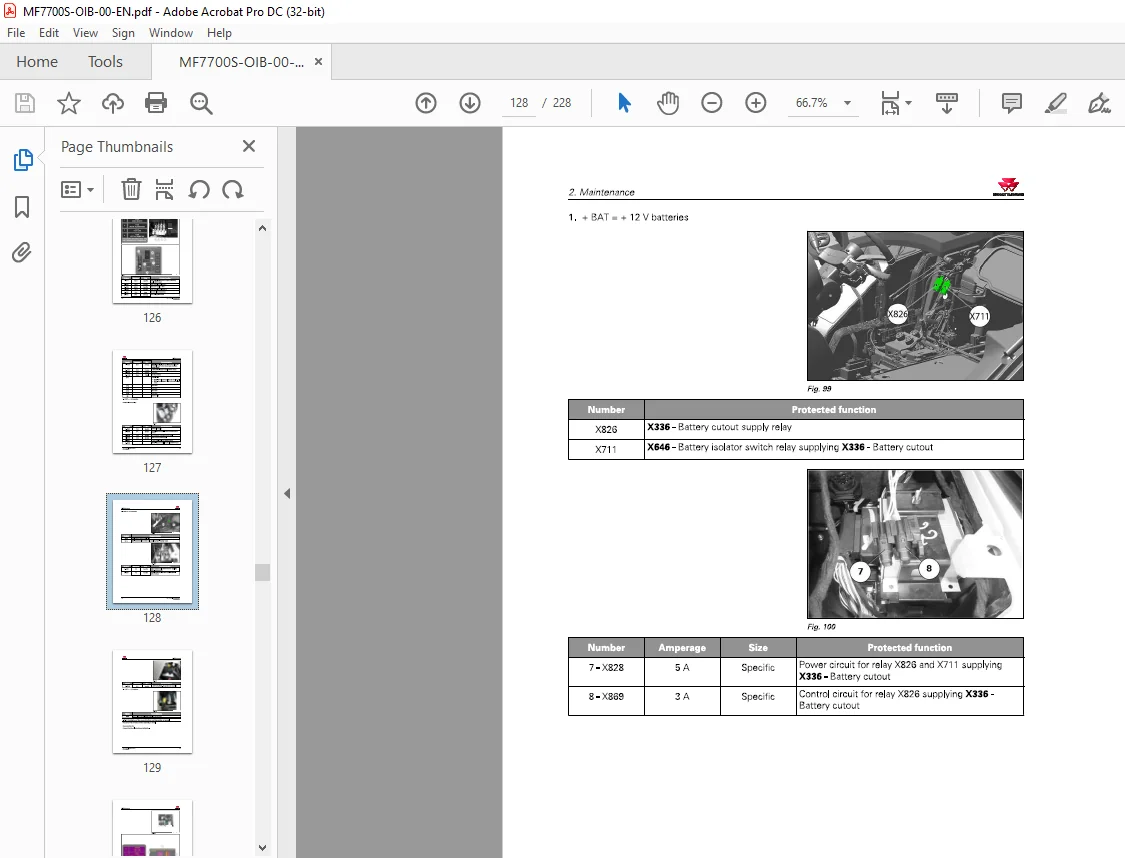

2 11 5 Description of the main fuse box 115
2 11 6 Description of the secondary fuse box (depending on model) 12 5
2 11 7 Description of the secondary fuse box (depending on model) 12 9
2 11 8 Battery isolator 13 3
2 12 Pressure washing 135
2 12 1 Pressure washing 13 5
2 13 Storing your tractor 136
2 13 1 Storing your tractor 13 6
2 13 2 Storing the Diesel Exhaust Fluid (DEF) 13 6
2 14 Faults and solutions 137
2 14 1 General table of faults 13 7
2 14 2 Indicator light panel 140
2 14 3 Indication of faults 14 7
2 14 4 Description of error code format 150
2 14 5 Instrument panel error codes Dyna-4/Dyna-6 15 1
2 14 6 AGCO Power Tier 3/Stage IIIA engine and Tier 4 F/Stage IV SCR Technology
engine error codes 15 3
2 14 7 Transmission error codes Dyna-4/Dyna-6 168
2 14 8 Parklock error codes 170
2 14 9 Front axle error codes for Dyna-4/Dyna-6 171
2 14 10 Power take-off error codes Dyna-4/Dyna-6 171
2 14 11 Error codes for the high-pressure braking 172
2 14 12 Rear linkage error codes 172
2 14 13 Front power lift error codes 174
2 14 14 Armrest error codes 174
2 14 15 Hydraulic valve error codes 175
2 14 16 Air conditioning error codes 177
2 14 17 Error codes of the keypad in the pillar 178
2 14 18 Suspended cab error codes 179
3 Technical specifications 181
3 1 General specifications 183
3 1 1 Model MF 7720 S Dyna-6 183
3 1 2 Model MF 772 2 SDyna-6 184
3 1 3 Model MF 772 4 S Dyna-6 185
3 1 4 Model MF 772 6 S Dyna-6 186
3 2 Operator environment 188
3 2 1 Noise levels (dB(A)) 188
3 2 2 Level of vibration felt through the seat 188
3 3 Engine 189
3 3 1 Engine specifications 189
3 3 2 Fuel system and air filter 190
3 3 3 Cooling 190
3 3 4 Tightening torques 190
3 4 Transmission 191
3 4 1 Forward speed at maximum speed with Dyna-6 40 kph transmission: and 20 8R4 2
tires 191
3 4 2 Forward speed at maximum speed with Dyna-6 50 kph transmission: and 20 8R4 2
tires 192
3 4 3 Forward speed with Dyna-6 transmission, 40 kph and 50 kph with creeper speed
option and 20 8R4 2 tires 194
3 4 4 Forward speed with Dyna-6 transmission, 40 kph and 50 kph, creeper speed
option and 650/85 R3 8 tires 196
3 4 5 Gearbox 196
MF 7700 S – Maintenance
ACT0032640
Table of contents
3 4 6 Final drives 1 9 7
3 4 7 Rear differential lock 1 9 7
3 5 Brakes 198
3 5 1 Brake system technical specifications 1 9 8
3 6 Front axle and steering 199
3 6 1 Four-wheel drive front axle 1 99
3 6 2 Steering 1 99
3 7 Power take-off 200
3 7 1 Specifications 2 00
3 7 2 Tightening torques 2 0 1
3 8 Linkage 202
3 8 1 Front linkage 2 0 2
3 8 2 Rear linkage 2 0 2
3 9 Auxiliary hydraulics 203
3 9 1 Hydraulic system 2 0 3
3 10 Electrical equipment 2 04
3 1 0 1 Electrical equipment technical specifications 2 04
3 1 0 2 Layout of components 2 04
3 11 Wheels and tires 206
3 1 1 1 Rims 2 0 6
3 1 1 2 Tires 2 0 6
3 1 1 3 Tires, front/rear compatibility 2 0 6
3 1 1 4 Tightening torques 2 0 6
3 12 Capacities and dimensions 208
3 1 2 1 Capacities for models with a Tier 4 F/Stage IV SC R Technology engine 2 0 8
3 1 2 2 Dimensions and weights 2 0 9
3 1 2 3 Attachment points: Dyna- 6 models without front linkage 2 1 6
3 1 2 4 Attachment points: Dyna- 6 models with 4 t front linkage ( Imperial: 4 4 US ton) 2 1 7
4 Accessories 219
4 1 Cab 221
4 1 1 Cab accessories 2 2 1
4 2 Engine 222
4 2 1 Engine accessories 2 2 2
4 3 Power take-off 223
4 3 1 Power take-off accessories 2 2 3
4 4 Linkage 224
4 4 1 Linkage accessories 2 24
4 5 Auxiliary hydraulics 225
4 5 1 Auxiliary hydraulics accessories 2 2 5
4 6 Wheels and tires 226
4 6 1 Wheels and tires accessories 2 2 6

MASSEY FERGUSON EU TRACTOR MF7700S SERIES MF7720S MF7722S MF7724S MF7726S DYNA-6 OPERATOR’S MANUAL – PDF DOWNLOAD:

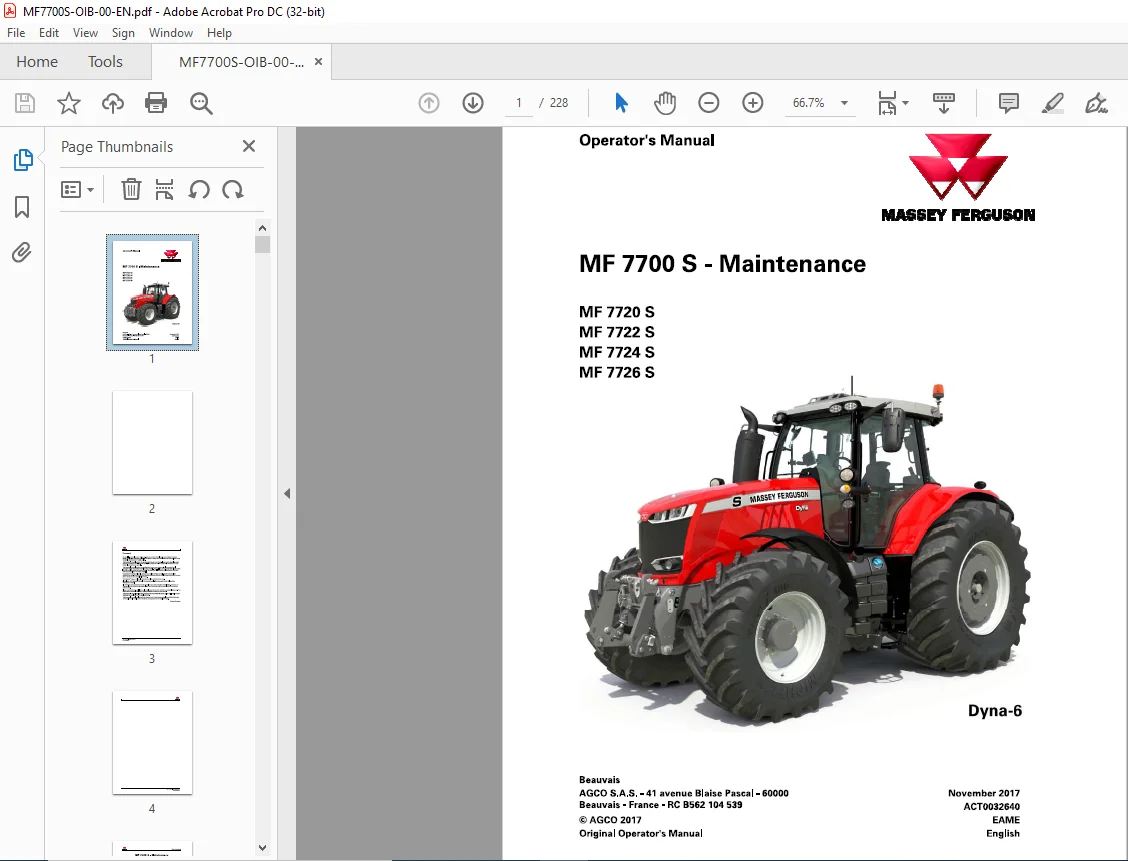

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
