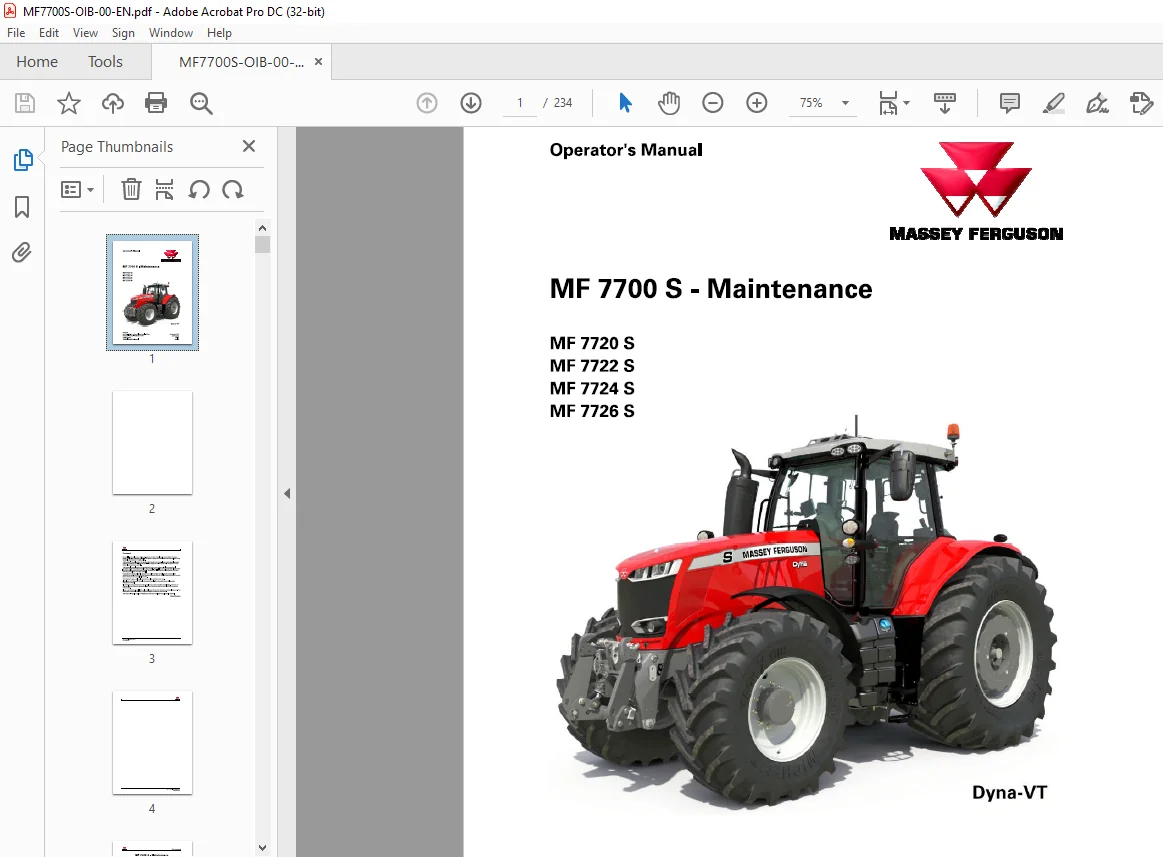

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-VT Operator’s Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-VT Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-VT Operator’s Manual – PDF DOWNLOAD

FOREWORD:

• We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully. The pages that follow contain vital information on your tractor; please read them carefully.
• This Operator’s Manual contains the specifications for your new equipment. Please ensure that all operators read the instructions and follow them carefully. This will allow you to benefit from a long service life with complete safety and peace of mind. The pages that follow contain vital information about your new equipment; please read them carefully. Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need.
• When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Your Massey Ferguson dealer will guarantee you all the assistance you need. Please leave this Operator’s Manual in the tractor if resold. The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication.
• However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This operator’s manual complies with European Commission delegated regulation no. 167/ 2013.

Introduction – Safety instructions

Operator’s Manual:

• The purpose of this manual is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use. Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. Use for any other activity (particularly forestry work) is considered to be contrary to the intended use.
• The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and service instructions are properly understood. Always consult the Massey Ferguson dealer if there is any part of this manual that you do not understand. It is important that these instructions are understood and followed. This manual does not cover all operation and safety instructions relevant to the implements and accessories that may be fitted at the time of tractor delivery or later. it is essential that operators use and understand the Operator’s Manuals relating to these implements and accessories.

MASSEY FERGUSON EU TRACTOR MF7700S SERIES MF7720S MF7722S MF7724S MF7726S DYNA-VT OPERATOR’S MANUAL – PDF DOWNLOAD:

TABLE OF CONTENTS:

Massey Ferguson EU Tractor MF7700S Series MF7720S MF7722S MF7724S MF7726S Dyna-VT Operator’s Manual – PDF DOWNLOAD

1 Safety instructions and safety points – Warranty 11
1 1 Introduction 13
1 1 1 Introduction – Safety instructions 1 3
1 2 Safety – Symbols and terms 15
1 2 1 Safety – Symbols and terms 15
1 3 Safety decals and instructions 16
1 3 1 Checking and replacing the safety decals and instructions 1 6
1 3 2 Presentation and location of the safety decals and instructions 17
1 4 General safety instructions 22
1 4 1 Awareness of the safety instructions and symbols 2 2
1 4 2 Operator familiarity in the use of the tractor 2 2
1 4 3 Filling the fuel tank 2 3
1 4 4 Mounting and dismounting the operator’s seat 2 3
1 4 5 Risk of burns 2 4
1 4 6 Prevention of accidents caused by lightning 2 4
1 4 7 Mandatory procedure before dismounting the tractor 2 4
1 5 Special instructions 26
1 5 1 Specific recommendations for agricultural and forestry tractors 2 6
1 6 Special safety instructions for preparing the tractor for use 28
1 6 1 Protective clothing 2 8
1 6 2 Activated carbon filter information 2 8
1 6 3 Safety devices and items 3 1
1 6 4 Checking the tractor 3 1
1 7 Specific safety instructions for starting the tractor 33
1 7 1 Protection of persons other than the operator 3 3
1 7 2 Start up safely 3 3
1 7 3 Starting the tractor with jump start cables 3 4
1 7 4 Checks to be carried out after start-up 3 5
1 8 Specific safety instructions for using the tractor 36
1 8 1 General instructions 3 6
1 8 2 Protection of persons other than the operator 3 7
1 8 3 Overturning 3 7
1 8 4 Tractor towing 4 0
1 8 5 Regulatory data on maximum permitted trailed weights 4 0
1 8 5 1 Drawbars and towing equipment 4 2
1 8 6 Road use 4 3
1 8 7 Instructions and Legislation for the Towing of Implements 4 5
1 8 8 Emergency hand brake (on models fitted with the Parklock option) 4 6
1 8 9 Power take-off 4 6
1 8 10 Implements 4 7
1 8 11 Front-end loader 4 9
1 9 Specific safety instructions for servicing the tractor 51
1 9 1 Pollution warning to observe when servicing the tractor 5 1
1 9 2 General instructions 5 1
1 9 3 Handling instructions 5 2
1 9 4 Special instructions for cleaning the tractor 5 4
1 10 Protective structures 58
1 10 1 Protective structures – Use and accreditation 5 8
1 10 2 Cab 5 8
1 10 3 Seat belt 5 8
MF 7700 S – Maintenance
ACT0032730
Table of contents
1 10 4 Instructor seat 5 9
1 11 Warranty 60
1 11 1 General 6 0
1 11 2 Pre-delivery inspection and commissioning on the user’s premises 6 0
1 11 3 Warranty procedure 6 0
1 11 4 Procedure to follow if changing region 6 0
1 11 5 Servicing during and after the warranty period 6 1
2 Maintenance 63
2 1 Service Guide 67
2 1 1 Service guide 6 7
2 2 Operator environment 71
2 2 1 Air conditioning system: condenser 71
2 2 2 Air-conditioning system: Checking the air conditioning system 71
2 2 3 Cab air filter 71
2 2 3 1 Standard-roof air filter: Procedure 71
2 2 3 2 High-visibility-roof air filter: Procedure 7 2
2 2 4 Cab attachment 7 2
2 2 5 Windscreen washer 7 3
2 3 Engine 74
2 3 1 Recommended products 7 4
2 3 2 Fuel 7 5
2 3 3 Biodiesel fuel 7 6
2 3 4 AdBlue™ o r D E F 7 8
2 3 5 6-cylinder SisuDiesel engine 7 9
2 3 6 Engine oil level check 7 9
2 3 6 1 Procedure 8 0
2 3 7 Draining the engine oil 8 0
2 3 8 Replacing the engine oil filter 8 1
2 3 9 Draining the Diesel Exhaust Fluid ( D E F) tank 8 1
2 3 9 1 Procedure 8 1

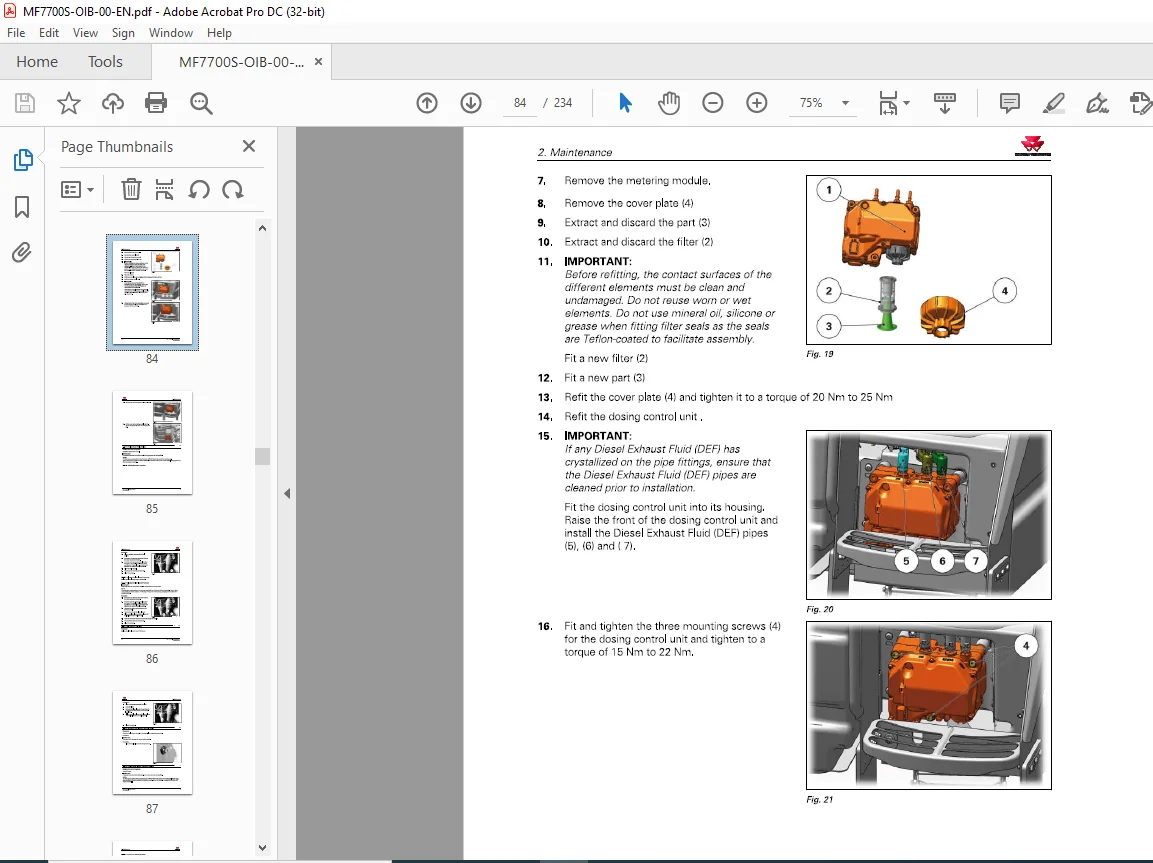

2 3 1 0 Replacing the Diesel Exhaust Fluid ( D E F) filter 8 2
2 3 10 1 Procedure 8 2
2 3 11 Fuel system: Fuel prefilter 8 5
2 3 11 1 Draining the water: Procedure 8 5
2 3 11 2 Replacing the filter element: Frequency 8 6
2 3 11 3 Replacing the filter element: Procedure 8 6
2 3 1 2 Fuel system: fuel filter 8 6
2 3 1 3 Checking and cleaning the fuel cooler 8 7
2 3 1 4 Fuel system: Water separator prefilter 8 7
2 3 1 4 1 Procedure for draining the water 8 8
2 3 1 4 2 Replacing the filter element: Frequency 8 8
2 3 1 4 3 Replacing the filter element: Procedure 8 8
2 3 15 Fuel system: bleeding 8 8
2 3 16 Fuel system: Injector pump, regulator and injectors 8 9
2 3 1 7 Fuel system: 3rd generation T 4 F SCR engine injection 8 9
2 3 1 8 Air filter 8 9
2 3 1 8 1 Cleaning and replacement of the main filter: Procedure 8 9
2 3 1 8 2 Cleaning and replacement of the secondary filter: Procedure 90
2 3 1 9 Cooling system 91
2 3 1 9 1 Checking the level and quality of the coolant 91
2 3 1 9 2 Filling to top up the coolant level 91
2 3 1 9 3 Draining the cooling system 9 2
2 3 1 9 4 Cleaning the radiator: Frequency 9 2
2 3 1 9 5 Procedure for cleaning the radiator 9 2
2 3 2 0 Check and replace the main fan/alternator Poly-V belt 93
2 3 2 0 1 Tension of the Poly-V main belt 93
MF 7700 S – Maintenance
ACT0032730
Table of contents
2 3 2 0 2 Replacing the Poly-V main belt 94
2 3 2 1 Check and replace the air conditioning/alternator Poly-V accessories belt 94
2 3 2 1 1 Tension of the Poly-V accessories belt 94
2 3 2 1 2 Replacing the Poly-V accessory belt 95
2 3 2 2 Check and replace the air compressor (pneumatic braking) Poly-V accessories
belt 95
2 3 2 2 1 Tension of the Poly-V accessories belt 96
2 3 2 2 2 Replacing the Poly-V accessory belt 96
2 4 Transmission 97
2 4 1 Recommended products 9 7
2 4 2 Checking the transmission oil level 9 7
2 4 2 1 Procedure 9 7
2 4 3 Draining the transmission oil 9 7
2 4 3 1 Procedure 9 7
2 4 4 Filtering the transmission hydraulic system 9 8
2 4 4 1 Procedure for replacing the filter strainer 9 8
2 4 4 2 Replacing the high-pressure filter: Frequency 9 8
2 4 4 3 Procedure for replacing the high-pressure filter 9 9
2 4 5 Checking the level o f the rear final drive units 9 9
2 4 5 1 Procedure 9 9
2 4 6 Draining the rear final drives 9 9
2 4 6 1 Procedure 9 9
2 4 7 Checking and cleaning the transmission oil cooler 1 0 0
2 4 8 Lubricating the rear PTO shaft 1 0 0
2 5 Auxiliary hydraulics 101
2 5 1 Recommended products 1 0 1
2 5 2 Checking the auxiliary hydraulic system oil level 1 0 1
2 5 2 1 Procedure 1 0 1
2 5 3 Draining the auxiliary hydraulic system 10 2
2 5 3 1 Procedure 10 2
2 5 4 Filtering the auxiliary hydraulic system 10 3
2 5 4 1 Replacing the 15-micron return filter: Frequency 10 3
2 5 4 2 Replacing the 15-micron return filter: Procedure 10 3
2 5 4 3 Replacing the breather: Frequency 1 0 4
2 5 4 4 Replacing the breather: Procedure 1 0 4
2 6 Brakes 105
2 6 1 Recommended products 105
2 6 2 Checking the regulator filter 1 0 5

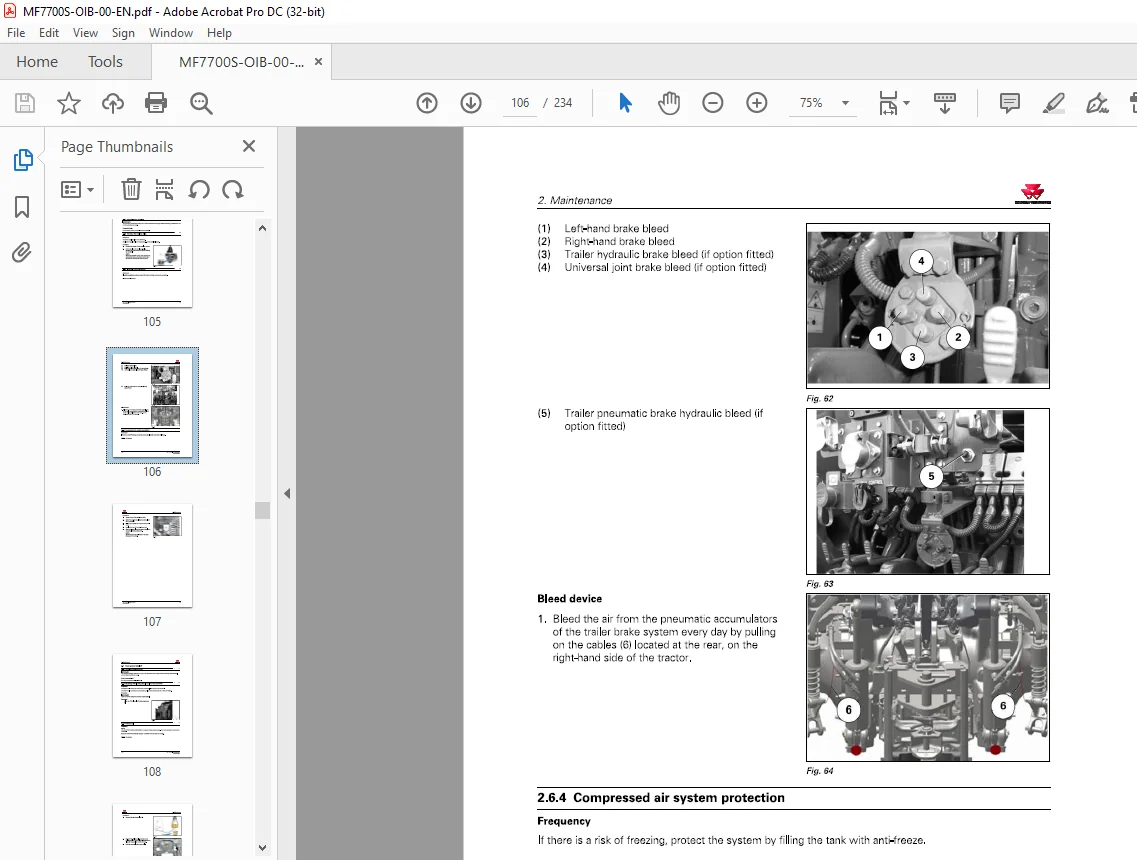

2 6 3 Bleeding the brake system 1 0 5
2 6 4 Compressed air system protection 1 0 6
2 6 4 1 Procedure 1 0 6
2 7 Front power take-off 108
2 7 1 Recommended products 1 0 8
2 7 2 Checking and cleaning the oil cooler of the front PTO 1 0 8
2 7 3 Draining oil 1 0 8
2 7 3 1 Procedure 1 0 8
2 7 4 Lubricating the front PTO shaft 1 0 9
2 8 Front axle and steering 1 1 o
2 8 1 Recommended products 110
2 8 2 4-wheel drive front axle: Checking the front axle beam oil level 110
2 8 2 1 Procedure 110
2 8 3 4-wheel drive front axle: Draining the front axle beam oil 110
2 8 3 1 Procedure 110
2 8 4 4-wheel drive front axle: Checking the oil level in the final drives 111
2 8 4 1 Procedure 111
2 8 5 Draining the oil from the final drives of the 4-wheel drive front axle 111
2 8 5 1 Procedure 111
MF 7700 S – Maintenance
ACT0032730
Table of contents
2 8 6 Lubrication of the 4-wheel drive front axle 112
2 9 Rear linkage 113
2 9 1 Recommended products 113
2 9 2 Lubricating the linkage shaft 113
2 9 2 1 Procedure 113
2 9 3 Lubricating the three-point linkage 113
2 10 Front linkage 116
2 10 1 Recommended products 116
2 10 2 Lubricating the front linkage 116
2 11 Towing equipment 118
2 11 1 Recommended products 118
2 11 2 Ball hitch: lubrication 118
2 11 3 4-wheel trailer clevis hitch: lubrication 118
2 11 4 Auto-hitch: lubrication 12 0
2 12 Electrical equipment 122
2 12 1 Batteries 12 2
2 12 2 Alternator 12 2
2 12 3 Power socket ( ISO) 12 3
2 12 4 Adjusting the headlights 12 4
2 12 5 Description of the main fuse box 12 5
2 12 6 Description of the secondary fuse box (depending on model) 1 3 5
2 12 7 Description of the secondary fuse box (depending on model) 1 3 9
2 12 8 Battery isolator 1 4 3
2 13 Pressure washing 145
2 1 3 1 Pressure washing 1 4 5
2 14 Storing your tractor 146
2 1 4 1 Storing your tractor 1 4 6
2 1 4 2 Storing the Diesel Exhaust Fluid (DEF) 1 4 6
2 15 Faults and solutions 147
2 15 1 General table of faults 1 4 7
2 15 2 Indicator light panel 15 0
2 15 3 Indication of faults 15 8
2 15 4 Description of error code format 1 6 1
2 15 5 Instrument panel error codes Dyna-VT 162
2 15 6 AGCO Power Tier 3/Stage I I IA engine and Tier 4 F/Stage IV S C R Technology
engine error codes 16 4
2 15 7 Dyna-VT transmission error codes 1 7 9
2 15 8 ParkLock error codes 1 8 3
2 15 9 Front axle error codes Dyna-VT 1 8 4
2 15 10 Rear power take-off error codes Dyna-VT 1 8 4
2 15 11 Error codes for the high-pressure braking 1 8 6
2 15 12 Rear linkage error codes 1 87
2 15 1 3 Front power lift error codes 1 8 8
2 15 14 Armrest error codes 18 8
2 15 15 Hydraulic valve error codes 1 90
2 15 16 Air conditioning error codes 1 91
2 15 1 7 Error codes of the keypad in the pillar 1 93
2 15 1 8 Suspended cab error codes 1 93
3 Technical specifications 195
3 1 General specifications 197
3 1 1 Model MF 7 7 2 0 S Dyna-VT 197
3 1 2 Model MF 7 7 2 2 S Dyna-VT 1 98
3 1 3 Model MF 7 7 2 4 S Dyna-VT 199
3 1 4 Model M F 7 7 2 6 S Dyna-VT 2 0 0
3 2 Operator environment 202
MF 7700 S – Maintenance
ACT0032730
Table of contents
3 2 1 Noise levels (dB(A)) 2 02
3 2 2 Level of vibration felt through the seat 2 02
3 3 Engine 203
3 3 1 Engine specifications 2 03
3 3 2 Fuel system and air filter 2 04
3 3 3 Cooling 2 04
3 3 4 Tightening torques 2 04
3 4 Transmission 205
3 4 1 Forward speed for all models with Dyna-VT transmission 2 05
3 4 2 Gearbox 2 05
3 4 3 Final drives 2 05
3 4 4 Rear differential lock 2 05
3 5 Brakes 206
3 5 1 Brake system technical specifications 2 06
3 6 Front axle and steering 207
3 6 1 Four-wheel drive front axle 2 07
3 6 2 Steering 2 07
3 7 Power take-off 208
3 7 1 Specifications 2 08
3 7 2 Tightening torques 2 09
3 8 Linkage 210
3 8 1 Front linkage 2 1 0
3 8 2 Rear linkage 2 1 0
3 9 Auxiliary hydraulics 211
3 9 1 Hydraulic system 2 11
3 10 Electrical equipment 212
3 1 0 1 Electrical equipment technical specifications 2 12
3 1 0 2 Layout of components 2 12
3 11 Wheels and tires 214
3 11 1 Rims 2 14
3 11 2 Tires 2 14
3 11 3 Tires, front/rear compatibility 2 14
3 11 4 Tightening torques 2 14
3 12 Capacities and dimensions 216
3 12 1 Capacities for models with a Tier 4 F/Stage IV SC R Technology engine 2 16
3 12 2 Dimensions and weights 2 1 7
3 12 3 Attachment points: Dyna-VT models without front linkage 2 2 1
3 12 4 Attachment points: Dyna-VT models with 4 t front linkage ( Imperial: 4 4 US ton) 2 2 2
4 Accessories 225
4 1 Cab 227
4 1 1 Cab accessories 2 2 7
4 2 Engine 228
4 2 1 Engine accessories 2 2 8
4 3 Power take-off 229
4 3 1 Power take-off accessories 2 2 9
4 4 Linkage 230
4 4 1 Linkage accessories 2 3 0
4 5 Auxiliary hydraulics 231
4 5 1 Auxiliary hydraulics accessories 2 3 1
4 6 Wheels and tires 232
4 6 1 Wheels and tires accessories 2 3 2

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
