DESCRIPTION:

Massey Ferguson MF 6700 S Series 6712S 6713S 6714S 6715S 6716S 6718S Dyna-4 Dyna-6 Operator’s Manual – PDF DOWNLOAD

MF 6700 S – Maintenance
MF 6712 S
MF 6713 S
MF 6714 S
MF 6715 S
MF 6716 S
MF 6718 S
Dyna-4 – Dyna-6
Part. No : ACT0038530

FOREWORD:

We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator’s Manual contains the specifications for your new tractor. Please ensure that all operators read the instructions and follow them carefully.

• The pages that follow contain vital information on your tractor; please read them carefully. This Operator’s Manual contains the specifications for your new equipment. Please ensure that all operators read the instructions and follow them carefully. This will allow you to benefit from a long service life with complete safety and peace of mind. The pages that follow contain vital information about your new equipment; please read them carefully.
• Your Massey Ferguson dealer will guarantee you quality servicing and will provide you with all the assistance you need. When it comes to servicing, remember that your dealer knows your tractor best and that he wants you to be completely satisfied. Your Massey Ferguson dealer will guarantee you all the assistance you need. Please leave this Operator’s Manual in the tractor if resold.
• The subsequent owner will need the information it contains. All information and specifications in this manual are up to date at the time of publication. However, our ongoing policy to improve our products obliges us to reserve the right to make alterations at any time without notice. Please note that this manual relates to all models and refers to both standard and optional equipment. You may therefore find details relating to equipment that is not fitted on your tractor. This operator’s manual complies with European Commission delegated regulation no. 167/ 2 013.

Operator’s Manual :

The purpose of this manual is to enable the owner and the operator to operate the tractor appropriately under normal conditions of use. Providing they follow the instructions carefully, the tractor will give many years of service in the Massey Ferguson tradition. Use for any other activity (particularly forestry work) is considered to be contrary to the intended use.

• The commissioning of equipment by the Massey Ferguson dealer on the user’s premises enables the dealer to ensure that these operating and service instructions are properly understood. Always consult the Massey Ferguson dealer if there is any part of this manual that you do not understand. It is important that these instructions are understood and followed.
• This manual does not cover all operation and safety instructions relevant to the implements and accessories that may be fitted at the time of tractor delivery or later. It is essential that operators use and understand the Operator’s Manuals relating to these implements and accessories. This chapter in the Operator’s Manual highlights certain basic safety-related situations that may be encountered during normal operation and servicing of the tractor and provides the information needed to handle these situations.
• This chapter supplements any safety instructions given in other chapters of this manual. It may be necessary to take additional precautions, depending on the implements and accessories used and the working conditions on-site or in the service area. Massey Ferguson can under no circumstances exercise direct control over the commissioning, operation, inspection, lubrication, or servicing of the tractor. It is therefore YOUR responsibility to take suitable safety precautions in such areas.

TABLE OF CONTENTS:

Massey Ferguson MF 6700 S Series 6712S 6713S 6714S 6715S 6716S 6718S Dyna-4 Dyna-6 Operator’s Manual – PDF DOWNLOAD

1 Tractor identification 11
1 1 Locating serial numbers 13
1 1 1 Locating serial numbers 1 3
1 2 Your tractor identification details 15
1 2 1 Your tractor identification details 15
2 Safety instructions and safety points – Warranty 17
2 1 Introduction 19
2 1 1 Introduction – Safety instructions 1 9
2 2 Safety – Symbols and terms 21
2 2 1 Safety- Symbols and terms 2 1
2 3 Safety decals and instructions 22
2 3 1 Checking and replacing the safety decals and instructions 2 2
2 3 2 Presentation and location of the safety decals and instructions 2 3
2 4 General safety instructions 28
2 4 1 Awareness of the safety instructions and symbols 2 8
2 4 2 Operator familiarity in the use of the tractor 2 8
2 4 3 Filling the fuel tank 2 9
2 4 4 Mounting and dismounting the operator’s seat 2 9
2 4 5 Risk of burns 3 0
2 4 6 Prevention of accidents caused by lightning 3 0
2 4 7 Mandatory procedure before dismounting the tractor 3 0
2 5 Special instructions 32
2 5 1 Specific recommendations for agricultural and forestry tractors 3 2
2 6 Special safety instructions for preparing the tractor for use 34
2 6 1 Protective clothing 3 4
2 6 2 Activated carbon filter information 3 4
2 6 3 Safety devices and items 3 7
2 6 4 Checking the tractor 3 7
2 7 Specific safety instructions for starting the tractor 39
2 7 1 Protection of persons other than the operator 3 9
2 7 2 Start up safely 3 9
2 7 3 Starting the tractor with jump start cables 4 0
2 7 4 Checks to be carried out after start-up 4 1
2 8 Specific safety instructions for using the tractor 42
2 8 1 General instructions 4 2
2 8 2 Protection of persons other than the operator 4 3
2 8 3 Overturning 4 3
2 8 4 Tractor towing 4 6
2 8 5 Regulatory data on maximum permitted trailed weights 4 6
2 8 5 1 Drawbars and towing equipment 4 8
2 8 6 Road use 5 2
2 8 7 Instructions and Legislation for the Towing of Implements 5 3
2 8 8 Power take-off 5 4
2 8 9 Implements 5 5
2 8 1 0 Front-end loader 5 7
2 9 Specific safety instructions for servicing the tractor 59
2 9 1 Pollution warning to observe when servicing the tractor 5 9
2 9 2 General instructions 5 9
2 9 3 Handling instructions 60
MF 6700 S – Maintenance
ACT0038530
Table of contents
2 9 4 Special instructions for cleaning the tractor 62
2 10 Protective structures 66
2 1 0 1 Protective structures – Use and accreditation 66
2 1 0 2 Cab 66
2 1 0 3 Seat belt 66
2 1 0 4 Instructor seat 67
2 11 Warranty 68
2 1 1 1 General 68
2 1 1 2 Pre-delivery inspection and commissioning on the user’s premises 68
2 1 1 3 Warranty procedure 6 8
2 1 1 4 Procedure to follow if changing region 68
2 1 1 5 Servicing during and after the warranty period 69
3 Maintenance 71
3 1 Service Guide 75
3 1 1 Service Guide 75
3 2 Operator environment 79
3 2 1 Air conditioning system: condenser 79
3 2 2 Air-conditioning system: Checking the air conditioning system 79
3 2 3 Cab air filter 79
3 2 3 1 Standard-roof air filter: Procedure 79
3 2 3 2 High-visibility-roof air filter: Procedure 8 0
3 2 4 Cab attachment 8 0
3 2 5 Windscreen washer 8 1
3 3 Engine 82
3 3 1 Recommended products 82
3 3 2 Fuel 8 3
3 3 3 Biodiesel fuel 8 4
3 3 4 AdBlue™ or D E F 8 6
3 3 5 4-cylinder AGCO POWER engine 8 7
3 3 6 Engine oil level check 8 7
3 3 6 1 Procedure 8 7
3 3 7 Draining the engine oil 8 8
3 3 8 Replacing the engine oil filter 8 9
3 3 9 Draining the Diesel Exhaust Fluid (DEF) tank 8 9
3 3 9 1 Procedure 8 9
3 3 1 0 Replacing the Diesel Exhaust Fluid (DEF) filter 9 0
3 3 1 0 1 Procedure 9 0
3 3 1 1 Fuel system: Fuel prefilter 9 3
3 3 1 1 1 Draining the water: Procedure 9 3
3 3 1 1 2 Replacing the filter element: Frequency 9 3
3 3 1 1 3 Replacing the filter element: Procedure 94
3 3 12 Fuel system: fuel filter 94
3 3 1 3 Checking and cleaning the fuel cooler 94
3 3 14 Fuel system: Water separator prefilter 95
3 3 14 1 Procedure for draining the water 95
3 3 14 2 Replacing the filter element: Frequency 95
3 3 14 3 Replacing the filter element: Procedure 96
3 3 15 Fuel system: bleeding 96
3 3 16 Fuel system: Injector pump, regulator and injectors 96
3 3 17 Fuel system: 3rd generation T 4 F SCR engine injection 96
3 3 18 Fuel system: fuel tank 97
3 3 1 9 Air filter 97
3 3 1 9 1 Cleaning and replacement of the main filter: Procedure 97
3 3 1 9 2 Cleaning and replacement of the secondary filter: Procedure 98
3 3 2 0 Cooling system 98
3 3 2 0 1 Checking the level and quality of the coolant 99
MF 6700 S – Maintenance
ACT0038530
Table of contents
3 3 2 0 2 Filling to top up the coolant level 99
3 3 2 0 3 Draining the cooling system 99
3 3 2 0 4 Cleaning the radiator: Frequency 1 0 0
3 3 2 0 5 Procedure for cleaning the radiator 1 00
3 3 2 1 Check and replace the main fan/alternator Poly-V belt 1 01
3 3 2 1 1 Tension of the Poly-V main belt 1 01
3 3 2 1 2 Replacing the Poly-V main belt 1 02
3 3 2 2 Check and replace the air conditioning/alternator Poly-V accessories belt 1 02
3 3 2 2 1 Tension of the Poly-V accessories belt 1 02
3 3 2 2 2 Replacing the Poly-V accessory belt 1 03
3 3 2 3 Check and replace the air compressor (pneumatic braking) Poly-V accessories
belt 1 03
3 3 2 3 1 Tension of the Poly-V accessories belt 1 04
3 3 2 3 2 Replacing the Poly-V accessory belt 1 04
3 4 Transmission and Hydraulics 105
3 4 1 Recommended products 1 05
3 4 2 Checking the transmission oil level 1 05
3 4 3 Draining the transmission oil 1 06
3 4 4 Filtering the Open Center hydraulic system 1 07
3 4 4 1 Changing the 15 0-micron suction strainer – open center: Procedure 1 07
3 4 4 2 Replacing the 15-micron filter – open center: Procedure 1 07
3 4 5 Filtering the Closed Center hydraulic system 1 08
3 4 5 1 Changing the 15 0-micron suction strainer – closed center: Procedure 1 08
3 4 5 2 Replacing the 15-micron filter – closed center: Procedure 1 08
3 4 6 Filtering the transmission system 1 08
3 4 7 Transmission breather 1 09
3 4 8 PowerShuttle filtration 1 09
3 4 9 25-micron filtration for the high-pressure braking 1 1 0
3 4 1 0 Checking and cleaning the transmission oil cooler 1 1 0
3 4 1 1 Lubricating the rear axle shaft bearings 1 1 1
3 4 12 Lubricating the rear PTO shaft 1 1 1
3 5 Brakes 112
3 5 1 Recommended products 1 1 2
3 5 2 Checking the regulator filter 1 1 2
3 5 3 Bleeding the brake system 1 1 2
3 5 4 Compressed air system protection 1 1 3
3 6 Front power take-off 114
3 6 1 Recommended products 1 14
3 6 2 Checking and cleaning the oil cooler of the front PTO 1 14
3 6 3 Draining oil 1 14
3 6 3 1 Procedure 1 14
3 6 4 Lubricating the front PTO shaft 1 15
3 7 Rear power take-off 116
3 7 1 Lubricating the rear PTO shaft 1 16
3 8 Front axle and steering 117
3 8 1 Recommended products 1 17
3 8 2 4 -wheel drive front axle: Checking the front axle beam oil level 1 17
3 8 2 1 Procedure 1 17
3 8 3 4-wheel drive front axle: Draining the front axle beam oil 1 17
3 8 3 1 Procedure 1 17
3 8 4 4-wheel drive front axle: Checking the oil level in the final drives 1 18
3 8 4 1 Procedure 1 18
3 8 5 Draining the oil from the final drives of the 4 -wheel drive front axle 1 18
3 8 5 1 Procedure 1 18
3 8 6 Lubrication of the 4 -wheel drive front axle 1 1 9
3 9 Linkage 121
3 9 1 Recommended products 12 1
MF 6700 S – Maintenance
ACT0038530
Table of contents
3 9 2 Lubricating the linkage shaft 12 1
3 9 2 1 Procedure 12 1
3 9 3 Lubricating the three-point linkage 12 1
3 10 Front linkage 124
3 1 0 1 Recommended products 124
3 1 0 2 Lubricating the front linkage 124
3 11 Towing equipment 126
3 1 1 1 Recommended products 126
3 1 1 2 4-wheel trailer clevis hitch: lubrication 126
3 1 1 3 Auto-hitch: lubrication 12 7
3 12 Electrical equipment 129
3 12 1 Batteries 12 9
3 12 2 Alternator 12 9
3 12 3 Power socket (ISO) 1 30
3 12 4 Adjusting the headlights 1 3 1
3 12 5 Description of the main fuse box 1 3 2
3 12 6 Description of the secondary fuse box (depending on model) 14 2
3 12 7 Description of additional fuses/relays specific to the panoramic cab 14 6
3 12 8 Battery isolator 14 8
3 13 Pressure washing 150
3 1 3 1 Pressure washing 150
3 14 Storing your tractor 151
3 14 1 Storing your tractor 15 1
3 14 2 Storing the Diesel Exhaust Fluid (DEF) 15 1
3 15 Faults and solutions 152
3 15 1 General table of faults 15 2
3 15 2 Indicator light panel 15 5
3 15 3 Indication of faults 161
3 15 4 Description of error code format 164
3 15 5 Instrument panel error codes Dyna- 4 /Dyna- 6 165
3 15 6 AGCO Power Tier 3/Stage IIIA engine and Tier 4 F/Stage IV SCR Technology
engine error codes 166
3 15 7 Transmission error codes Dyna- 4 /Dyna- 6 18 2
3 15 8 Front axle error codes for Dyna- 4 /Dyna- 6 18 4
3 15 9 Power take-off error codes Dyna- 4 /Dyna- 6 18 4
3 15 1 0 Error codes for the high-pressure braking 18 5
3 15 1 1 Rear linkage error codes 18 5
3 15 12 Front power lift error codes 18 7
3 15 1 3 Armrest error codes 18 7
3 15 14 Hydraulic valve error codes 18 8
3 15 15 Air conditioning error codes 1 90
3 15 16 Error codes of the keypad in the pillar 1 9 1
3 15 1 7 Suspended cab error codes 1 92
4 Technical specifications 195
4 1 General specifications 197
4 1 1 Model MF 6712 S Dyna- 4 1 9 7
4 1 2 Model M F 6713 S Dyna- 4 198
4 1 3 Model MF 6714 S Dyna- 4 199
4 1 4 Model MF 6715 S Dyna- 4 2 00
4 1 5 Model MF 6713 S Dyna- 6 2 01
4 1 6 Model MF 6714 S Dyna- 6 2 02
4 1 7 Model MF 6715 S Dyna- 6 2 04
4 1 8 Model MF 6716 S Dyna- 6 2 05
4 1 9 Model MF 6718 S Dyna- 6 2 06
4 2 Operator environment 208
MF 6700 S – Maintenance
ACT0038530
Table of contents
4 2 1 Noise levels (dB(A)) at operator’s ears 20 8
4 2 2 Level of vibration felt through the seat 20 8
4 3 Engine 209
4 3 1 Engine specifications 20 9
4 3 2 Fuel system and air filter 2 10
4 3 3 Cooling 2 1 1
4 3 4 Tightening torques 2 1 1
4 4 Transmission 212
4 4 1 Forward speed with Dyna- 4 4 0 kph transmission and 18 4 R 3 8 tires 2 12
4 4 2 Forward speed with Dyna- 4 40 kph transmission and 20 8R 3 8 tires 2 12
4 4 3 Forward speed with Dyna-6 40 kph ECO transmission and 20 8R 3 8 tires 2 14
4 4 4 Forward speed with Dyna-6 50 kph transmission and 20 8R 3 8 tires 2 15
4 4 5 Gearbox 2 17
4 4 6 Gearbox 2 18
4 4 7 Final drives 2 18
4 4 8 Rear differential lock 2 18
4 5 Auxiliary hydraulics 219
4 5 1 Hydraulic system 2 19
4 6 Linkage 220
4 6 1 Rear linkage 220
4 6 2 Front linkage 22 1
4 7 Brakes 222
4 7 1 Brake system technical specifications 2 2 2
4 7 2 Regulatory data o n maximum permitted trailed weights 2 2 2
4 8 Front axle and steering 227
4 8 1 Four-wheel drive front axle 22 7
4 8 2 Steering 22 7
4 9 Power take-off 228
4 9 1 Specifications 22 8
4 9 2 Tightening torques 22 8
4 10 Electrical equipment 229
4 10 1 Electrical equipment technical specifications 22 9
4 10 2 Layout of components 2 30
4 11 Wheels and tires 231
4 1 1 1 Rims 2 3 1
4 1 1 2 Tires 2 3 1
4 1 1 3 Tightening torques 2 3 1
4 12 Capacities and dimensions 232
4 12 1 capacities 2 32
4 12 2 Dimensions and weights 2 3 3
4 12 3 Attachment points: MF 6 7 12 S / MF 6 7 1 3 S / MF 6 7 14 S Dyna- 4/Dyna-6 models
without front linkage 2 3 7
4 12 4 Attachment points: MF 6 7 12 S / MF 6 7 1 3 S / MF 6 7 14 S Dyna- 4/Dyna-6 models
with front linkage 2 3 9
4 12 5 Attachment points: MF 6 7 15 S / MF 6 7 16 S / MF 6 7 18 S Dyna- 4/Dyna-6 models
without front linkage 2 4 1
4 12 6 Attachment points: MF 6 7 15 S/ MF 6 7 16 S / MF 6 7 18 S Dyna- 4 /Dyna-6 models
with front linkage 2 4 3
5 Accessories 245
5 1 Cab 247
5 1 1 Cab accessories 2 4 7
5 2 Engine 248
5 2 1 Engine accessories 2 4 8
5 3 Power take-off 249
MF 6700 S – Maintenance
ACT0038530
Table of contents
5 3 1 Power take-off accessories 24 9
5 4 Linkage 250
5 4 1 Linkage accessories 250
5 5 Auxiliary hydraulics 251
5 5 1 Auxiliary hydraulics accessories 25 1
5 6 Wheels and tires 252
5 6 1 Wheels and tires accessories 25 2

MASSEY FERGUSON MF 6700 S SERIES 6712S 6713S 6714S 6715S 6716S 6718S DYNA-4 DYNA-6 OPERATOR’S MANUAL:

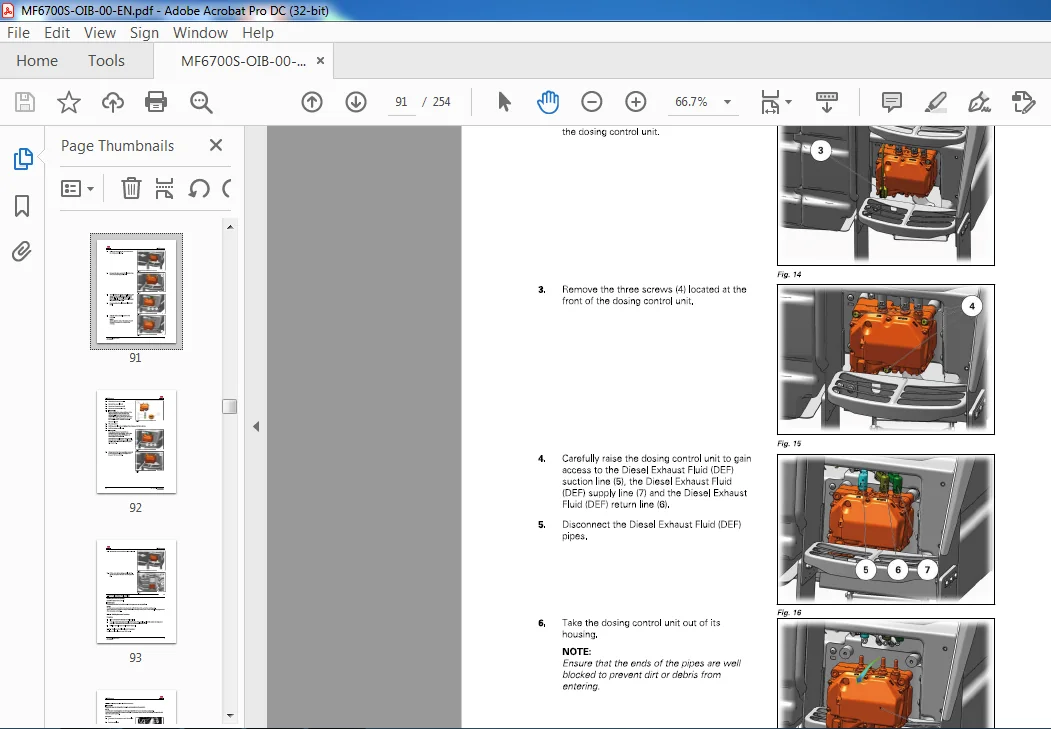

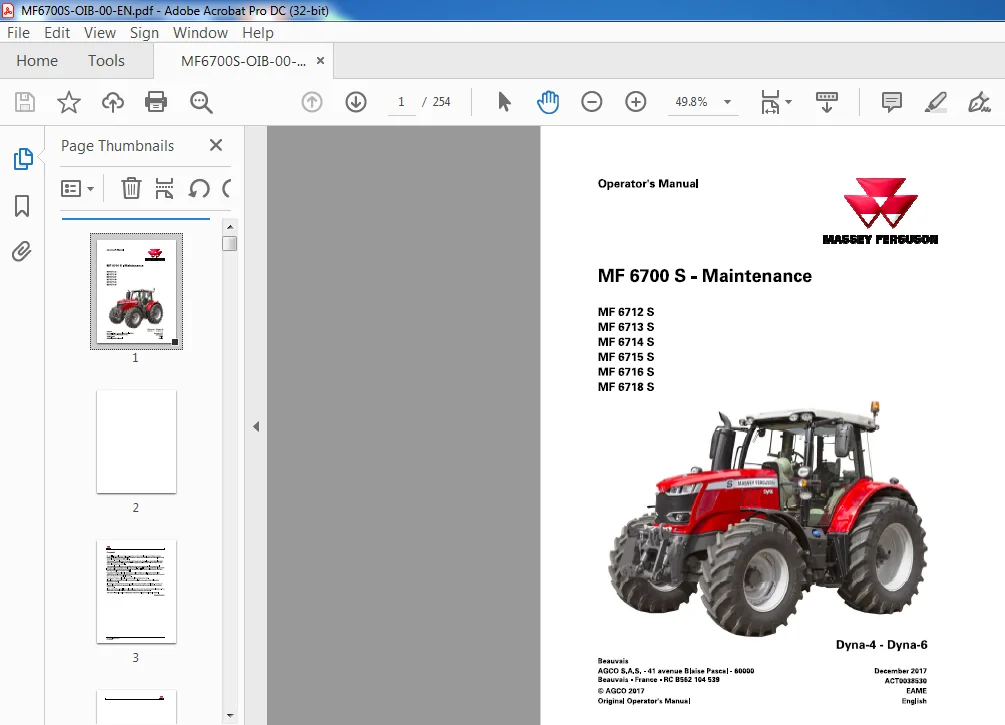

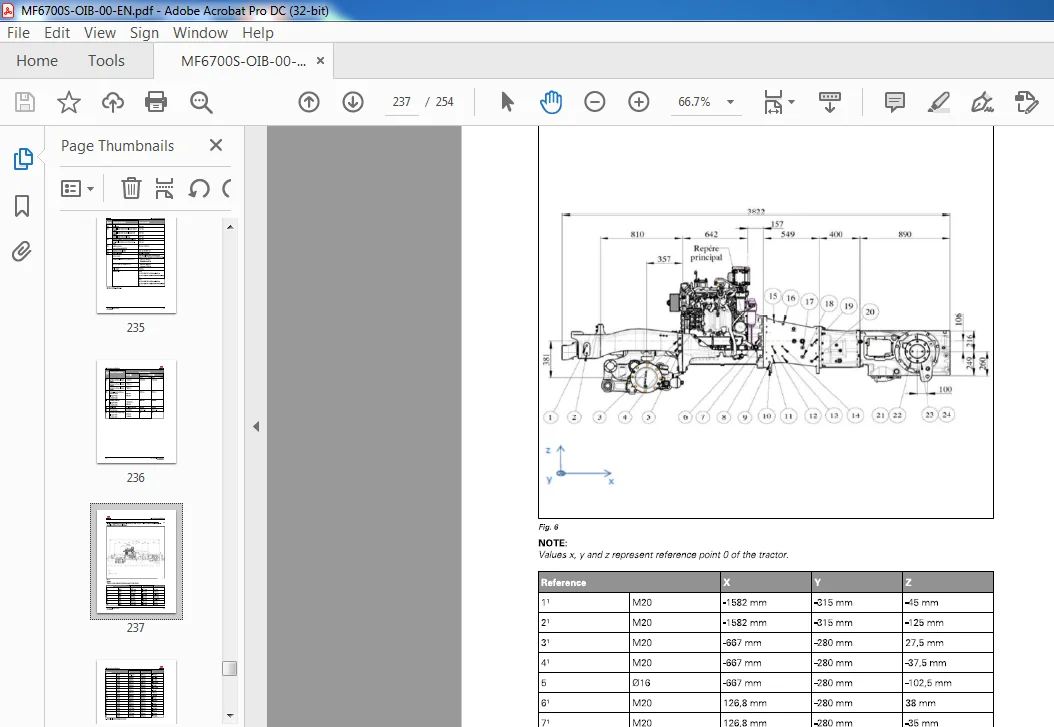

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
