Massey Ferguson Mf To35 To35d Mf35 Mf35d F40 Mh50 Mf50 Mhf202 Mf202 Mf204 Shop Manual – PDF DOWNLOAD

Description

Massey Ferguson Mf To35 To35d Mf35 Mf35d F40 Mh50 Mf50 Mhf202 Mf202 Mf204 Shop Manual

FILE DETAILS:

Massey Ferguson Mf To35 To35d Mf35 Mf35d F40 Mh50 Mf50 Mhf202 Mf202 Mf204 Shop Manual

Language : English
Pages : 76
Downloadable : Yes
File Type : PDF
Size: 37.1 MB

DESCRIPTION:

Massey Ferguson Mf To35 To35d Mf35 Mf35d F40 Mh50 Mf50 Mhf202 Mf202 Mf204 Shop Manual

SAMPLE PAGES FROM THE MANUAL:

Models TO35-TO35D-MF35-MF35D 1. The front axle main (center) member, complete with extensions and wheels, can be removed as follows: Drain cooling system and remove hood assembly and radiator. Disconnect both radius rods from side of transmission case and both drag links from pitman arms. Support tractor, remove the axle pivot pin retaining screw and withdraw pivot pin from axle support. Reject diameter for the pivot pin bushing (13—Fig. MF225) is 1.790. When installing new bushing, make certain that split side is up and ream the bushing, after installation, to an inside diameter of 1.7615-1.7675. Diameter of new axle pivot pin (10) is 1.747-1.748.

• Reject diameter for the pivot pin is 1.700. Note: Axle pivot pin and/or bushing should not be lubricated. Squeaking at this point can be eliminated by using dry graphite. When installing axle assembly, reverse the removal procedure. Shims, located under radius rod ball caps, can be removed to compensate for excessive wear at that point; but, sufficient shims should remain to eliminate any possibility of binding. Models F40-MH50-MF50 .
• To remove the axle main (center) member (11—Fig. MF226), support tractor under engine, remove the grille lower panel, disconnect tie rods from the spindle steering arms and remove both axle extensions and wheel assemblies from the center member. Unbolt and remove the axle pivot thrust plate (16) and save shims (15) for reinstallation. Remove the cap screws retaining pivot bracket (13) to the front support casting and remove the pivot bracket.
• Pull center member (11) forward and out of rear pivot bushing (12) which is located in the front support casting. Inside diameter of new pivot bushings is 1.877-1.879 for rear bushing (12) and 2.002-2.004 for front bushing (14). Pivot pin diameter for a new center member is 1.874-1.876 for the rear pin and 1.999-2.001 for the front pin. Renew center member and/or bushings if running clearance is excessive.

TABLE OF CONTENTS:

Massey Ferguson Mf To35 To35d Mf35 Mf35d F40 Mh50 Mf50 Mhf202 Mf202 Mf204 Shop Manual

BELT POUEY 206 206
BRAKES
Adjustment 204
R&R and overhaul 205
206 206 206
CARBURETOR
(Except LP-Gas) UO
(LP-Gcs)
CLUTCH, Single
Adjustment 161
R&R and overhaul 162
CLUTCH, Dual
Adjustment 165
R&R and overhaul 166
COOLING SYSTEM
Pump 152
Radicrtor 150
DIESEL SYSTEM
Bleeding system
Cold weather starting aid
Thermo-Start
Glow Plug
Fuel filters
Injection pump
Remove & reinstall
Timing
Injection nozzles
Overhaul
Remove & reinstall
Testing
Pre-combustion chambers
Trouble-shooting
DIFFERENTIAL
Overhaul 197
Remove and reinstall 196
ELECTRICAL
Distributor
Generator
Generator regulator
Starting motor
ENGINE
Assembly R&H
Cam followers
Camshait
Chain tensioner
Connecting rods & brgs
Crankshaft & bearings
Cylinder head
Cylinder sleeves
Flywheel, R&H
Front oil seal
Igrution timing
Injection timing
Main bearings
Oil pump
Pistons
Piston pins
Piston & rod removal
Piston rings
Rear oil seal
Rocker arms
Tappets
Timing chain
Timing gear cover
Timing sprocket cover
Timing gears
Timing sprockets
Valve guides
Valves & valve seats,
Valve rotators
Valve springs
Valve timing
FINAL DRIVE
Bevel gears 198
Differential overhaul 197
Diffarenttal R&R 196
Wheel axle shaft
Bearings, adjustment 200
Bearings, renew 202
Housing, R&R 203
Oil seal, renew 202
R&R 201
FRONT SYSTEM
Axle main member 1
Dual wheels & spindle
Steering spindles 4
Single wheel & fork
GOVERNOR
Adjustment 146
R&R and overhaul 149
HYDRAULIC SYSTEM
Adjustment 211
Lift cover 218
Pump 214,
216
Trouble-shooting 212
Work cylinder 219
IGNITION SYSTEM 155
LP-GAS SYSTEM
Carburetor
Filter
Regulator
Relief valve
Vaporizer
TO35
Dietel MF35
with Dieiel
Stand- with F40 MHF202
ard Perkins MH50 MF202
Engine Engine MF50 MF204
MANUAL STEERING SYSTEM
Adjustment II 11 11
Overhaul 15 15 15
Remove & reinstail 14 14 14
Upper pedestal
POWER TAKE-OFF 207 207 207 207 207
POWER STEERING SYSTEM
CyUnder 32 32 32 34,35 33
Gear unit 38 38 38 37 40
Filling & bleeding 24 24 24 24 24
Operating pressure 26 26 26 26 26
Pedestal 36
Pump 27 27 27 27 27
Relief valve 26 26 26 26 26
Trouble-shooting 25 25 25 25 25
Valves 28 28 28 29 28
REAR AXLE
Bearing, renewal 202 202 202 202 202
Seals, renewal 202 202 202 202 202
Shaft, R&R 201 201 201 201 201
TRANSMISSION (GEAR)
Assembly, R&R 176 176 176 178
Clutch shait 179 179 179 179
Countershaft 184 184 184 184
Main drive gear & shaft 179 179 179 179
Main shaft 183 183 183 183
Planetary unit 186 186 186 186
Reverse gear 185 185 185 185
Shifter rails and forks 182 182 182 182
TRANSMISSION (REVERS-O-MATIC)
Assembly, R&R
Clutch assembly
Control valve
Gear tinit
Operation
Pressure check
Pump ,
Torque converter
Trouble-shooting

MASSEY FERGUSON MF TO35 TO35D MF35 MF35D F40 MH50 MF50 MHF202 MF202 MF204 SHOP MANUAL – PDF DOWNLOAD:

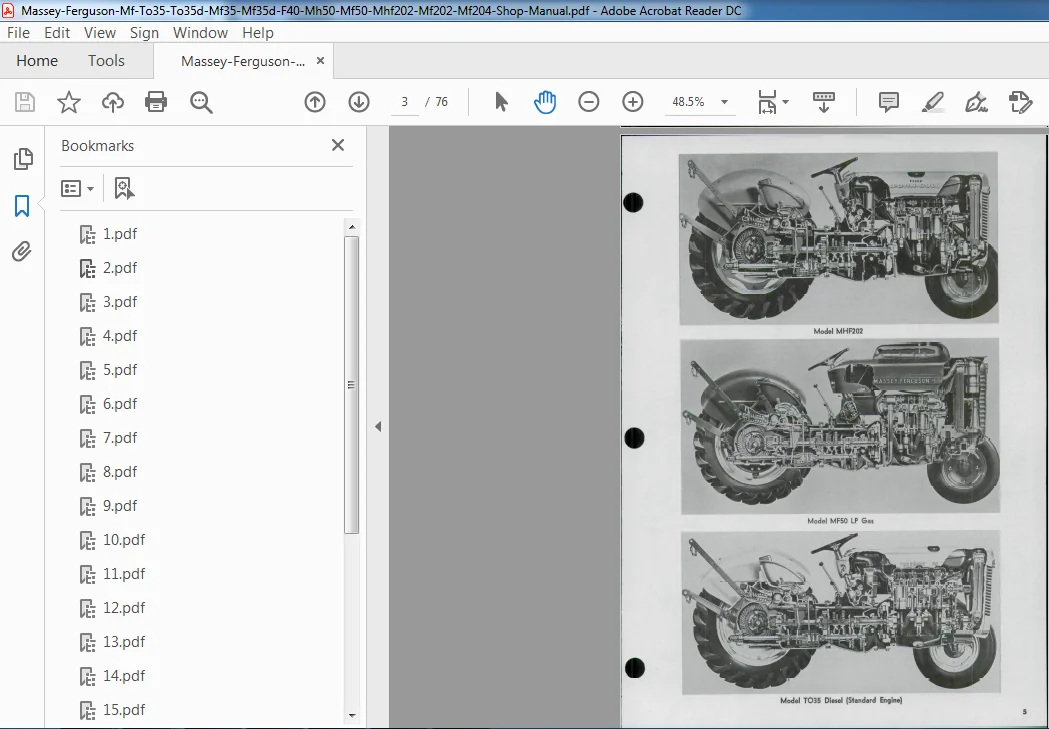

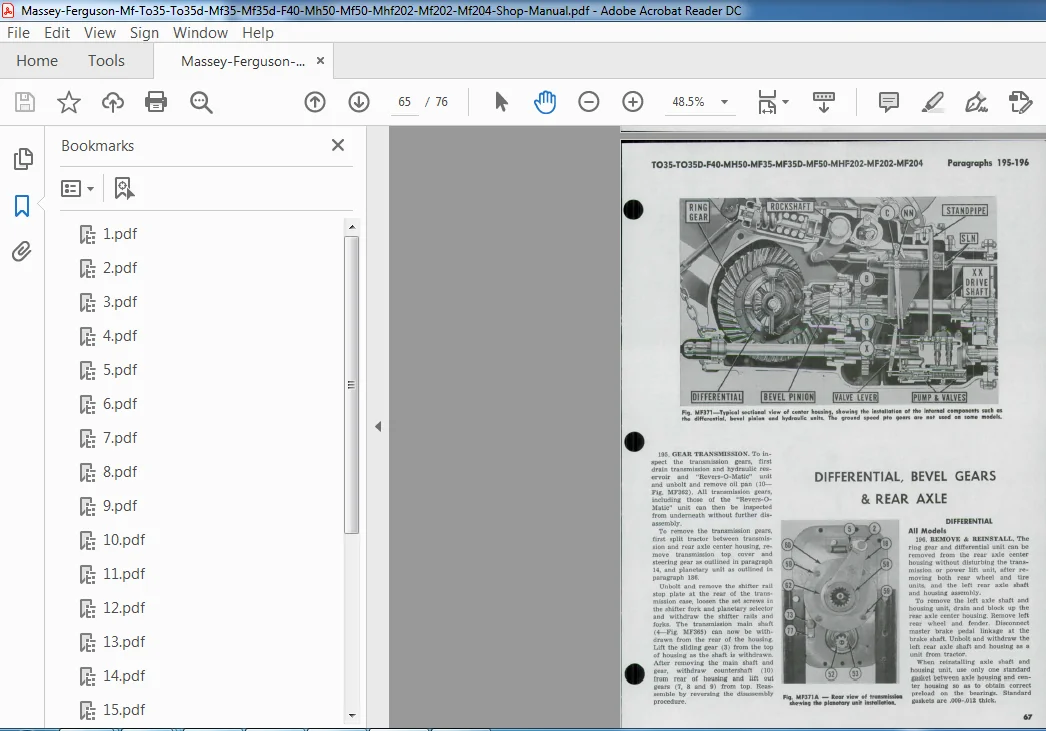

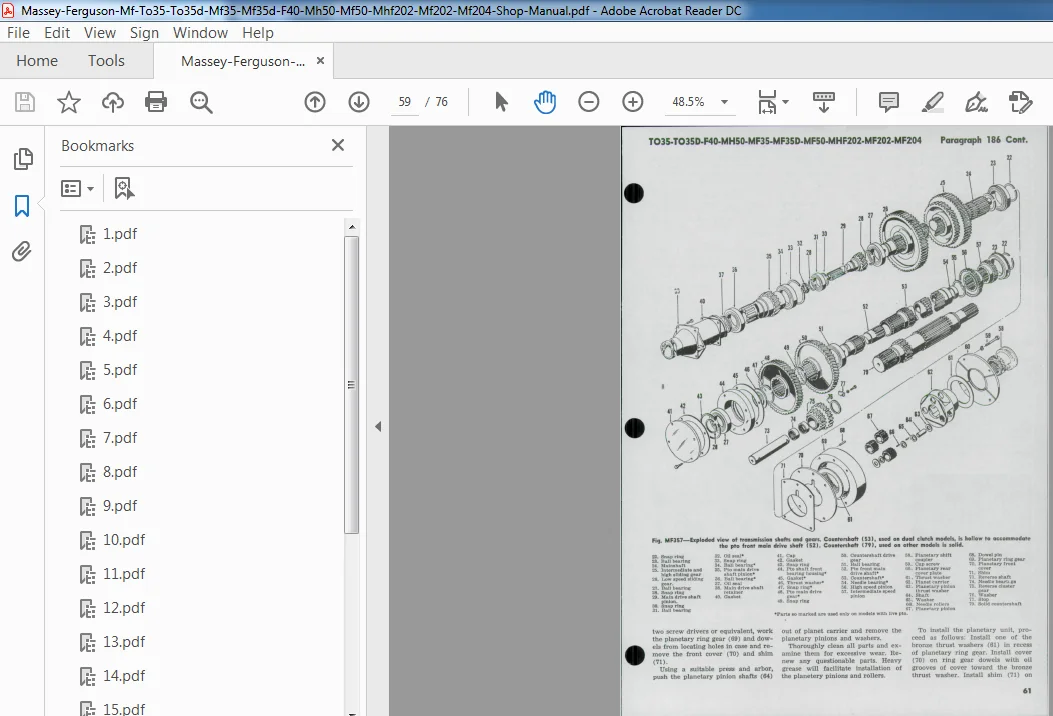

IMAGES PREVIEW OF THE MANUAL:
