Massey Ferguson MF1105 MF1135 MF1135 Workshop Manual – PDF DOWNLOAD

Description

Massey Ferguson MF1105 MF1135 MF1135 Workshop Manual

FILE DETAILS:

Massey Ferguson MF1105 MF1135 MF1135 Workshop Manual

Language: English
Size: 82.5 MB
Pages:  84
Format: PDF
Downloadable: YES

DESCRIPTION:

Massey Ferguson MF1105 MF1135 MF1135 Workshop Manual

SAMPLE PAGES FROM THE MANUAL:

To remove the cylinder head. first drain cooling system. disconnect batteries and remove hood and side : panels. Disconnect turbocharger oil . lines. air cleaner and inlet manifold ‘ hoses, unbolt and remove inlet manifold. ‘ Unbolt and remove exhaust manifold : and turbocharger as a unit. Remove , fuel injector pressure lines as an as- ; sembly. Remove fuel leak off pipe and . all injector nozzles. Injector nozzles – protrude from bottom of cylinder head and may be damaged if allowed to remain in head.

• Disconnect upper and lower coolant hoses and temperature indicator sending unit from water pump body. Unbolt and remove the fan blades. Disconnect belt tightener arm from water pump body and remove fan belt from water pump pulley.
• Remove breather pipe, rocker arm top cover. rocker arms and push rods: then re- move rocker arm lower cover. Remove the cylinder head stud nuts, lift the head until clear of top of studs. then move head rearward until fan pulley is clear of radiator shroud.
• The cylinder head can be resurfaced. providing the injector nozzle protrusion does not exceed 0.224 inch (5.69mm). Original thickness of cylinder head is 3.2353265 inches (82.17-82.93mm) and normally surfacing of less than 0.012 inch (0.3mm) will be possible. After resurfacing cylinder head, it will be necessary to reseat valves to correct depth .

TABLE OF CONTENTS:

Massey Ferguson MF1105 MF1135 MF1135 Workshop Manual

BRAKES
Adjustment
Brake pistons
Fluid&bleeding
Overhaul master cylinder
CLUTCII
Adjustment
Overhaul
Releaselinkage
Tractorsplit
COOLING SYSTEM [6 Cylinder]
Radiator
Thermostat
Waterpump
COOLING SYSTEM [MF1155]
Radiator_
Thermostat
Waterpump
ELECTRICAL SYSTEM
Alternator
Circuit description
Startingmotor,
Wiring diagram Fig
ENGINE [6 Cylinder]
AssemblyR&R
Camfollowers,
Camshaft
Connecting rods & bearings
Crankshaft & bearings
Crankshaft pulley &front oil seal
Crankshaft rear oil seal
Cylinderhead
Engine adapter plate
Flywheel
Oilpan
Oilpump
Pistons, sleeves & rings
Pistonpins
Rnckerarms
Timinggearcovcr,
Timinggears
Valves&seals
ENGINE [6 Cylinder] CONT
Valveclearance
Valveguides
Valvesprings
Valvetiming
ENGINE [MF1155]
AssemblyRKzR
Camfollowers
Camshaft
Connecting rods & bearings
Crankshaft & bearings
Cylinderhead
Flywheel
Flywheel housing
Oilcooler
Oilpan
Oilpump
Pistons sleeves & rings
Pistonpins
Renroilocal
Rockerarms
Timinggeareover
liminggears,
Valvesééseats,
Valveclearance
Valveguides
Valvesprings
FINALDRIVE
Differential & bevel gear
Differential lock valve
Rear axle & final drive
FRONT SYSTEM
Steeringgear
FUEL SYSTEM [6 Cylinder]
Bleeding
Fuel filters&lines
Fuelliftpump
Injectionpump
Injectornozzles
FUEL SYSTEM [MF1155]
Bleeding
FUEL SYSTEM [MF1155] CONT
Filters & lines
Fuel lift pumpi
Injection pump
Injector nozzles
HYDRAULIC SYSTEM
Auxiliary valve
Charging pump
Differential lock
Lift system
Lubrication
Main pump
Multi-Power & IPTO valve
Operation
Priority valve
Regulating valve
Sensing linkage
Tests & adjustments
Transfer cap
POWER TAKE-OFF
Clutch
Output housing & gears
Output shaft
Shift linkage
valve
TRANSMISSION [8 Speed]
Instrument console R&R
Main transmission overhaul
Main transmission R&R
Operator‘s platform R&R
I’arklock
Range transmission overhaul
TRANSMISSION [Multi-Power]
Main transmission R6511
Main transmission overhaul
Multi-Power control valve
Park lock
Range transmission overhaul
TURBO CHARGER
Trouble shooting
Remove & reinstall
Overhaul Air search
Overhaul Holset

MASSEY FERGUSON MF1105 MF1135 MF1135 WORKSHOP MANUAL – PDF DOWNLOAD:

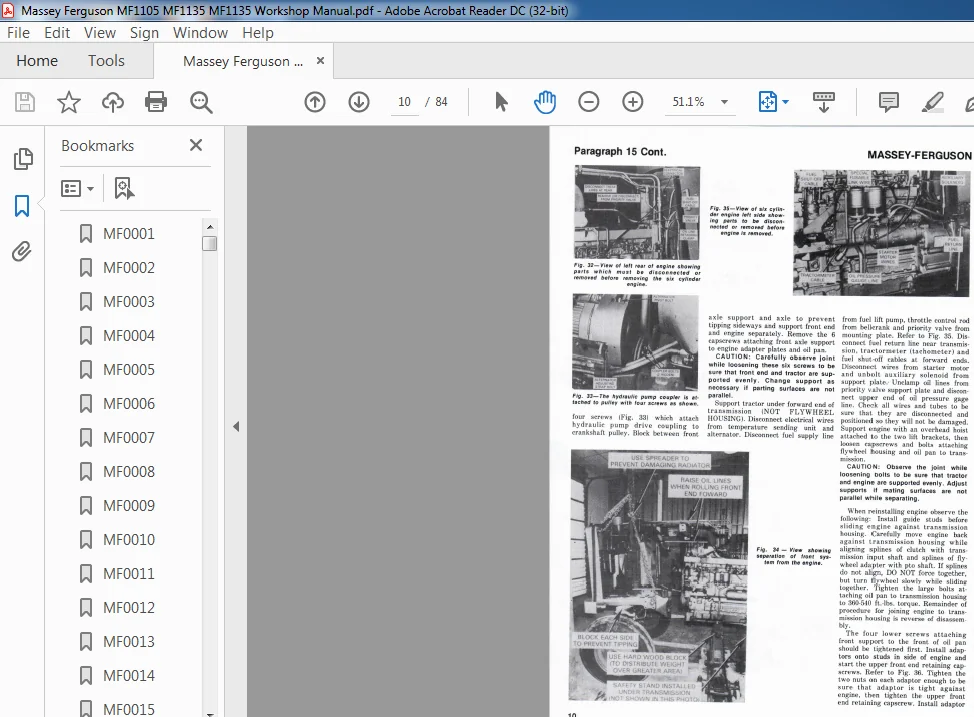

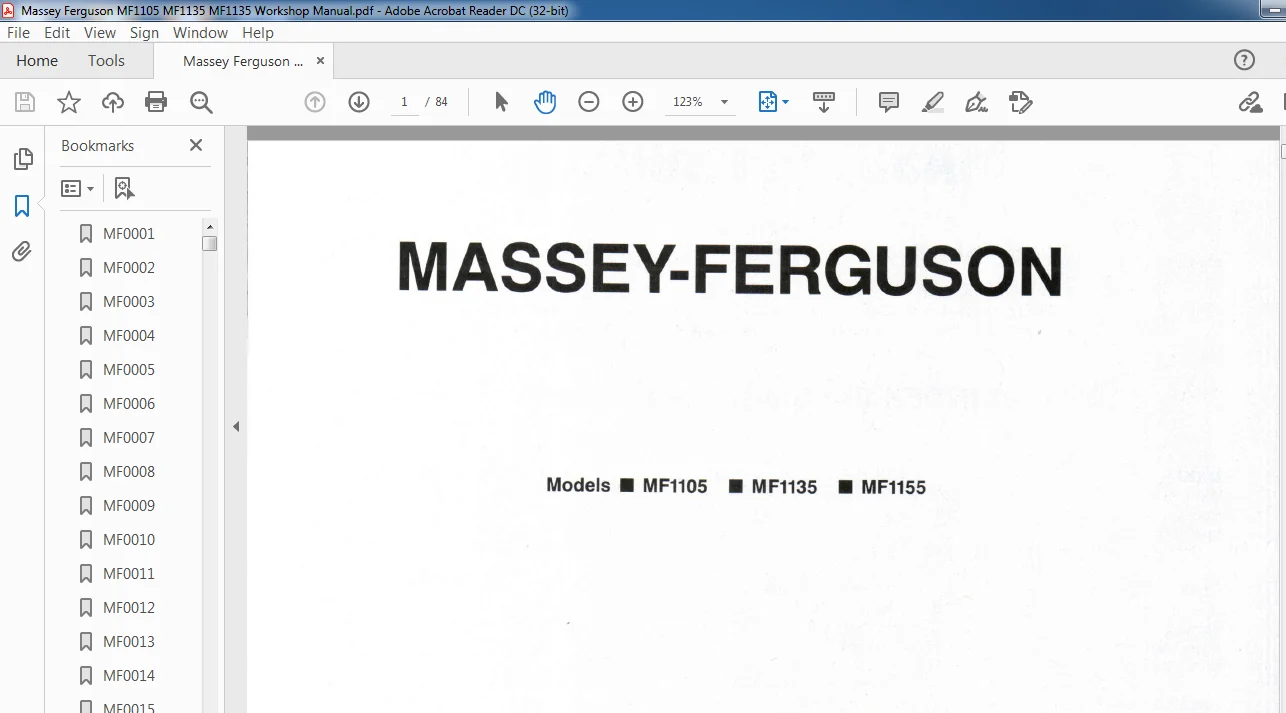

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
