McHale FUSION 3 Baler Wrapper Parts Manual – PDF DOWNLOAD

Description

McHale FUSION 3 Baler Wrapper Parts Manual – PDF DOWNLOAD

FILE DETAILS:

McHale FUSION 3 Baler Wrapper Parts Manual – PDF DOWNLOAD

Language : English
Pages : 135
Downloadable : Yes
File Type : PDF

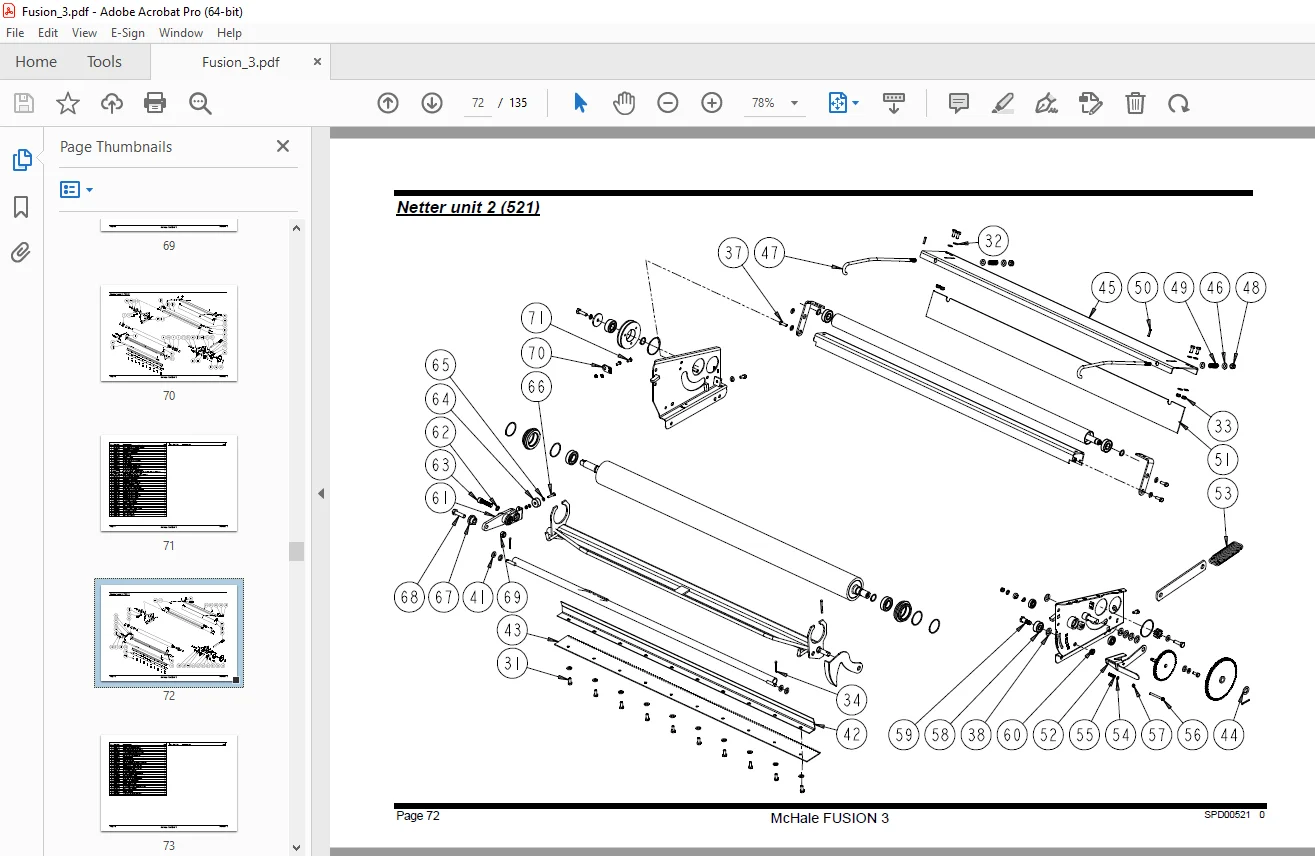

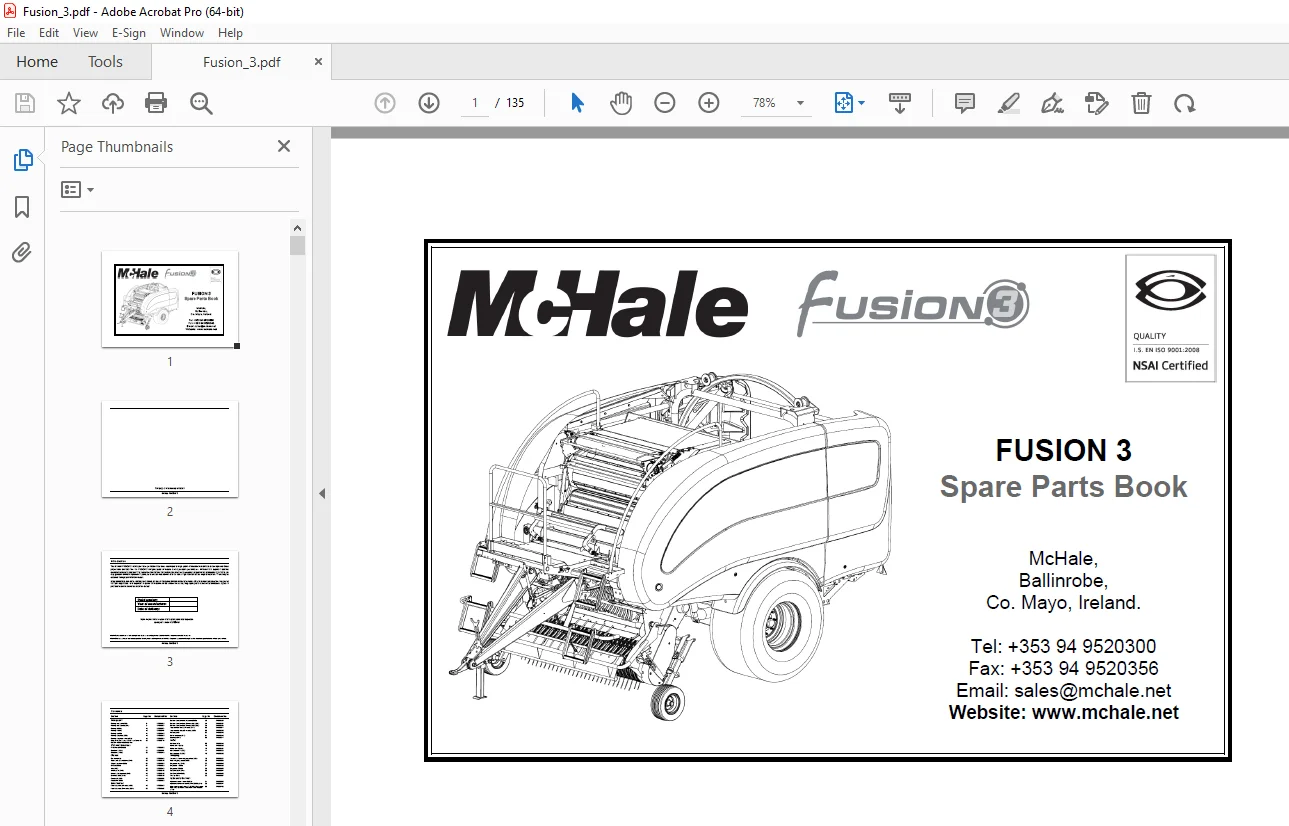

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

McHale FUSION 3 Baler Wrapper Parts Manual – PDF DOWNLOAD

Pick-up unit
Pick-up reel shaft (805) 6 SPD00805
Pick-up reel chassis (804) 8 SPD00804
Pick-up 3 (824) 10 SPD00824
Pick-up 4 (497) 12 SPD00497
Pick-up 5 (498) 14 SPD00498
Pick-up drop floor (393) 16 SPD00393
Pick-up drop floor select (803) 18 SPD00803
Crop roller [On Fusion-F5-V6 from Serial No
655681-706661-800616] (775)
20 SPD00775
PTO shaft & Gearbox
PTO shaft [PWE580] 22 SPD00699
Gearbox 1 (831) 24 SPD00831
Gearbox 2 (490) 26 SPD00490
Chassis
Drawbar (488) 28 SPD00488
Screw jack & Handbrake (812) 30 SPD00812
Steps & platform (806) 32 SPD00806
Chassis (808) 34 SPD00808
Axle (492) 36 SPD00492
Air brake kit (818) 38 SPD00818
Wheels & Mudguards (813) 40 SPD00813
Chains & Belts (518) 42 SPD00518
Panels LH (807) 44 SPD00807
Panels RH (833) 46 SPD00833
Bale chamber
Front chamber [Idle side] (506) 48 SPD00506
Front chamber [Drive side] (507) 50 SPD00507
Bottom chamber door [Idle side] (503) 52 SPD00503
Bottom chamber door [Drive side] 1 (504) 54 SPD00504
Bottom chamber door [Drive side] 2 (505) 56 SPD00505
Top chamber door [Idle side] (811) 58 SPD00811
Top chamber door [Drive side] (509) 60 SPD00509
Rollers (510) 62 SPD00510
Roller locations (513) 64 SPD00513
Bearings (517) 66 SPD00517
Netter
Net box (519) 68 SPD00519
Netter unit 1 (520) 70 SPD00520
Netter unit 2 (521) 72 SPD00521
Net tensioner 1 (522) 74 SPD00522
Net tensioner 2 (523) 76 SPD00523
Wrapping
Transfer & Front wrapping rollers (524) 78 SPD00524
Rear wrapping cradle (809) 80 SPD00809
Dispenser ring (810) 82 SPD00810
Dispenser 1 (529) 84 SPD00529
Dispenser 2 (530) 86 SPD00530
Cut & Hold LH (814) 88 SPD00814
Cut & Hold RH (532) 90 SPD00532
Side tip (557) 92 SPD00557
Hydraulic & Electrical
Hydraulic layout Fusion 3 (823) 94 SPD00823
Hydraulic valve main control CVA00299 (541) 96 SPD00541
Hyd valve knives & floor CVA00351 [On Fusion
from S-No 654556 & F560 from S-No 705595]
(702)
98 SPD00702
McHale FUSION 3
Section Page No Document No Section Page No Document No
Hydraulic valve knives & floor [Selectable]
CVA00345 (701)
100 SPD00701
Hydraulic valve rotation & tip CVA00157 (543) 102 SPD00543
Hydraulic valve chamber door CVA00239 (822) 104 SPD00822
Hydraulic rams chamber door (546) 106 SPD00546
Hydraulic rams pick-up reel CRA00186 (182) 108 SPD00182
Hydraulic rams drop floor CRA00193 (184) 110 SPD00184
Hydraulic rams cut & hold CRA00074 (549) 112 SPD00549
Hydraulic rams bale cradle CRA00558 (551) 114 SPD00551
Oil & Grease systems 1 (552) 116 SPD00552
Oil & Grease fittings (553) 118 SPD00553
Oil & Grease systems 3 (554) 120 SPD00554
Oil & Grease systems 4 (555) 122 SPD00555
Oil & Grease systems 5 (556) 124 SPD00556
Electrical control (815) 126 SPD00815
Electrical lighting kit (816) 128 SPD00816
Decals
Decals 1 (819) 130 SPD00819
Decals 2 (820) 132 SPD00820
Decals 3 (821) 134 SPD00821

DESCRIPTION:

McHale FUSION 3 Baler Wrapper Parts Manual – PDF DOWNLOAD

Introduction :

The McHale FUSION 3 which you have purchased has been developed through years of constant research and development. Given proper care and attention the FUSION 3 will give years of reliable and dependable performance.

• However it is important that the operators manual is read and fully understood to achieve this, before the machine is operated.
• As part of this philosophy it is vital to use only genuine McHale replacement parts, as these are manufactured to the same high standard as the original machine. These may be obtained through your McHale dealer.

S.V 11/24
