McHale FUSION 3 PLUS Baler Wrapper Parts Manual – PDF DOWNLOAD

Description

McHale FUSION 3 PLUS Baler Wrapper Parts Manual – PDF DOWNLOAD

FILE DETAILS:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual – PDF DOWNLOAD

Language : English
Pages : 133
Downloadable : Yes
File Type : PDF

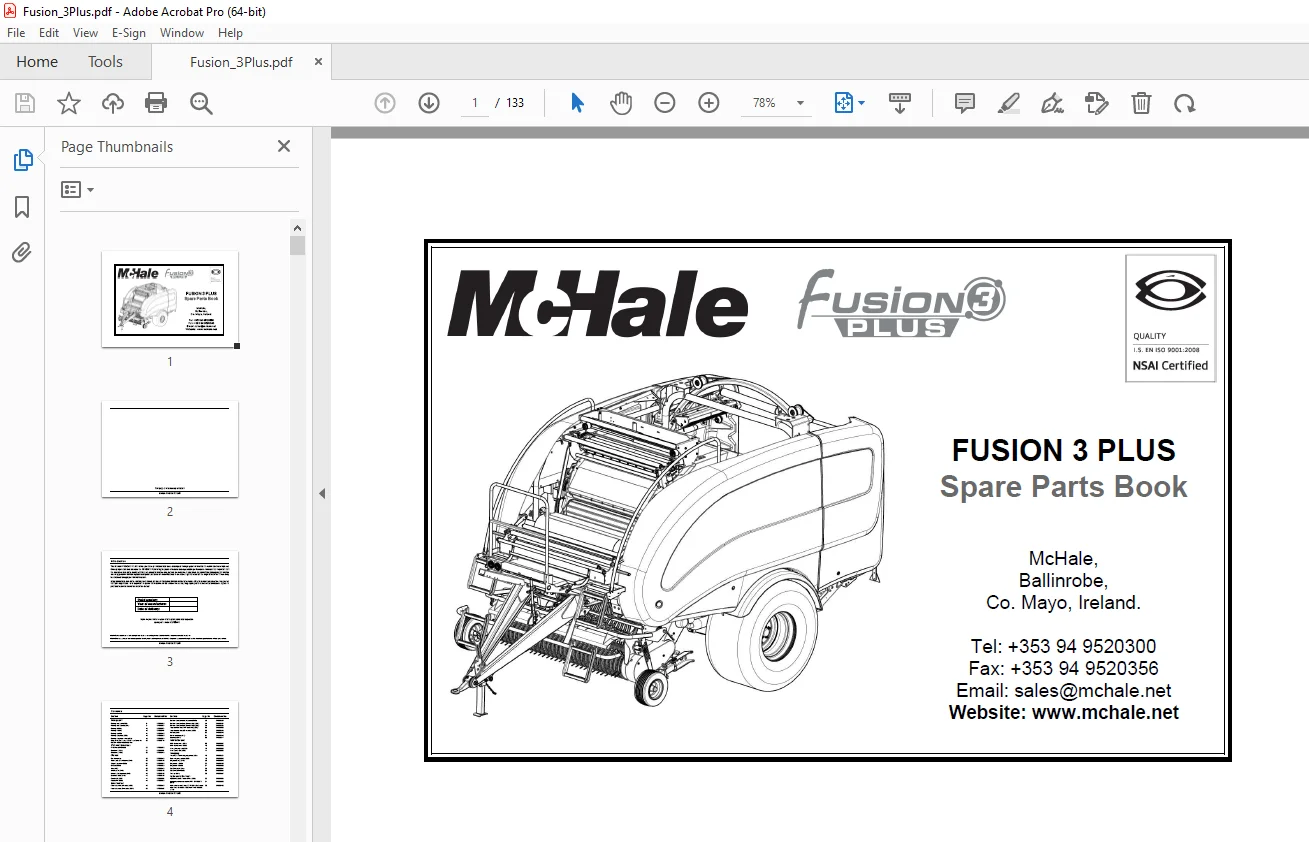

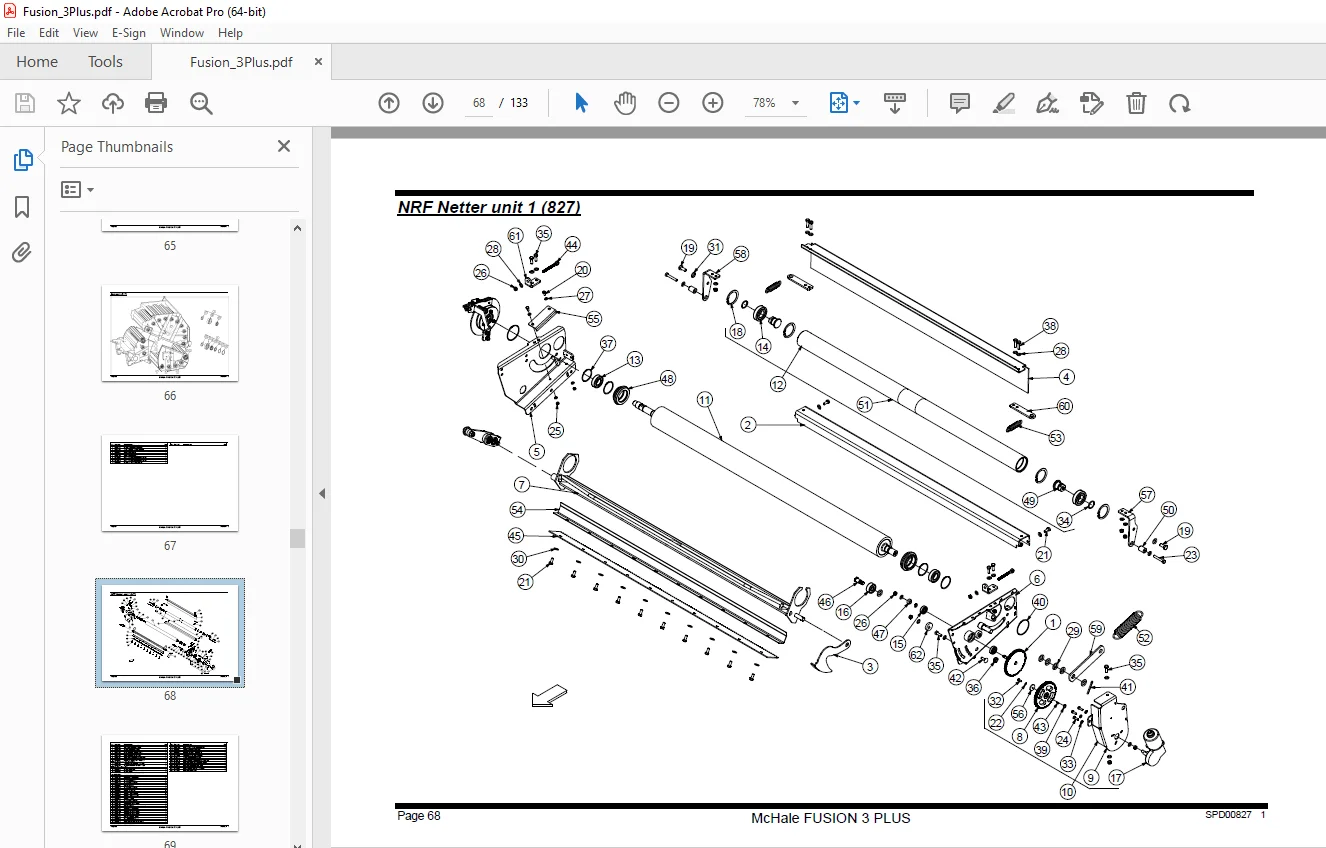

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual – PDF DOWNLOAD

Pick-up unit
Pick-up reel shaft (805) 6 SPD00805
Pick-up reel chassis (804) 8 SPD00804
Pick-up 3 (824) 10 SPD00824
Pick-up 4 (497) 12 SPD00497
Pick-up 5 (498) 14 SPD00498
Pick-up drop floor (393) 16 SPD00393
Pick-up drop floor select (803) 18 SPD00803
Crop roller [On Fusion-F5-V6 from Serial No
655681-706661-800616] (775)
20 SPD00775
PTO shaft & Gearbox
PTO shaft [PWE580] 22 SPD00699
Gearbox 1 (831) 24 SPD00831
Gearbox 2 (490) 26 SPD00490
Chassis
Drawbar (488) 28 SPD00488
Screw jack & Handbrake (812) 30 SPD00812
Steps & platform (806) 32 SPD00806
Chassis (808) 34 SPD00808
Axle (492) 36 SPD00492
Air brake kit (818) 38 SPD00818
Wheels & Mudguards (813) 40 SPD00813
Chains & Belts (518) 42 SPD00518
Panels LH (807) 44 SPD00807
Panels RH (833) 46 SPD00833
Bale chamber
Front chamber [Idle side] (506) 48 SPD00506
Front chamber [Drive side] (507) 50 SPD00507
Bottom chamber door [Idle side] (503) 52 SPD00503
Bottom chamber door [Drive side] 1 (504) 54 SPD00504
Bottom chamber door [Drive side] 2 (505) 56 SPD00505
Top chamber door NRF [Idle side] (830) 58 SPD00830
Top chamber door [Drive side] (509) 60 SPD00509
Rollers (510) 62 SPD00510
Roller locations (513) 64 SPD00513
Bearings (517) 66 SPD00517
NRF Netter unit
NRF Netter unit 1 (827) 68 SPD00827
NRF Netter unit 2 (828) 70 SPD00828
Film gathering unit (826) 72 SPD00826
Film stretch unit (825) 74 SPD00825
Wrapping
Transfer & Front wrapping rollers (524) 76 SPD00524
Rear wrapping cradle (809) 78 SPD00809
Dispenser ring (810) 80 SPD00810
Dispenser 1 (529) 82 SPD00529
Dispenser 2 (530) 84 SPD00530
Cut & Hold LH (814) 86 SPD00814
Cut & Hold RH (532) 88 SPD00532
Side tip (557) 90 SPD00557
Hydraulic & Electrical
Hydraulic layout Fusion 3 Plus (835) 92 SPD00835
Hydraulic valve main control NRF CVA00373
(836)
94 SPD00836
Hyd valve knives & floor CVA00351 [On Fusion
from S-No 654556 & F560 from S-No 705595]
(702)
Hydraulic valve knives & floor [Selectable]
CVA00345 (701)
98 SPD00701
Hydraulic valve rotation & tip CVA00157 (543) 100 SPD00543
Hydraulic valve chamber door CVA00239 (822) 102 SPD00822
Hydraulic rams chamber door (884) 104 SPD00884
Hydraulic rams pick-up reel CRA00186 (182) 106 SPD00182
Hydraulic rams drop floor CRA00193 (184) 108 SPD00184
Hydraulic rams cut & hold CRA00074 (549) 110 SPD00549
Hydraulic rams bale cradle CRA00558 (551) 112 SPD00551
Oil & Grease systems 1 (552) 114 SPD00552
Oil & Grease fittings (553) 116 SPD00553
Oil & Grease systems 3 (554) 118 SPD00554
Oil & Grease systems 4 (555) 120 SPD00555
Oil & Grease systems 5 (556) 122 SPD00556
Electrical control (837) 124 SPD00837
Electrical lighting kit (816) 126 SPD00816
Decals
Decals 1 (819) 128 SPD00819
Decals 2 (834) 130 SPD00834
Decals 3 (821) 132 SPD00821

DESCRIPTION:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual – PDF DOWNLOAD

INTRODUCTION:

McHale FUSION 3 PLUS which you have purchased has been developed through years of constant research and development. Given proper care and attention the FUSION 3 PLUS will give years of reliable and dependable performance.

• However it is important that the operators manual is read and fully understood to achieve this, before the machine is operated.
• As part of this philosophy it is vital to use only genuine McHale replacement parts, as these are manufactured to the same high standard as the original machine.
• These may be obtained through your McHale dealer. If any part of this manual is not fully understood, please contact your McHale dealer who will be able to answer any questions or queries that you might have. It is important to quote the machine serial number when requiring spare parts or technical assistance.

S.V 11/24
