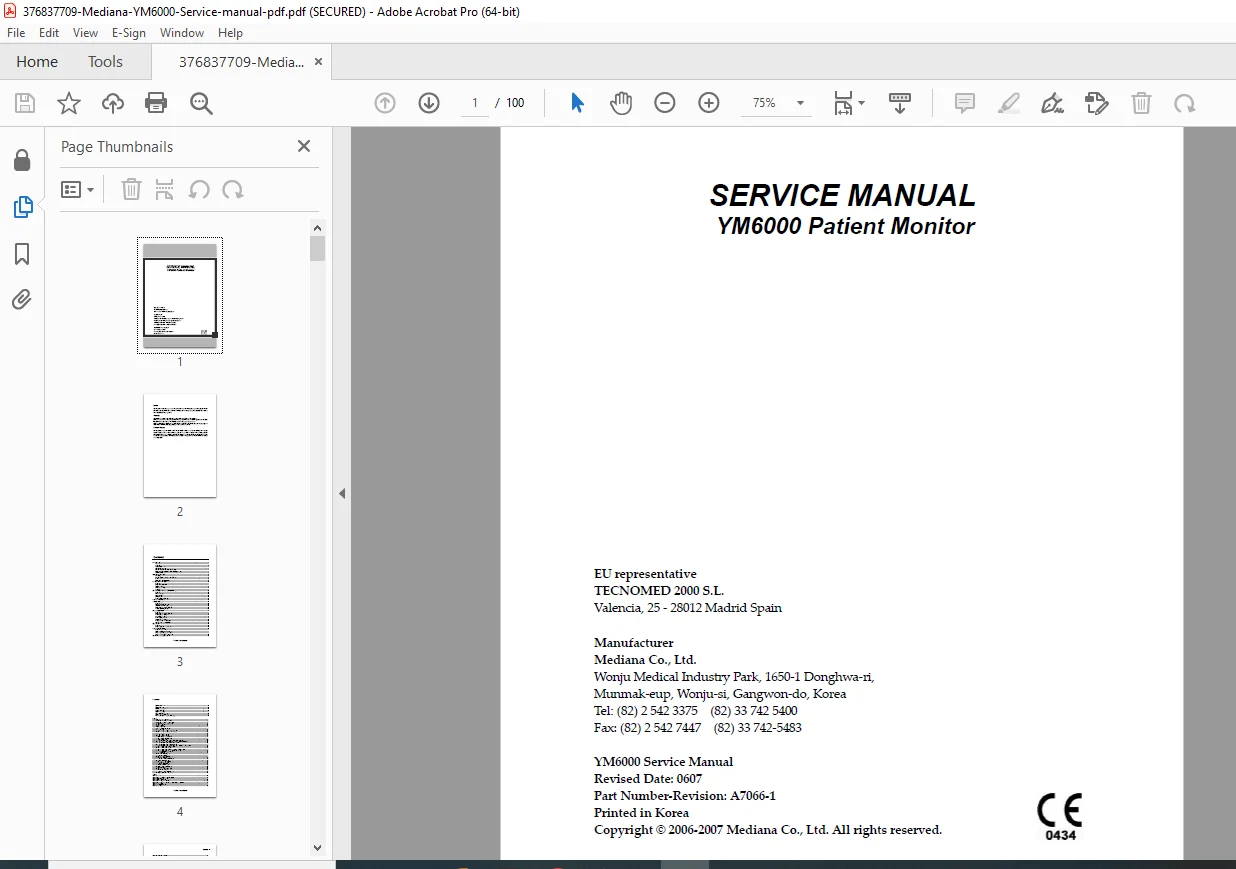

Mediana YM6000 Patient Monitor Service Manual A7066-1 Rev 0607 PDF

Description

Mediana YM6000 Patient Monitor Service Manual A7066-1 Rev 0607 PDF DOWNLOAD

DESCRIPTION

This comprehensive 100-page service manual provides complete technical documentation for the Mediana YM6000 Patient Monitor system (Part Number A7066-1, Revised June 2007). Essential for biomedical equipment technicians, clinical engineers, and qualified service personnel responsible for maintaining critical patient monitoring equipment in hospitals and medical facilities.

Monitor Overview & Intended Use

The YM6000 is a multi-parameter patient monitor designed for continuous monitoring of adult, pediatric, and neonatal patients across all hospital areas including:

• General care floors
• Operating rooms
• Intensive and critical care units
• Special procedure areas
• Sub-acute care facilities
• Physician office-based facilities

Monitored Parameters:

• Electrocardiography (ECG) with 3-lead or 5-lead configurations
• Heart Rate (HR) and Pulse Rate (PR)
• Non-Invasive Blood Pressure (NIBP) – systolic, diastolic, MAP
• Functional arterial oxygen saturation (SpO2)
• Invasive Blood Pressure (IBP) – 2 channels (optional)
• Respiration Rate (awRR and imRR)
• Capnography – EtCO2 and InCO2 (optional)
• Temperature – 2 channels with YSI-400 series probes
• Built-in thermal recorder (optional)

Detailed Section Breakdown

SECTION 1: INTRODUCTION (Pages 1-8)

• Safety warnings and cautions for service personnel
• Manual overview and related documentation references
• Intended use specifications and patient population
• Model configuration identification (YM6000-0 through YM6000-P0BE)
• Comprehensive Monitor Controls Documentation:
  • Front panel controls and connectors (21 identified components)
  • Rear panel components and symbols
  • Right and left panel interfaces
  • Visual alarm indicators, LCD display specifications
  • Power buttons, print functions, NIBP controls
  • Parameter input connectors (ECG, SpO2, NIBP, Temperature, CO2, IBP1, IBP2)

SECTION 2: ROUTINE MAINTENANCE (Pages 9-10)

• Cleaning procedures and approved cleaning solutions
• Periodic safety and functional check schedules (2-year intervals)
• Battery maintenance and charging requirements
• Fuse inspection specifications (6.3A, 250V)
• Environmental protection and disposal guidelines
• Storage recommendations for extended periods

SECTION 3: PERFORMANCE VERIFICATION (Pages 11-34)

• Required test equipment specifications and sources
• System Tests:
  • LCD display testing procedures
  • Alarm audible testing (8 levels)
  • Tone audible testing (HR/PR tones, key beeps)
  • Backup RAM clear procedures

Performance Testing Procedures:

Power & Battery Tests:

• AC power verification
• Battery charge testing (12-hour full charge protocol)
• Battery discharge testing (minimum 1-hour operation requirement)
• Power-on self-test verification

General Operation Tests:

• Alarm activation and silence functionality
• HR/PR tone volume control (7 levels)
• Sensor LED excitation testing
• Power-on default settings restoration
• Printer testing (optional module):
  • 20-second and continuous printing modes
  • Record speed verification (25mm/s and 50mm/s)
  • Wave record selection testing
  • Record-on-alarm functionality
  • Auto list record verification

Network & Communication Tests:

• Network connectivity testing (TCP/IP module)
• Nurse call interface verification (RS-232)
• Solid-state relay testing

Measurement Parameter Testing:

ECG Operation:

• Heart rate accuracy verification (30-240 bpm, ±3 bpm tolerance)
• Lead selection testing (I, II, III, aVR, aVL, aVF, V)
• Lead-off detection verification
• Waveform size calibration

NIBP Operation:

• Pressure sensor accuracy testing (0-250 mmHg, ±6 mmHg tolerance)
• Air leakage testing (<12 mmHg/3 minutes)
• Inflation and deflation speed verification
• Adult, pediatric, and neonatal mode testing

Pulse Oximetry Operation:

• SpO2 accuracy verification (test criteria: 73-77% at 75% setting)
• Pulse rate accuracy (57-63 bpm at 60 bpm setting)
• Modulation level testing
• Nellcor SRC-MAX simulator compatibility

Respiration Operation:

• Respiration rate accuracy (±3 breaths per minute)
• Both awRR and imRR measurement verification

Temperature Operation:

• YSI-400 series probe compatibility
• Temperature accuracy (±0.1°C from 25-45°C, ±0.2°C from 15-25°C)

IBP Operation:

• Invasive blood pressure zero calibration
• Waveform display verification
• Systolic, mean, and diastolic measurement accuracy

CO2 Operation:

• Display accuracy testing with 10% calibration gas (76±2 mmHg)
• Flow rate verification (150±2 mmHg)
• Occlusion detection testing
• Zero calibration and two-point user calibration procedures

Safety Testing Procedures (IEC 60601-1 Compliance):

Electrical Safety Tests:

• Protective earth continuity (<100 milliohms)
• Earth leakage current measurements (multiple conditions)
• Enclosure leakage current testing
• Patient leakage current verification
• Patient auxiliary current measurements
• Complete test condition matrices with allowable limits:
  • Normal condition, single fault conditions
  • Reverse mains polarity testing
  • Open earth and open supply conditions

SECTION 4: SERVICE MENU AND FACTORY DEFAULT SETTINGS (Pages 35-43)

Service Menu Access & Configuration:

• Password-protected access (code: 6-0-6)
• Saved settings on power-off options (Custom, Back Up, Default)
• Configurable Parameters:
  • Audible alarm silence period (30-120 seconds)
  • Audible alarm suspension period (Off, 10-60 min, Indefinite)
  • Audible alarm types (GN924, IEC60601-1-8)
  • AC line frequency selection (50Hz/60Hz)
  • Unit configuration for all parameters
  • Language settings (9 languages: Korean, Chinese, English, French, German, Italian, Japanese, Portuguese, Spanish)
  • Date format options
  • Alarm reminder tone intervals

System Settings Display:

• Monitor on-time tracking
• Recorder on-time tracking
• Battery deep discharge cycle counter
• System software version information
• Module version identification

Comprehensive Factory Default Tables:

• Adult, Pediatric, and Neonatal default values for all parameters
• NIBP alarm limits and initial inflation pressures
• IBP pressure ranges and alarm limits
• ECG settings (cable select, lead select, size, filters, pacer detect)
• SpO2 alarm limits by patient type
• Respiration/apnea time settings
• Capnography alarm limits (EtCO2, InCO2)
• Temperature alarm limits
• Printer settings (speed, record time, wave select)
• Complete 5-page reference table

SECTION 5: FIRMWARE DOWNLOAD (Pages 45-46)

• Required equipment specifications (LAN cable, YM6000 Field Utility software)
• Step-by-step firmware update procedures
• Download progress monitoring:
  • Transfer status (T bar)
  • Flash memory deletion status (D bar)
  • Flash memory writing status (W bar)
• Completion code reference (S.1.3, S.2.3)
• Error code troubleshooting table
• Post-download verification requirements

SECTION 6: TROUBLESHOOTING (Pages 47-60)

Systematic Troubleshooting by Subsystem:

Power Issues:

• AC indicator troubleshooting
• Power-up failure diagnostics
• Battery operation problems
• Battery charging failures
• Component-level fault isolation

Display Problems:

• LCD backlight failures
• No data display conditions
• Pixel defect diagnosis
• Erratic value display troubleshooting

Sound System Issues:

• Alarm sound failures
• Key beep problems
• Speaker and amplifier diagnostics

User Interface Problems:

• Button responsiveness issues
• Trim knob malfunction diagnosis
• Encoder assembly testing

Parameter-Specific Troubleshooting:

NIBP Issues:

• Cuff inflation failures
• Error messages C11-C21 diagnosis
• Air leakage identification
• Pressure sensor accuracy problems

SpO2 Issues:

• Sensor LED failures
• No display conditions
• Module replacement procedures

Temperature Issues:

• Low measurement values
• Internal error conditions

Respiration Issues:

• Noisy signals (imRR)
• awRR measurement failures

IBP Issues:

• Display window configuration
• Zero calibration problems
• Erroneous value troubleshooting

EtCO2 Issues:

• Warm-up time considerations
• Display configuration
• Accessory connection verification

Technical Alarm Conditions Table:

• Comprehensive alarm message reference (40+ messages)
• Check items for each alarm condition
• Resolution procedures
• Examples:
  • “NIBP: Check cuff (C11)” – cuff disconnection or air leakage
  • “SpO2: Loss of pulse” – weak signal or poor sensor fit
  • “ECG: Check leads & electrodes” – electrode attachment issues
  • “CAPNO: Occlusion” – sampling line blockage
  • “SYSTEM: Critically low-battery” – immediate AC connection required

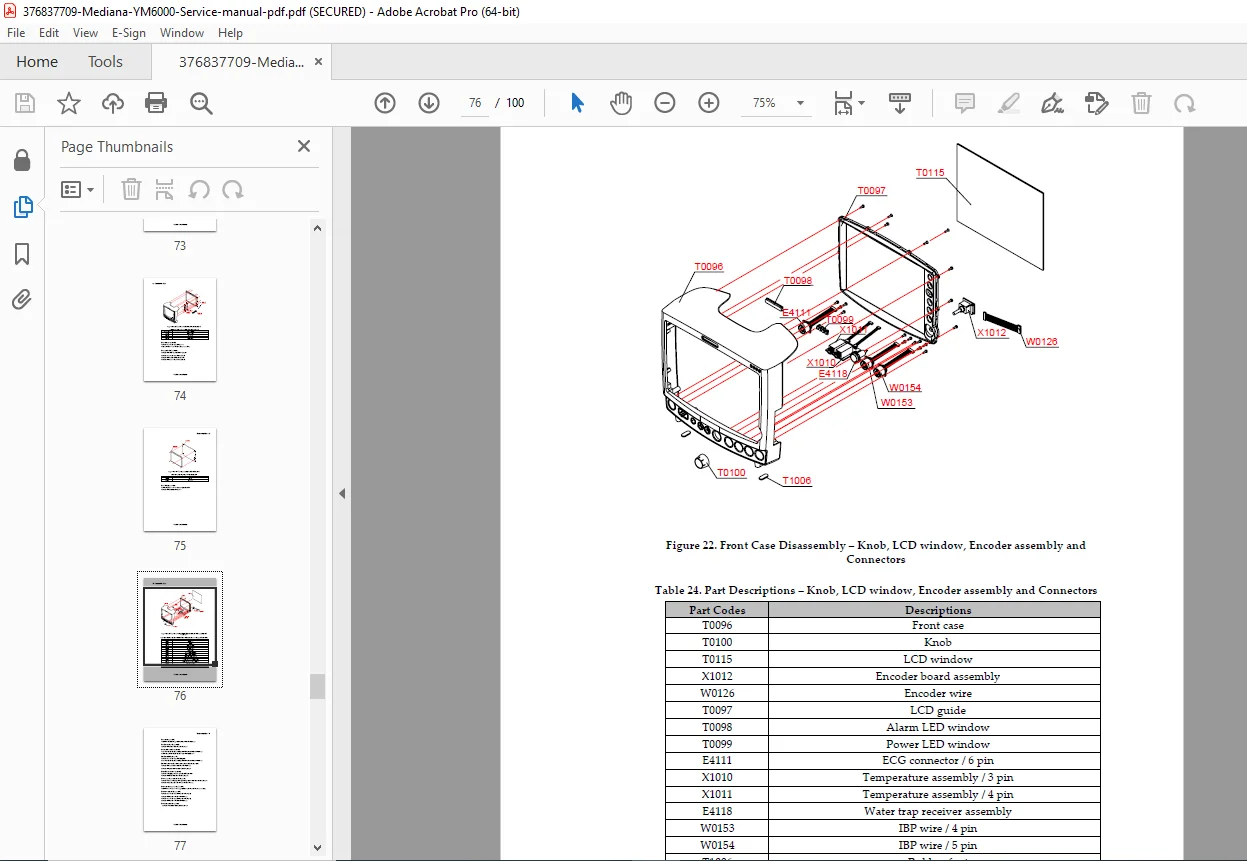

SECTION 7: DISASSEMBLY GUIDE (Pages 61-76)

Disassembly Sequence Flow Chart:

• Complete visual roadmap for component access
• Front case assembly (C) and rear case assembly (D) procedures

Required Tools:

• Small Phillips-head screwdriver
• Medium Phillips-head screwdriver
• Needle-nose pliers

Detailed Disassembly Procedures:

Battery & Handle Removal (A, B):

• Battery cover removal (2 screws)
• Battery extraction procedures
• Handle disassembly instructions

Front Case Components (C1-C14):

• Side connector holder removal
• Main board disassembly (11 screws)
• CPU module removal with supporter specifications
• SpO2 module disassembly
• IBP board removal
• Bracket and key board disassembly
• LCD assembly removal
• Encoder board extraction
• LED window removal
• ECG, temperature, IBP connector disassembly
• Water trap receiver removal

Rear Case Components (D1-D5):

• EtCO2 module removal
• SMPS case disassembly (A and B)
• Speaker removal
• SMPS extraction (7 screws)
• NIBP module disassembly
• Printer module removal
• AC inlet replacement

Part Identification Tables:

• Component descriptions for each disassembly step
• Part codes cross-referenced with assembly illustrations
• Screw specifications and quantities

SECTION 8: SPARE PARTS (Pages 77-80)

Comprehensive Parts List (50 Components):

• Part codes and descriptions
• Exploded view diagram with circled callout numbers
• Major Components:
  • T0106: Battery cover
  • M6010: Battery (Ni-MH, 10 cell, 3800mAh)
  • M4022: 12.1″ TFT LCD (AA121SL03)
  • P1031: Main board
  • P1033: CPU module (Samsung S3C2440)
  • M0009: SpO2 module (Nellcor compatible)
  • M0015: NIBP module
  • M0013: EtCO2 module
  • P1072: IBP board
  • M2012: SMPS (power supply)
  • X4104: Printer module assembly
  • Various cables, wires, and connectors

Assembly Kit Reference:

• SS8000-0 screw and hardware kit
• Supporters and mounting hardware specifications

SECTION 9: PACKING FOR SHIPMENT (Pages 81-82)

• General packing instructions
• Returned Goods Authorization (RGA) procedures
• Original carton repacking guidelines
• Alternative carton specifications (200 psi bursting strength)
• Proper labeling requirements

SECTION 10: SYSTEM PROCESSING DESCRIPTION (Pages 83-100)

System Architecture:

• Complete block diagram showing all functional units
• Interface relationships and signal flow

Processing Unit Details:

Power Unit:

• AC-DC conversion (85-260V AC, 50/60Hz)
• Battery charging with thermistor protection
• DC/DC conversion specifications (5V, 12V outputs)

Processor Unit:

• Samsung S3C2440 ARM9 MCU
• SDRAM and Flash memory architecture
• UART, RTC, LCD controller, SPI interfaces
• Watchdog timer and GPIO

User-Control Unit:

• Optical encoder with push button
• 6 functional buttons
• LED indicators (power, AC, battery status)

Sound Unit:

• 8-bit PIC microcontroller
• 2-channel amplifier
• Alarm and pulse tone generation

Communication Unit:

• 4-channel UART (TL16C554A)
• Asynchronous serial communication
• NIBP, analog control, and printer interfaces

GUI Unit:

• 12.1″ TFT LCD with LVDS interface
• Backlight inverter
• Internal video controller

Thermal Printer Unit:

• Serial communication interface
• Error signal monitoring

Parameter Processing Algorithms:

ECG Processing:

• Lead-off detection circuitry
• QRS waveform complex acquisition
• Pacemaker signal detection
• Heart rate computation algorithms
• Signal saturation detection

NIBP Processing (Oscillometric Method):

• Pressure pulse envelope analysis
• MAP determination technique
• Systolic and diastolic calculation
• AAMI SP-10 compliance (±5 mmHg mean, ±8 mmHg SD)
• Motion artifact rejection

SpO2 Processing:

• Dual-wavelength spectrophotometry (red/infrared)
• Plethysmography principles
• Automatic LED wavelength calibration
• Functional vs. fractional saturation explanation
• Oxyhemoglobin dissociation curve
• COPS test validation methodology

Respiration Processing:

• Thoracic impedance variation measurement
• Constant current sine wave carrier signal
• Bridge circuit and differential amplifier
• Full-wave rectifier and filtering
• Digital signal processing

Temperature Processing:

• Thermistor resistance measurement
• YSI-400 series compatibility
• Current-to-voltage conversion
• Inverse proportional temperature calculation

IBP Processing:

• Pressure transducer signal conditioning
• Variable weight filter for respiration artifact reduction
• Systolic, diastolic, and mean pressure computation

Capnography Processing:

• Sidestream CO2 monitoring
• EtCO2, InCO2, and RR measurement
• Nitrous oxide compensation

External Interfaces:

• TCP/IP network connector
• RS-232 serial I/O (9-pin D-sub)
• Nurse call interface specifications

Technical Specifications Summary

Key Manual Features

✓ 120-page comprehensive reference with detailed technical procedures
✓ Complete safety test protocols meeting IEC 60601-1 standards
✓ Performance verification checklists for all monitored parameters
✓ Factory default tables for adult, pediatric, and neonatal settings
✓ Step-by-step disassembly instructions with exploded view diagrams
✓ Troubleshooting flowcharts with component-level fault isolation
✓ Electrical safety testing with allowable leakage current limits
✓ Firmware update procedures with error code reference
✓ Spare parts identification with 50 components cataloged
✓ System block diagrams showing complete architecture

Target Users

This service manual is essential for:

• Biomedical Equipment Technicians (BMETs)
• Clinical Engineering Departments
• Hospital Technical Services Personnel
• Medical Equipment Service Engineers
• Authorized Mediana Service Centers
• Field Service Representatives

Why This Manual is Essential

Whether performing routine preventive maintenance, troubleshooting parameter measurement issues, conducting required safety tests, calibrating modules, updating firmware, or replacing components, this service manual provides the authoritative technical reference for maintaining Mediana YM6000 patient monitors. The detailed performance verification procedures, comprehensive troubleshooting guides, and complete disassembly instructions ensure reliable operation of critical patient monitoring equipment throughout its service life.
