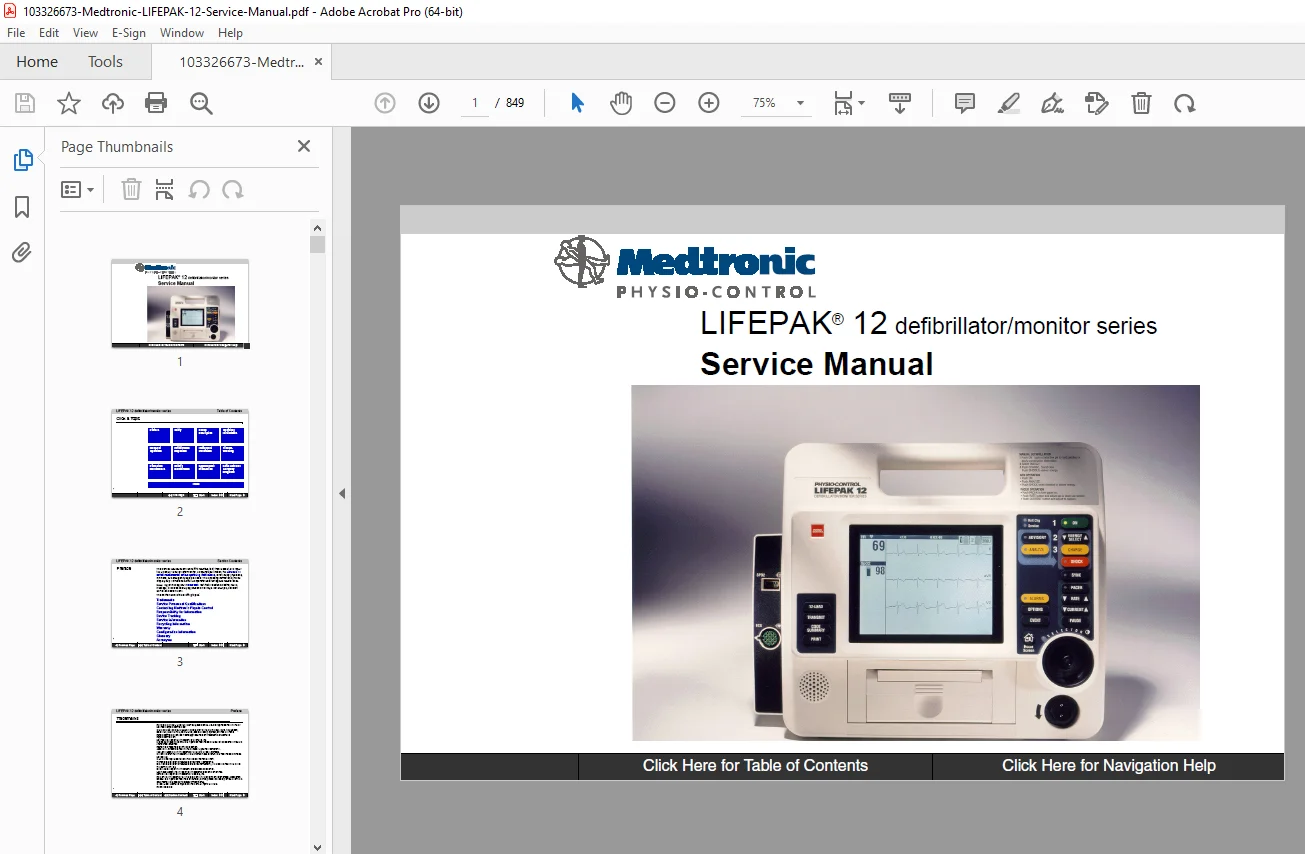

Medtronic LIFEPAK 12 Defibrillator/Monitor Service Manual – PDF
Original price was: $95.00.$20.95Current price is: $20.95.
Professional service manual for Medtronic LIFEPAK 12 defibrillator/monitor series (monophasic & biphasic). Complete technical reference for qualified biomedical technicians and emergency medical personnel. Includes safety procedures, device description, operating instructions, calibration procedures, troubleshooting, preventive maintenance, battery management, replacement procedures, and complete parts lists. Covers all LIFEPAK 12 configurations with optional 12-lead ECG, pacing, SpO2, NIBP, EtCO2, and invasive pressure monitoring. 849 pages.
Description
Medtronic LIFEPAK 12 Defibrillator/Monitor Service Manual – Complete Repair PDF DOWNLOAD
DETAILS
| Specification | Details |
|---|---|
| Device Model | Medtronic LIFEPAK 12 Defibrillator/Monitor Series |
| Device Classification | Emergency Cardiac Care Medical Device |
| Manual Type | Professional Service Manual |
| Publication Date | June 2002 |
| Total Pages | 849 Pages |
| File Size | 17.4 MB |
| Document Number | PN 3010013-015 |
| Publisher | Medtronic Physio-Control Corp. |
| Copyright | © 1998–2001 Medtronic Physio-Control |
⚡ LIFEPAK 12 DEFIBRILLATOR – TECHNICAL SPECIFICATIONS
Defibrillation Technology
| Feature | Specification | Details |
|---|---|---|
| Defibrillation Type | Monophasic OR Biphasic | Two hardware versions |
| Monophasic Waveform | Edmark (MDS) | Monophasic Damped Sinusoid |
| Biphasic Waveform | BTE | Biphasic Truncated Exponential |
| Primary Therapy | Defibrillation | Manual or AED (Advisory Mode) |
| Optional Therapy | Non-Invasive Pacing | Demand or Non-Demand |
| Energy Delivery | QUIK-COMBO Electrodes | Pacing/Defibrillation/ECG |
| Alternative Electrodes | FAST-PATCH | Disposable electrode option |
| Paddle Options | External, Internal, Sterilizable, Pediatric, Posterior | Multiple configurations |
📡 PATIENT MONITORING CAPABILITIES
| Monitoring Type | Capability | Notes |
|---|---|---|
| ECG Monitoring | Up to 3 waveforms | Simultaneous |
| ECG Recording | Up to 45 minutes | Continuous |
| Heart Rate Monitoring | Real-time | Continuous |
| VF/VT Alarm | Continuous | Automatic detection |
| SpO2 | Optional | A16 Pulse Oximetry Module |
| NIBP | Optional | A21 Blood Pressure Module |
| EtCO2 | Optional | A23 Capnography Module |
| Invasive Pressure | Optional | P1/P2 connectors |
| 12-Lead ECG | Optional | Acquisition, Printing & Transmission |
🔧 PRIMARY DEVICE FUNCTIONS
1. Defibrillation
Manual or AED (Advisory Mode)
Synchronized cardioversion
Selectable energy
Continuous ECG monitoring
Leads-off detection
2. Non-Invasive Pacing (Optional)
Demand / Non-Demand modes
Adjustable rate (ppm)
Adjustable current (mA)
Pacing Pause function
3. Patient Data Capture
Event storage & device logs
Real-time clock
CODE SUMMARY reporting
4. Patient Signal Monitoring
ECG, SpO₂, EtCO₂, IP, NIBP
VF/VT alarms
Pace/Sense markers
5. 12-Lead ECG (Optional)
Diagnostic ECG
45-minute ECG capture
Remote transmission
6. Alarm & Warning Management
Adjustable alarm limits
Audible & visual indicators
15-minute alarm silence
🔌 INTERNAL ASSEMBLIES & CIRCUIT BOARDS
| Assembly | Part # | Function |
|---|---|---|
| System PCB | A01 | Main processor |
| Memory PCB | A02 | Data storage |
| Power PCB | A03 | Power distribution |
| Therapy PCB (Mono) | A04 | Edmark waveform |
| Therapy PCB (Biphasic) | A04 | BTE waveform |
| Interface PCB | A05 | I/O interfaces |
| OEM PCB | A06 | Custom functions |
| Contact PCB | A07 | Connectors |
| Backlight PCB | A08 | Display illumination |
| Keypad (Small) | A09 | Control keys |
| Keypad (Large) | A10 | Extended keys |
| Display Assembly | A11 | LCD or EL Display |
| Printer Assembly | A12 | Thermal printer |
| Relay Assembly | A13 | Transfer relays |
| Waveshaping Inductor | A14 | Mono/Biphasic shaping |
| Energy Capacitor | A15 | Defib energy storage |
| SpO₂ Module | A16 | Pulse oximetry |
| NIBP Module | A21 | Non-Invasive BP |
| Biphasic PCB | A22 | Biphasic control |
| EtCO₂ Module | A23 | Capnography |
🔌 AUXILIARY COMPONENTS
Pacing Capacitor (C15)
Battery Wells (2x)
ECG Connector Cable
Therapy Connector Cable
SpO₂ Cable
Battery Pins (W10)
Speaker Assembly
Selector Assembly
🔋 BATTERY OPTIONS
| Battery Type | Chemistry | Rechargeable | Notes |
|---|---|---|---|
| FASTPAK | NiCd | Yes | Standard |
| FASTPAK 2 | NiCd | Yes | Extended capacity |
| LIFEPAK NiCd | NiCd | Yes | Alternative |
| LIFEPAK SLA | SLA | Yes | Sealed pack |
| Duracell Alkaline | Alkaline | No | Backup |
⚙ ELECTRODE & CONNECTOR OPTIONS
QUIK-COMBO electrodes
FAST-PATCH electrodes
REDI-PAK sealed electrodes
External paddles (adult)
Internal paddles
Pediatric paddle overlays
Posterior paddle attachment
🖥 DISPLAY OPTIONS
| Display Type | Technology | Notes |
|---|---|---|
| LCD | Liquid Crystal | Standard |
| EL | Electroluminescent | Optional |
🖨 PRINTER CONFIGURATIONS
| Printer Type | Width | Used For |
|---|---|---|
| 50mm | Standard ECG | Standard devices |
| 100mm | 12-Lead ECG & EtCO₂ | High-capability units |
📡 OPTIONAL MODULES & EXPANSIONS
Non-Invasive Pacing
SpO₂
12-Lead ECG
NIBP
Capnography
Data/Fax transmission
EL Display
Invasive pressure monitoring
Vital signs trending
📘 MANUAL SECTION OVERVIEW
Section 1: Preface
Service requirements • Glossary • Device tracking • Warranty
Section 2: Safety
Electrical, patient, and equipment safety • Symbol guide
Section 3: Device Description
Waveforms • Buttons & ports • System diagrams
Section 4: Operating Instructions
Charging • Cardioversion • AED mode • Printing • Monitoring
Section 5: Modes of Operation
Manual, Advisory, Pacing, Service & Test modes
Section 6: Performance Inspection
PIP procedures • Expected readings • Measurement tables
Section 7: Calibration
Calibration for ECG, SpO₂, EtCO₂, Pacing, Printer, Display
Section 8: Troubleshooting
Error codes • Symptoms • LED tones • Printer and module faults
Section 9: Preventive Maintenance
Daily–annual schedules • Cleaning • Battery checks
Section 10: Battery Maintenance
Charging, replacement, safety & recycling
Section 11: Replacement Procedures
Step-by-step FRU replacement • Safety notes • Tools required

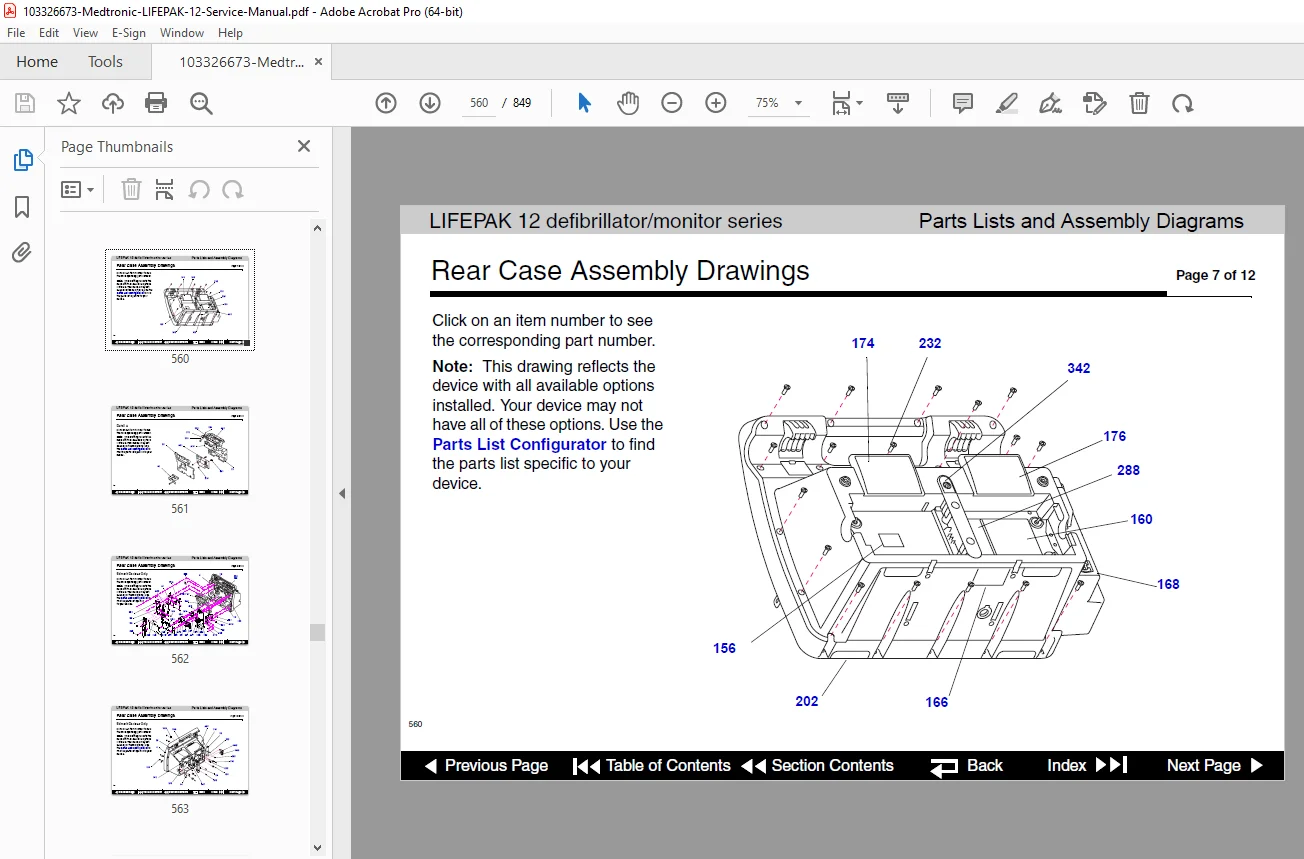

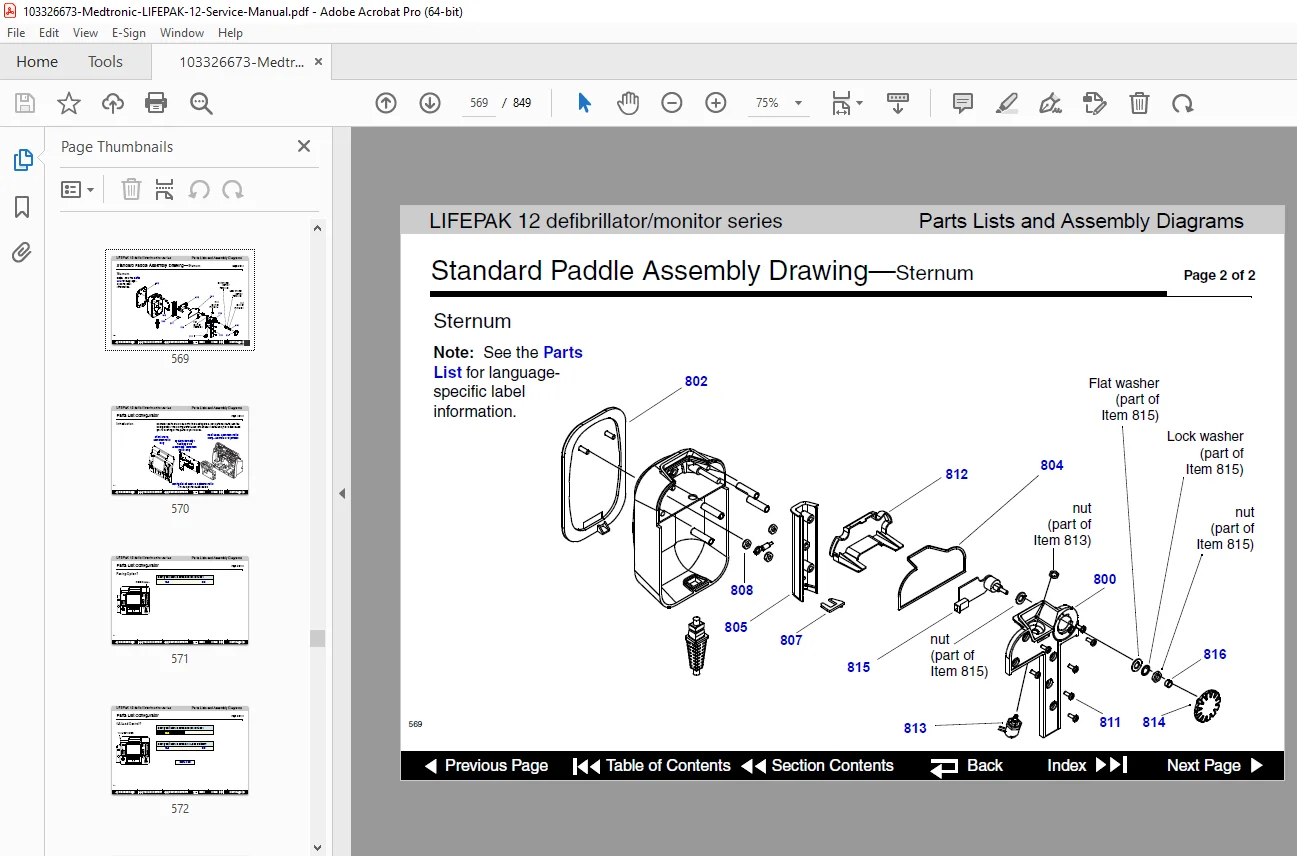

Section 12: Parts Lists & Diagrams
Exploded views • Wiring • BOM • Connectors • PCB diagrams
⚠ CRITICAL SERVICE INFORMATION
High Voltage Safety
Defibrillation capacitor contains lethal voltage
Strict discharge procedures required
ESD protection mandatory
Regulatory Compliance
FDA Device Tracking
CE MDD 93/42/EEC
CSA / NRTL / IEC / AAMI / ANSI standards
Required Technician Training
Biomedical degree OR
Technical certificate in biomedical electronics OR
Equivalent field experience
🎯 IDEAL USERS
Biomedical Equipment Technicians (BMETs)
Hospital Clinical Engineering Teams
EMS and Fire/Rescue technicians
Authorized Medtronic Service Centers
Equipment rental or refurbishment companies
