Mercury MerCruiser Service Manual  ECM 555 Diagnostics (496 MAG & 8.1L Engines) – PDF DOWNLOAD

Description

Unlock the ability to professionally diagnose and repair modern MerCruiser propulsion systems with the Mercury Service Manual #36 – ECM Diagnostics. This massive technical resource is specifically dedicated to the ECM 555 (Electronic Control Module) and PCM 555 (Powertrain Control Module) systems found on high-performance 8.1L and 496 MAG engines.

Unlike standard mechanical manuals, this guide focuses entirely on the electronic “brain” of your boat. Whether you are chasing a “Check Engine” light, dealing with a rough idle, or need to pin-out a harness, this manual provides the factory-approved data you need. It includes in-depth theory of operation for sensors and actuators, making it indispensable for understanding how the SmartCraft system manages engine performance and Guardian strategies.

Comprehensive Table of Contents & Coverage:

Section 1: Important Information

• General Service Information & Precautions

• Electrostatic Discharge Awareness

• Outlined Maintenance Schedules

Section 2: Theory of Operation

• Control Module: PCM 555 / ECM 555 Architecture

• Sensors & Actuators:

  • Manifold Absolute Pressure (MAP)

  • Throttle Position Sensor (TPS)

  • Coolant & Air Temperature Sensors (ECT/IAT)

  • Idle Air Control (IAC)

• Fuel System: Multi-Port Injection (MPI), Fuel Rail, & Pressure Regulation

• Ignition System: Coil-Near-Plug Ignition & Spark Control

• Electronic Systems: Guardian Strategy, Warning Horns, & SmartCraft Logic

Section 3: Diagnostics & Troubleshooting

• Diagnostic Tools: Using the DDT (Digital Diagnostic Terminal) & Scan Tools

• Troubleshooting Charts: Flowcharts for “Engine Cranks but Won’t Start,” “Poor Performance,” etc.

• DTC Identification: Complete list of Diagnostic Trouble Codes (e.g., Code 12, Code 45) with specific fix procedures.

• System Tests:

  • Fuel Pressure Testing

  • Ignition Spark Testing

  • Injector Balance Tests

Section 4: Electrical Systems

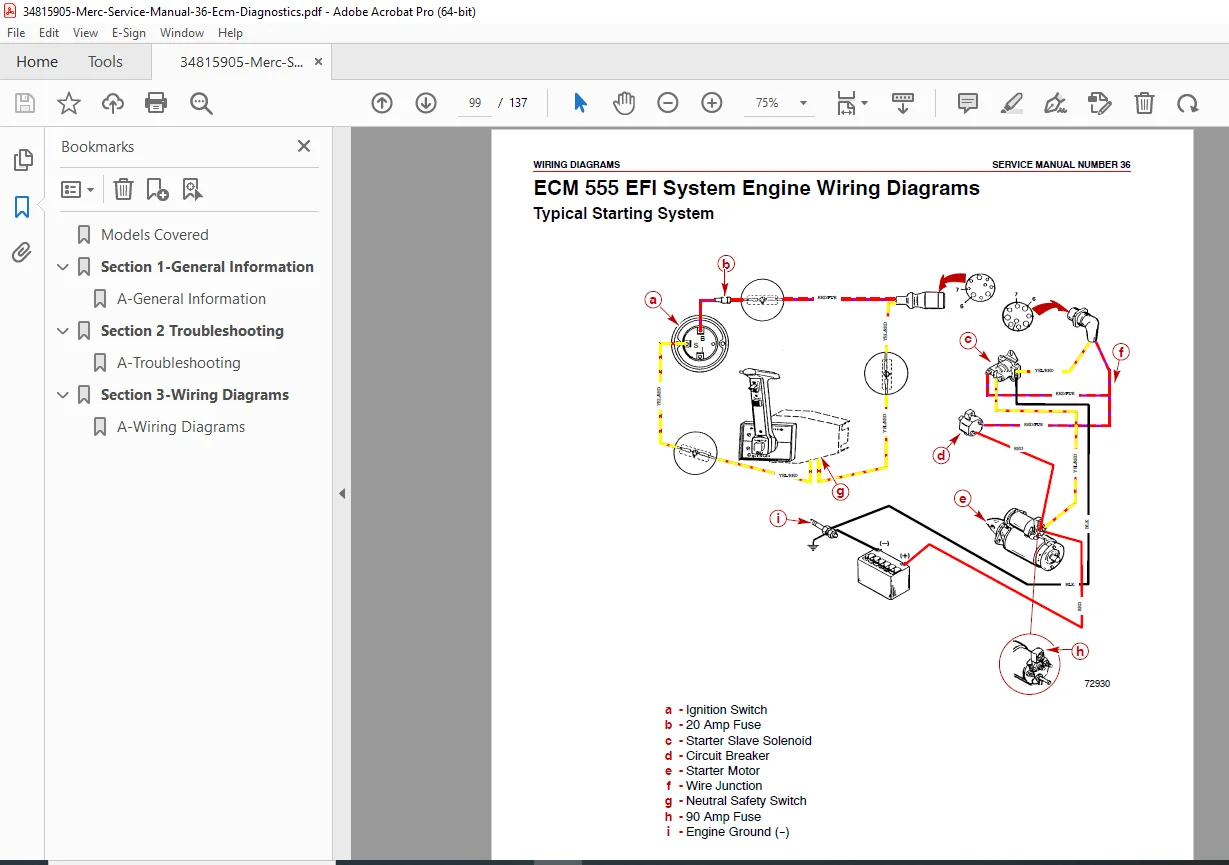

• Wiring Diagrams: Full-color and black-and-white schematics for Engine Harnesses.

• Pinouts: Connector face views and pin definitions for the 555 Controllers.

• Charging System: Battery, Alternator, and Grounding circuit tests.

File Details

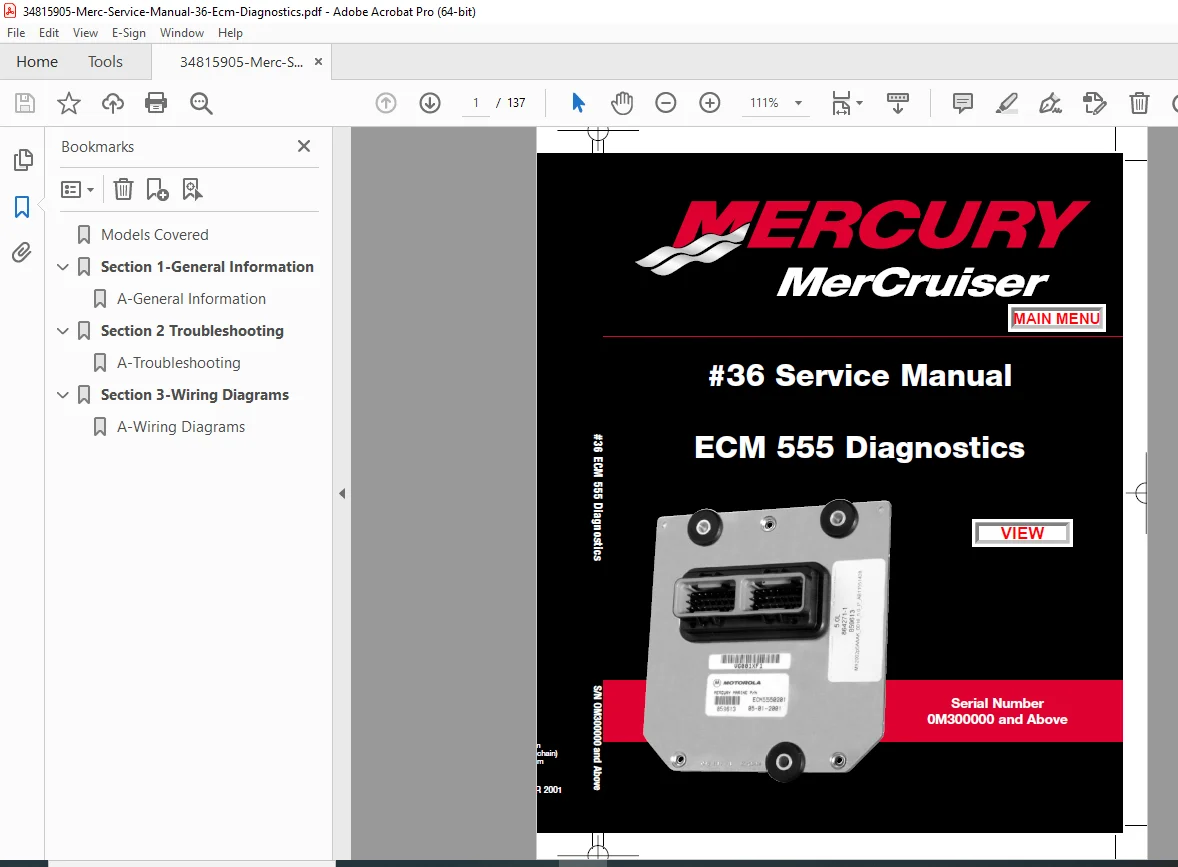

Manual Name: Mercury MerCruiser Service Manual #36 – ECM Diagnostics / PCM 555

• Models Covered:

  • 496 MAG & 496 MAG HO (Sterndrive)

  • 8.1L Base & 8.1L High Output (Inboard)

• Year: 2001 (Applicable to Gen VI Engines with 555 Controllers)

• File Type: PDF (High-Quality, Searchable, Bookmarked)

• Page Count: 137
