MERLO P101.10 HM FUNCTIONNING DIAGRAM 2009 (30964_3C) – PDF

Description

Document Overview

This document contains the functioning diagrams for the MERLO P101.10 HM telehandler, specifically for the 2009 model year. Identified by the reference number 30964_3C, this is a technical resource for skilled service technicians and engineers. It provides the detailed schematics necessary for advanced diagnostics and repair of the machine’s core systems.

What’s Inside the Manual

This is not a standard operator’s guide. Instead, it is composed of detailed diagrams and schematics that illustrate the hydraulic and electrical circuits of the telehandler. These visual guides are essential for troubleshooting complex problems, allowing a technician to trace system pathways, test components, and accurately pinpoint the source of a fault. This level of detail is critical for efficient and effective repairs.

Document Details

• Brand: MERLO
• Model: P101.10 HM
• Year: 2009
• Reference Number: 30964_3C
• Content: Functioning Diagram / Schematics
• Language: English, Italian, French
• Pages: 27

An Indispensable Tool for Technicians

For any issue that goes beyond basic mechanical adjustments, functioning diagrams are the key to a successful diagnosis. This manual provides the in-depth information required to understand and resolve sophisticated system failures. Get immediate access to these vital schematics with our convenient PDF download. It is the professional’s choice for servicing MERLO equipment accurately.

Original Product Details

MERLO P101.10 HM FUNCTIONNING DIAGRAM 2009 (30964_3C) – PDF DOWNLOAD

FILE DETAILS:

MERLO P101.10 HM FUNCTIONNING DIAGRAM 2009 (30964_3C) – PDF DOWNLOAD

Language :  English, Italian & French
Pages : 27
Downloadable : Yes
File Type : PDF

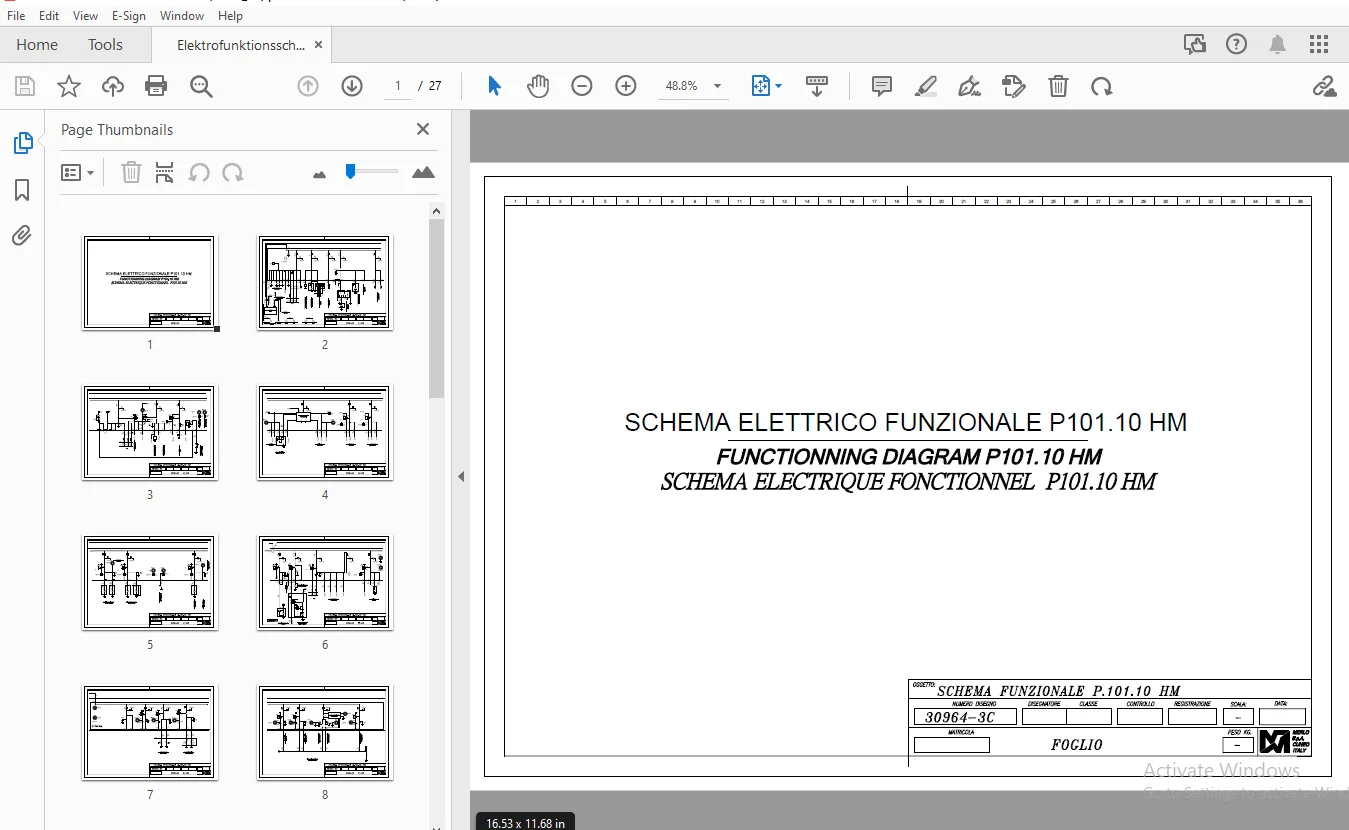

IMAGES PREVIEW OF THE MANUAL:

..
