MERLO P25 FUNCTIONNING DIAGRAM 2012 – PDF DOWNLOAD
FILE DETAILS:
MERLO P25 FUNCTIONNING DIAGRAM 2012 – PDF DOWNLOAD
Language : English, French & Italian
Pages : 28
Downloadable : Yes
File Type : PDF

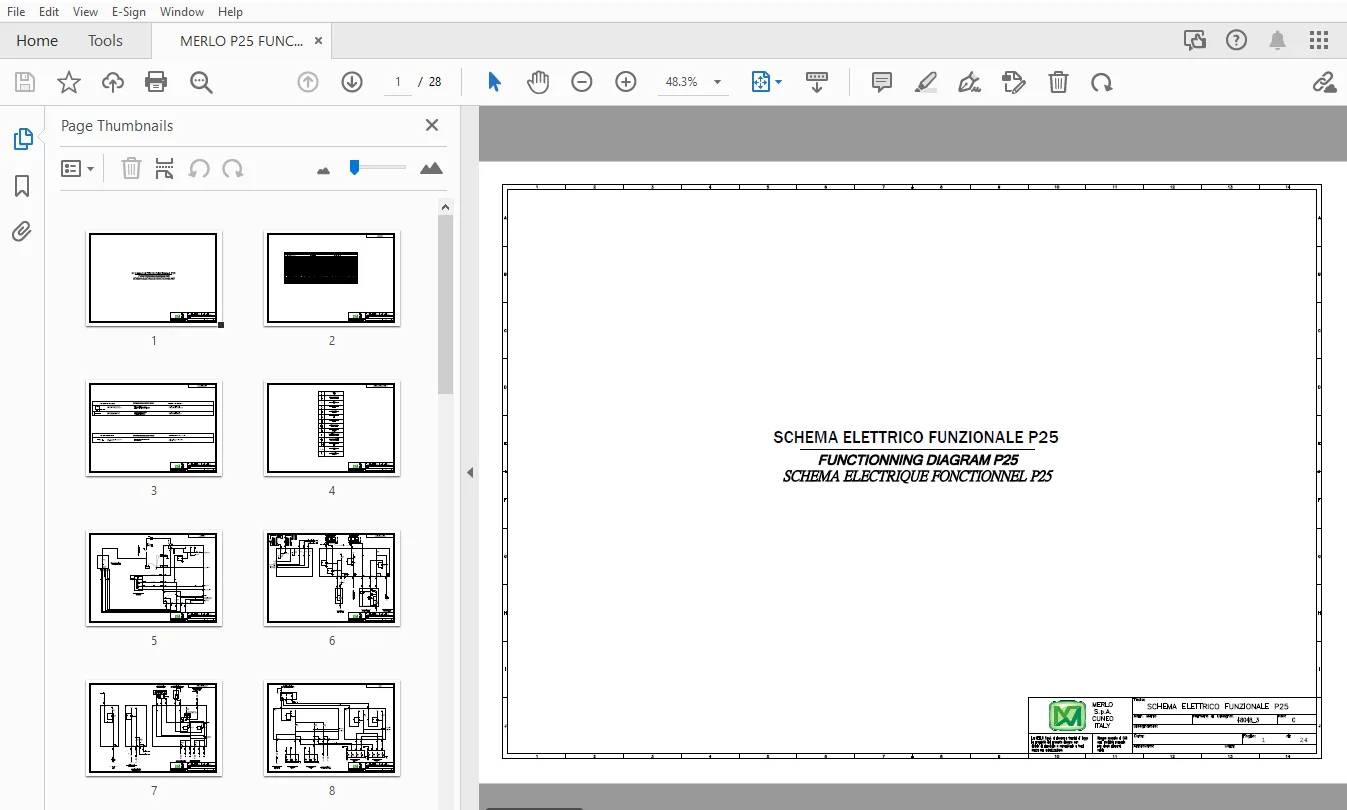

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MERLO P25 FUNCTIONNING DIAGRAM 2012 – PDF DOWNLOAD
| PG. | TITLE (English) | TITRE (French) | TITOLO (Italian) |
|---|
| 1 | PAGES INDEX | SOMMAIRE PAGES | INDICE PAGINE |
| 1A | CROSS-REFERENCE LEGEND | LÉGENDE DES RAPPELS | LEGENDA RIMANDI |
| 1B | INSIDE OF BOARDS SYMBOLS LEGEND | LÉGENDE DES SYMBOLES INTÉRIEUR CARTES | LEGENDA SIMBOLI INTERNO SCHEDE |
| 2 | POW. SUPPLY | ALIMENTATIONS | ALIMENTAZIONI |
| 3 | AIR CONDITIONING – HEATING | CONDITIONNEMENT – CHAUFFAGE | CONDIZIONAMENTO – RISCALDAMENTO |
| 4 | TURN INDICATORS – STOP – HORN | CLIGNOTANTS – STOP – KLAXON | FRECCE – STOP – CLACSON |
| 6 | FLASHING BEACON – WORKING LIGHTS | GYROPHARE – FEUX DE TRAVAIL | GIROFARO – FARI LAVORO |
| 7 | WIPER | ESSUIE-GLACE | TERGICRISTALLI |
| 9 | WHEELS ALIGNED – ALTERN. – REVOLUTION SENSORS | ROUES CENTR. – ALTERN. – CAPTEURS TOURS | RUOTE CENTR. – ALTERN. – SENSORI GIRI |
| 10 | INSTRUMENTATION PANEL SIGNALS | SIGNALISATIONS PUPITRE INSTRUMENTS | SEGNALAZIONI PANNELLO STRUMENTAZIONE |
| 11 | GENERAL BUZZER | AVERTISSEUR SONORE GENERAL | AVVISATORE ACUSTICO GENERALE |
| 12 | MOVEMENTS UNLOCKING SV – BOOM RETRACTION PUSHB. | EV DÉBLOC. MOUV. – BOUT. RENTRÉE FLÈCHE | EV SBLOCCO MOVIM. – PULS. RIENTRO BRACCIO |
| 12A | VARIANT PG 12 | VARIANTE PG 12 | VARIANTE PG 12 |
| 13 | SIMPLIFIED CONTROL PLATFORM | NACELLE COMMANDES SIMPLIFIÉES | NAVICELLA COMANDI SEMPLIFICATI |
| 15 | JOYSTICK CONTROLS | COMMANDES JOYSTICK | COMANDI JOYSTICK |
| 16 | PROPORTIONAL JOYSTICK CONTROLS (OPT.) | COMMANDES JOYSTICK PROPORTIONNELLE (OPT.) | COMANDI JOYSTICK PROPORZIONALE (OPT.) |
| 17 | PARK, BRAKE – FORWARD/REVERSE | FREIN DE STAT. – AVANT/ARRIÈRE | FRENO STAZ. – AVANTI/INDIETRO |
| 18 | HEATED SEAT – PNEUM. BRAK. – BOOM SUSP. – DIFF. LOCK | SIÈGE CHAUFF. – FR. PNEUM. – SUSP. FLÈCHE – BLOC. DIFF. | SEDILI RISC. – FR. PNEUM. – SOSP. BRACCIO – BLOCC. DIFF. |
| 19 | CAB ATTACHMENTS | ACCESSOIRES CABINE | ACCESSORI CABINA |
| 20 | DIAGNOSTIC | DIAGNOSTIC | DIAGNOSTICA |
| 23 | CONN. BOARD INDEX | SOMMAIRE CONN. CARTE | INDICE CONN. SCHEDA |
| 24 | REPLACEABLE COMPONENTS INDEX | SOMMAIRE COMPOSANTS REMPLAÇABLES | INDICE COMPONENTI SOSTITUIBILI |
