MERLO P32.6 IMS FUNCTIONNING DIAGRAM 2006 (40498_3) – PDF
$17.95
MERLO P32.6 IMS FUNCTIONNING DIAGRAM 2006 (40498_3) – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
MERLO P32.6 IMS FUNCTIONNING DIAGRAM 2006 (40498_3) – PDF DOWNLOAD
FILE DETAILS:
MERLO P32.6 IMS FUNCTIONNING DIAGRAM 2006 (40498_3) – PDF DOWNLOAD
Language : English, Italian & German
Pages : 65
Downloadable : Yes
File Type : PDF

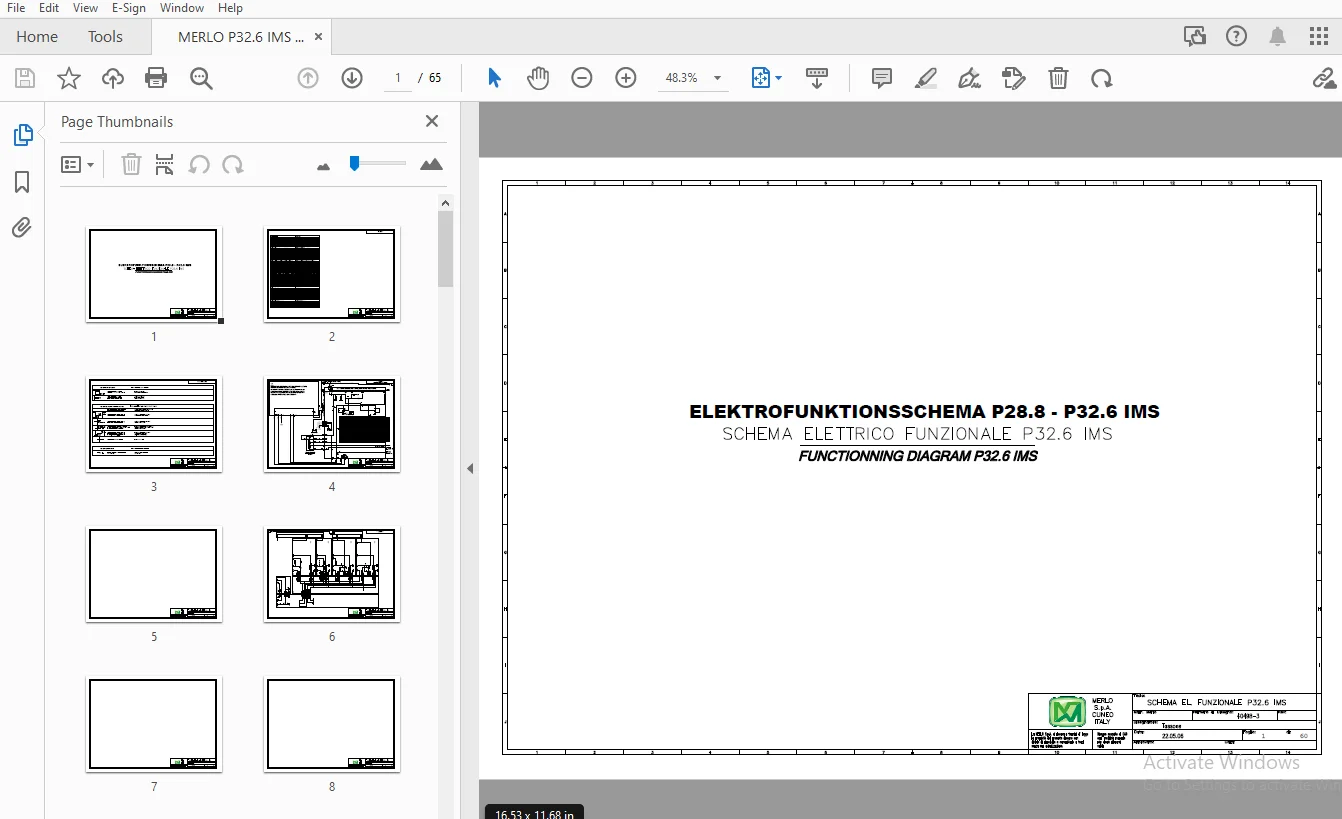

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MERLO P32.6 IMS FUNCTIONNING DIAGRAM 2006 (40498_3) – PDF DOWNLOAD
| PG | TITOLO | TITLE | TITLE (German) | |
|---|---|---|---|---|
| 1 | INDICE PAGINE | PAGE INDEX | SEITENINDEX | |
| 2 | LEGENDA | LEGEND | LEGENDE | |
| 3 | ALIMENTAZIONE | PON. SUPPLY | STROMVERSORGUNG | |
| 4 | ALIMENTAZIONE | PON. SUPPLY | STROMVERSORGUNG | |
| 5 | CONDIZIONAMENTO – RISCALDAMENTO | AIR CONDITIONING – HEATING | KLIMAANLAGE – HEIZUNG | |
| 6 | INDICATORE LUCI – FARI POSTERIORI | REAR LIGHTS INDICATOR SWITCH – REAR LIGHTS | RÜCKLICHTSCHALTER – RÜCKLICHT | |
| 7 | FARI ABBAGLIANTI – CASSE | STOP – BEAMERS – GEAR LIGHTS | STOP- UND FERNLICHT | |
| 8 | INTERRUTTORE LUCI | LIGHTS SWITCH | LICHTSCHALTER | |
| 9 | FRIZIONE | CLUTCH | KUPPLUNG | |
| 10 | REGOLATORE CARICA | VOLTAGE REGULATOR | LADEREGLER | |
| 11 | PARTITORE | PARTITION | TEILERSCHALTER | |
| 12 | VARIE | MISCELLANEOUS | VERSCHIEDENES | |
| 13 | GENERATORE | GENERATOR | GENERATOR | |
| 14 | ALTERNATORE | ALTERNATOR | LICHTMASCHINE | |
| 15 | REGOLATORE CARICA | VOLTAGE REGULATOR | LADEREGLER | |
| 16 | AVVIAMENTO | STARTING | STARTER | |
| 17 | BATTERIA | BATTERY | BATTERIE | |
| 18 | MOTORE | ENGINE | MOTOR | |
| 19 | MOTORE D’AVVIAMENTO | STARTING MOTOR | ANLASSER | |
| 20 | IMPIANTO GENERALE – ALTERNATORE | GENERAL SYSTEM – ALTERNATOR | SYSTEMÜBERSICHT – LICHTMASCHINE | |
| 21 | GENERATORE | GENERATOR | GENERATOR | |
| 22 | QUADRO | CONTROL PANEL | BEDIENTAFEL | |
| 23 | STRUMENTAZIONE DI BASE | BASE INSTRUMENTATION | GRUNDINSTRUMENTIERUNG | |
| 24 | SERRATURE | LOCKS | SCHLOSS | |
| 25 | CABINA | CABIN | KABINE | |
| 26 | PORTA | DOOR | TÜR | |
| 27 | CLIMATIZZATORE | AIR CONDITIONER | KLIMAANLAGE | |
| 28 | FILTRO ARIA | AIR FILTER | LUFTFILTER | |
| 29 | FILTRO OLIO | OIL FILTER | ÖLFILTER | |
| 30 | CIRCUITO DI RAFFREDDAMENTO | COOLING CIRCUIT | KÜHLKREISLAUF | |
| 31 | MOTORE DIESEL | DIESEL ENGINE | DIESELMOTOR | |
| 32 | MARMITTA | EXHAUST | AUSPUFF | |
| 33 | ALBERO DI TRASMISSIONE | DRIVE SHAFT | ANTRIEBSWELLE | |
| 34 | TRASMISSIONE | TRANSMISSION | GETRIEBE | |
| 35 | FRIZIONE | CLUTCH | KUPPLUNG | |
| 36 | RUOTE | WHEELS | RÄDER | |
| 37 | IMPIANTO FRENI – BLOCCO DIFFERENZIALE | BRAKE SYSTEM – DIFFERENTIAL LOCK | BREMSSYSTEM – DIFFERENTIALSPERRE | |
| 38 | IMPIANTO FRENANTE | BRAKE SYSTEM | BREMSSYSTEM | |
| 39 | COMANDI | CONTROLS | BEDIENUNG | |
| 40 | SERRATURE | LOCKS | SCHLÖSSER | |
| 41 | FRENO MOTORE | ENGINE BRAKE | MOTORBREMSER | |
| 42 | SISTEMA DI INIEZIONE | INJECTION SYSTEM | EINSPRITZANLAGE | |
| 43 | ASSALE | AXLE | ACHSE | |
| 44 | SOSPENSIONE | SUSPENSION | FEDERUNG | |
| 45 | LIVELLAMENTO | LEVELING | NIVEAUREGULIERUNG | |
| 46 | CILINDRO DI LIVELLAMENTO | LEVELING CYLINDER | NIVEAUSTEUERZYLINDER | |
| 47 | ALBERO | SHAFT | WELLE | |
| 48 | TIRANTE | ROD | ZUGSTANGE | |
| 49 | PNEUMATICI | TIRES | REIFEN | |
| 50 | SERBATOIO | TANK | TANK | |
| 51 | CIRCUITO ELETTRICO | ELECTRICAL CIRCUIT | ELEKTRISCHER KREISLAUF | |
| 52 | MANUTENZIONE PERIODICA | PERIODIC MAINTENANCE | PERIODISCHE WARTUNG | |
| 53 | LIVELLI DI CONTROLLO E SOSTITUZIONI | CONTROL LEVELS AND REPLACEMENTS | KONTROLLNIVEAUS UND ERSATZ | |
| 54 | LIVELLI DI CONTROLLO | CONTROL LEVELS | KONTROLLNIVEAU | |
| 55 | INDICE CODICI COMPONENTI SOSTITUIBILI LOCALI | LOCALLY REPLACEABLE COMPONENTS INDEX | INDEX ERSETZBARER KOMPONENTEN | |
| 56 | SISTEMA ELETTRICO | ELECTRIC SYSTEM | ELEKTRISCHES SYSTEM | |
| 57 | SISTEMA DI ILLUMINAZIONE | LIGHTING SYSTEM | BELEUCHTUNGSSYSTEM | |
| 58 | FARI ABBAGLIANTI E ANABBAGLIANTI | HIGH AND LOW BEAM LIGHTS | FERN- UND ABBLENDLICHT | |
| 59 | STOP – LUCI INDICATORI – LUCI DI PARCHEGGIO | STOP – INDICATOR LIGHTS – PARKING LIGHTS | STOP- UND PARKLICHT | |
| 60 | LUCI DI RETROMARCIA E POSIZIONE | REVERSE AND POSITION LIGHTS | RÜCKFAHR- UND STANDLICHT | |
| 61 | TAVOLETTA PORTASTRUMENTI | INSTRUMENT PANEL | ARMATURENTAFEL | |
| 62 | FUSIBILI E RELÈ | FUSES AND RELAYS | SICHERUNGEN UND RELAIS | |
| 63 | CAVI | CABLES | KABEL | |
| 64 | CAVI | CABLES | KABEL | |
| 65 | CAVI DI CONTROLLO | CONTROL CABLES | STEUERKABEL | |
| 66 | COMANDI | CONTROLS | STEUERUNG | |
| 67 | LEVA DI COMANDO | CONTROL LEVER | STEUERHEBEL | |
| 68 | SUPPORTO | SUPPORT | HALTERUNG |
