MERLO P32.6 IMS FUNCTIONNING DIAGRAM – PDF

Description

Manual Overview

This manual provides the functioning diagrams for the IMS (Integrated Management System) on the MERLO P32.6 telehandler. This is a technical document designed for service technicians and engineers who need to understand the operational logic and system interactions within this advanced machine. The information is provided in multiple languages.

What Are Functioning Diagrams?

Functioning diagrams illustrate how a system operates under various conditions. Unlike a simple wiring schematic, these diagrams can show the flow of logic, hydraulic pressure, or electrical signals through a system. They are invaluable for diagnosing complex problems where multiple components interact, helping technicians understand cause and effect within the IMS.

Manual Specifications

• Brand: MERLO
• Model: P32.6
• System: IMS (Integrated Management System)
• Document Type: Functioning Diagram
• Languages: English, Italian & German
• Pages: 54

Deepen your understanding of the MERLO P32.6’s sophisticated control systems. This PDF manual provides immediate access to the detailed diagrams needed for advanced troubleshooting and diagnostics, making it an essential resource for professional technicians.

Instant Download: Get your multi-language PDF manual immediately after purchase. No need to wait for a physical copy.

Original Product Details

MERLO P32.6 IMS FUNCTIONNING DIAGRAM – PDF DOWNLOAD

FILE DETAILS:

MERLO P32.6 IMS FUNCTIONNING DIAGRAM – PDF DOWNLOAD

Language : English, Italian & German
Pages : 54
Downloadable : Yes
File Type : PDF

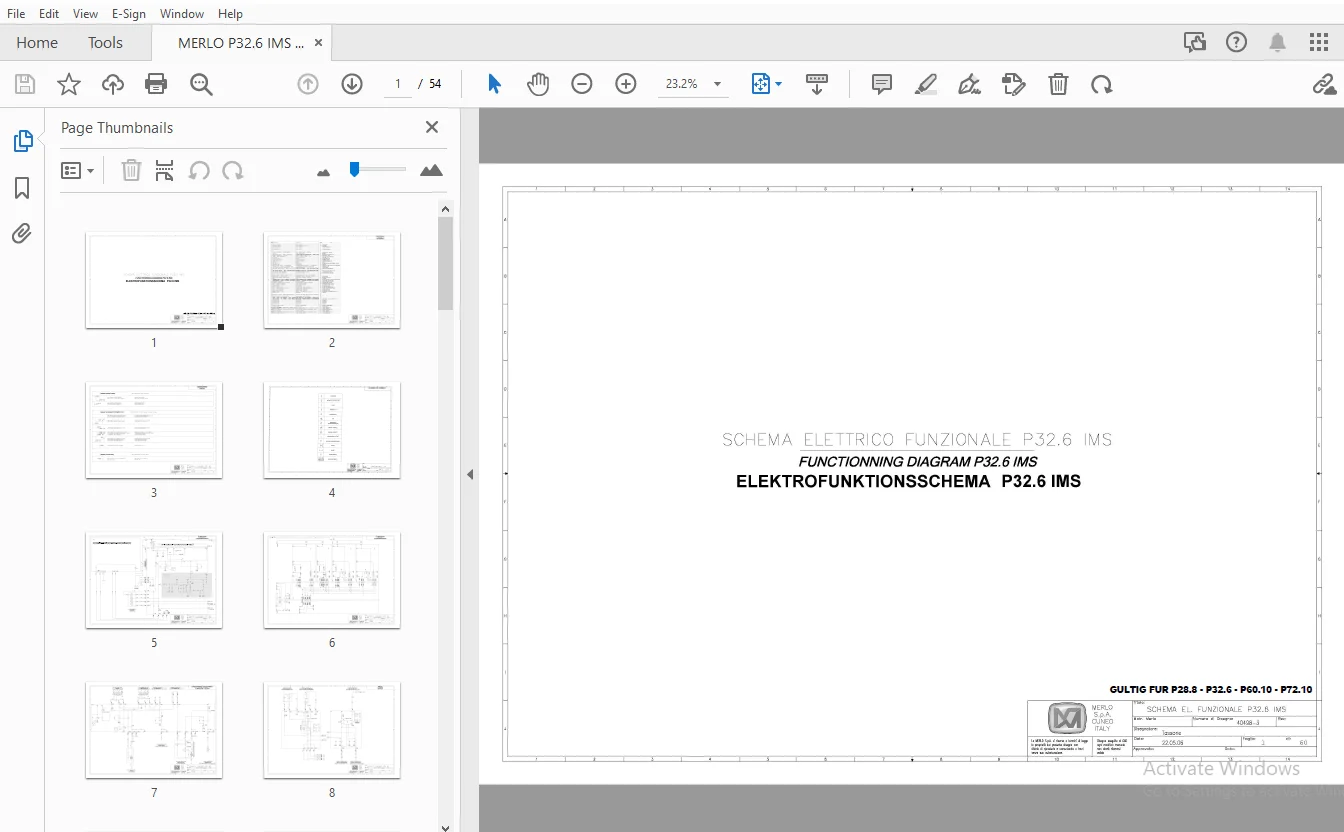

IMAGES PREVIEW OF THE MANUAL:
