MERLO P32 CIT FUNCTIONNING DIAGRAM 2014 (58368_3A) – PDF
$14.95
MERLO P32 CIT FUNCTIONNING DIAGRAM 2014 (58368_3A) – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
MERLO P32 CIT FUNCTIONNING DIAGRAM 2014 (58368_3A) – PDF DOWNLOAD
FILE DETAILS:
MERLO P32 CIT FUNCTIONNING DIAGRAM 2014 (58368_3A) – PDF DOWNLOAD
Language : English, Italian & French
Pages : 44
Downloadable : Yes
File Type : PDF

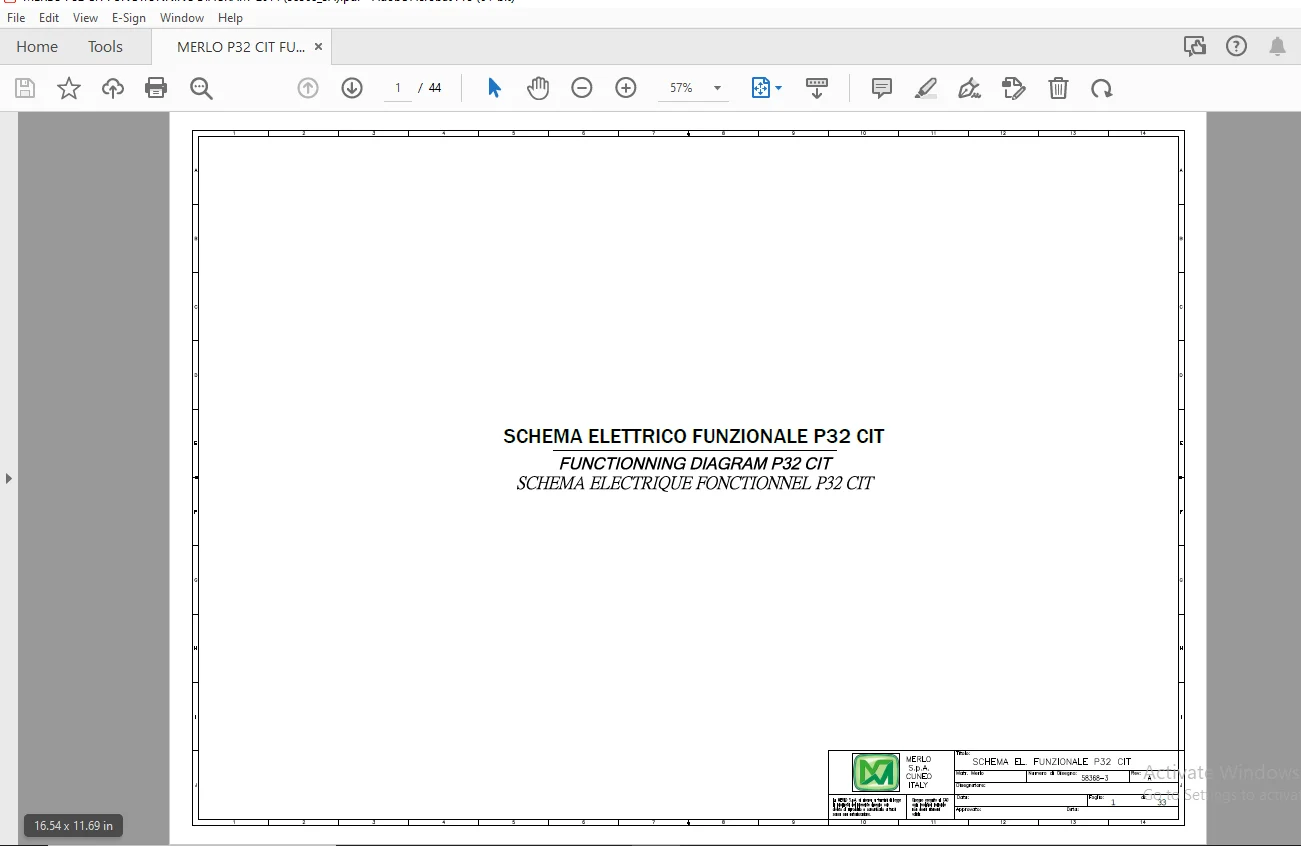

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MERLO P32 CIT FUNCTIONNING DIAGRAM 2014 (58368_3A) – PDF DOWNLOAD
| PG | TITOLO | TITLE | TITRE |
|---|---|---|---|
| 1B | LEGENDA RIMANDI | CROSS-REFERENCE LEGEND | LEGENDE RES RAPPELS |
| 1C | LEGENDA SIMBOLI INTERNO SCHEDE | INSIDE OF BOARDS SYMBOLS LEGEND | LEGENDE DES SYMBOLES INTERIEUR CARTES |
| 2 | ALIMENTAZIONI | POW. SUPPLY | ALIMENTATIONS |
| 3 | CONDIZIONAMENTO – RISCALDAMENTO | AIR CONDITIONING – HEATING | CONDITIONNEMENT-CHAUFFAGE |
| 4 | FRECCE- STOP | TURN INDICATORS – STOP | CLIGNOTANTS – STOP |
| 5 | FANALI | LIGHTS | FEUX |
| 6 | FARI LAVORO | WORKING LIGHTS | PHARES DE TRAVAIL |
| 7 | TERGICRISTALLI | WIPER | ESSUIE-GLACE |
| 8 | MOTORE | MOTOR | MOTEUR |
| 8A | VARIANTE PG. 8 KBM | VARIANT PG. 8 KBM | VARIANTE PG. 8 KBM |
| 9 | RUOTE CENTR. – ALTERN. – SENSORI GIRI | CENTRAL WHEELS – ALTERNATOR – SPEED SENSORS | ROUES CENTR. – ALTERN. – CAPTEURS TOURS |
| 10 | SEGNALAZIONI PANNELLO STRUMENTAZIONE | INSTRUMENTATION PANEL SIGNALS | SIGNALISATIONS PUPITRE INSTRUMENTS |
| 11 | AVVISATORE ACUSTICO GENERALE | GENERAL BUZZER | AVERTISSEUR SONORE GENERAL |
| 12 | EV SBLOCCO MOVIM. – PULS. RIENTRO BRACCIO | MOVEMENTS UNLOCKING SWITCH – BOOM RETRACTION BUTTON | EV DEBLOC. MOUV. – BOUT. RENTREE FLECHE |
| 12A | VARIANTE PG 12 | VARIANT PG 12 | VARIANTE PG 12 |
| 12B | VARIANTE PG. 12 IMP. CDC | VARIANT PG. 12 CDC INSTALLATIONS | VARIANTE PG.12 INTS. CDC |
| 13 | CENTRALINA RALLENTAMENTO BRACCIO | BOOM SLOWING DOWN UNIT | CENTRAL ELECTRONIQUE RALENTISSEMEN FLECHE |
| 13A | VARIANTE PG. 13 IMP. CDC | VARIANT PG. 13 CDC INSTALLATIONS | VARIANTE PG.13 INTS. CDC |
| 14 | NAVICELLA COMANDI SEMPLIFICATI | SIMPLIFIED CONTROL PLATFORM | NACELLE COMMANDES SIMPLIFIEES |
| 14A | VARIANTE PG. 14 IMP. CDC | VARIANT PG. 14 CDC INSTALLATIONS | VARIANTE PG.14 INTS. CDC |
| 15 | AUX | AUXILIARY | AUX |
| 15A | VARIANTE PG 15 | VARIANT PG 15 | VARIANTE PG 15 |
| 16 | SCH. CONTROLLO BRACCIO | BOOM CONTROL BOARD | CARTE CONTROLE FLECHE |
| 16A | VARIANTE PG. 16 IMP. CDC | VARIANT PG. 16 CDC INSTALLATIONS | VARIANTE PG.16 INTS. CDC |
| 17 | SOLLEVATORE POST. (NON UTILIZZATA) | REAR LIFTER (NOT USED) | ELEVAT. ARRIERE (NON UTILISEE) |
| 18 | NON UTILIZZATA | NOT USED | NON UTILISEE |
| 19 | FRENO DI STAZIONAMENTO | PARKING BRAKE | FREIN DE STATIONNEMENT |
| 20 | CENTRALINA SAUER EVO | SAUER EVO UNIT | CENTRAL SAUER EVO |
| 21 | CENTRALINA SAUER EVO | SAUER EVO UNIT | CENTRAL SAUER EVO |
| 22 | TILTING (NON UTILIZZATA) | TILTING (NOT USED) | TILTING (NON UTILISEE) |
| 22A | VARIANTE PG. 22 IMP. CDC | VARIANT PG. 22 CDC INSTALLATIONS | VARIANTE PG.22 INTS. CDC |
| 23 | NON UTILIZZATA | NOT USED | NON UTILISEE |
| 24 | SEDILE RISC. – FR. PNEUM. – SOSP. BRACCIO | HEATED SEAT – PNEUMATIC BRAKING – BOOM SUSPENSION | SIEGE CHAUF. – FR. PNEUM. – SUSP. FLECHE |
| 25 | ACCESSORI CABINA | CAB ATTACHMENTS | ACCESSOIRES CABINE |
| 26 | ELETTROPOMPA | MOTOR PUMP | ELECTROPOMPE |
| 27 | DIAGNOSTICA | DIAGNOSTIC | DIAGNOSTIC |
| 28 | RISERVA | SPARE | RESERVE |
| 29 | CENTRALINA ELETTRONICA MOTORE KBE | ELECTRONIC UNIT MOTOR KBE | CENTRAL ELECTRONQUE MOTEUR KBE |
| 30 | LAYOUT | LAYOUT | LAYOUT |
| 31 | INDICE CONN. SCHEDA | CONNECTION BOARD INDEX | SOMMAIRE CONN. CARTE |
| 32 | INDICE COMPONENTI SOSTITUIBILI | REPLACEABLE COMPONENTS INDEX | SOMMAIRE COMPOSANTS REMPLACABLES |
