MERLO P60.10 IMS PLATFORM FUNCTIONNING DIAGRAM – PDF
$18.95
MERLO P60.10 IMS PLATFORM FUNCTIONNING DIAGRAM – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
MERLO P60.10 IMS PLATFORM FUNCTIONNING DIAGRAM – PDF DOWNLOAD
FILE DETAILS:
MERLO P60.10 IMS PLATFORM FUNCTIONNING DIAGRAM – PDF DOWNLOAD
Language : English, Italian & French
Pages : 70
Downloadable : Yes
File Type : PDF

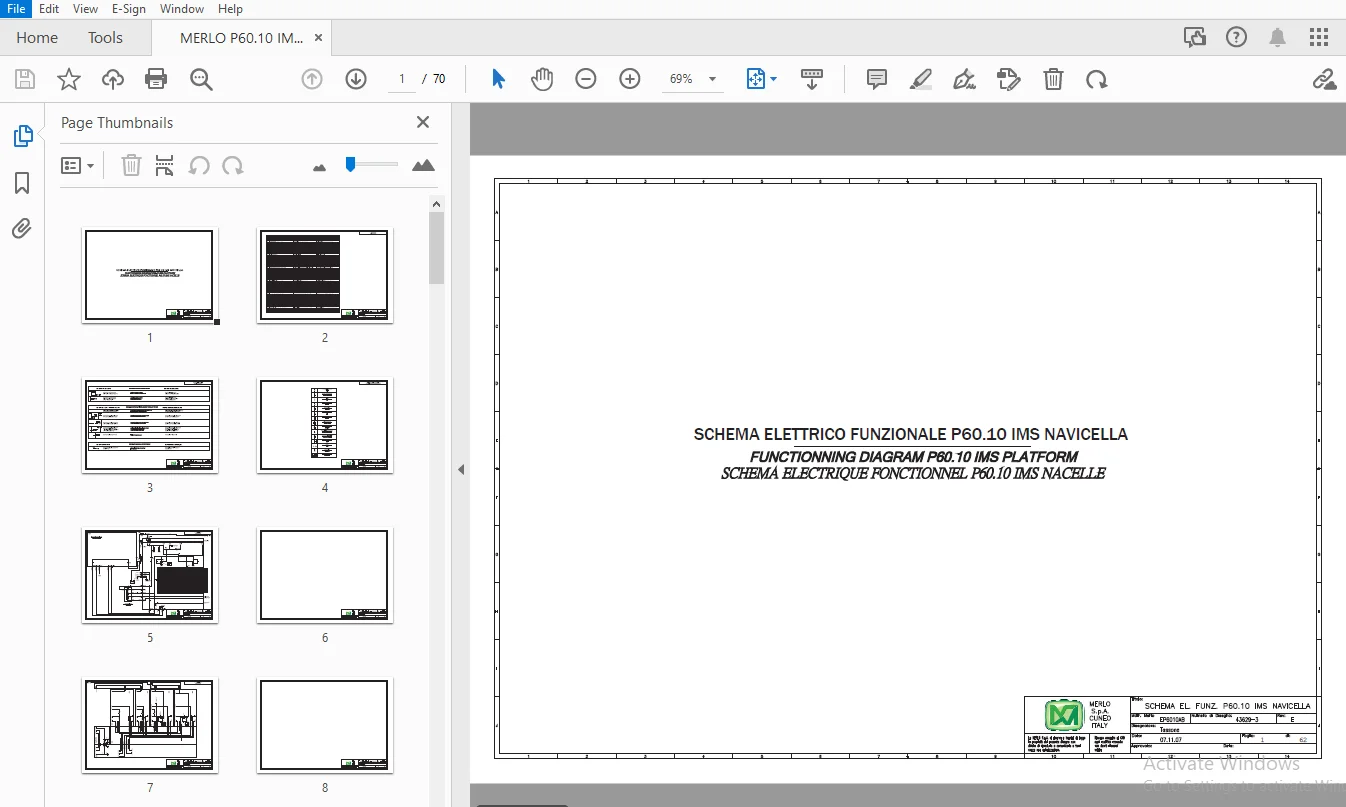

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MERLO P60.10 IMS PLATFORM FUNCTIONNING DIAGRAM – PDF DOWNLOAD
| PG | TITOLO | TITLE | TITRE |
|---|---|---|---|
| 1 | |||
| 1A | INDICE PAGINE | PAGES INDEX | SOMMAIRE PAGES |
| 1B | LEGENDA RIMANDI | CROSS-REFERENCE LEGEND | LEGENDE RES RAPPELS |
| 1C | LEGENDA SIMBOLI INTERNO SCHEDE | INSIDE OF BOARDS SYMBOLS LEGEND | LEGENDE DES SYMBOLES INTERIEUR CARTES |
| 2 | ALIMENTAZIONI | POW. SUPPLY | ALIMENTATIONS |
| 3 | |||
| 4 | ALIMENTAZIONI | POW. SUPPLY | ALIMENTATIONS |
| 5 | |||
| 6 | |||
| 7 | CONDIZIONAMENTO – RISCALDAMENTO | AIR CONDITIONING – HEATING | CONDITIONNEMENT-CHAUFFAGE |
| 8 | FRECCE | TURN INDICATORS | CLIGNOTANTS |
| 9 | DEVIOGUIDA LUCI – FANALI POSTERIORI | LIGHTS STEERING COLUMN SWITCH – REAR LIGHTS | COMMODE FEUX – GROUPES OPT. AR |
| 10 | FANALI ANTERIORI – CLACSON | FRONT LIGHTS – HORN | FEUX AV – KLAXON |
| 11 | STOP – FARI RETROMARCIA | STOP – REVERSE GEAR LIGHTS | STOP – FEUX DE RECUL |
| 12 | GIROFARO | FLASHING BEACON | GYROPHARE |
| 13 | TERGICRISTALLI | WIPER | ESSUIE-GLACE |
| 14 | ACCESSORI CABINA | CAB ATTACHMENTS | ACCESSOIRES CABINE |
| 15 | FARI LAVORO | WORKING LIGHTS | PHARES DE TRAVAIL |
| 16 | MOTORE | MOTOR | MOTEUR |
| 17 | ELETTROPOMPA, PARZIALIZZ. ED EV GASOLIO | MOTOR PUMP, SHUTTER AND SV DIESEL | ELECTROPOMPE, ETRANGLEUR ET EV GAZOLE |
| 18 | SEGNALAZIONI | SIGNALINGS | SIGNALISATIONS |
| 19 | MICRO RUOTE CENTR. – ALTERNATORE | REAR WHEELS ALIGNED MICROSW. – ALTERNATOR | MICRO ROUES CENTR. – ALTERNATEUR |
| 20 | SEGNALAZIONI PANNELLO STRUMENTAZIONE | INSTRUMENTATION PANEL SIGNALS | SIGNALISATIONS PUPITRE INSTRUMENTS |
| 21 | AVVISATORE ACUSTICO GENERALE | GENERAL BUZZER | AVERTISSEUR SONORE GENERAL |
| 22 | MICRO ANTIRIBALTAMENTO RUOTE | ANTI-OVERTURN WHEELS MICROSW. | MICRO ANTIBASCULEMENT ROUES |
| 23 | CONN. OPTIONAL PARTE POSTERIORE | REAR SIDE OPTIONAL CONN. | CONNECTEUR OPT. PARTIE AR |
| 24 | EV SBLOCCO MOVIMENTI | MOVEMENTS UNLOCKING SV | EV DEBLOC. MOUVEMENTS |
| 25 | EV TILTING – MICRO BRACCIO – MICRO TRASL. | TILTING SV – BOOM MICROSW. – SIDESHIFT MICROSW. | EV TILTING – MICRO FLECHE – MICRO TRASL. |
| 26 | MICRO STABILIZZATORI BASSI | STABILIZERS DOWN MICROSW. | MICRO STABILISATEURS BAS |
| 27 | MICRO STABILIZZATORI (NON PRESENTI) | STABILIZERS MICROSW. (NOT PRESENT) | MICRO STABILISATEURS (NON PRESENTS) |
| 28 | MICRO STABILIZZATORI (NON PRESENTI) | STABILIZERS MICROSW. (NOT PRESENT) | MICRO STABILISATEURS (NON PRESENTS) |
| 29 | FRENO STAZ. – ROTTURA FUNI | EMERGENCY BRAKE – BREAKING CABLES | FREIN MAIN – RUPTURE CABLES |
| 30 | NAVICELLA – RICETRASMETTITORE | PLATFORM – TRANSCEIVER | NACELLE – EMETTEURRECEPTEUR |
| 30A | PRESA BRACCIO – IMPIANTO SU NAVICELLA | BOOM SOCKET – INSTALLATION ON PLATFORM | PRISE FLECHE – INSTALLATION SUR NACELLE |
| 31 | AUX | AUX | AUX |
| 32 | COMANDO REMOTO AUX LATO VETRO | REMOTE CONTROL AUX WINDOW SIDE | COMMANDE A DISTANCE AUX. COTE VITRE |
| 33 | SOLLEVAMENTO – TRASL. E FORCHE (NON PRES.) | LIFTING – SIDESHIFT AND FORKS (NOT PRESENT) | SOULEVEMENT – TRASLATION ET FOURCHES (NON PRES.) |
| 34 | PULS. JOYSTICK – PULS. DISC. FUNE | JOYSTICK PUSHB. – CABLE DESC. PUSHB. | COMMANDES PROPORTIONNELLES ŋOYSTICŌ |
| 35 | COMANDI PROPORZIONALI JOYSTICK | PROPORTIONAL JOYSTICK CONTROLS | BOUT. ŋOYSTICŌ Į BOUT. DESC. CABLE |
| 36 | EV SERVOCOMANDI | SERVOCONTROLS SV | EV SERVOĮCOMMANDE |
| 37 | MULTIDROM | MULTIDROM | MULTIDROM |
| 38 | ELETTROPOMPA | MOTOR PUMP | ELECTROPOMPE |
| 39 | SCH. SAUER (ALIM.) | SAUER BOARD (POW. SUPPLY) | CARTE SAUER (ALIM) |
| 40 | SCH. SAUER (AVANTI/INDIETRO) | SAUER BOARD (FORWARD/BACKWARD) | CARTE SAUER (AVANT/ARRIERE) |
| 41 | SCH. SAUER (SENSORI) | SAUER BOARD (SENSORS) | CARTE SAUER (CAPTEURS) |
| 42 | SCH. SAUER (USCITE) | SAUER BOARD (OUTPUT) | CARTE SAUER (SORTIES) |
| 43 | MARCE – BLOCCO DIFF. | GEARS – DIFFERENTIAL LOCKING | RAPPORTS Į BLOC.DIFF. |
| 44 | STERZATURA | STEERING | BRAQUAGE |
| 45 | |||
| 46 | TILTING E SBLOCC. PONTE (NON PRESENTI) | TILTING AND AXLE UNLOCKING (NOT PRESENT) | TILTING ET DEBLOC. PONT (NON PRESENTS) |
| 47 | |||
| 48 | |||
| 49 | STABILIZZATORI (NON PRESENTI) | STABILIZERS (NOT PRESENT) | STABILISATEURS (NON PRESENTS) |
| 50 | SOSP. IDROPN. – RELE’ RISERVA | HYDRO-PNEUM SUSP. – RESERVE RELAY | SUSP. IDROPN. – RELE’ RISERVA |
| 51 | SEDILE RISC. – FR. PNEUM. – SOSP. BRACCIO | HEATED SEAT – PNEUMATIC BRAKING – BOOM SUSPENSION | SIEGE CHAUF. Į FREINAGE PNEU. Į SUSP. FLECHE |
| 52 | DIAGNOSTICA | DIAGNOSTIC | DIAGNOSTIC |
| 53 | DIAGNOSTICA | DIAGNOSTIC | DIAGNOSTIC |
| 54 | DIAGNOSTICA | DIAGNOSTIC | DIAGNOSTIC |
| 55 | DIAGNOSTICA | DIAGNOSTIC | DIAGNOSTIC |
| 56 | |||
| 57 | INTERCONNESSIONI | INTERCONNECTIONS | INTERCONNEXIONS |
| 58 | DISPOSIZIONE SCHEDE IMS | LAYOUT IMS | DISPOSITION CARTES IMS |
| 59 | LAYOUT UCLA | LAYOUT UCLA | LAYĮOUT UCLA |
| 59A | INDICE COMPONENTI SOSTITUIBILI SCHEDA UCLA | UCLA BOARD REPLACEABLE COMPONENTS INDEX | SOMMAIRE COMPOSANTS REMPLACABLES CARTE UCLA |
| 60 | LAYOUT UCT/OPT | LAYOUT UCT/OPT | LAYĮOUT UCT/OPT |
| 60A | INDICE COMPONENTI SOSTITUIBILI UCT/OPT | UCT/OPT REPLACEABLE COMPONENTS INDEX | SOMMAIRE COMPOSANTS REMPLACABLES UCT/OPT |
| 61 | LAYOUT UGS/UCB | LAYOUT UGS/UCB | LAYĮOUT UGS/UCB |
| 61A | INDICE COMPONENTI SOSTITUIBILI UGS/UCB | UGS/UCB REPLACEABLE COMPONENTS INDEX | SOMMAIRE COMPOSANTS REMPLACABLES UGS/UCB |
| 62 | INDICE CONN. SCHEDE | CONN. BOARDS INDEX | INDICE CONN. SCHEDE |
