Mitsubishi Galant 1989-1993 Electrical Circuit Diagram Manual – PDF

Description

Mitsubishi Galant 1989-1993 Electrical Circuit Diagram Manual – PDF DOWNLOAD

FILE DETAILS:

Mitsubishi Galant 1989-1993 Electrical Circuit Diagram Manual – PDF DOWNLOAD

Language : English
Pages : 269
Downloadable : Yes
File Type : PDF

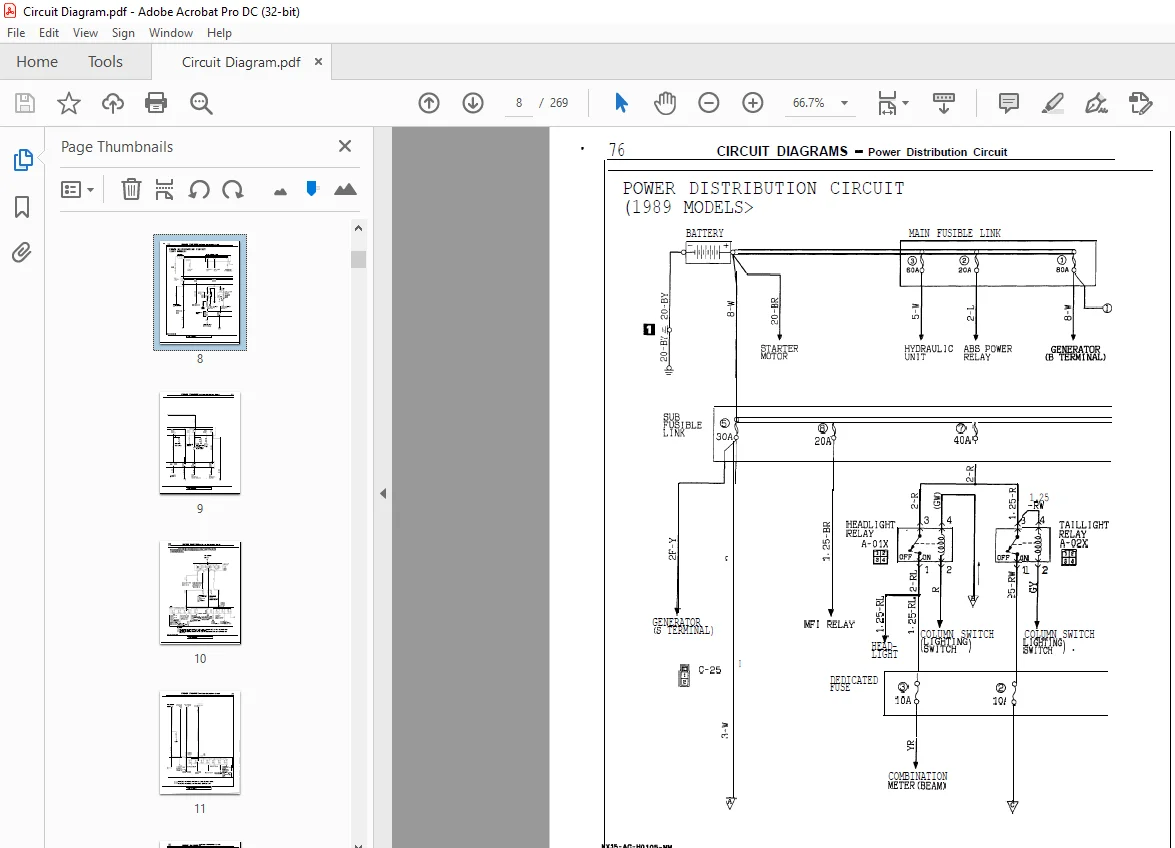

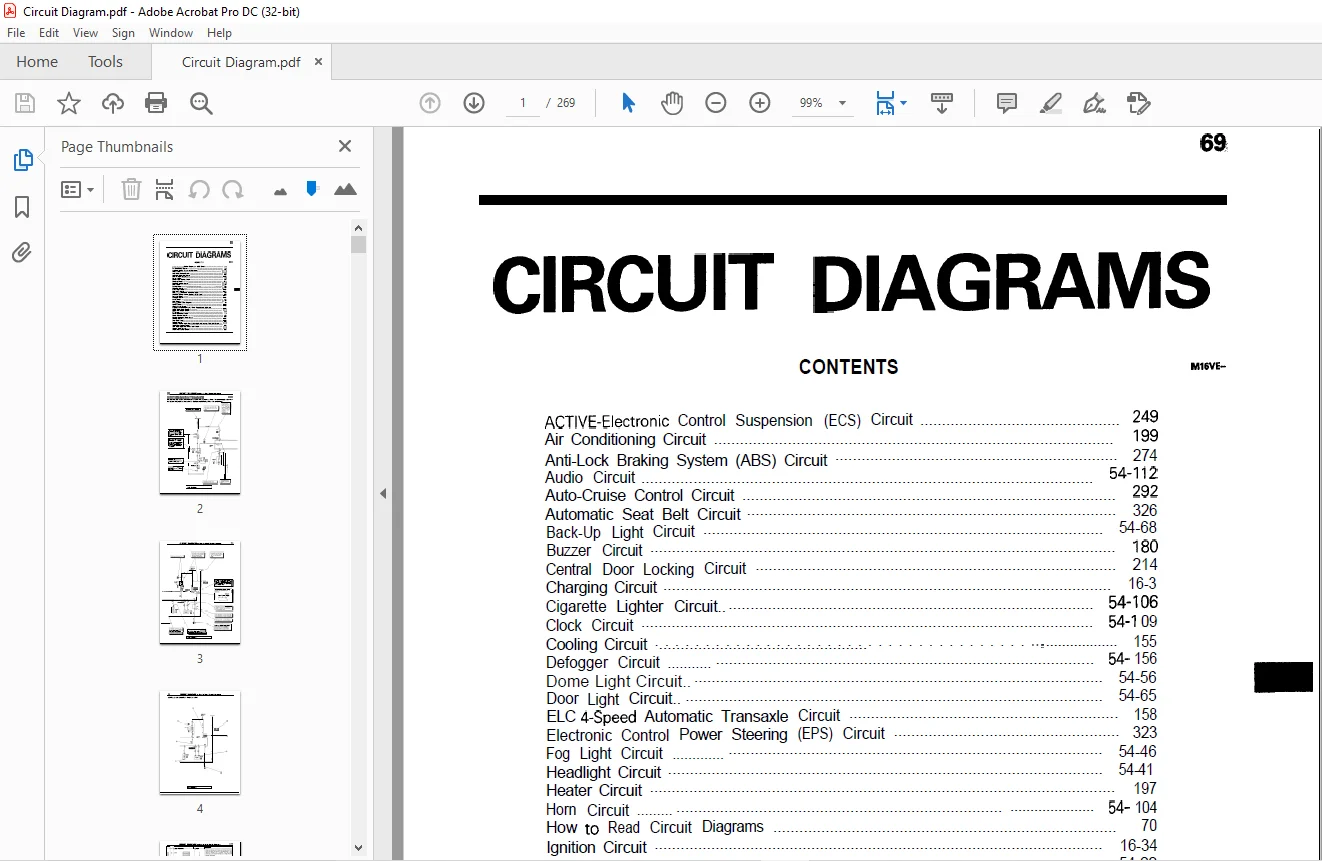

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Mitsubishi Galant 1989-1993 Electrical Circuit Diagram Manual – PDF DOWNLOAD

ACTIVE-Electronic Control Suspension (ECS) Circuit
Air Conditioning Circuit
Anti-Lock Braking System (ABS) Circuit 274
Audio Circuit 54-1 12
Auto-Cruise Control Circuit 282
Automatic Seat Belt Circuit 326
Back-Up Light Circuit 54-68
Buzzer Circuit 180
Central Door Locking Circuit 214
Charging Circuit 16-3
Cigarette Lighter Circuit 54-106
Clock Circuit 54-I 09
Cooling Circuit ! 155
Defogger Circuit 54- 156
Dome Light Circuit 54-56
Door Light Circuit 54-65
ELC 4-Speed Automatic Transaxle Circuit 158
Electronic Control Power Steering (EPS) Circuit 323
Fog Light Circuit 54-46
Headlight Circuit 54-41
Heater Circuit 197
Horn Circuit 54- 104
How to Read Circuit Diagrams 70
Ignition Circuit 16-34
Indicator Light Circuit 54-22
Luggage Compartment Light, Glove Compartment Light and
Vanity Mirror Light Circuit 54-54
Meter and Gauges Circuit 54-12
MFI Circuit
Power Distribution Circuit
Power Window Circuit 182
Remote Controlled Mirror Circuit 235
Starting Circuit 16-17
Stop Light Circuit 54-78
Sunroof Circuit 238
Tail light, Position Light, Side Marker Light and License Plate Light Circuit 54-48
Theft-Alarm System Circuit 332
Turn Signal Light and Hazard Light Circuit 54-72
Warning Light Circuit 54-16
Wiper and Washer Circuit 228
