Mustang 2066, 2076 2076 (EU) 2086 2086 (EU) Skid-Steer Loader Parts Manual 917097 – PDF DOWNLOAD

Description

Mustang 2066, 2076 2076 (EU) 2086 2086 (EU) Skid-Steer Loader Parts Manual 917097 – PDF DOWNLOAD

FILE DETAILS:

Mustang 2066, 2076 2076 (EU) 2086 2086 (EU) Skid-Steer Loader Parts Manual 917097 – PDF DOWNLOAD

Language : English
Pages : 372
Downloadable : Yes
File Type : PDF
Size: 26.6 MB

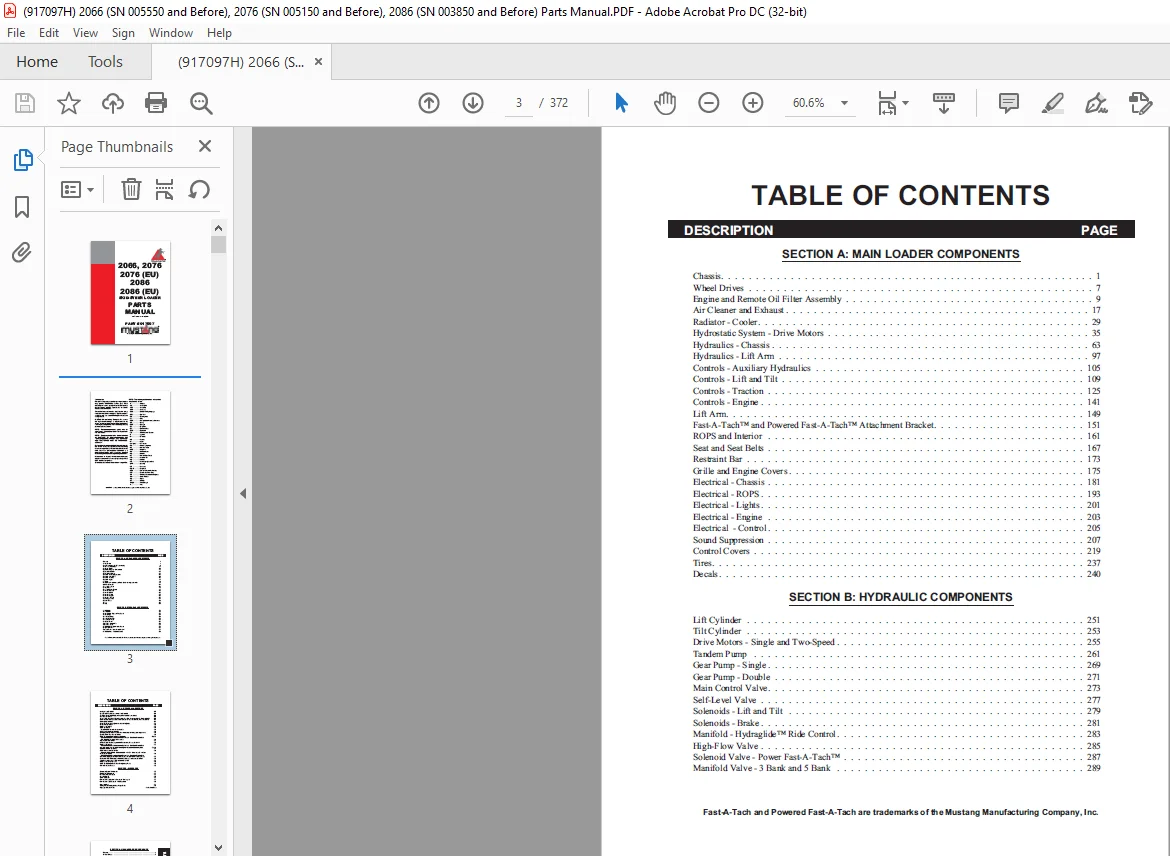

TABLE OF CONTENTS:

Mustang 2066, 2076 2076 (EU) 2086 2086 (EU) Skid-Steer Loader Parts Manual 917097 – PDF DOWNLOAD

SECTION A: MAIN LOADER COMPONENTS
Chassis 1
Wheel Drives 7
Engine and Remote Oil Filter Assembly 9
Air Cleaner and Exhaust 17
Radiator – Cooler 29
Hydrostatic System – Drive Motors 35
Hydraulics – Chassis 63
Hydraulics – Lift Arm 97
Controls – Auxiliary Hydraulics 105
Controls – Lift and Tilt 109
Controls – Traction 125
Controls – Engine 141
Lift Arm 149
Fast-A-Tach™ and Powered Fast-A-Tach™ Attachment Bracket 151
ROPS and Interior 161
Seat and Seat Belts 167
Restraint Bar 173
Grille and Engine Covers 175
Electrical – Chassis 181
Electrical – ROPS 193
Electrical – Lights 201
Electrical – Engine 203
Electrical – Control 205
Sound Suppression 207
Control Covers 219
Tires 237
Decals 240
SECTION B: HYDRAULIC COMPONENTS
Lift Cylinder 251
Tilt Cylinder 253
Drive Motors – Single and Two-Speed 255
Tandem Pump 261
Gear Pump – Single 269
Gear Pump – Double 271
Main Control Valve 273
Self-Level Valve 277
Solenoids – Lift and Tilt 279
Solenoids – Brake 281
Manifold – Hydraglide™ Ride Control 283
High-Flow Valve 285
Solenoid Valve – Power Fast-A-Tach™ 287
Manifold Valve – 3 Bank and 5 Bank 289
DESCRIPTION PAGE
Fast-A-Tach and Powered Fast-A-Tach are trademarks of the Mustang Manufacturing Company, Inc
TABLE OF CONTENTS
SECTION C: KITS AND ACCESSORIES
Back-up Alarm Kit 810404 293
Horn Kit 810401 and the Rearview Mirror Kit 806894 294
AM/FM Radio Kit 810429 (replaced by 810897 Radio Kit, see below) 295
Front Door Kit 810553 296
Seat Belt Kits – 2″ 810424, 3″ 810425 and the Seat Kits – Suspension 810422, Standard 810423 297
Side Window Kit 810413 and the 3-Point Restraint – 2″ Seat Belt 810426, 3″ Seat Belt 810427 298
Strobe Light Kit 805803 299
Counterweight Kit 810415 (2066/76) and 810416 (2086) 300
Dual Flasher Kit 810421 301
Cab Heater Kit 810555 302
HVAC Kit 810556 303
Cab – HVAC Kit Service Parts Assemblies 304
Cab Sound Suppression Kit 189728 305
Gas Spring Mount Kit 189277 and the Four-Point Lift Kit 810866 (replaced by 810945) 306
Impact Resistant Front Door Kit 810564 307
HVAC Kit 810789 (2066) and 810777 (2076/86) 308-309
2066: SN 005001-005550 2076: SN 004201-005150 2086: SN 003101-003850
Cab – HVAC Kit Service Parts Assemblies 310
Single-Point Lift Kit 810834 311
Backup Alarm Kit for Dual Joystick 810838 and the Pre-Cleaner Kit 810747 312
Cab Heater Kit 810779 313
2066: SN 005001-005550 2076: SN 004201-005150 2086: SN 003101-003850
Powered Fast-A-Tach™ Kit 810841/810860 (2066/76) and 810842/810861 (2086) 314-316
Radio, AM-FM-WB Kit 810897 317
A/C Drive Conversion Kit 191529 318
2066 Models SN: ~ 005001 2076 Models SN: ~ 004201 2086 Models SN: ~003101
Pre-Cleaner Kit 810867 319
2066: SN 005001-005550 2076: SN 004201-005150 2086: SN 003101-003850
Hydraulic Dampening Kit 810880 and the Pre-Cleaner Kits 410269 / 410254 (Tier-3) 320
Four-Point Lift Kit 810945 (replaces 810866) and the Interior Console Kit 810494 321
14-Pin Connector for Auxiliary Attachments Kit 811226 322
Cab Heater Kit 811271 (Tier-3) 323
HVAC Kit 811269 (2066/76) and 811270 (2086) – (Tier-3) 324
Other Available Accessories 326
SECTION D: SCHEMATICS
Hydrostatic/Hydraulic Schematics 329
ROPS Electrical Schematic 333
Chassis Electrical Schematic 335
Heater Schematic 336
HVAC Schematics 337
Electrical Auxiliary Hydraulics Schematic – Dual Joystick 341
Electrical Auxiliary Schematic – 14-Pin Connector 342
Numerical Index 344
O-Ring Table, Coupling & Adapter Torque Table 364
Torque Specifications Table Inside Back Cover

DESCRIPTION:

Mustang 2066, 2076 2076 (EU) 2086 2086 (EU) Skid-Steer Loader Parts Manual 917097 – PDF DOWNLOAD

Introduction:

For your safety and continued proper operation, use only genuine MUSTANG® service parts. When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.

• The model and serial number decal for this unit is located on the left chassis upright. “Right” and “Left” are determined from a position sitting on the seat and facing forward.
• MUSTANG Manufacturing Company, Inc. reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. If a part requires lubrication or a nonstandard torque value, it will be specified behind the part number description in parenthesis.
• Items shown in the parts list that do not have part numbers are shown for reference purposes only and are NOT available for purchase.
