Mustang 320 Skid-Steer Loader Parts Manual 002-10770 – PDF DOWNLOAD

Description

Mustang 320 Skid-Steer Loader Parts Manual 002-10770 – PDF DOWNLOAD

FILE DETAILS:

Mustang 320 Skid-Steer Loader Parts Manual 002-10770 – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
Size: 4.95 MB

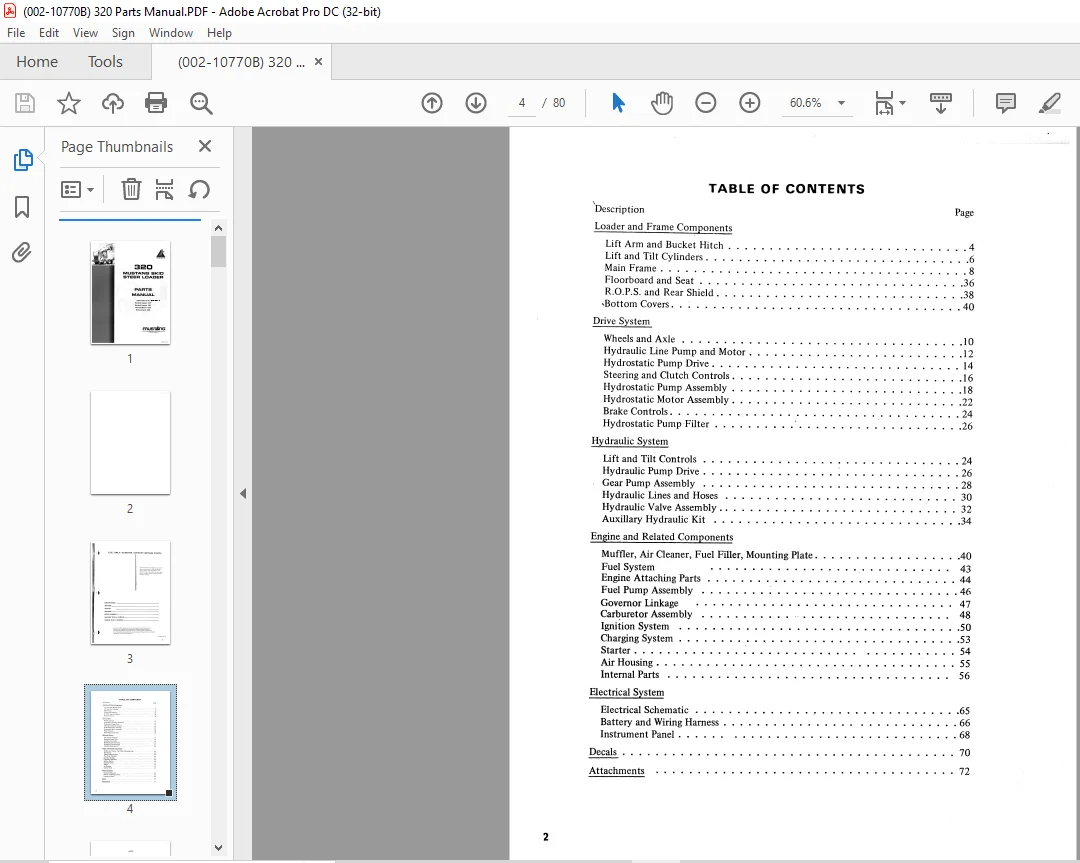

TABLE OF CONTENTS:

Mustang 320 Skid-Steer Loader Parts Manual 002-10770 – PDF DOWNLOAD

Loader and Frame Components
Lift Arm and Bucket Hitch 4
Lift and Tilt Cylinders 6
Main Frame 8
Floorboard and Seat 36
R O P S and Rear Shield 38
,Bottom Covers 40
Drive System
Wheels and Axle I 0
Hydraulic Line Pump and Motor 12
Hydrostatic Pump Drive 14
Steering and Clutch Controls 16
Hydrostatic Pump Assembly 18
Hydrostatic Motor Assembly 22
Brake Controls 24
Hydrostatic Pump-Filter · · 26
Hydraulic System
Lift and Tilt Controls 24
Hydraulic Pump Drive 26
Gear Pump Assembly 28
Hydraulic Lines and Hoses 30
Hydraulic Valve Assembly 3 2
Auxillary Hydraulic Kit 34
Engine and Related Components
Muffler, Air Cleaner, Fuel Filler, Mounting Plate 40
Fuel System • • • • • • • • • 43
Engin~ Attaching Parts • 44
Fuel Pump Assembly ~ 46
Governor Linkage 4 7
Carburetor Assembly 48
Ignition System 50
Charging System 53
Starter · 54
Air Housing · 5 5
Internal Parts · 5 6
Electrical System
Electrical Schematic • 65
Battery and Wiring Harness 66
Instrument Panel 68
Decals
Attachments
70
72

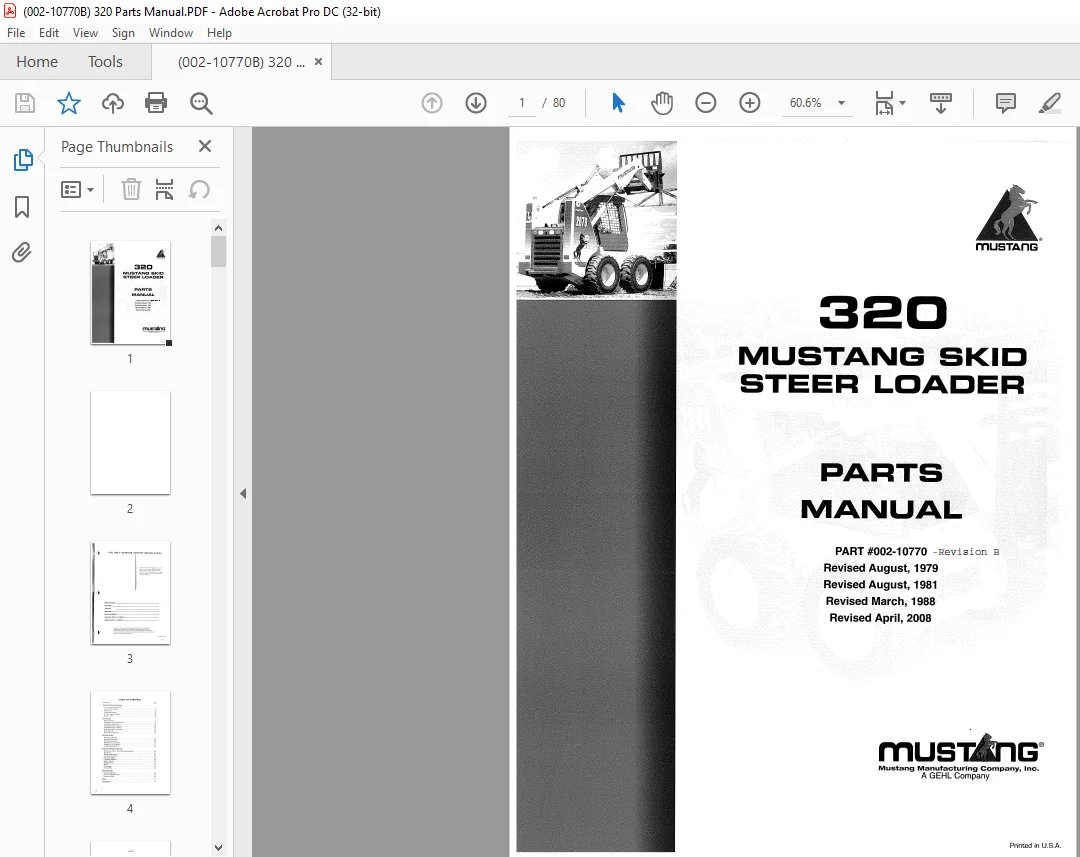

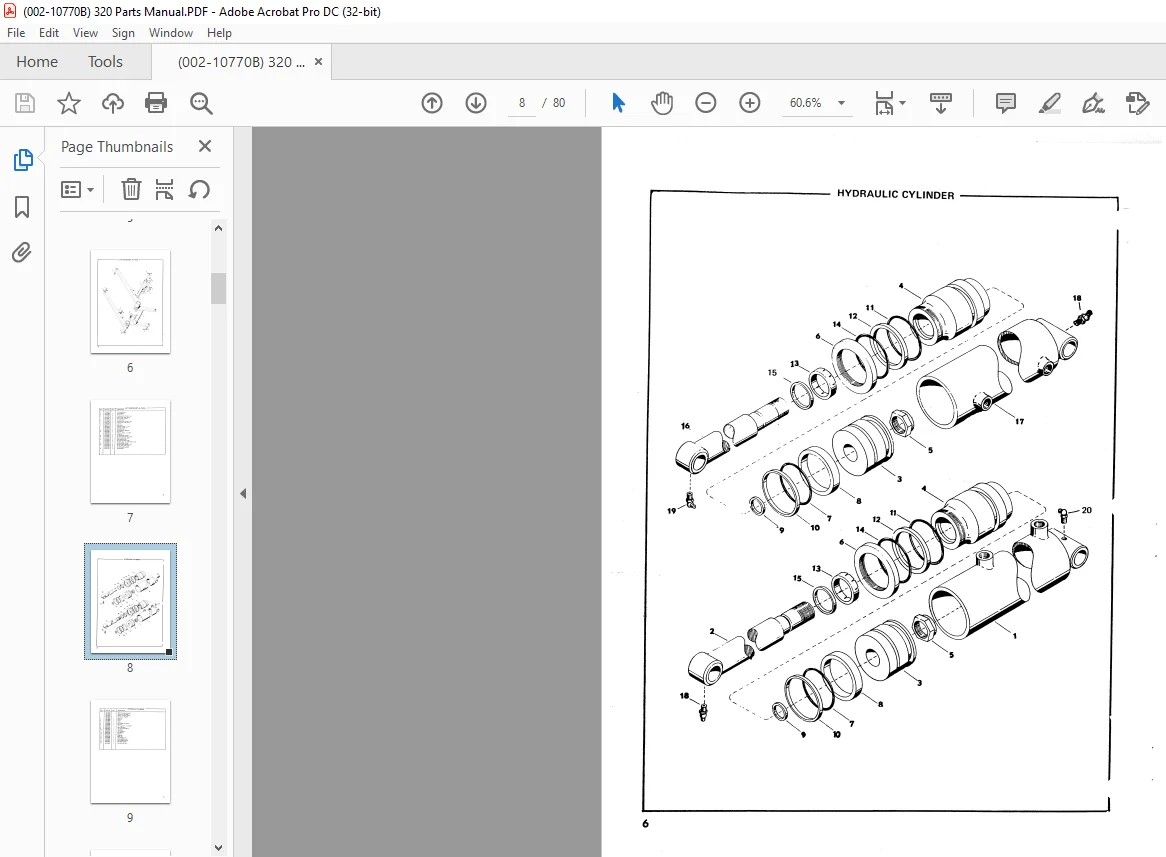

IMAGES PREVIEW OF THE MANUAL:
