Mustang 350Z NXT2 Compact Excavator Operator’s Manual 50940260 – PDF DOWNLOAD

Description

Mustang 350Z NXT2 Compact Excavator Operator’s Manual 50940260 – PDF DOWNLOAD

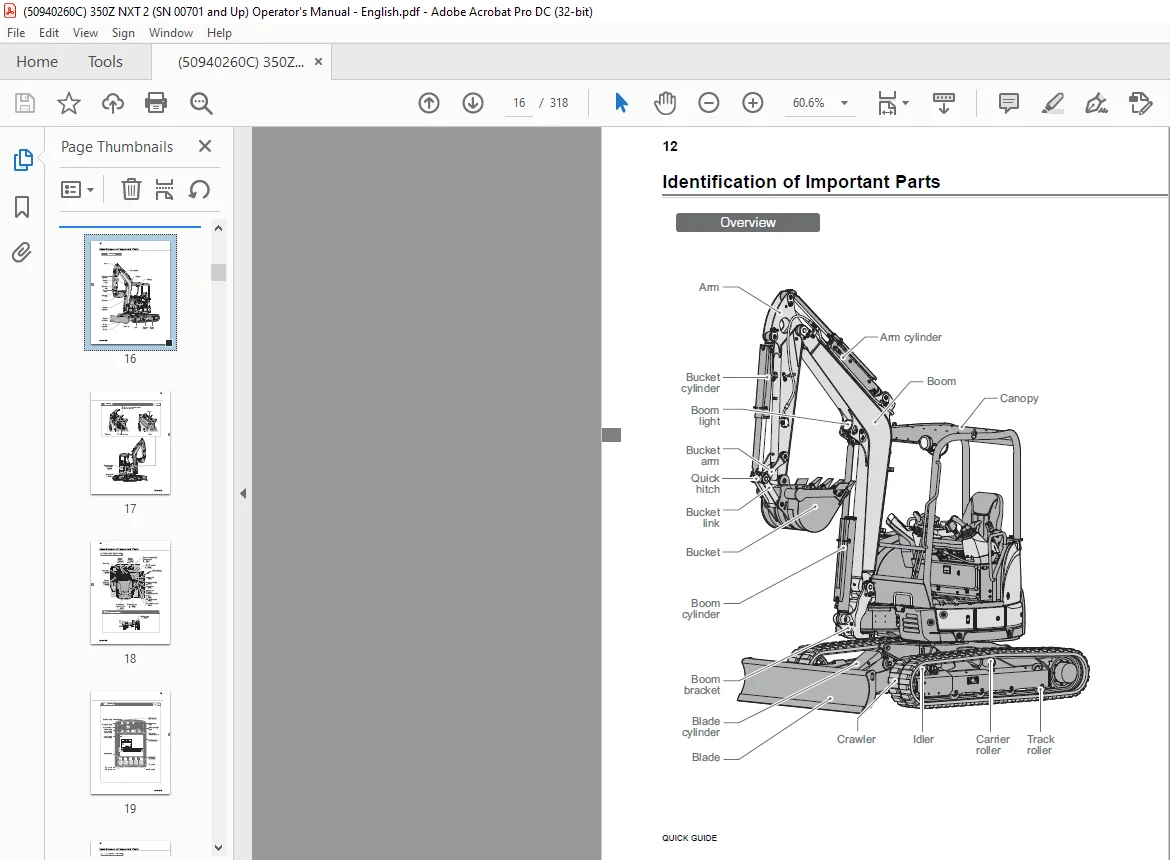

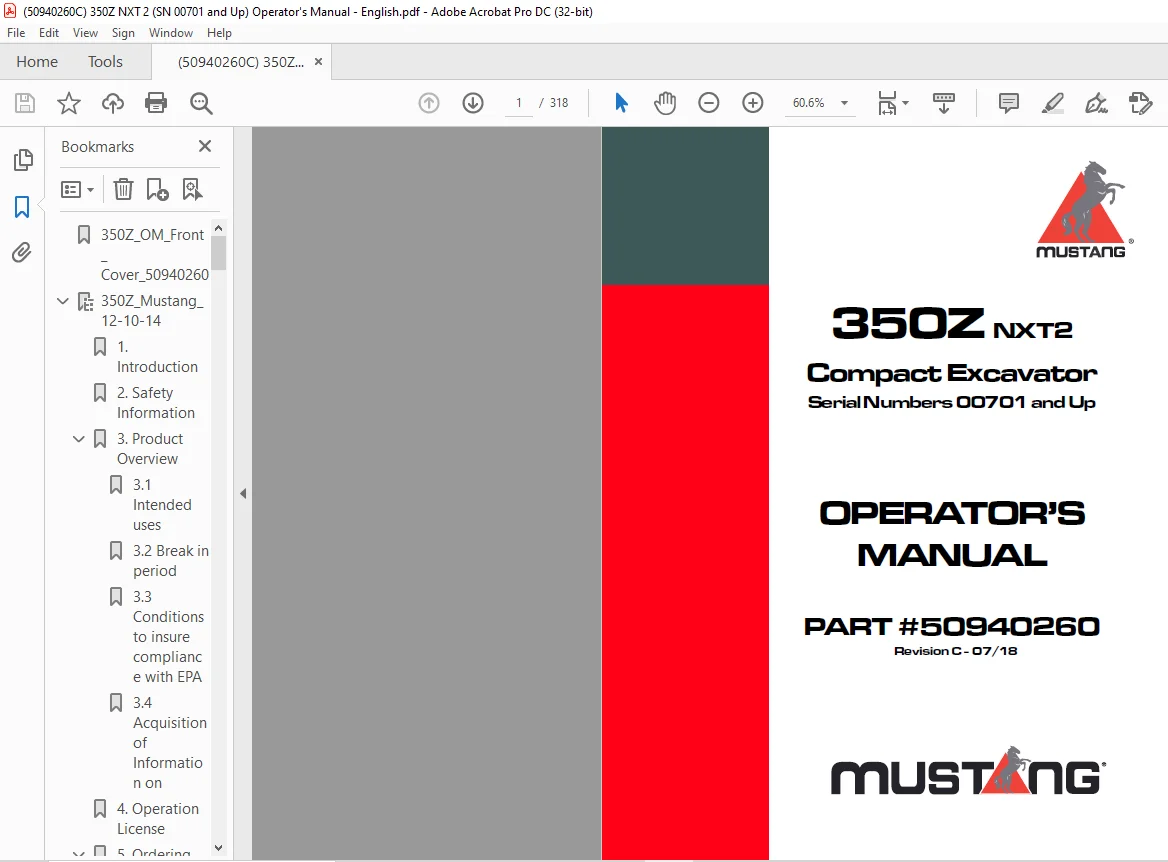

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Mustang 350Z NXT2 Compact Excavator Operator’s Manual 50940260 – PDF DOWNLOAD

Language : English
Pages : 318
Downloadable : Yes
File Type : PDF
Size: 63.5 MB

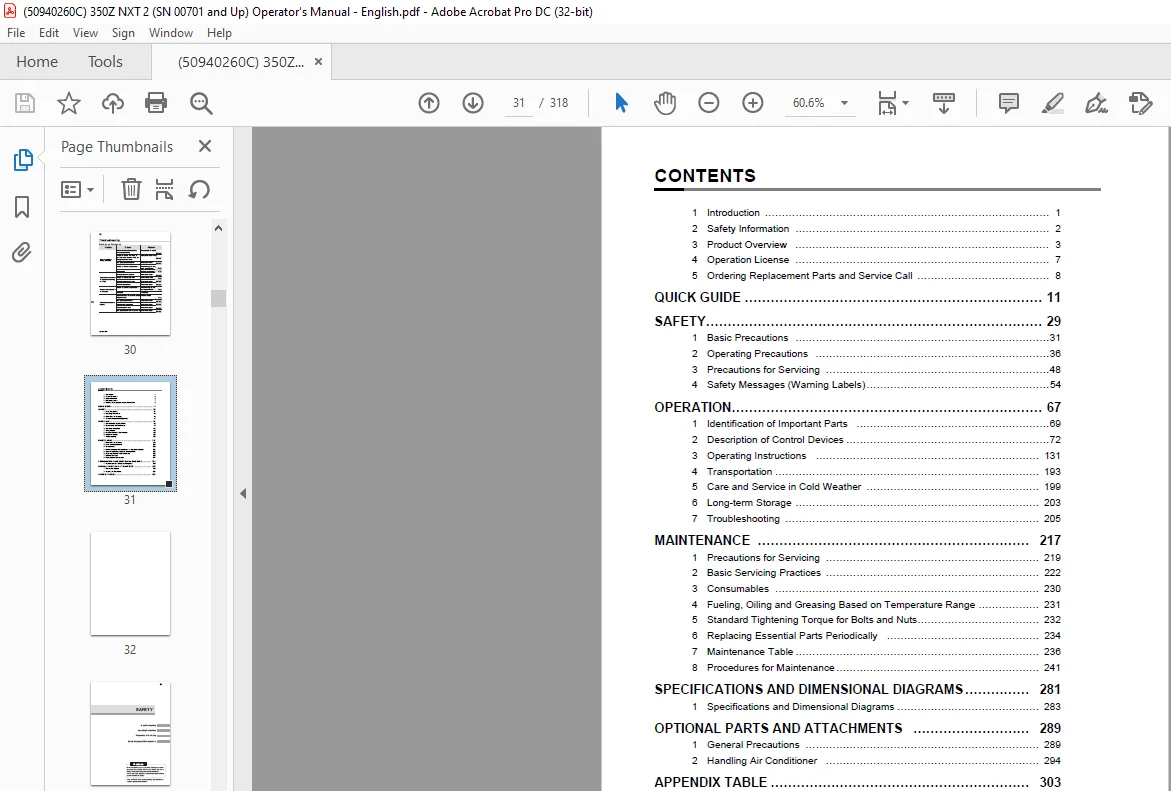

TABLE OF CONTENTS:

Mustang 350Z NXT2 Compact Excavator Operator’s Manual 50940260 – PDF DOWNLOAD

350Z_OM_Front_ Cover_50940260 0
350Z_Mustang_12-10-14 5
1 Introduction 5
2 Safety Information 6
3 Product Overview 7
3 1 Intended uses 7
3 2 Break in period 7
3 3 Conditions to insure compliance with EPA emission standards Conditions de conformité avec les standards d’émission EPA 8
3 4 Acquisition of Information on Machines in Operation and Handling of Acquired Information 10
4 Operation License 11
5 Ordering Replacement Parts and Service Call 12
5 1 Location of machine serial number plate 12
5 2 Location of engine serial number plate 12
5 3 Location of EPA emission control plate Localisation de la plaque signalétique EPA 13
5 4 Ordering replacement parts and service calls 13
QUICK GUIDE 15
SAFETY 33
1 Basic Precautions 35
2 Operating Precautions 40
2 1 Precautions before starting the engine 40
2 2 Precautions for starting the engine, working and parking 42
2 3 Precautions for transportation 48
2 4 Precautions for the battery 49
2 5 Precautions for towing 51
3 Precautions for Servicing 52
3 1 Precautions before servicing 52
3 2 Precautions during servicing 54
4 Safety Messages (Warning Labels) 58
4 1 Location of warning labels 58
OPERATION 71
1 Identification of Important Parts 73
1 1 Overview of the machine 73
1 2 Controls and switches 75
2 Description of Control Devices 76
2 1 LCD Monitor 76
2 2 Switches 106
2 3 Control levers and pedals 112
2 4 Engine hood rear cover 117
2 5 Bonnet B 118
2 6 Bonnet R 119
2 7 Operator’s seat bottom cover 120
2 8 Storage space for the operation & maintenance manual 121
2 9 Tool storage 121
2 10 Drink holder 122
2 11 Utility box (for the canopy type only) 122
2 12 Windshield (for cabin) 123
2 13 Emergency escape hammer (for the cabin type only) 126
2 14 Operator’s seat 127
2 15 Ash tray (for cabin) 128
2 16 Work Lights 129
2 17 Air outlet (for cabin) 130
2 18 Right window glass (for cabin) 130
2 19 Cabin side door 131
2 20 Replenishment of windshield washer fluid 131
2 21 Fuse 132
2 22 External power outlet 134
3 Operating Instructions 135
3 1 Checking before starting the engine 135
3 2 Starting up the engine 148
3 3 Operating and checking instructions after starting the engine 152
3 4 Traveling 154
3 5 Steering 158
3 6 Stopping the machine 160
3 7 Swinging the upperstructure 161
3 8 Operating the implements 162
3 9 Precautions for operating the implement 163
3 10 Precautions for working 166
3 11 Precautions for going up and down a slope 167
3 12 Escaping from the mud 169
3 13 Operations using the bucket 170
3 14 Handling quick coupler (option) 171
3 15 Parking the machine 181
3 16 Inspection requirements after completing operation 182
3 17 Stopping the engine 183
3 18 Inspection requirements after stopping the engine 184
3 19 Locking 184
3 20 Handling the rubber track (for rubber track type) 185
3 21 Handling hydraulic P T O 190
3 22 Releasing the internal pressure of the hydraulic circuit by accumulator 195
4 Transportation 197
4 1 Loading and unloading the machine 197
4 2 Precautions for loading the machine 199
4 3 Precautions for transporting the machine 200
4 4 Suspending the machine 201
5 Care and Service in Cold Weather 203
5 1 Preparing for cold weather 203
5 2 Precautions after a day’s work 206
5 3 After cold weather ends 206
6 Long-term Storage 207
6 1 Before storing 207
6 2 Storing 208
6 3 Using the machine again 208
7 Troubleshooting 209
7 1 Phenomena that are not breakdowns 209
7 2 Towing 210
7 3 If the battery is overdischarged 211
7 4 Troubleshooting 216
MAINTENANCE 221
1 Precautions for Servicing 223
2 Basic Servicing Practices 226
2 1 Oils, fuel, and cooling water 227
2 2 Electrical equipment 231
2 3 Hydraulic system 232
3 Consumables 234
4 Fueling, Oiling and Greasing Based on Temperature Range 235
4 1 Fuel and oil 235
4 2 Cooling water 235
5 Standard Tightening Torque for Bolts and Nuts 236
5 1 Required tools 236
5 2 Torque table 237
6 Replacing Essential Parts Periodically 238
7 Maintenance Table 240
7 1 Table of service time intervals 240
7 2 Service intervals when using the hydraulic breaker 244
8 Procedures for Maintenance 245
8 1 First services 245
8 2 Nonperiodic services 246
8 3 Checking before start-up 262
8 4 Maintenance every 50 service hours 263
8 5 Maintenance every 100 service hours 264
8 6 Maintenance every 250 service hours 265
8 7 Maintenance every 500 service hours 270
8 8 Maintenance every 1000 service hours 277
8 9 Maintenance every 1500 service hours 281
8 10 Maintenance every 2000 service hours 282
8 11 Maintenance every 3000 service hours 284
SPECIFICATIONS AND DIMENSIONAL DIAGRAMS 285
1 Specifications and Dimensional Diagrams 287
OPTIONAL PARTS AND ATTACHMENTS 293
1 General Precautions 295
1 1 Safety precautions 295
1 2 Precautions for mounting an attachment (implement) 297
2 Handling Air Conditioner 298
2 1 Description of lever and switches for air conditioner 298
2 2 How to use air conditioner 300
2 3 Maintenance, inspection and servicing of air conditioner 302
APPENDIX TABLE 307
1 List of consumables 309
2 Fuel, oil and cooling water 309
3 Required tools 310
4 Torque table 311
5 List of safety parts 312
6 List of error codes displayed on LCD monitor 313
30Z_OM_Back Cover_50940260 0
Ecaavator Mustang pdf 0
1 Specifications and Dimensional Diagrams 0

DESCRIPTION:

Mustang 350Z NXT2 Compact Excavator Operator’s Manual 50940260 – PDF DOWNLOAD

Serial Numbers 00701 and Up

Introduction:

This Operation and Maintenance Manual is designed to provide you with important information and
suggestions necessary for using the machine with safety and efficiency. Please be sure to read
through the manual before using the machine, to make yourself familiar with the procedures and
instructions for operating, inspecting and servicing. Keep in mind that failure to observe the precautions
given in the manual or using any procedures not prescribed in the manual may cause a serious
accident.

Break in period
The machine should not be subjected to severe stresses and loads during the initial break in period
although it has been prepared well and stringently inspected before shipping. Otherwise the
machine’s performance may be affected and its service life shortened. Thus it is essential to break
in the machine for the first approx. 100 service hours (reading of the hour meter).
In breaking in the machine:
• You should warm up the engine by idling for 5 minutes before starting operations.
• You should not operate the machine under heavy loads or at high speed.
• You should not start and accelerate the engine too abruptly, or stop it too abruptly.
• You should not change travel direction too abruptly.
The safety instructions for operation and maintenance that are presented in this Manual are applicable
to each of the intended tasks. Never misuse this machine by violating the applicable safety
instructions or by attempting to perform unintended tasks, because of the danger of serious bodily
injury.

Contact us: [email protected]

https://vimeo.com/805502993
