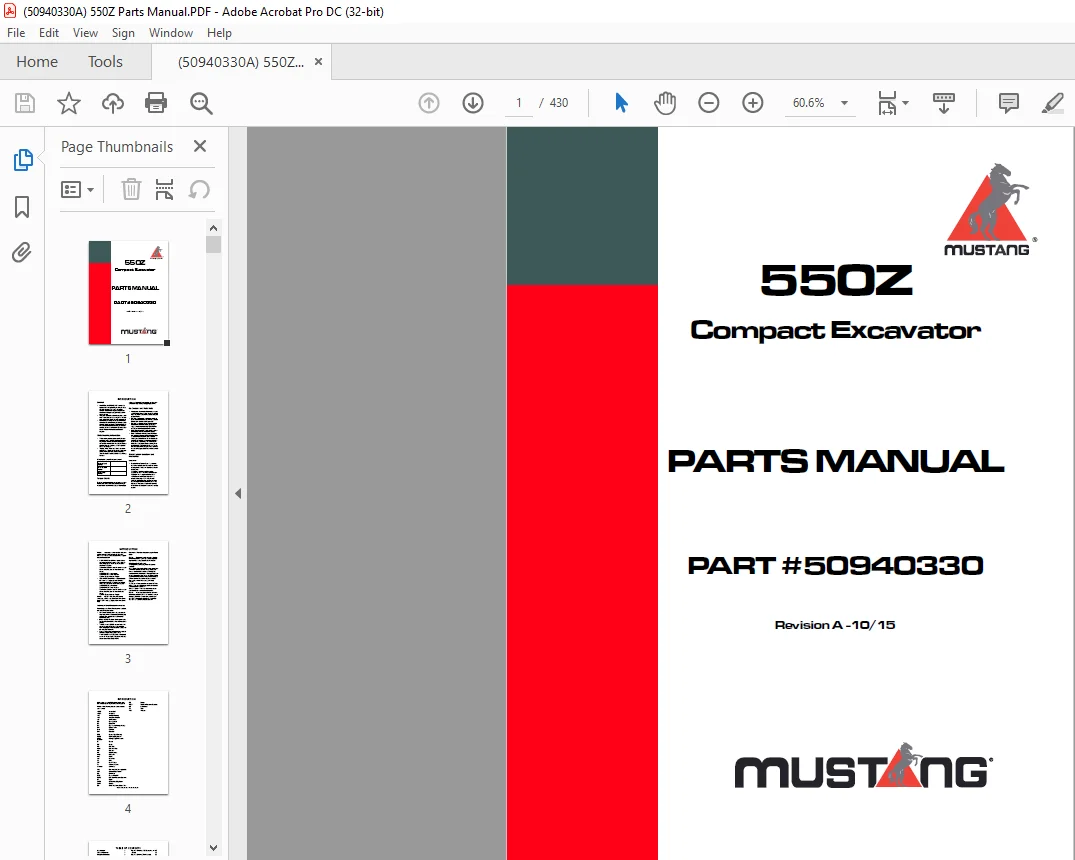

Mustang 550Z Compact Excavator Parts Manual 50940330 – PDF DOWNLOAD

Description

Mustang 550Z Compact Excavator Parts Manual 50940330 – PDF DOWNLOAD

FILE DETAILS:

Mustang 550Z Compact Excavator Parts Manual 50940330 – PDF DOWNLOAD

Language : English
Pages : 430
Downloadable : Yes
File Type : PDF
Size: 22.9 MB

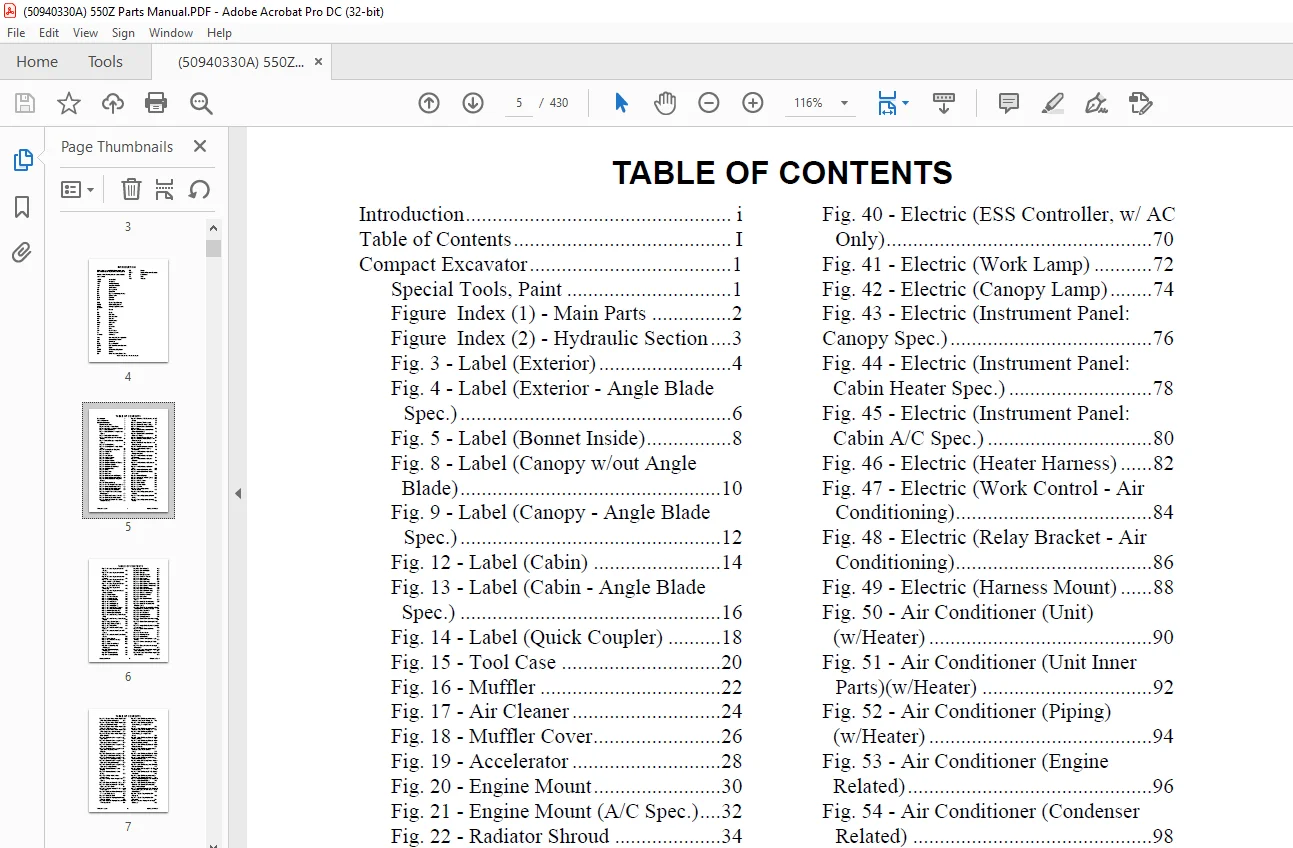

TABLE OF CONTENTS:

Mustang 550Z Compact Excavator Parts Manual 50940330 – PDF DOWNLOAD

Introduction i
Table of Contents I
Compact Excavator 1
Special Tools, Paint 1
Figure Index (1) – Main Parts 2

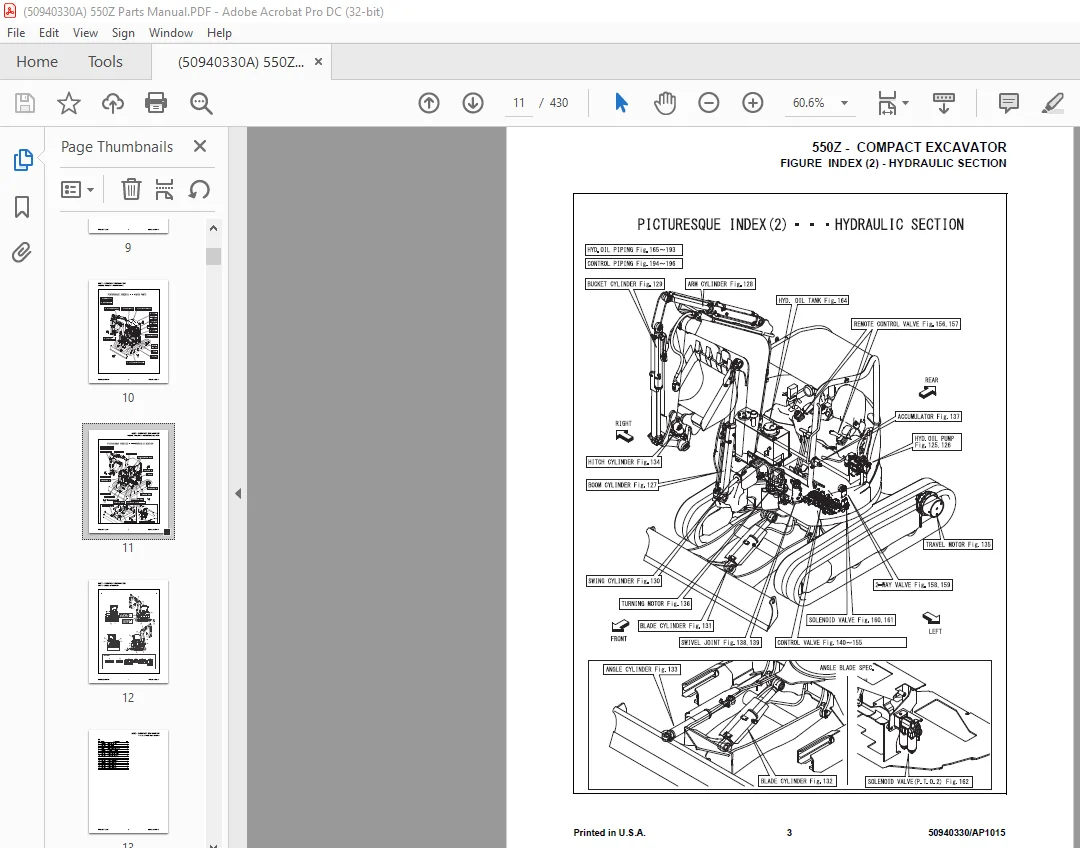

Figure Index (2) – Hydraulic Section 3
Fig 3 – Label (Exterior) 4
Fig 4 – Label (Exterior – Angle Blade
Spec ) 6
Fig 5 – Label (Bonnet Inside) 8
Fig 8 – Label (Canopy w/out Angle
Blade) 10
Fig 9 – Label (Canopy – Angle Blade
Spec ) 12
Fig 12 – Label (Cabin) 14
Fig 13 – Label (Cabin – Angle Blade
Spec ) 16
Fig 14 – Label (Quick Coupler) 18
Fig 15 – Tool Case 20
Fig 16 – Muffler 22
Fig 17 – Air Cleaner 24
Fig 18 – Muffler Cover 26
Fig 19 – Accelerator 28
Fig 20 – Engine Mount 30
Fig 21 – Engine Mount (A/C Spec ) 32
Fig 22 – Radiator Shroud 34
Fig 23 – Radiator & Sub-Tank 36
Fig 24 – Radiator Hose 38
Fig 25 – Duct 40
Fig 26 – Fuel Tank 42
Fig 27 – Fuel Line 44
Fig 28 – Electric (Around Engine) 46
Fig 29 – Electric (Harness Support) 48
Fig 30 – Electric (Battery Negative
Cable) 50
Fig 31 – Electric (Horn) 52
Fig 32 – P T O (Angle Blade Spec ) 54
Fig 33 – Electric (Harness Guide) 56
Fig 34 – Electric (Starter Switch) 58
Fig 35 – Electric (Around Seat) 60
Fig 36 – Angle Blade Lever (Angle
Blade Spec ) 62
Fig 37 – Electric (Pressure Switch) 64
Fig 38 – Electric (Travel Buzzer) 66
Fig 39 – Electric (Switch Box:Quick
Coupler Spec ) 68
Fig 40 – Electric (ESS Controller, w/ AC
Only) 70
Fig 41 – Electric (Work Lamp) 72
Fig 42 – Electric (Canopy Lamp) 74
Fig 43 – Electric (Instrument Panel:
Canopy Spec ) 76
Fig 44 – Electric (Instrument Panel:
Cabin Heater Spec ) 78
Fig 45 – Electric (Instrument Panel:
Cabin A/C Spec ) 80
Fig 46 – Electric (Heater Harness) 82
Fig 47 – Electric (Work Control – Air
Conditioning) 84
Fig 48 – Electric (Relay Bracket – Air
Conditioning) 86
Fig 49 – Electric (Harness Mount) 88
Fig 50 – Air Conditioner (Unit)
(w/Heater) 90
Fig 51 – Air Conditioner (Unit Inner
Parts)(w/Heater) 92
Fig 52 – Air Conditioner (Piping)
(w/Heater) 94
Fig 53 – Air Conditioner (Engine
Related) 96
Fig 54 – Air Conditioner (Condenser
Related) 98
Fig 55 – Air Conditioner (Electric
Part) 100
Fig 56 – Heater (Unit)(w/o A/C) 102
Fig 57 – Heater (Unit Inner Parts)
(w/o A/C) 104
Fig 58 – Heater (Piping) 106
Fig 59 – Duct (A/C, Heater Spec ) 108
Fig 60 – Sprocket 110
Fig 61 – Idler & Adjust 112
Fig 62 – Track Roller 114
Fig 63 – Carrier Roller 116
Fig 64 – Crawler 118
Fig 65 – Control Equipment
(Travel Pedal) 120
Fig 66 – Control Equipment (Valve
Mount) 122
Fig 67 – Control Equipment (Travel
Lever) 124
Fig 68 – Control Equipment (Swing
Pedal) 126
50940330/AP1015 II Printed in U S A
TABLE OF CONTENTS
Fig 69 – Control Equipment (Link
Cover) 128
Fig 70 – Control Equipment (Pedal
Cover) 130
Fig 71 – Control Equipment (Lever
Spacer) 132
Fig 72 – Control Equipment (Blade
Lever – w/out Angle Blade) 134
Fig 73 – Control Equipment (Blade
Lever – Angle Blade Spec ) 136
Fig 74 – Control Equipment
(Armrest) 138
Fig 75 – Control Equipment (Lock
Lever & Stand) 140
Fig 76 – Track Frame 142
Fig 77 – Counter Weight 144
Fig 78 – Turning Frame 146
Fig 79 – Turning Bearing 148
Fig 81 – Cover (Multi) 150
Fig 82 – Cover (Upper:1) 152
Fig 83 – Cover (Upper:2) 154
Fig 84 – Cover (Turning Frame) 156
Fig 85 – Cover (Track Frame) 158
Fig 86 – Frame Guard (Left) 160
Fig 87 – Frame Guard (Right) 162
Fig 88 – Cover (Turning Frame:Front
Left) 164
Fig 89 – Cover (Turning Frame:Front
Right) 166
Fig 90 – Step (Cabin Spec ) 168
Fig 91 – Step (Canopy Spec ) 170
Fig 92 – Cover (Lever) 172
Fig 93 – Cover (Monitor:Canopy
Spec ) 174
Fig 94 – Cover (Monitor:Cabin A/C
Spec ) 176
Fig 95 – Cover (Monitor:Cabin Heater
Spec ) 178
Fig 96 – Seat Mount 180
Fig 97 – Cover (Seat Mount) 182
Fig 98 – Seat 184
Fig 99 – Seat (Inner Parts) 186
Fig 100 – Handrail (Left,
w/Canopy) 188
Fig 101 – Handrail (Right,
w/Canopy) 190
Fig 103 – Bonnet (Rear) 192
Fig 104 – Bonnet (Front) 194
Fig 106 – Bonnet (Left) 196
Fig 108 – Bonnet (Right) 198
Fig 109 – Canopy 200
Fig 110 – Canopy Mount 202
Fig 111 – Window Washer 204
Fig 112 – Cabin Assy 206
Fig 113 – Cabin (Door:1) 208
Fig 114 – Cabin (Door:2) 210
Fig 115 – Cabin (Front:Window:1) 212
Fig 116 – Cabin (Front Window:2) 214
Fig 117 – Cabin (Glass) 216
Fig 118 – Cabin (Rear Cover) 218
Fig 119 – Cabin (Electric Part) 220
Fig 120 – Cabin (Accessory) 222
Fig 121 – Rearview Mirror 224
Fig 122 – Cabin Pad 226
Fig 123 – Box (Cabin Heater
Spec ) 228
Fig 124 – Hyd Oil Pump Mount 230
Fig 125 – Hyd Oil Pump (Quick
Coupler Spec ) 232
Fig 126 – Hyd Oil Pump (ESS & Quick
Coupler Spec , w/ Cabin Only) 234
Fig 127 – Boom Cylinder 236
Fig 128 – Arm Cylinder 238
Fig 129 – Bucket Cylinder 240
Fig 130 – Swing Cylinder 242
Fig 131 – Blade Cylinder (w/out Angle
Blade) 244
Fig 132 – Blade Cylinder (Angle Blade
Spec ) 246
Fig 133 – Angle Blade Cylinder (Angle
Blade Spec ) 248
Fig 134 – Quick Coupler (Hitch
Cylinder) 250
Fig 135 – Travel Motor 252
Fig 136 – Turning Motor 254
Fig 137 – Accumulator 256
Fig 138 – Swivel Joint (w/out Angle
Blade) 258
Fig 139 – Swivel Joint (Angle Blade
Spec ) 260
Fig 140 – Control Valve w/out Angle
Blade (1/8) 262
Fig 141 – Control Valve w/out Angle Blade
(2/8 – Bucket and P T O ) 264
Fig 142 – Control Valve w/out Angle Blade
(3/8 – Boom) 266
Printed in U S A III 50940330/AP1015
TABLE OF CONTENTS
Fig 143 – Control Valve w/out Angle Blade
(4/8 – Right Crawler/Supply) 268
Fig 144 – Control Valve w/out Angle Blade
(5/8 – Left Crawler/Swing) 270
Fig 145 – Control Valve w/out Angle Blade
(6/8 – P T O/Dipper Arm) 272
Fig 146 – Control Valve w/out Angle Blade
(7/8 – Supply and Join/Turning) 274
Fig 147 – Control Valve w/out Angle Blade
(8/8 – Blade) 276
Fig 148 – Control Valve – Angle Blade
Spec (1/8) 278
Fig 149 – Control Valve – Angle Blade
Spec (2/8 – Bucket/Angle) 280
Fig 150 – Control Valve – Angle Blade
Spec (3/8 – Boom) 282
Fig 151 – Control Valve – Angle Blade
Spec (4/8 – Right Crawler/
Supply) 284
Fig 152 – Control Valve – Angle Blade
Spec (5/8 – Left Crawler/Swing) 286
Fig 153 – Control Valve – Angle Blade
Spec (6/8 – P T O /Dipper Arm) 288
Fig 154 – Control Valve – Angle Blade
Spec (7/8 – Supply/Turning) 290
Fig 155 – Control Valve – Angle Blade
Spec (8/8 – Angle Blade) 292
Fig 156 – Remote Control Valve
(Right) 294
Fig 157 – Remote Control Valve
(Left) 296
Fig 158 – 2-Way Valve (w/out
Angle Blade) 298
Fig 159 – 2-Way Valve (Angle Blade
Spec ) 300
Fig 160 – Solenoid Valve (P T O ) 302
Fig 161 – Solenoid Valve (P T O :ESS
Spec , w/ Cabin Only) 304
Fig 162 – Solenoid Valve (P T O 2 – Angle
Blade Spec ) 306
Fig 163 – Solenoid Valve Bracket (P T O
2 – Angle Blade Spec ) 308
Fig 164 – Hyd Oil Tank 310
Fig 165 – Hyd Oil Piping (Tank-Pump,
Control Valve) 312
Fig 166 – Hyd Oil Piping (Control Valve-
Turning Motor) 314
Fig 167 – Hyd Oil Piping w/out Angle
Blade (Control Valve:Fitting, 1) 316
Fig 168 – Hyd Oil Piping (Control
Valve:Fitting, 1 – Angle Blade
Spec ) 318
Fig 169 – Hyd Oil Piping w/out Angle
Blade (Control Valve:Fitting, 2) 320
Fig 170 – Hyd Oil Piping (Control
Valve:Fitting, 2 – Angle Blade
Spec ) 322
Fig 171 – Hyd Oil Piping (Control Valve-
Return, Drain) 324
Fig 173 – Hyd Oil Piping (Control Valve-
Boom Bulkhead, Swing) 326
Fig 174 – Hyd Oil Piping (Control Valve-
Boom Cylinder) 328
Fig 175 – Hyd Oil Piping w/out Angle
Blade (Control Valve-Swivel
Joint) 330
Fig 176 – Hyd Oil Piping (Control Valve-
Swivel Joint – Angle Blade Spec ) 332
Fig 177 – Hyd Oil Piping w/out Angle
Blade (Travel Frame) 334
Fig 178 – Hyd Oil Piping (Travel Frame –
Angle Blade Spec ) 336
Fig 180 – Hyd Oil Piping (Arm Cylinder,
Bucket Cylinder) 338
Fig 182 – Hyd Oil Piping (P T O :Control
Valve-Boom) 340
Fig 184 – Hyd Oil Piping (P T O :Boom-
Arm End) 342
Fig 185 – Hyd Oil Piping w/out Angle
Blade (P T O :Solenoid Valve) 344
Fig 186 – Hyd Oil Piping (P T O :Solenoid
Valve – Angle Blade Spec ) 346
Fig 187 – Hyd Oil Piping w/out Angle
Blade (P T O :Solenoid Valve, ESS
Spec , w/ Cab Only) 348
Fig 188 – Hyd Oil Piping (P T O :Solenoid
Valve, ESS Spec , w/ Cab Only — Angle
Blade Spec ) 350
Fig 191 – Quick Coupler (Hyd Oil
Piping:1) 352
Fig 193 – Quick Coupler (Hyd Oil
Piping:2) 354
Fig 194 – Control Piping w/out Angle
Blade (1) 356
50940330/AP1015 IV Printed in U S A
TABLE OF CONTENTS
Fig 195 – Control Piping (1) (Angle Blade
Spec ) 358
Fig 196 – Control Piping (2) 360
Fig 197 – Greasing 362
Fig 199 – Boom Bracket 364
Fig 201 – Boom 366
Fig 203 – Arm 368
Fig 205 – Bucket Arm & Link 370
Fig 207 – Quick Coupler (Body) 372
Fig 208 – Blade (w/out Angle
Blade) 374
Fig 209 – Blade (Angle Blade
Spec ) 376
Fig 212 – Radio Kit (Optional) 378
Fig 214 – Additional Weight Kit
(Optional) 380
Hydraulic Quick-Connect Couplers 382
Fuse Positions 384
Numerical Index 439

DESCRIPTION:

Mustang 550Z Compact Excavator Parts Manual 50940330 – PDF DOWNLOAD

INTRODUCTION:
General:
• MANITOU AMERICAS, INC. reserves the right to make changes or improvements in the design or construction of any part of the machine without incurring the obligation to install such changes on any previously delivered machines.
• This parts manual should not be used as a technical data reference; it uses simplified illustrations and does not detail servicing procedures.
• Internal engine components not shown in this manual are contained in a separate engine parts manual. The engine parts manual is contained in the documentation packet shipped with the machine, and is also available separately. Contact your dealer with any documentation requests.
