Mustang 638 Telehandler Parts Manual 913208 – PDF DOWNLOAD

Description

Mustang 638 Telehandler Parts Manual 913208 – PDF DOWNLOAD

FILE DETAILS:

Mustang 638 Telehandler Parts Manual 913208 – PDF DOWNLOAD

Language : English
Pages : 138
Downloadable : Yes
File Type : PDF
Size: 2.11 MB

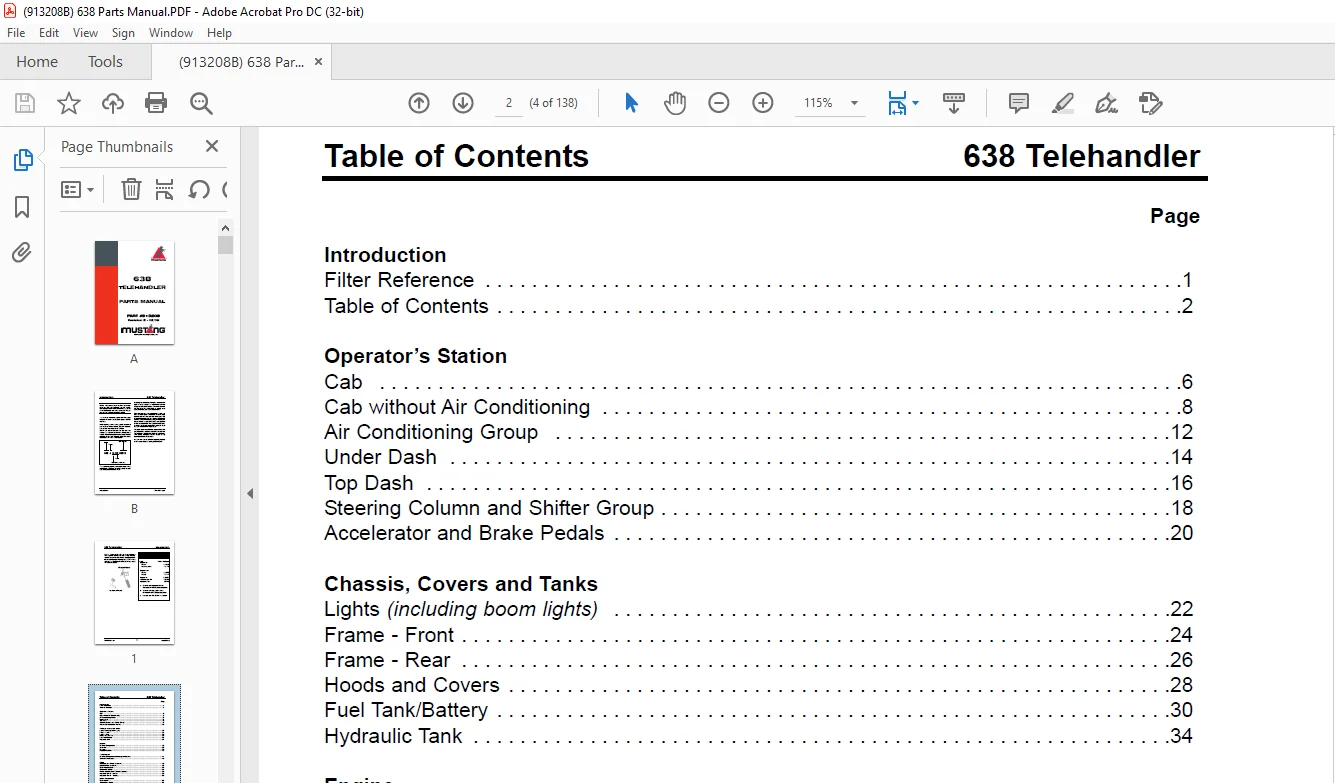

TABLE OF CONTENTS:

Mustang 638 Telehandler Parts Manual 913208 – PDF DOWNLOAD

Introduction
Filter Reference 1
Table of Contents 2
Operator’s Station
Cab 6
Cab without Air Conditioning 8
Air Conditioning Group 12
Under Dash 14
Top Dash 16
Steering Column and Shifter Group 18
Accelerator and Brake Pedals 20
Chassis, Covers and Tanks
Lights (including boom lights) 22
Frame – Front 24
Frame – Rear 26
Hoods and Covers 28
Fuel Tank/Battery 30
Hydraulic Tank 34
Engine
External Components 36
Air Intake 38
Exhaust 40
Radiator/Coolers 42
Transmission
External Components (including driveshafts) 44
Internal Components 46
Axles
Planetary and Wheel Assembly 48
Brake Caliper Assembly 50
Outer Knuckle End 52
Differential Carrier 54
Power Brake/Master Cylinder Assembly 56
Hydraulic Circuit – Brakes 58
Hydraulic Circuit – Steering 60
Boom Components
Outer Boom 62
Intermediate Boom 64
Inner Boom 66
Table of Contents 638 Telehandler
Page
PRINTED IN U S A 3 913208/BP0209
Boom Hydraulics
Hydraulic Circuit – Boom Extend 68
Hydraulic Circuit – Boom Tilt/Slave/Auxiliary 70
Hydraulics
Hydraulic Pump 72
Joystick/Manifold 74
Hydraulic Components
Steer Cylinder 76
Frame Level Cylinder 78
Boom Lift Cylinder 80
Boom Extend Cylinder 81
Boom Slave Cylinder 82
Tilt Cylinder 83
Fork-Shift Cylinder 84
Rotating Carriage Cylinder 86
Swing Carriage Cylinder 87
Hydraulic Pump 88
Steering Motor 90
Steer Select Valve 91
Boom Extend/Lift Joystick 92
Tilt/Rotate Joystick 94
Frame Level Control Valve 96
Priority Flow Divider 98
Flow Divider 99
Joystick Relief Valve 100
Dual-Relief Valve 101
Attachments
Carriage Forks 102
Standard Carriage 104
Fork-Shift Carriage 106
Rotating Carriage 108
Swing Carriage 110
Truss Booms 112
Boom Winch 112
Bucket 114
638 Telehandler Table of Contents
Page
913208/BP0209 4 PRINTED IN U S A
Decals
General Information 116
Paint 116
Decals 117
Index
Numerical Index 148
Subject Index 154
Torque Specifications Inside Back Cover

DESCRIPTION:

Mustang 638 Telehandler Parts Manual 913208 – PDF DOWNLOAD

Introduction :

The Table of Contents pages show the page location of various component groups on the machine. When ordering service parts, specify the correct part number, full description, quantity required, and the unit model and serial number. Model and serial numbers for this unit are stamped on a plate located inside the operator’s station.

• The serial number is also stamped on the top front frame. The following reference shows the breakdown of the serial number: The positions right, left, front and rear are determined from a position standing behind the unit and facing the direction of travel.
• Mustang Manufacturing Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered. Grease fittings and common attaching hardware, such as cotter pins, set screws, woodruff keys, screws and nuts are included in the parts list, indented below the part it is (they are) associated with, but NOT illustrated, except where a particular routing or special fastening arrangement MUST be maintained.
• The hardware listed is for mounting purposes and is NOT included when the part is ordered for replacement. Standard attaching hardware torque values are provided on the inside back cover. Unless otherwise specified, all bolts are Grade 5, cadmium or zinc plated; hexagon nuts for Grade 5 cap screws and bolts are Grade 5. If a part with a decal affixed is replaced, be sure to affix a new decal to the replacement part.

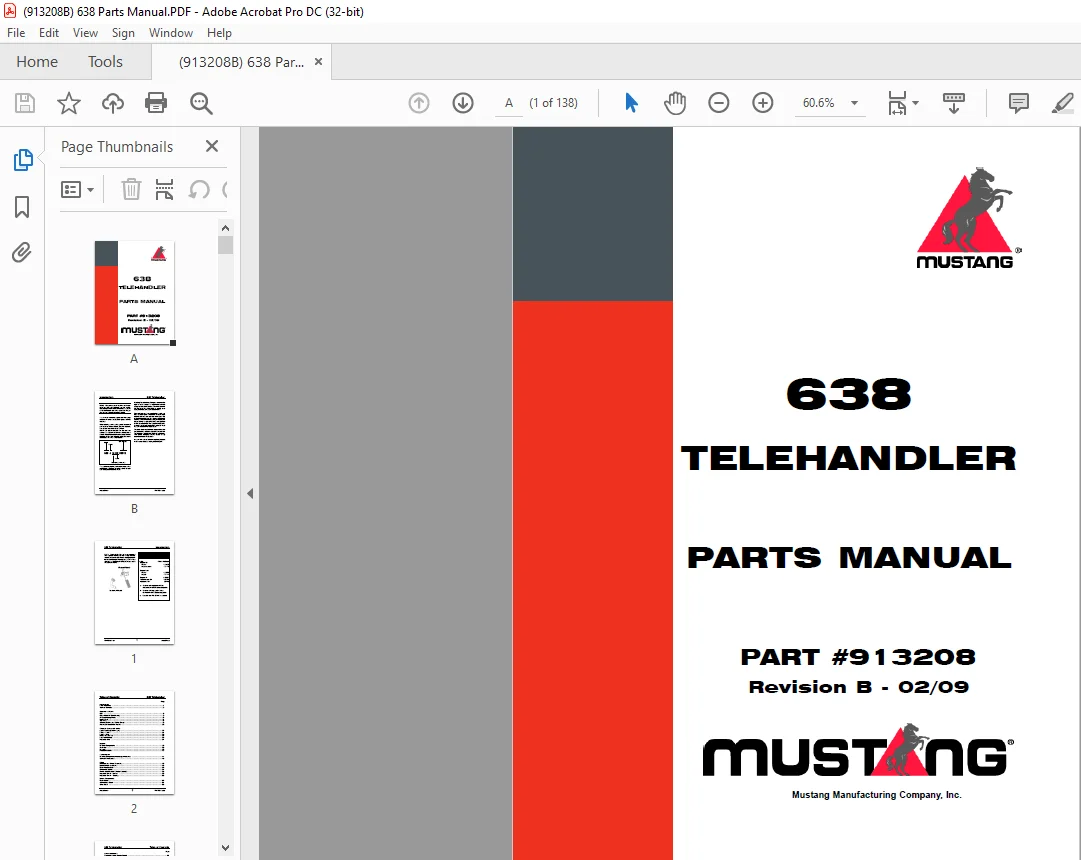

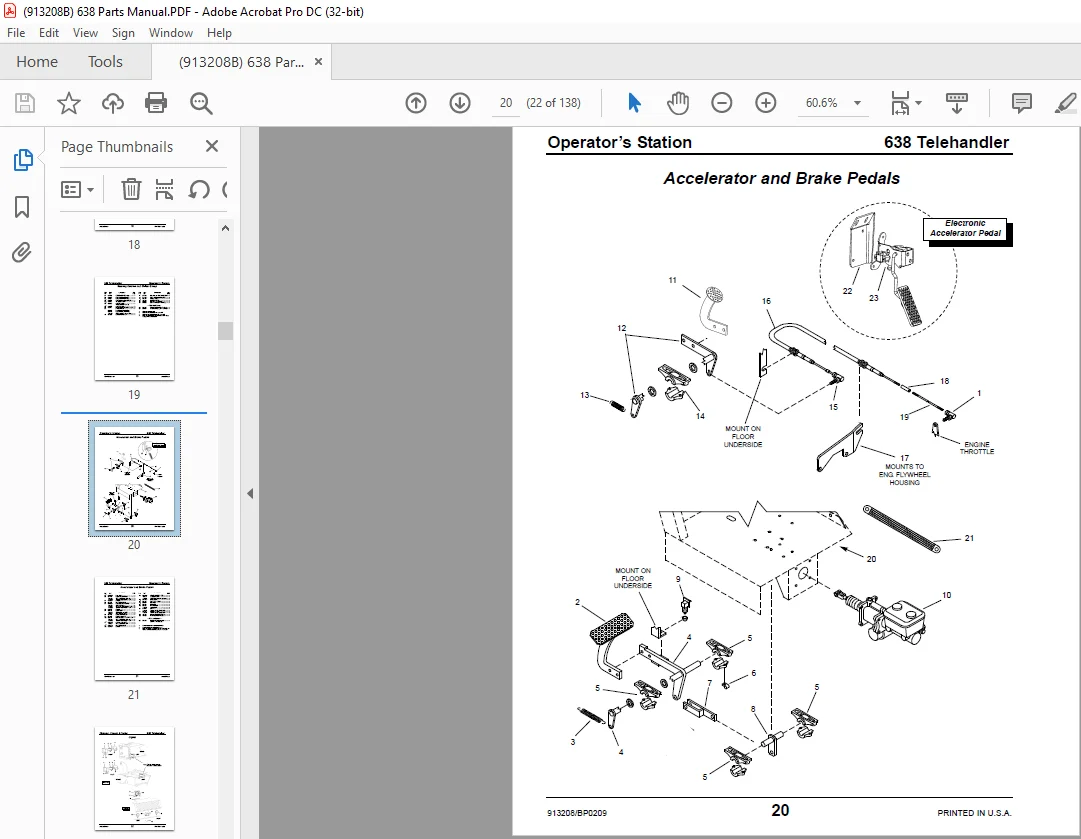

IMAGES PREVIEW OF THE MANUAL:
