Mustang 642 842 844 Telehandler Operator’s Manual 913219 – PDF DOWNLOAD

Description

Mustang 642 842 844 Telehandler Operator’s Manual 913219 – PDF DOWNLOAD

FILE DETAILS:

Mustang 642 842 844 Telehandler Operator’s Manual 913219 – PDF DOWNLOAD

Language : English
Pages : 88
Downloadable : Yes
File Type : PDF
Size: 5.66 MB

DESCRIPTION:

Mustang 642 842 844 Telehandler Operator’s Manual 913219 – PDF DOWNLOAD

INTRODUCTION:

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting,
  maintaining and servicing of the Telehandler. More importantly, this manual provides an operating plan for
  safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this
  manual.
• The Mustang Manufacturing Company asks that you read and understand the contents of this
  manual COMPLETELY and become familiar with your new machine, BEFORE operating it.
  The use of this telehandler is subject to certain hazards that cannot be eliminated by mechanical means, but only
  by the exercise of intelligence, care and common sense. It is therefore essential to have competent and careful operators,
• who are not physically or mentally impaired, and who are thoroughly trained in the safe operation of the
  equipment and the handling of the loads.
• Throughout this manual information is provided that is set in italic type and introduced by the word IMPORTANT
  or NOTE. Be sure to read carefully and comply with the message or directive given. Following this information
  will improve your operating or maintenance efficiency, help you to avoid breakdowns or damage and extend your
  machine’s life. A chart of standard hardware torques is located in the back of this manual.
• A storage area is provided on the unit for storing the Operator’s Manual. After using the manual, please return it
  to the storage area and keep it with the unit at all times! If this machine is resold, Mustang Manufacturing
  Company recommends that this manual be given to the new owner.
• If this machine was purchased “used,” or if the owner’s address has changed, please provide your Mustang dealer
  or Mustang Manufacturing Company Service Department with the owner’s name and current address, along with
  the machine model and serial number. This will allow the registered owner information to be updated, so that the
  owner can be notified directly in case of an important product issue, such as a safety update program.
• “Right” and “left” are determined from a position sitting on the seat and facing forward.
  Our wide dealership network stands ready to provide you with any assistance you may require, including genuine
• Mustang service parts. All parts should be obtained from or ordered through your Mustang dealer. Give complete
  information about the part and include the model and serial number of your machine. Record the serial number in
  the space provided on the previous page, as a handy record for quick reference.
• Mustang Manufacturing Company reserves the right to make changes or improvements in the design or construction
  of any part without incurring the obligation to install such changes on any unit previously delivered.

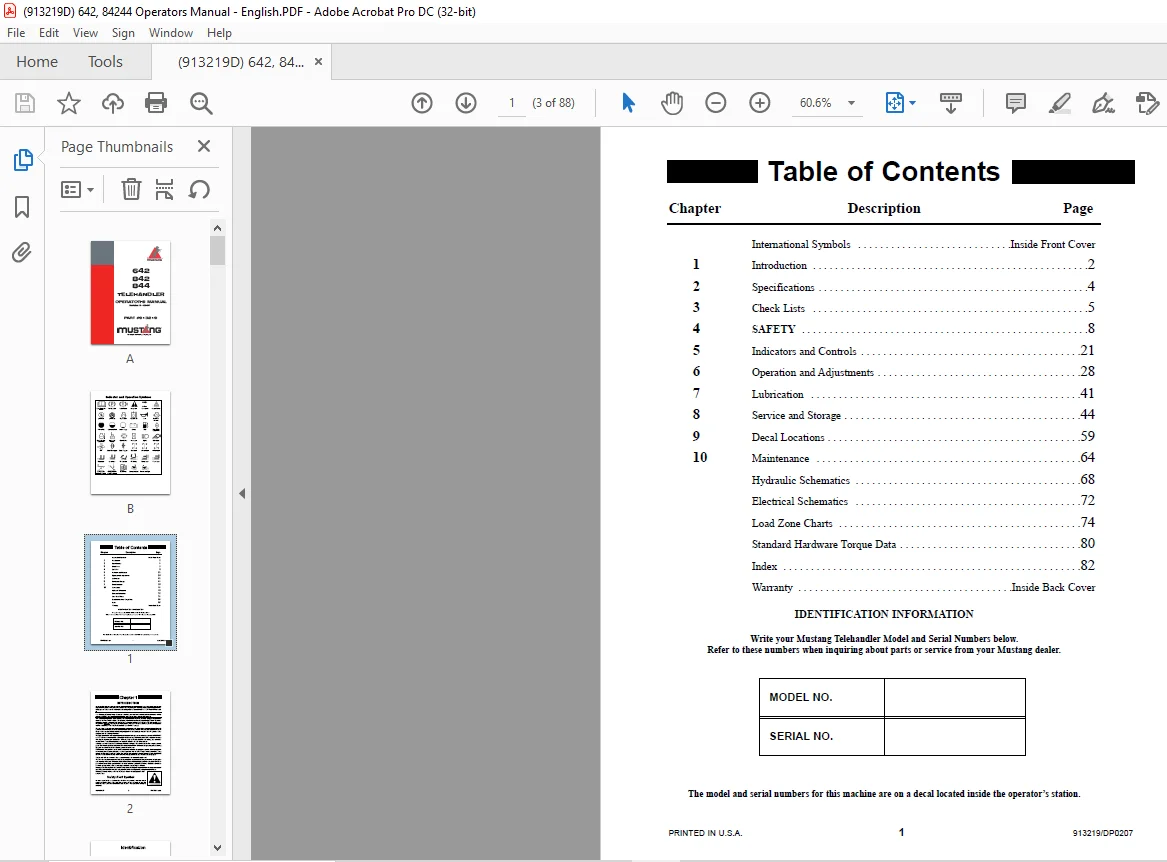

TABLE OF CONTENTS:

Mustang 642 842 844 Telehandler Operator’s Manual 913219 – PDF DOWNLOAD

International Symbols Inside Front Cover
1 Introduction 2
2 Specifications 4
3 Check Lists 5
4 SAFETY 8
5 Indicators and Controls 21
6 Operation and Adjustments 28
7 Lubrication 41
8 Service and Storage 44
9 Decal Locations 59
10 Maintenance 64
Hydraulic Schematics 68
Electrical Schematics 72
Load Zone Charts 74
Standard Hardware Torque Data 80
Index 82
Warranty Inside Back Cover

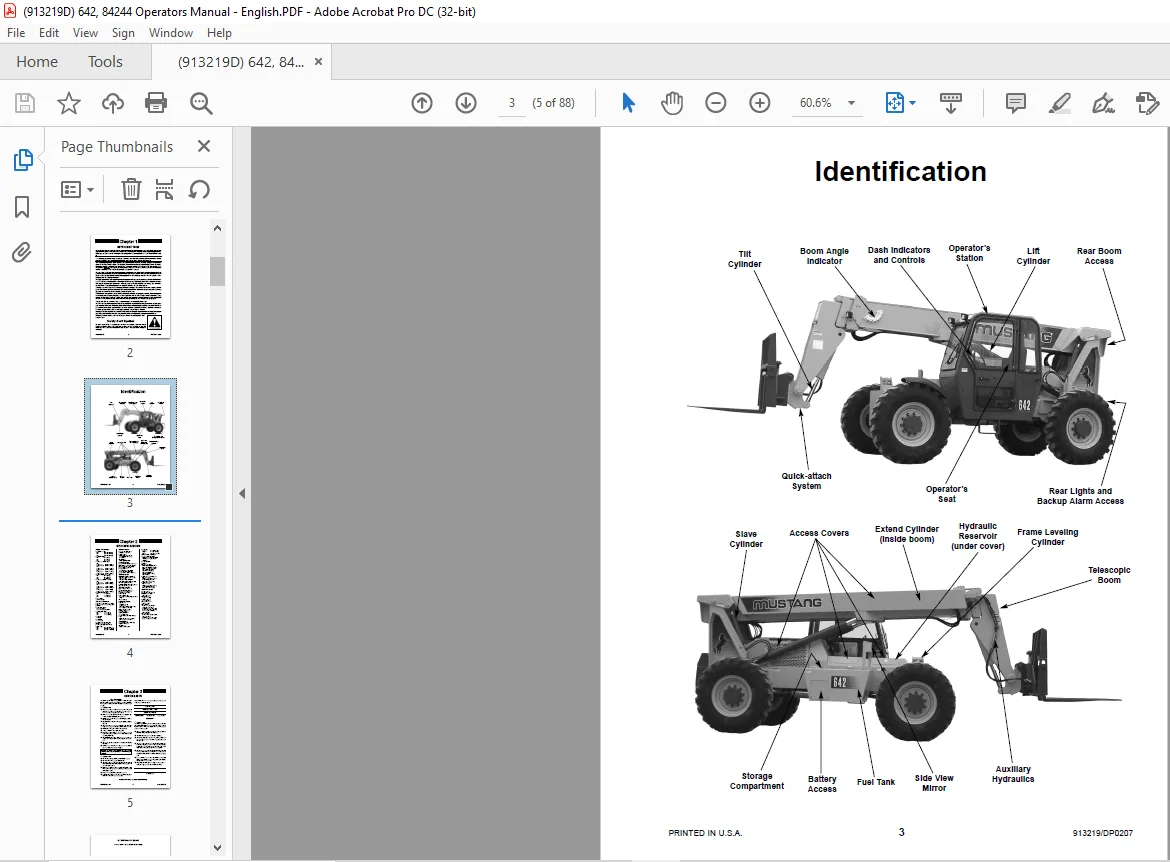

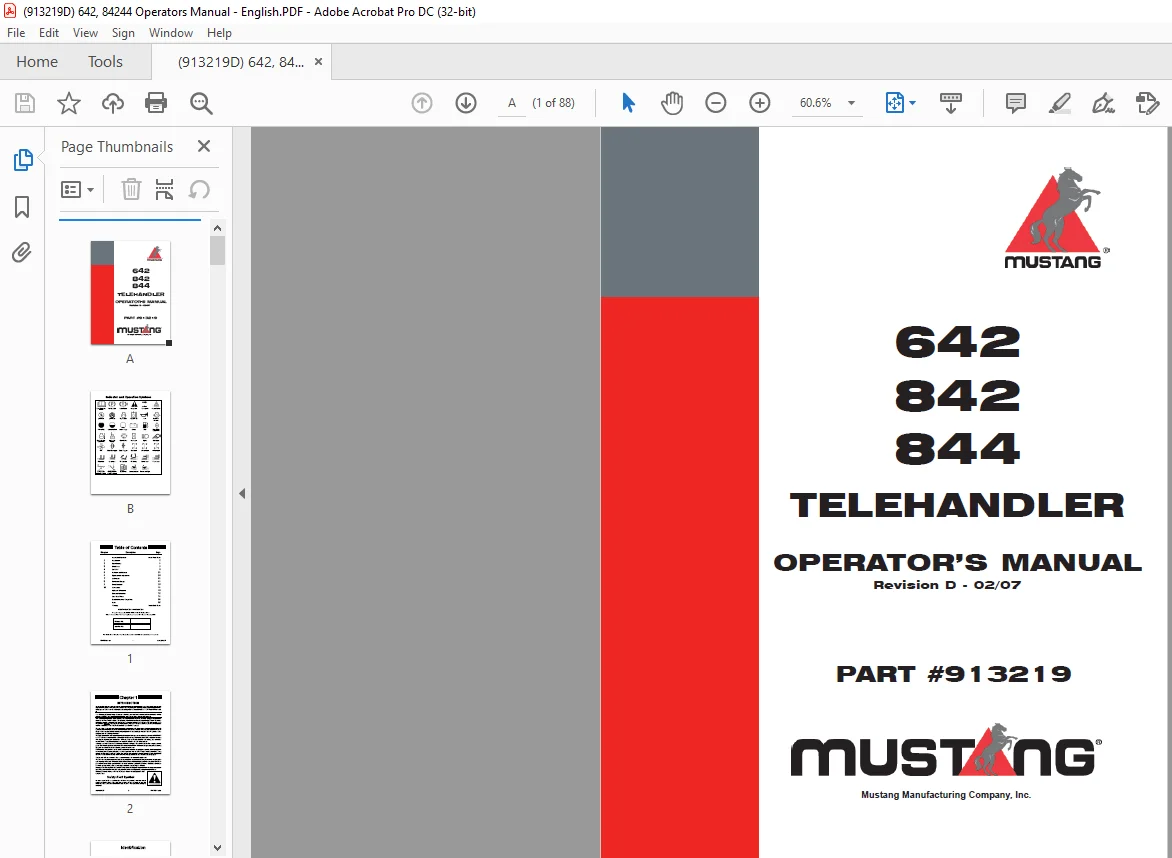

IMAGES PREVIEW OF THE MANUAL:
