Mustang Manitou MLT312 Compact Track Loader Parts Manual 917317 – PDF DOWNLOAD

Description

Mustang Manitou MLT312 Compact Track Loader Parts Manual 917317 – PDF DOWNLOAD

FILE DETAILS:

Mustang Manitou MLT312 Compact Track Loader Parts Manual 917317 – PDF DOWNLOAD

Language : English
Pages : 229
Downloadable : Yes
File Type : PDF
Size: 31.2 MB

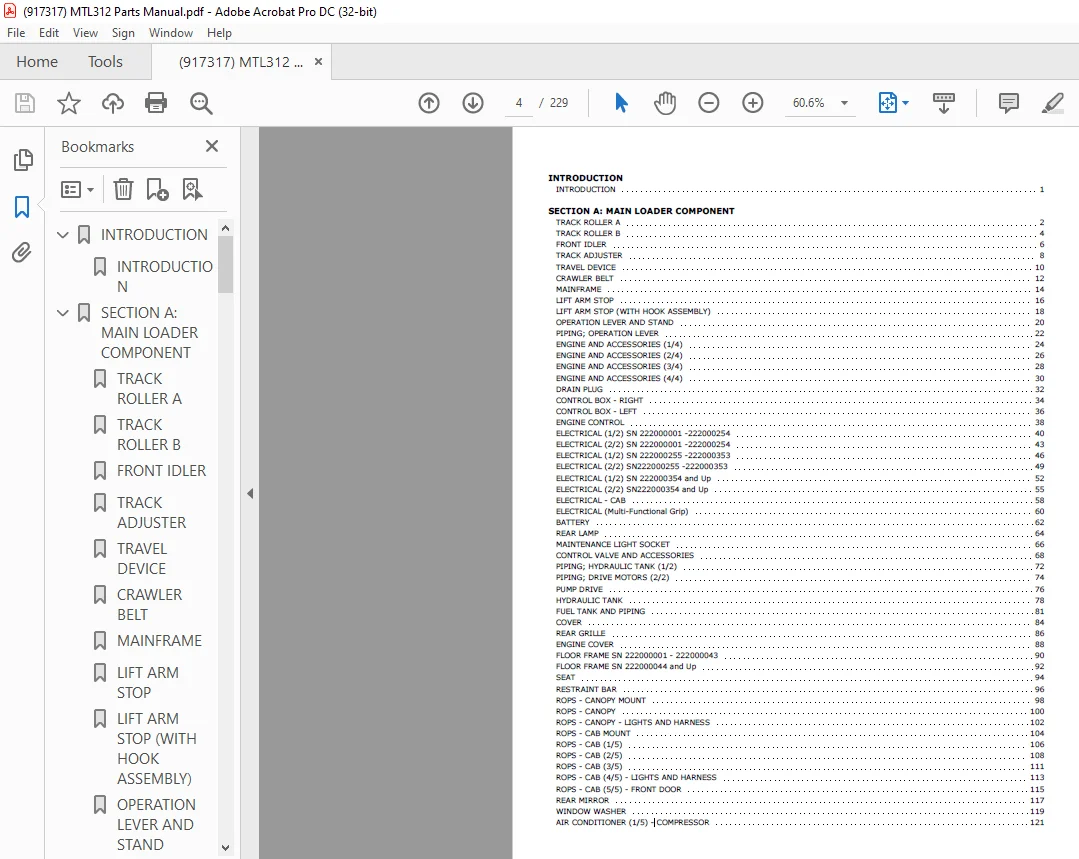

TABLE OF CONTENTS:

Mustang Manitou MLT312 Compact Track Loader Parts Manual 917317 – PDF DOWNLOAD

INTRODUCTION
INTRODUCTION 1
SECTION A: MAIN LOADER COMPONENT
TRACK ROLLER A 2
TRACK ROLLER B 4
FRONT IDLER 6
TRACK ADJUSTER 8
TRAVEL DEVICE 10
CRAWLER BELT 12
MAINFRAME 14
LIFT ARM STOP 16
LIFT ARM STOP (WITH HOOK ASSEMBLY) 18
OPERATION LEVER AND STAND 20
PIPING; OPERATION LEVER 22
ENGINE AND ACCESSORIES (1/4) 24
ENGINE AND ACCESSORIES (2/4) 26
ENGINE AND ACCESSORIES (3/4) 28
ENGINE AND ACCESSORIES (4/4) 30
DRAIN PLUG 32
CONTROL BOX – RIGHT 34
CONTROL BOX – LEFT 36
ENGINE CONTROL 38
ELECTRICAL (1/2) SN 222000001 -222000254 40
ELECTRICAL (2/2) SN 222000001 -222000254 43
ELECTRICAL (1/2) SN 222000255 -222000353 46
ELECTRICAL (2/2) SN222000255 -222000353 49
ELECTRICAL (1/2) SN 222000354 and Up 52
ELECTRICAL (2/2) SN222000354 and Up 55
ELECTRICAL – CAB 58
ELECTRICAL (Multi-Functional Grip) 60
BATTERY 62
REAR LAMP 64
MAINTENANCE LIGHT SOCKET 66
CONTROL VALVE AND ACCESSORIES 68
PIPING; HYDRAULIC TANK (1/2) 72
PIPING; DRIVE MOTORS (2/2) 74
PUMP DRIVE 76
HYDRAULIC TANK 78
FUEL TANK AND PIPING 81
COVER 84
REAR GRILLE 86
ENGINE COVER 88
FLOOR FRAME SN 222000001 – 222000043 90
FLOOR FRAME SN 222000044 and Up 92
SEAT 94
RESTRAINT BAR 96
ROPS – CANOPY MOUNT 98
ROPS – CANOPY 100
ROPS – CANOPY – LIGHTS AND HARNESS 102
ROPS – CAB MOUNT 104
ROPS – CAB (1/5) 106
ROPS – CAB (2/5) 108
ROPS – CAB (3/5) 111
ROPS – CAB (4/5) – LIGHTS AND HARNESS 113
ROPS – CAB (5/5) – FRONT DOOR 115
REAR MIRROR 117
WINDOW WASHER 119
AIR CONDITIONER (1/5) – COMPRESSOR 121
AIR CONDITIONER (1/5) – COMPRESSOR 124
AIR CONDITIONER – (2/5) – CONDENSER 127
AIR CONDITIONER (3/5) – A/C UNIT 129
AIR CONDITIONER (4/5) 132
AIR CONDITIONER (5/5) 134
LIFT ARM 136
ATTACHMENT SYSTEM 139
PIPING; LIFT ARM 141
PIPING; LIFT ARM – AUXILIARY HYDRAULICS 144
FOOT THROTTLE 146
DECALS
GENERAL INFORMATION 149
DECALS (1/5) 150
DECALS (2/5) 153
DECALS (3/5) 156
DECALS (4/5) 159
DECALS (5/5) 162
SECTION B: HYDRAULIC COMPONENTS
CONTROL VALVE 165
PILOT VALVE (R.H.) (MULTI-FUNCTIONAL GRIP) 167
PILOT VALVE (L.H.) (MULTI-FUNCTIONAL GRIP) 169
HANDLE (MULTI-FUNCTIONAL GRIP WITH SLIDE SWITCH) 171
HANDLE (MULTI-FUNCTIONAL GRIP WITH SLIDE SWITCH) 173
INLET HOUSING ASSEMBLY 175
BLOCK ASSEMBLY; NO. 1 177
BLOCK ASSEMBLY; NO. 2 179
SUB VALVE 181
SELF-LEVEL VALVE 183
SOLENOID VALVE; 1 BLOCK 185
ELECTRICAL PROPORTION VALVE 187
LIFT CYLINDER 189
TILT CYLINDER 191
TRAVEL MOTOR (1/3) 193
TRAVEL MOTOR (2/3) 195
TRAVEL MOTOR (3/3) 197
HYDRAULIC PUMP (1/4) 199
HYDRAULIC PUMP (2/4) 201
HYDRAULIC PUMP (3/4) 203
HYDRAULIC PUMP (4/4) 205
SECTION C: KITS AND ACCESSORIES
MTL312 FILTER PART NUMBERS 207
Additional Accessories 208
Analysis Kits – Contact your Mustang Dealer 209
KITS AND ACCESSORIES 810946 Universal Radio Kit 210
KITS AND ACCESSORIES Auxiliary Couplers Service Kits 212
KITS AND ACCESSORIES 811343 Pre-Cleaner Kit 214
KITS AND ACCESSORIES 811343 Pre-Cleaner Kit 216
KITS AND ACCESSORIES 811428 14-Pin Connector Kit 218
O-RING TABLES 220
TORQUE SPECIFICATIONS 221
SECTION D: TABLES AND SPECIFICATIONS
O-Ring Table, Coupling & Adapter Torque Table 222
Torque Specifications Table 223

DESCRIPTION:

Mustang Manitou MLT312 Compact Track Loader Parts Manual 917317 – PDF DOWNLOAD

Introduction:

For your safety and continued proper operation, use only genuine MUSTANG® service parts. When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.

• The model and serial number decal for this unit is located on the right rear riser. “Right” and “Left” are determined from a position sitting on the seat and facing forward.
• MUSTANG Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Items shown in the parts list that do not have part numbers are shown for reference purposes only and are NOT available for purchase.

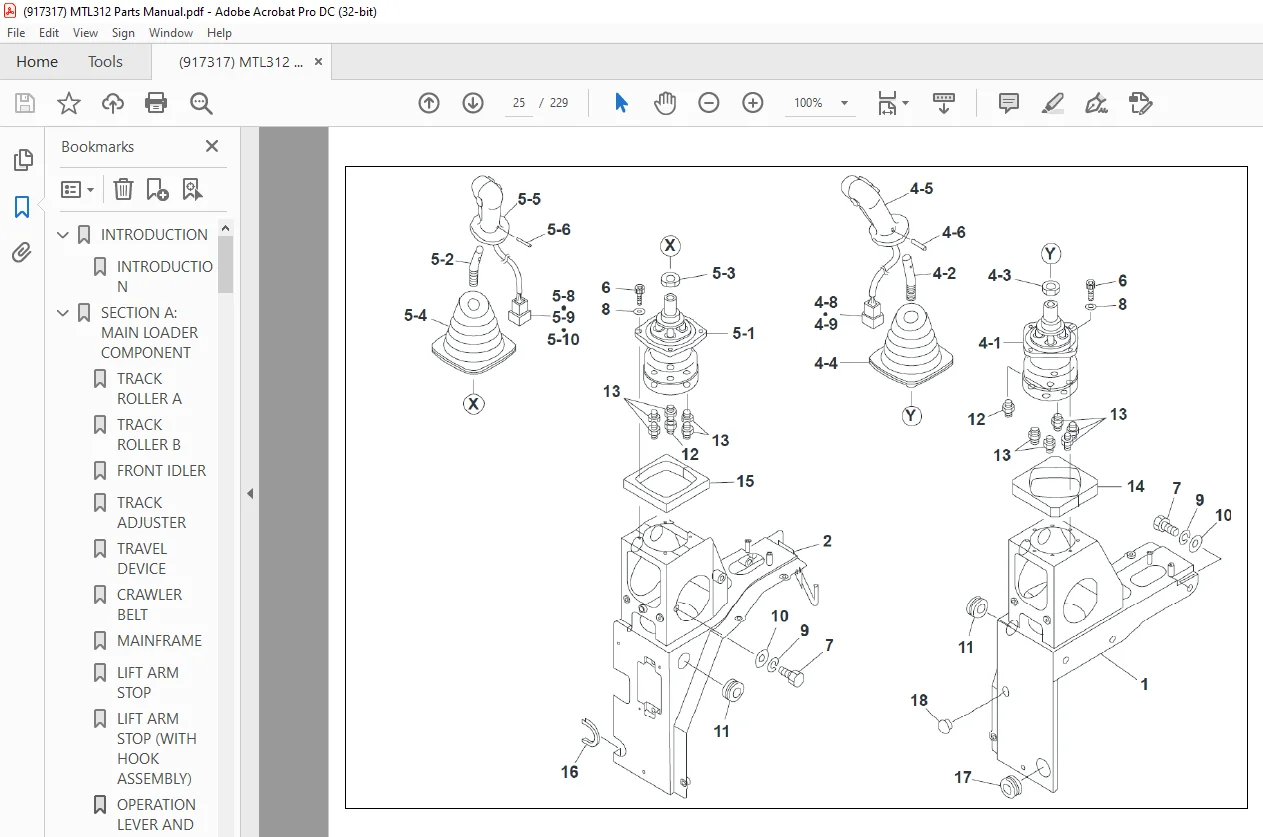

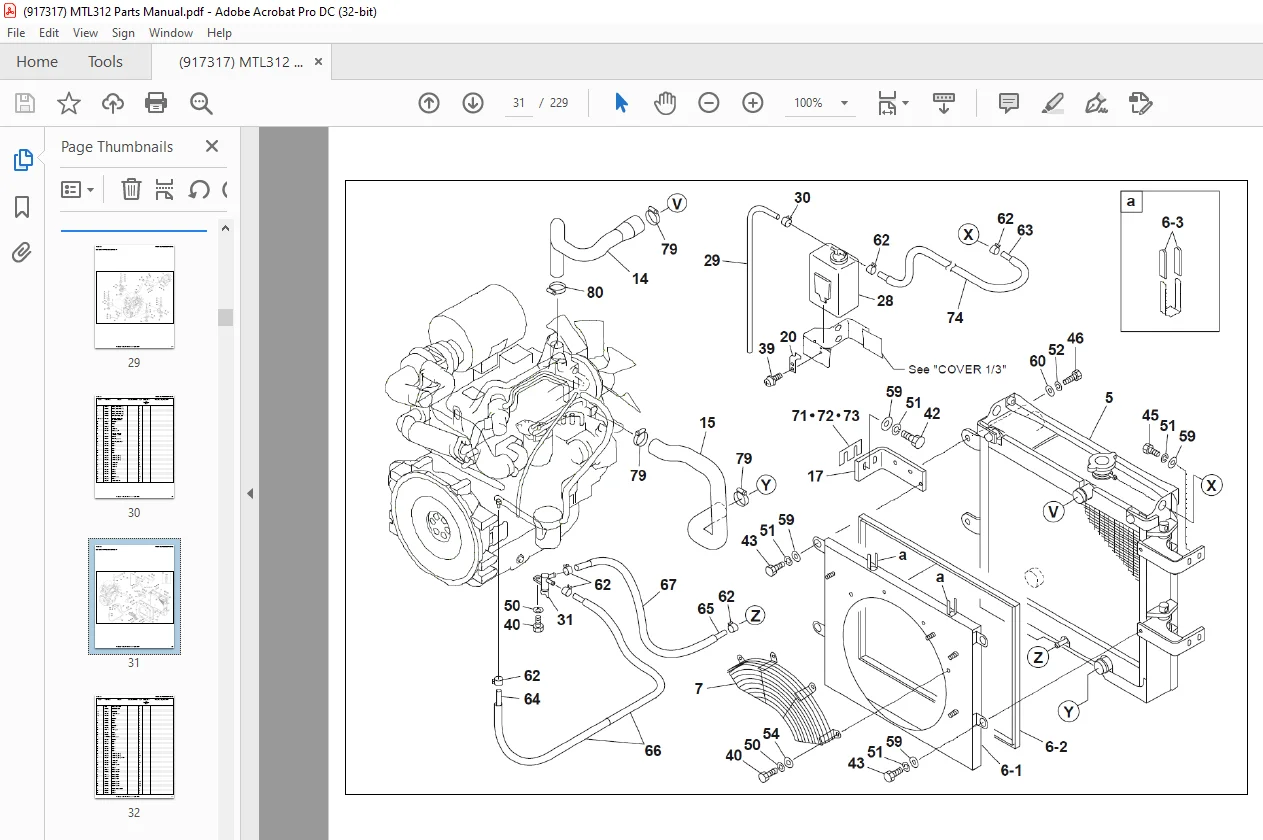

IMAGES PREVIEW OF THE MANUAL:
