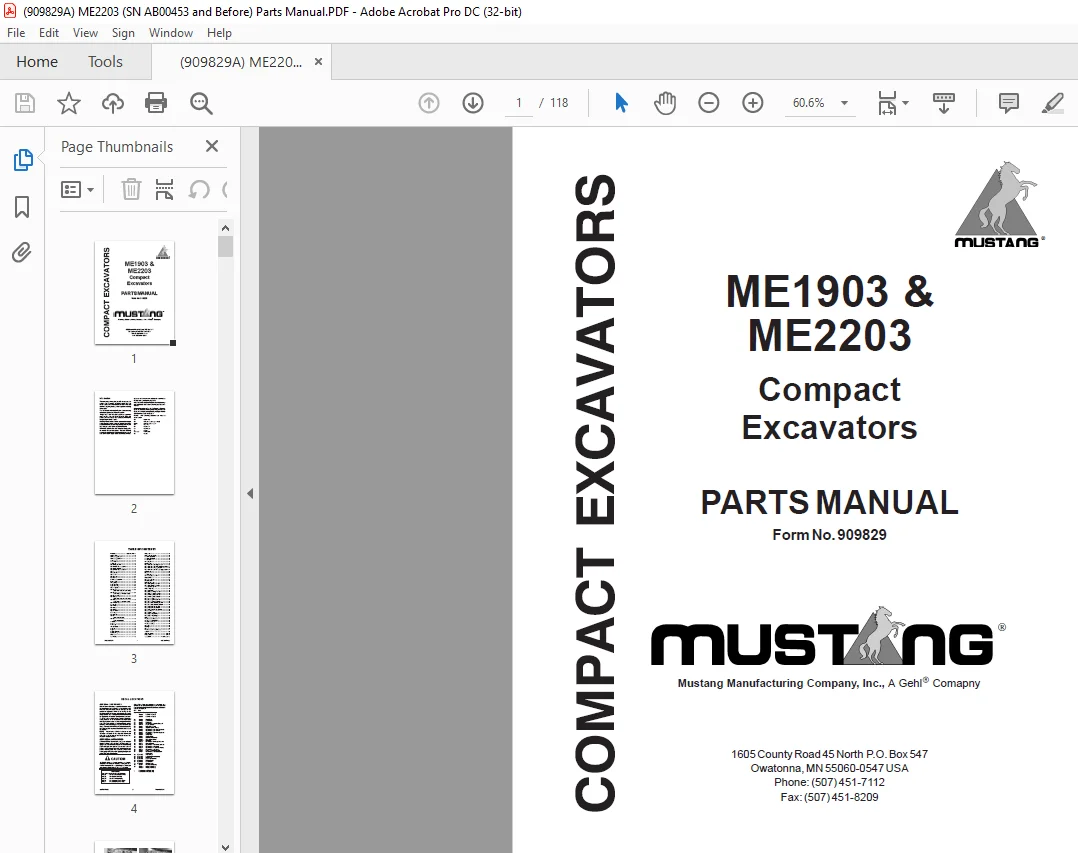

Mustang ME1903 & ME2203 Compact Excavator Parts Manual 909829 – PDF DOWNLOAD

Description

Mustang ME1903 & ME2203 Compact Excavator Parts Manual 909829 – PDF DOWNLOAD

FILE DETAILS:

Mustang ME1903 & ME2203 Compact Excavator Parts Manual 909829 – PDF DOWNLOAD

Language : English
Pages : 118
Downloadable : Yes
File Type : PDF
Size: 3.82 MB

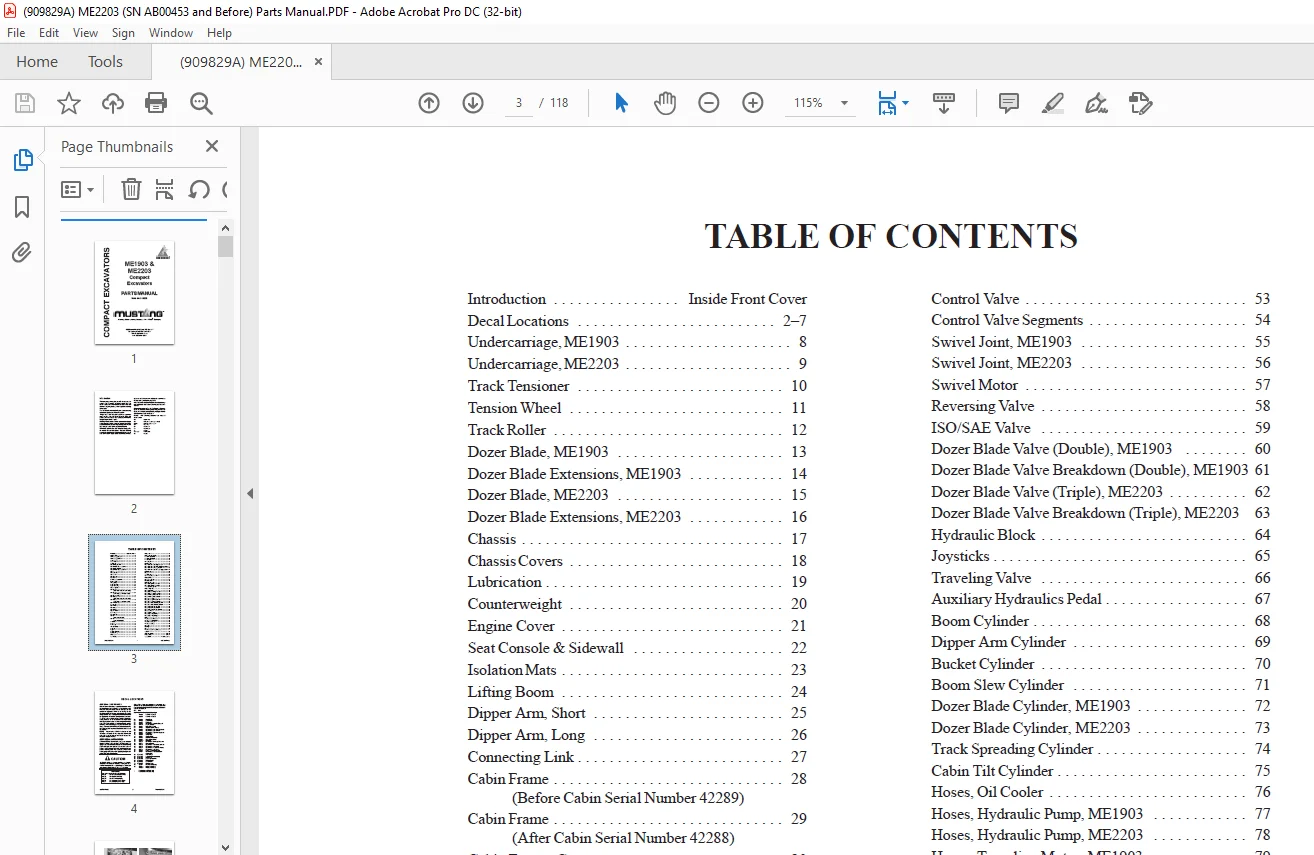

TABLE OF CONTENTS:

Mustang ME1903 & ME2203 Compact Excavator Parts Manual 909829 – PDF DOWNLOAD

Introduction Inside Front Cover
Decal Locations 2–7
Undercarriage, ME1903 8
Undercarriage, ME2203 9
Track Tensioner 10
Tension Wheel 11
Track Roller 12
Dozer Blade, ME1903 13
Dozer Blade Extensions, ME1903 14
Dozer Blade, ME2203 15
Dozer Blade Extensions, ME2203 16
Chassis 17
Chassis Covers 18
Lubrication 19
Counterweight 20
Engine Cover 21
Seat Console & Sidewall 22
Isolation Mats 23
Lifting Boom 24
Dipper Arm, Short 25
Dipper Arm, Long 26
Connecting Link 27
Cabin Frame 28
(Before Cabin Serial Number 42289)
Cabin Frame 29
(After Cabin Serial Number 42288)
Cabin Frame, Canopy 30
Cabin Covers 31
(Before Cabin Serial Number 42289)
Cabin Covers 32
(After Cabin Serial Number 42288)
Cabin Wire Harness 33
Front Window 34
Cabin Windows 35
Cabin Doors 36
Cabin Heater 37
Operator’s Seat 38
Diesel Engine 39
Engine Mounts 40
Radiator 41
(Before SN AC00822)
Radiator 42
(After SN AC00821)
Air Cleaner 43
Exhaust 44
Fuel Supply 45
Manual Throttle 46
Fuel Tank 47
Pump Drive 48
Hydraulic Oil Tank 49
Hydraulic Pump 50
Oil Cooler 51
Travel Motors 52
Control Valve 53
Control Valve Segments 54
Swivel Joint, ME1903 55
Swivel Joint, ME2203 56
Swivel Motor 57
Reversing Valve 58
ISO/SAE Valve 59
Dozer Blade Valve (Double), ME1903 60
Dozer Blade Valve Breakdown (Double), ME1903 61
Dozer Blade Valve (Triple), ME2203 62
Dozer Blade Valve Breakdown (Triple), ME2203 63
Hydraulic Block 64
Joysticks 65
Traveling Valve 66
Auxiliary Hydraulics Pedal 67
Boom Cylinder 68
Dipper Arm Cylinder 69
Bucket Cylinder 70
Boom Slew Cylinder 71
Dozer Blade Cylinder, ME1903 72
Dozer Blade Cylinder, ME2203 73
Track Spreading Cylinder 74
Cabin Tilt Cylinder 75
Hoses, Oil Cooler 76
Hoses, Hydraulic Pump, ME1903 77
Hoses, Hydraulic Pump, ME2203 78
Hoses, Traveling Motor, ME1903 79
Hoses, Traveling Motor, ME2203 80
Hoses, Swivel Motor 81
Hoses, Reversing Valve, ME1903 82
Hoses, Reversing Valve, ME2203 83
Hoses, Dozer Blade Cylinder, ME1903 84
Hoses, Dozer Blade Cylinder, ME2203 85
Hoses, Track Cylinder, ME1903 86
Hoses, Track Cylinder, ME2203 87
Hoses, Cabin Tilt Cylinder, ME2203 88
Hoses, Joysticks 89
Hoses, Traveling Valve 90
Hoses, Dipper Arm (Short) 91
Hoses, Dipper Arm (Long) 92
Battery 93
Wire Harness, Right Armrest 94
Wire Harness, Left Armrest 95
Wire Harness, Engine 96
Wire Harness, Chassis 97
Relay Box 98
Headlight 99
Horn 100
Wire Harness, Auxiliary Hydraulics 101
Tool Kit 102
Alphabetical Index 103–104
Numerical Index 105–113
Torque Chart Inside Rear Cover

DESCRIPTION:

Mustang ME1903 & ME2203 Compact Excavator Parts Manual 909829 – PDF DOWNLOAD

Introduction:

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. For your safety and continued proper operation, use only genuine Mustang service parts.

• The model and serial number for this unit are on a tag located on a panel on the front of the cabin.
• ‘‘Right’’ and ‘‘left’’ are determined from a position sitting on the seat and facing forward. From this position, the cab is on the ‘‘left’’ and the hydraulic valve compartment is on the ‘‘right’’.
• Mustang Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. Metric torque values shown in the illustrations are in Newton-meters and can be converted to Foot-pounds by multiplying by 0.738.
• In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

GENERAL INFORMATION:

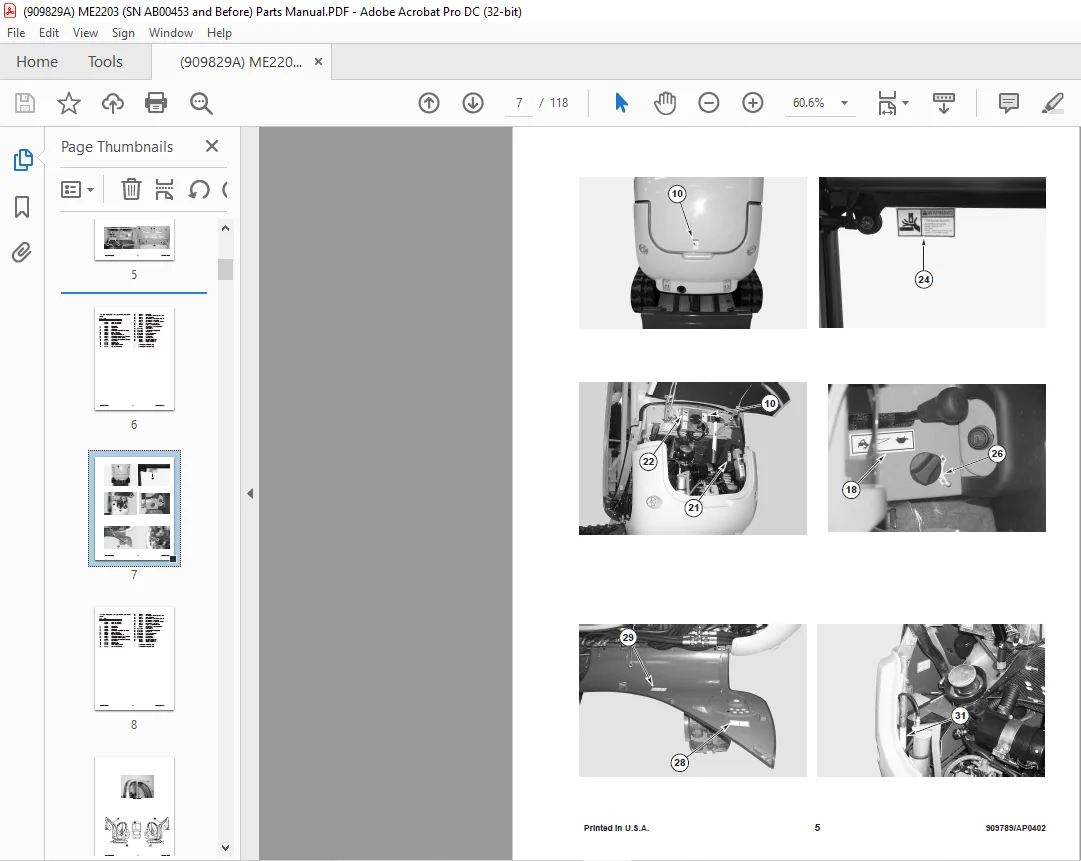

Decal location information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity of each decal provided in the kit.

• Refer to the appropriate illustrations for replacement locations. To ensure proper selection of the correct replacement decals, compare all of the various closeup location drawings to your machine before starting to refinish the unit.
• Then circle each shown decal (applicable to your machine) while checking off its part number in the listing. After you have verified all the decals needed for replacement, place any extra unnecessary decals aside for disposal.

NEW DECAL APPLICATION:

Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Peel the other portion of the backing paper off slowly while applying hand pressure to smooth out the decal surface.
