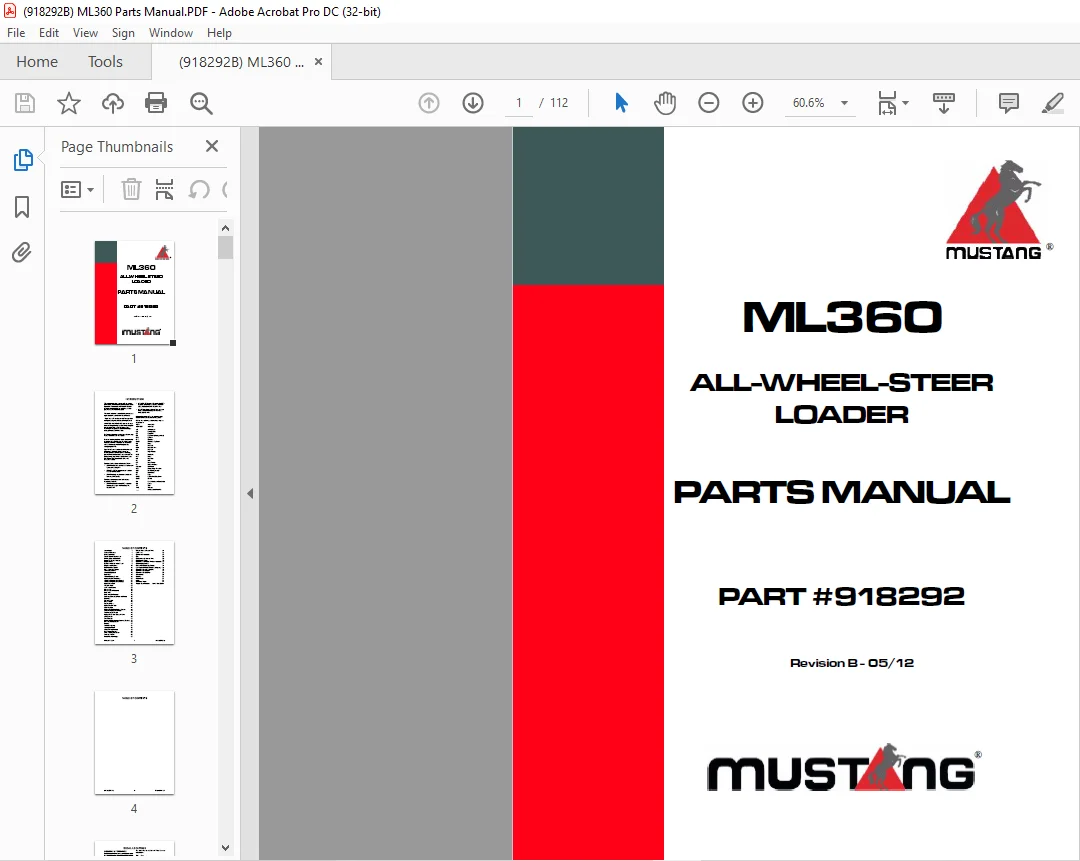

Mustang ML360 All Wheel Steer Loader Parts Manual 918292 – PDF DOWNLOAD

Description

Mustang ML360 All Wheel Steer Loader Parts Manual 918292 – PDF DOWNLOAD

FILE DETAILS:

Mustang ML360 All Wheel Steer Loader Parts Manual 918292 – PDF DOWNLOAD

Language : English
Pages : 112
Downloadable : Yes
File Type : PDF
Size: 10.7 MB

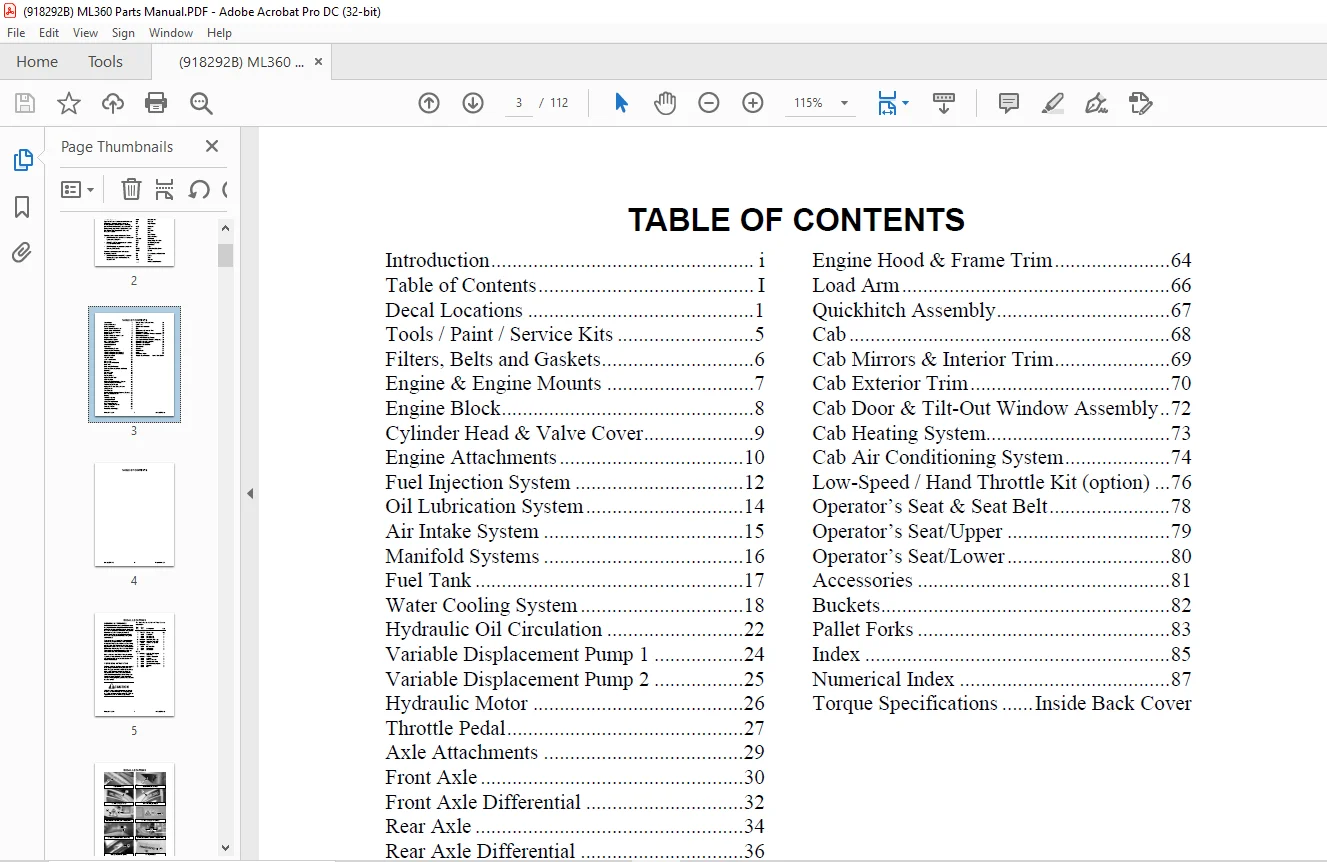

TABLE OF CONTENTS:

Mustang ML360 All Wheel Steer Loader Parts Manual 918292 – PDF DOWNLOAD

Introduction i
Table of Contents I

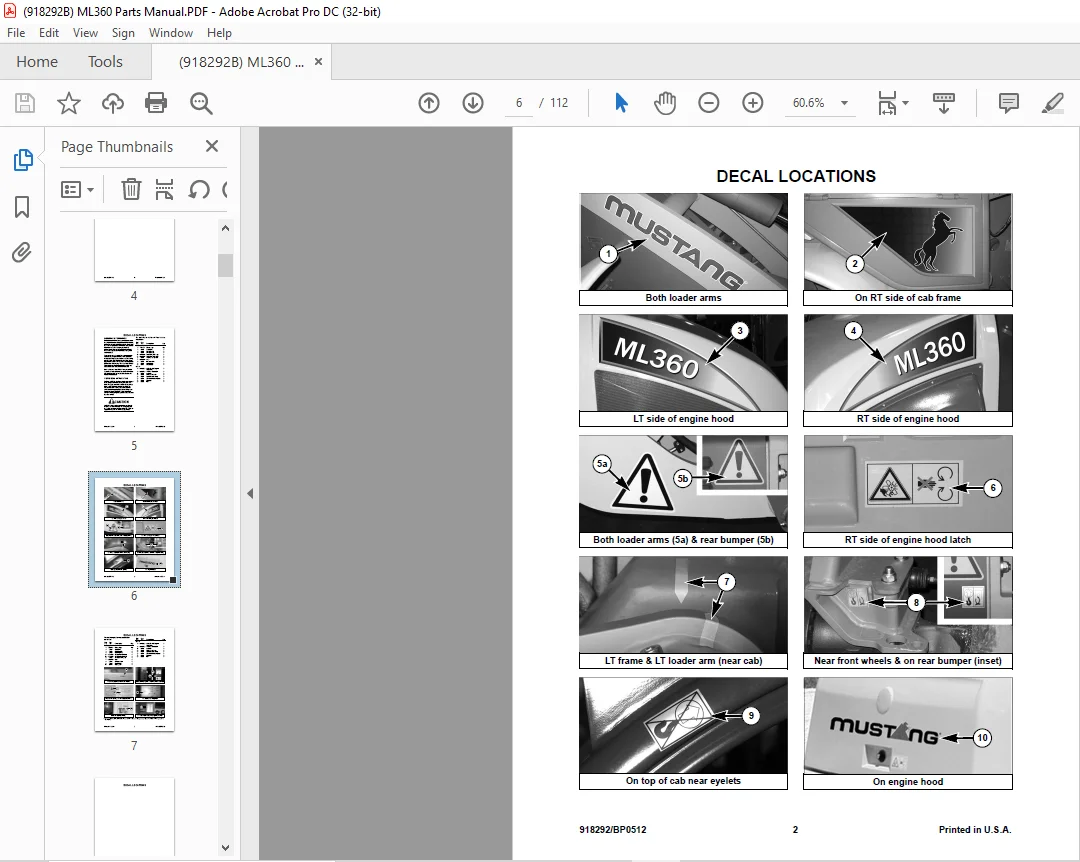

Decal Locations 1
Tools / Paint / Service Kits 5
Filters, Belts and Gaskets 6
Engine & Engine Mounts 7
Engine Block 8
Cylinder Head & Valve Cover 9
Engine Attachments 10
Fuel Injection System 12
Oil Lubrication System 14
Air Intake System 15
Manifold Systems 16
Fuel Tank 17
Water Cooling System 18
Hydraulic Oil Circulation 22
Variable Displacement Pump 1 24
Variable Displacement Pump 2 25
Hydraulic Motor 26
Throttle Pedal 27
Axle Attachments 29
Front Axle 30
Front Axle Differential 32
Rear Axle 34
Rear Axle Differential 36
Steering Cylinders (Front and Rear) 37
Gear Box 38
Service Brake 39
Brake Pedal 40
Parking Brake 41
Hydraulic Oil Tank 42
Steering Unit 44
Hydraulic Oil Circulating System 46
Lift Arm Hydraulic Circuit 47
3rd Hydraulic Circuit 48
Hydraulic System Control Valve 49
Lift Cylinder 50
Tilt Cylinder 51
Engine Oil Pre-heating System (Option) 52
Oil Preheating System 52
Battery 53
Vehicle Lighting 54
Instrument Panel 58
Main Wiring Harness 59
Cab Wiring Harness 60
Misc Wiring Harnesses 61
Tires & Wheels 62
Frame/Counterweight 63
Engine Hood & Frame Trim 64
Load Arm 66
Quickhitch Assembly 67
Cab 68
Cab Mirrors & Interior Trim 69
Cab Exterior Trim 70
Cab Door & Tilt-Out Window Assembly 72
Cab Heating System 73
Cab Air Conditioning System 74
Low-Speed / Hand Throttle Kit (option) 76
Operator’s Seat & Seat Belt 78
Operator’s Seat/Upper 79
Operator’s Seat/Lower 80
Accessories 81
Buckets 82
Pallet Forks 83
Index 85
Numerical Index 87
Torque Specifications Inside Back Cover

DESCRIPTION:

Mustang ML360 All Wheel Steer Loader Parts Manual 918292 – PDF DOWNLOAD

INTRODUCTION :

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.For your safety and continued proper operation, use only genuine Mustang service parts.

• The model and serial number for this unit are on a tag located on a panel on the front of the cab. ”Right” and ”left” are determined from a position sitting on the operator’s seat and facing forward.
• Mustang Manufacturing reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for special parts descriptions. Standard attaching hardware torque values are also provided near the back of this manual. Metric torque values shown in the illustrations are in Newton-meters and are converted to foot-pounds by multiplying by 0.738.
• Specific reference numbers, indicating a complete assembly, are circled in some illustrations. A small bag, pictured in some illustrations, indicates a seal kit (seals, o-rings, etc.). In the exploded view parts list, additional information may follow the Reference Number.

Serial number breaks are indicated as follows:
• (SN 999 and before) – indicates serial numbers
up to and including 999.
• (SN 1000 – 2000) – indicates serial numbers
between 1000 and 2000.
• (SN 999 and up) – indicates serial numbers
including 999 and after.
Serial number exceptions and inclusion are
indicated as follows:
• (SN 999 and before except 997) – indicates
serial numbers up to and including 999,
EXCEPT 997.
• (SN 1000 – 2000 except 1996 including 997) –
indicates serial numbers between 1000 and
2000, INCLUDING 997 EXCEPT 1996.
• (SN 2001 and up including 1996) – indicates
serial numbers including 2001 and after,
INCLUDING 1996.
