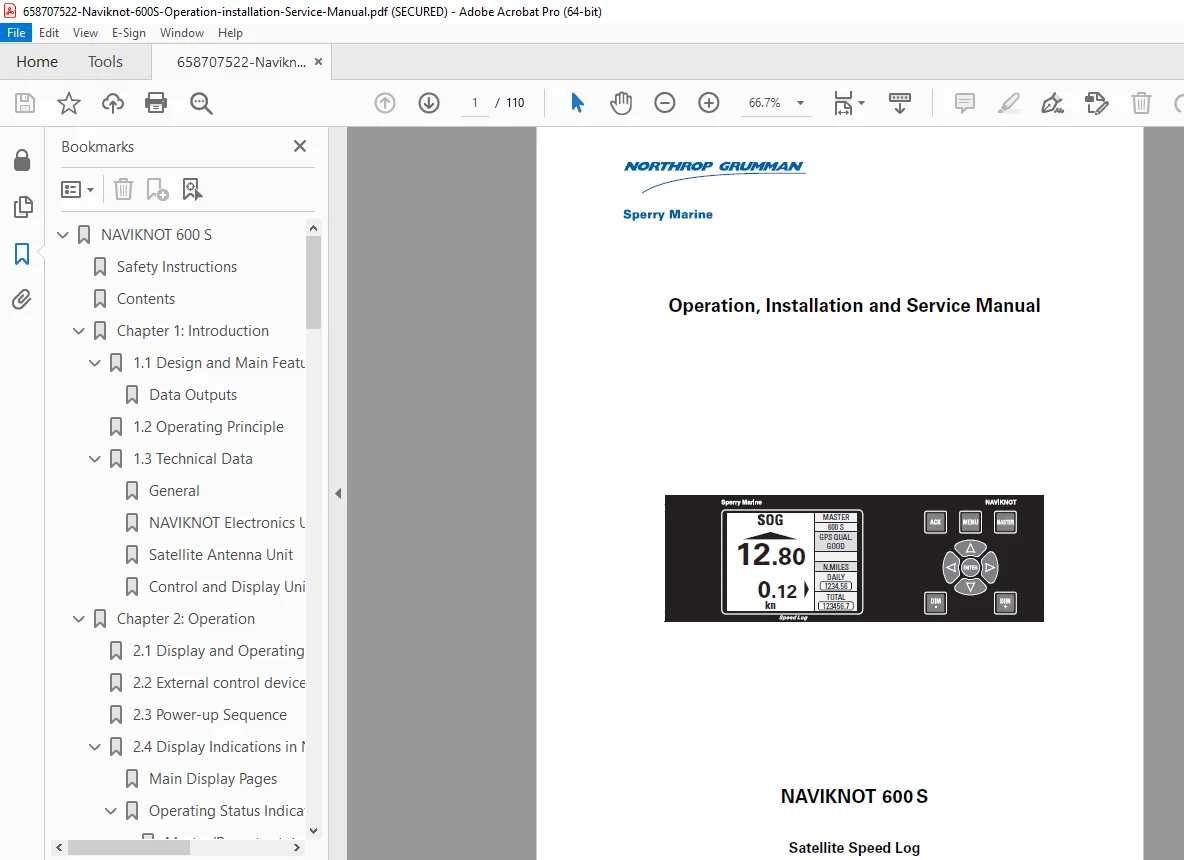

NAVIKNOT 600 S Satellite Speed Log Operation Installation Service Manual PDF
Original price was: $95.00.$23.95Current price is: $23.95.
Official NAVIKNOT 600 S Satellite Speed Log operation, installation & service manual. Covers operating keys/display pages, alarms & error codes, scheduled maintenance, mechanical/electrical installation, full system configuration (NMEA/RS-422/analog/pulse outputs), GPS setup & calibration, troubleshooting with PCB/LED diagnostics, and corrective maintenance (software exchange, output driver/relay replacement).
Description
NAVIKNOT 600 S Satellite Speed Log Operation Installation Service Manual PDF DOWNLOAD
Description
This is the factory Operation, Installation and Service Manual for the NAVIKNOT 600 S Satellite Speed Log from Northrop Grumman / Sperry Marine. It explains how the system determines longitudinal & transverse speeds over ground and distance travelled, and provides complete guidance for setup, commissioning, troubleshooting, and service.
✅ System overview (what it does)
Measures longitudinal and transverse ground speed and distance made good over ground
Uses a satellite sensing system (dual GPS receivers + rate gyros) to calculate vessel motion, including docking display bow/stern transverse speeds
Supports Master/Remote CDU operation (master controls menus/alarms; remotes display & can request master)
Important safety note: “Manual” mode outputs signals but speed/distance are not valid—crew must be informed. Also, unit is type approved for speed/distance only and must not replace mandatory navigation equipment.
🗂️ Table of Contents (neatly organized)
Chapter 1: Introduction
Design and main features + data outputs
Operating principle (how GPS + sensors resolve speed vectors)
Technical data (electronics unit type 5004, satellite antenna unit, CDU)
Chapter 2: Operation
Display, operating keys, main display pages (SOG, docking, satellite status, alarm page)
Power-up sequence & normal indications
Requesting master control, brightness/dimming
Operating menu, manual settings, user setup (damping times, miles counters, LCD color, units, software version)
Chapter 3: Alarm System
Alarm indications (audible/visual), acknowledging/muting, viewing alarms
Error codes/messages table (e.g., LOSS OF GPS, GPS TIMEOUT, EXT IF FAIL, etc.)
Chapter 4: Scheduled Maintenance
Practical shipboard checks (antenna alignment/condition, cables/connectors, cleaning guidance)
Chapter 5: Installation
Mechanical installation (antenna alignment, electronics unit mounting orientation, CDU mounting options)
Electrical installation + CDU configuration (includes access code 600)
Chapter 6: System Configuration
Service setup parameters: analog output, pulse output, RS-422 outputs 1–6, NMEA inputs, system type, relay speed limit, antenna distances, network setup
GPS setup: heading selection, align & calibrate
Chapter 7: Troubleshooting
Electronics unit & CDU(s) diagnostics (PCB parts location, connectors/terminal boards, diagnostic LEDs)
Chapter 8: Corrective Maintenance
Exchanging system software (via flashboard/service interface)
Replacing RS-422 output driver ICs and pulse output relays
Appendix
Setup & configuration tables

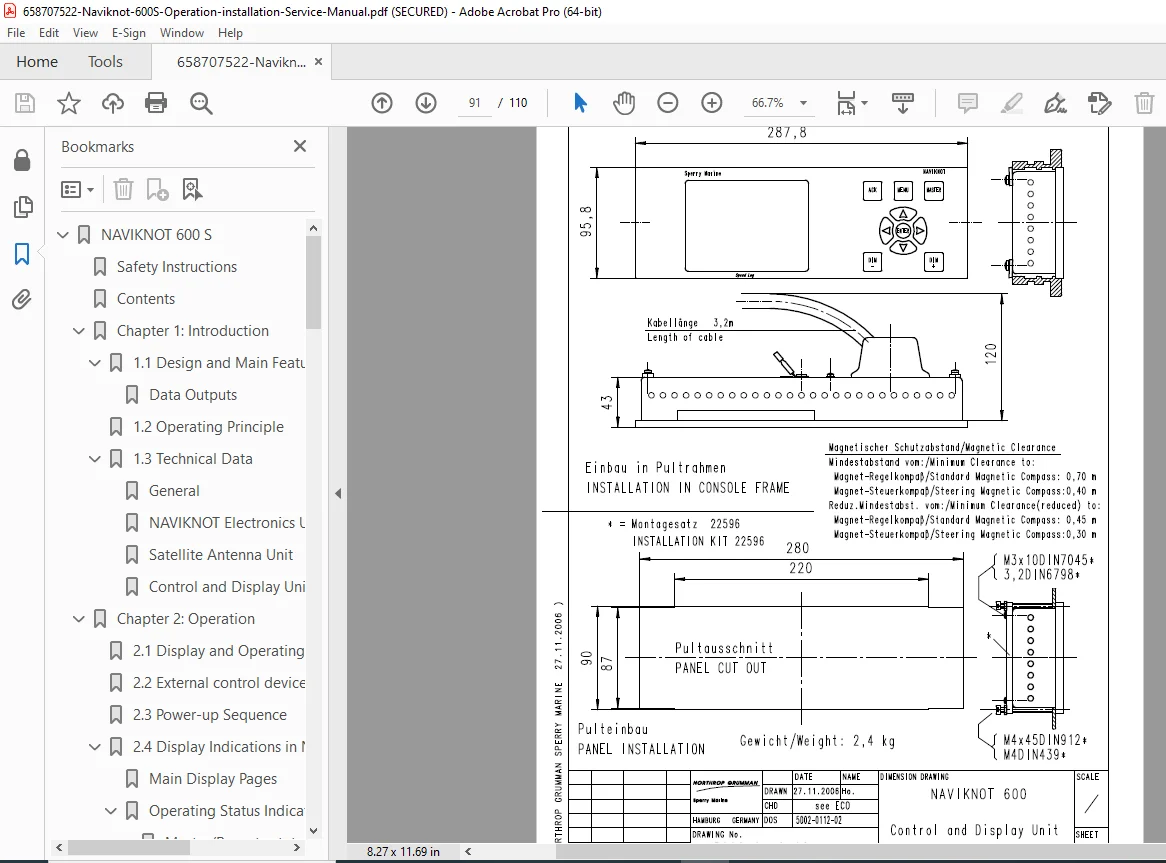

Drawings
⚙️ Interfaces & outputs (useful for installers)
NMEA 0183 / IEC 61162 serial outputs on six RS-422 outputs (two groups configurable independently)
Analog speed outputs: voltage and current mapping configurable
Pulse outputs for distance (configurable pulses per nautical mile)
📋 File Details
| Item | Details |
|---|---|
| Manual name | NAVIKNOT 600 S – Operation, Installation and Service Manual |
| Models covered | NAVIKNOT 600 S Satellite Speed Log |
| Year | 2008 (Rev. C – 18 Apr 2008) |
| PDF quality | Original manual PDF with diagrams, tables, and drawings |
| No. of pages | 110 pages |
| Document ID | 056348/C |
Get your NAVIKNOT 600 S configured and working correctly with the official manual—complete installation, output setup, alarms/error codes, and service diagnostics in one file. Download instantly and finish setup or troubleshooting faster and with confidence.
