NEC LT25/LT30/LT35 Series DLP Projector Service Manual (3N9911120) PDF
Original price was: $85.00.$15.95Current price is: $15.95.
Official NEC service manual for LT25/LT30/LT35 series 1-chip DLP projectors – 685-page factory guide with disassembly methods, adjustments, troubleshooting, schematics, block diagrams, assembly views & replacement parts list.
Description
NEC LT25/LT30/LT35 Series DLP Projector Service Manual (3N9911120) PDF DOWNLOAD
Description:

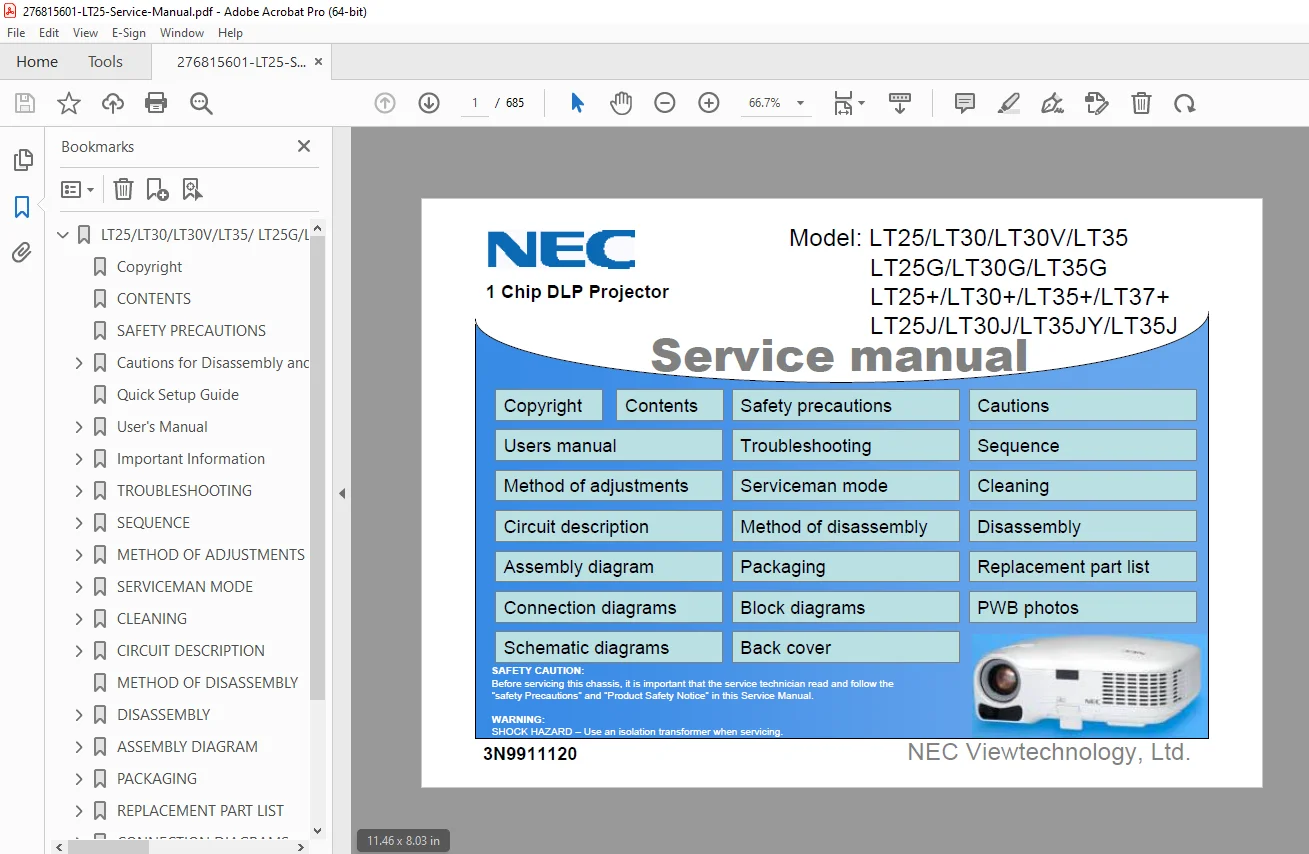

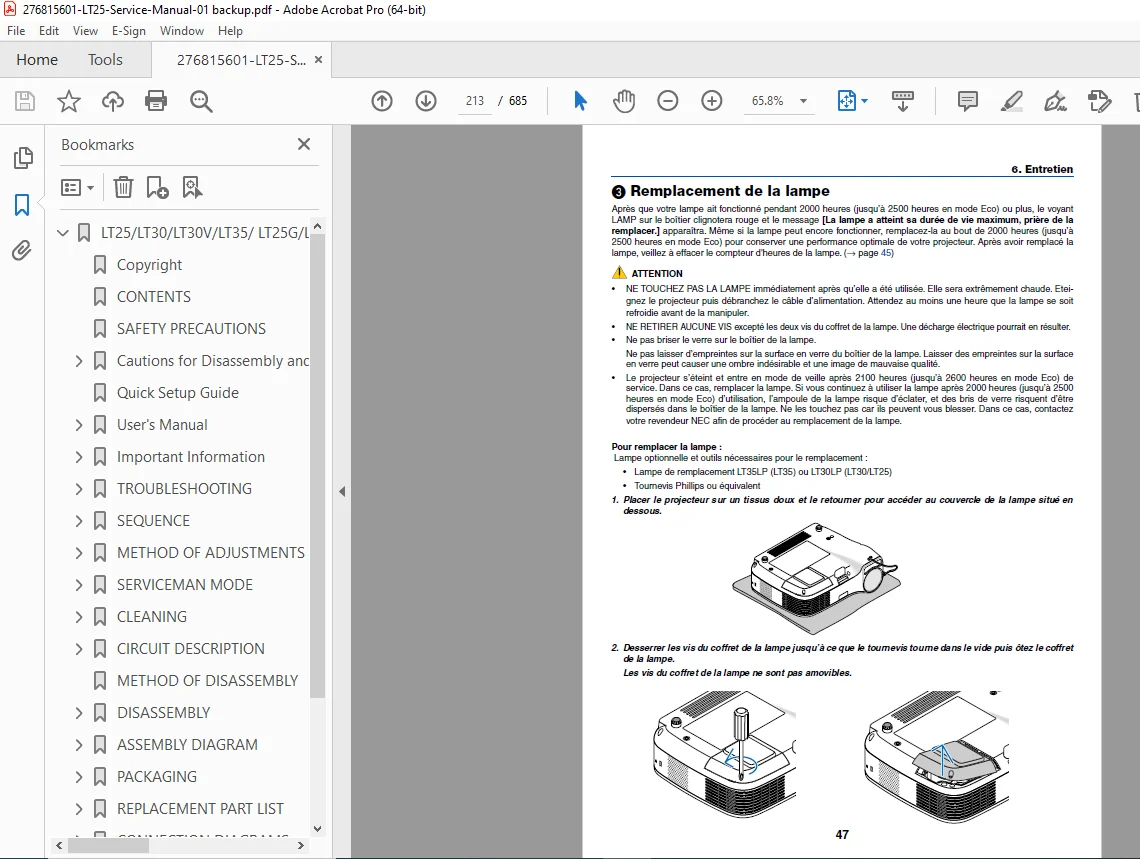

Instant download – Authentic NEC Viewtechnology, Ltd. Service Manual for the LT25/LT30/LT30V/LT35, LT25G/LT30G/LT35G, LT25+/LT30+/LT35+/LT37+, LT25J/LT30J/LT35J/YLT35J series 1-chip DLP projectors (Part No. 3N9911120). This is the complete 685-page factory repair manual used by NEC technicians – covering safety precautions, quick setup, user’s manual info, important troubleshooting sequences, method of adjustments, serviceman mode, cleaning procedures, circuit descriptions, detailed method of disassembly, full disassembly instructions, assembly diagrams, packaging, replacement part lists, connection diagrams, block diagrams, schematic diagrams, and PWB photos.
Ideal for service centers, technicians, and owners searching for the genuine nec lt25 lt30 lt35 service manual pdf, nec lt series dlp projector repair manual, or lt25 lt30 lt35 disassembly adjustment guide – this comprehensive document provides everything needed for professional maintenance, repairs, and diagnostics on these portable DLP projectors.
Detailed Table of Contents (categorized from bookmarks, formatted with bullets):
- Copyright
- Contents
- Safety Precautions
- Cautions for Disassembly and Assembly
- Quick Setup Guide
- User’s Manual
- Important Information
- Troubleshooting
- Sequence
- Method of Adjustments
- Serviceman Mode
- Cleaning
- Circuit Description
- Method of Disassembly
- Disassembly
- Assembly Diagram
- Packaging
- Replacement Part List
- Connection Diagrams
- Block Diagrams
- Schematic Diagrams
- PWB Photos
- Back Cover
File Details:
- Manual Name: NEC LT25/LT30/LT35 Series 1 Chip DLP Projector Service Manual
- Models Covered: LT25/LT30/LT30V/LT35, LT25G/LT30G/LT35G, LT25+/LT30+/LT35+/LT37+, LT25J/LT30J/LT35J/YLT35J
- Year: Not specified (circa mid-2000s based on models)
- Manual PDF Quality: Original factory manual, high-quality scans, clear text/diagrams/schematics
- NO of Pages: 685
