Nellcor PM10N Portable SpO2 Service Manual PDF DOWNLOAD
Original price was: $95.00.$30.95Current price is: $30.95.
Official Nellcor™ PM10N Portable SpO2 Patient Monitoring System Service Manual PDF. Covers service menu settings, firmware upgrades, USB data download, system performance testing, error codes, troubleshooting, battery replacement, board replacement, and full repair procedures. For qualified biomedical technicians. Instant download.
Description
Nellcor PM10N Portable SpO2 Service Manual PDF DOWNLOAD
Nellcor™ Portable SpO2 Patient Monitoring System
Service Manual – PDF Download
This is the official Covidien Nellcor™ Portable SpO2 Service Manual for the PM10N monitoring system
Designed for biomedical engineers and trained service personnel, this manual provides complete technical documentation for servicing, testing, firmware upgrades, troubleshooting, and component-level repair.
✅ Model Covered
Nellcor™ PM10N Portable SpO2 Patient Monitoring System
📂 File Details
| Item | Details |
|---|---|
| Manual Title | Service Manual – Nellcor Portable SpO2 |
| Model | PM10N |
| Manufacturer | Covidien |
| Publication Years | ©2014–2016 Covidien |
| Language | English |
| PDF Quality | OEM factory service manual |
| Pages | 130 Pages |
Table of Contents
🔹 1. Introduction & Safety
Safety symbols & hazard warnings
Explosion, shock & toxicity precautions
Service procedures
Patient monitoring safety
EMI precautions
IEC 60601 compliance references
Technical services contact details
🔹 2. Service Menu Options
Service Menu access (password protected)
Power-on settings
Alarm configuration
Alarm audio pause duration
Power saving settings
Battery type selection (Lithium / Alkaline)
Date & time configuration
Communication settings (ASCII/SPDout, 19200/115200 baud)
Alarm priority settings
Language selection
Dynamic password settings
Enable PCSync mode
About monitor (firmware & module versions)
🔹 3. Data Management
Monitoring history access
Monitoring history download via mini-USB
HyperTerminal configuration
USB to UART Bridge driver installation
Monitoring status codes (LM, LP, CB, LB, SO, SD, AO, AS, MO, PS)
Firmware upgrade via PCSync utility
Resource file updates (.res)
Firmware update process (.bin files)
POST firmware verification
🔹 4. Modification & Testing
Required test equipment (SRC-MAX oximetry tester, DS-100A sensor)
Power-On Self-Test (POST) verification
Battery status testing
Patient mode verification:
Adult
Neonatal
Homecare
Sleep Study
Dynamic password configuration
LED excitation test
Operational & functional tests
Alarm audio pause verification
Sensor disconnect alarm testing
Brightness & power saving verification
Verification check sheets
🔹 5. Troubleshooting
Error conditions by category
System error codes
Return packaging instructions
🔹 6. Repair Procedures
Spare parts list
Required tools
Battery replacement
Coin cell battery replacement
Front and rear assembly replacement
NELL1SR board replacement
Main board replacement
LCD replacement
PI cable replacement

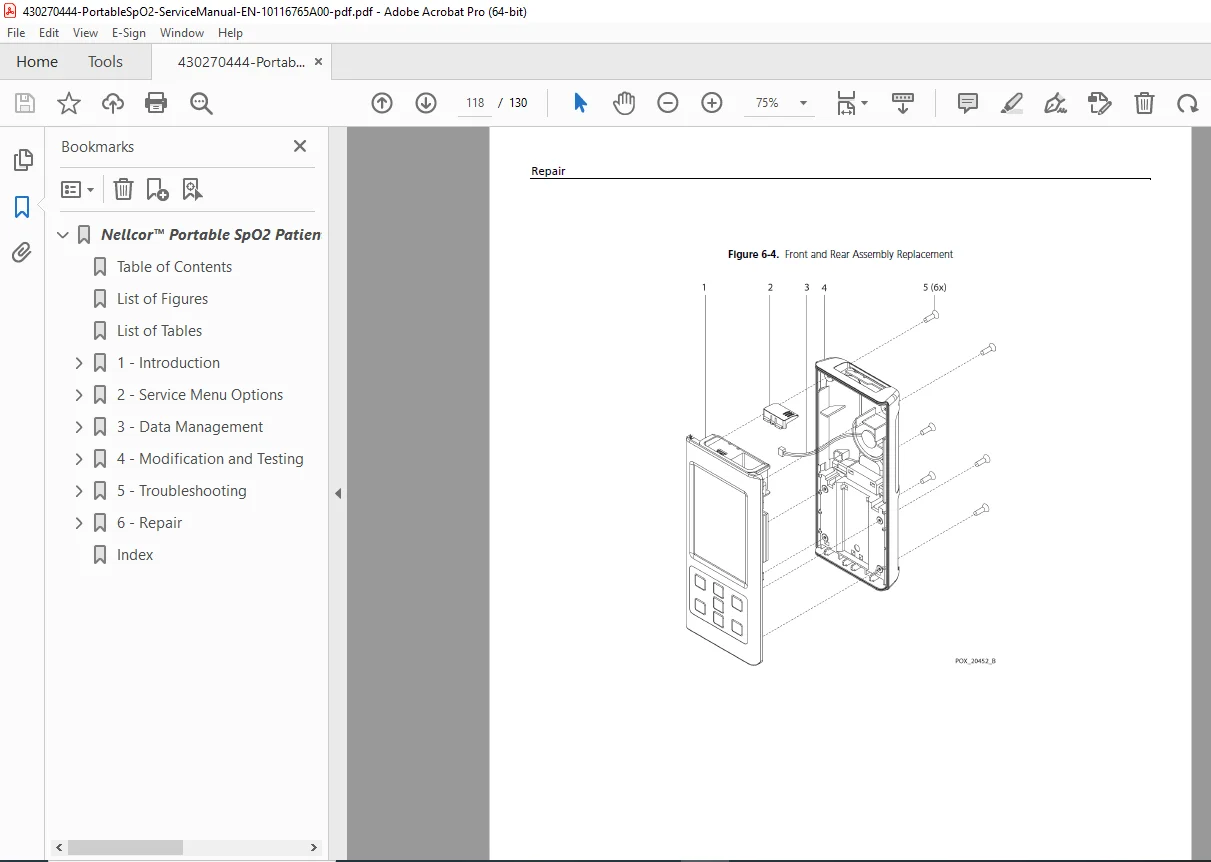

Complete exploded views
🔧 What Makes This Manual Essential?
✔ Complete service-level documentation
✔ Firmware upgrade procedures
✔ USB data extraction instructions
✔ Alarm & patient mode testing
✔ Full disassembly & board replacement steps
✔ Error codes and diagnostics
This is not just an operator manual — it is the full technical repair and verification guide used by biomedical service departments.
🚀 Why Buy This Manual?
Ensure accurate patient monitoring and safe operation with the official Nellcor PM10N service manual. Get complete testing, repair, and firmware procedures used by certified technicians.
Instant PDF download — start servicing immediately.
