Nemoto Sonic Shot 50 Service Manual PDF
Original price was: $95.00.$16.95Current price is: $16.95.
Download the Nemoto Sonic Shot 50 service manual download for in-depth Dual Shot Type-C injector troubleshooting guide, including Nemoto contrast injector calibration methods and Sonic Shot 50 installation and setup instructions. This 2003 revision covers specifications, basic operations, medical injector error codes Nemoto from ERR1 to ERR90, inspection items, and appendix with electric diagrams. Essential for technicians handling repairs, adjustments, and parts replacement in Nemoto medical injectors.
Description
Nemoto Sonic Shot 50 Service Manual PDF DOWNLOAD
Description
This Nemoto Sonic Shot 50 service manual download is a critical resource for service engineers and technicians maintaining the Sonic Shot 50 and Dual Shot Type-C contrast media injectors from Nemoto Kyorindo Co., Ltd. Revised in October 2003 (document no. 200902), it applies to serial numbers AM00294 and above, providing detailed guidance on functions, installation, troubleshooting, operations, calibration, inspection, and parts. Key features include a comprehensive Dual Shot Type-C injector troubleshooting guide for diagnosing issues without errors (e.g., console power failures, jog operation problems) and with medical injector error codes Nemoto like ERR1 (over-pressure) to ERR90 (R90 issues), along with recovery measures and adjustments.
The manual emphasizes Nemoto contrast injector calibration methods for components like pressure sensors, volume detection, and boards, using specialized jigs for precise setup after repairs. It also includes Sonic Shot 50 installation and setup instructions, covering system unpacking, stand assembly, unit connections, console initialization, battery charger installation, and operation checks to ensure safe use in medical imaging environments.
For ongoing maintenance, it details inspection protocols for syringe attachment, head mechanisms, console panels, and performance tests like flow rate accuracy and pressure limits. The appendix provides electric circuit diagrams for the overall system, head, console, and main unit. The integrated parts manual lists replacement parts for efficient repairs.
No bookmarks are present, but the manual construction and chapter overviews serve as a navigation guide, categorized below with bullet points for clarity:
Manual Construction
- Service Manual
- Overview of Functions: Operation specs are described.
- Setup: Connections among units are described.
- Troubleshooting: Recovery measure to malfunctions is described including adjustment method.
- Basic Operations: Basic operations of units.
- Calibration: Calibration methods of units are described.
- Inspection: Inspection items are described.
- Parts Manual: The list of replacement parts is described.
Table of Contents (Extracted and categorized with subsections where detailed):
- Chapter 1: Overview of Functions (Pages 1-1 to 1-4)
- Specifications
- Dimensions
- Weight
- Power Requirements
- Volume Programming Range
- Flow Rate Programming Range
- Pressure Limiter Programming Range
- Scan Time
- Safety Device (Error Message)
- Drive
- Fuse
- Presser Speed by Movement Buttons
- Cautions
- Movement Buttons
- Continuous Use
- Chapter 2: Installation (Pages 2-1 to 2-14)
- Installation of System
- Unpacking
- Assembling of the Stand
- Installation Location
- Connection of Main Unit
- Console Connection
- Initial Setup of Console
- Installment of Battery Charger
- Installment of AC Adapter
- Operation Check
- Manual Operation Check
- Programming
- Injection
- Installation of System
- Chapter 3: Trouble Shooting (Pages 3-1 to 3-8)
- Diagnosis
- a. Trouble without an Error
- a.1. The console cannot be turned on.
- a.2. Switches do not work. Something is wrong with them.
- a.3. Something is wrong with jog operation
- a.4. The remaining volume is not correctly displayed.
- a.5. The remaining volume displayed becomes improbable.
- a.6. The battery indicator displays incorrectly.
- a.7. The pressure on the display is improbable.
- a.8. The timer of the handswitch becomes “0”.
- b. Trouble with Errors
- b.1. ERR1
- b.4. ERR4
- b.9. ERR17
- … (up to ERR90 and R90)
- Chapter 4: Basic Operations (Pages 4-1 to 4-23)
- Power Supply
- List of Flow Rate Programmable Range
- List of Injection Volume Programmable Range
- List of Programmable Range
- Alarm message screen (error numbers refer to Chapter 3)
- Chapter 5: Calibration (Pages 5-1 to 5-44)
- Jog Dial Calibration
- Adjustment Jig
- Procedure for calibration after repairing (e.g., pressure sensors, volume detection)

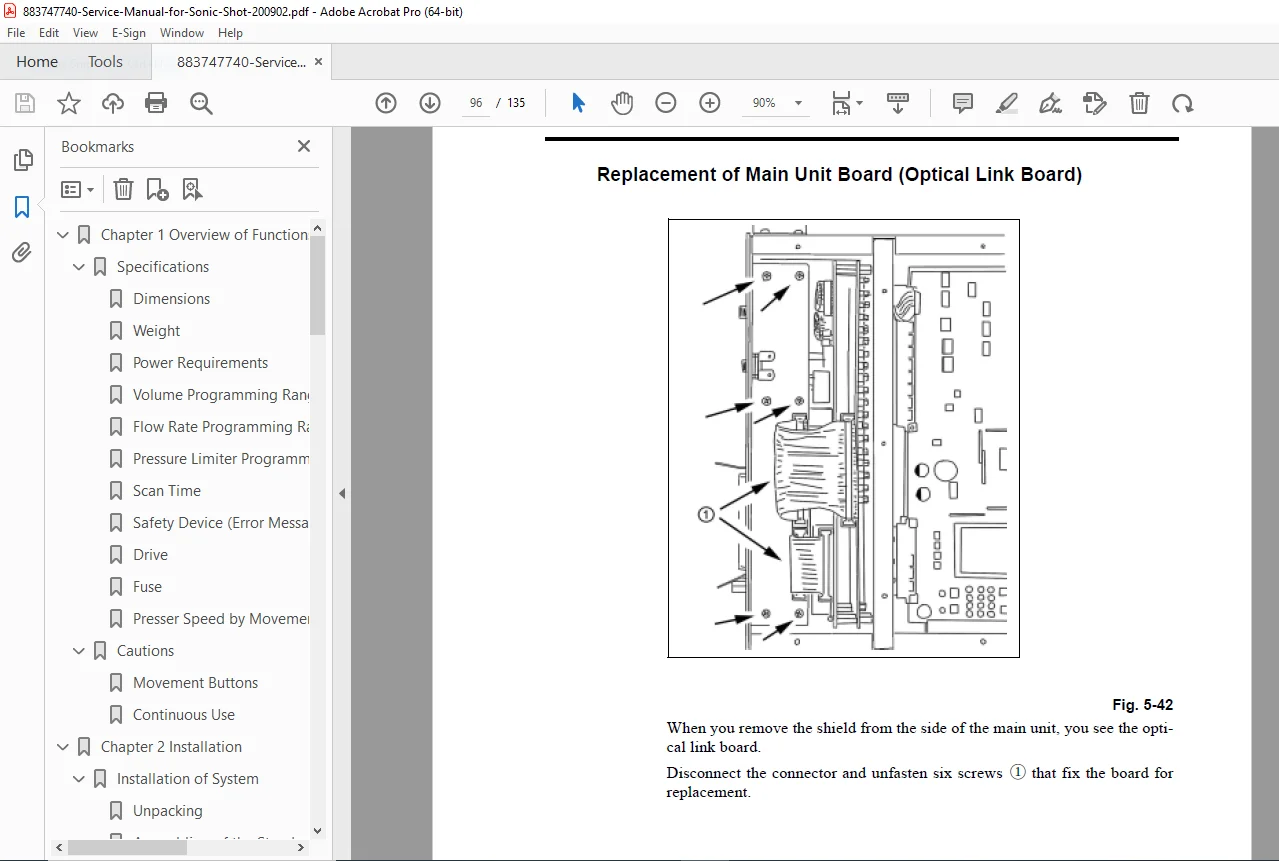

- Replacement of Board of Joint Box
- … (detailed steps for A/B Head adjustments, syringe settings)
- Chapter 6: Inspection (Pages 6-1 to 6-6)
- Inspection items
- Syringe attachment section
- … (up to 12. Battery (AC adapter))
- Performance tests (e.g., flow rate, pressure limit)
- Inspection items
- Chapter 7: Appendix (Page 7-1)
- Electric Circuit Diagram
- Overall schematic
- Head
- Console
- Main unit
- Electric Circuit Diagram

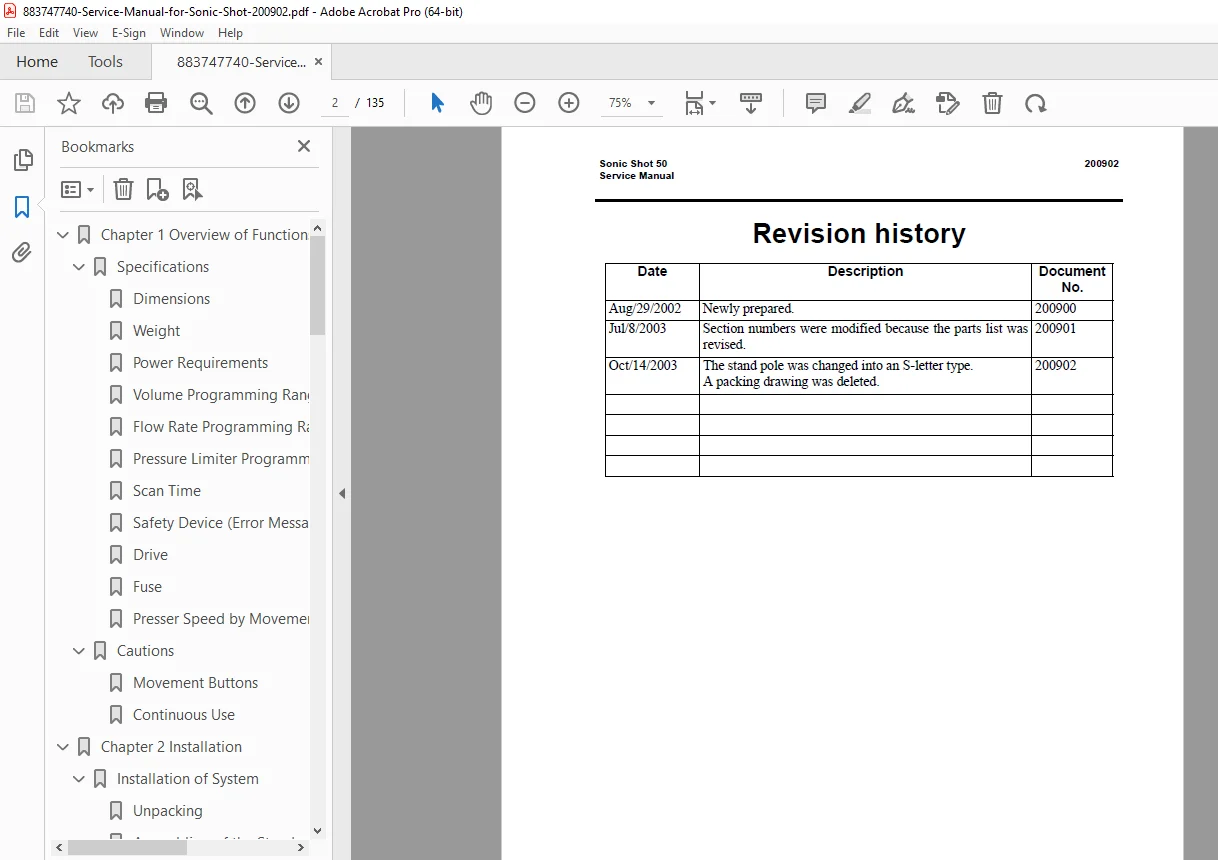

Revision History (Formatted as a table):
| Date | Description | Document No. |
|---|---|---|
| Aug/29/2002 | Newly prepared. | 200900 |
| Jul/8/2003 | Section numbers were modified because the parts list was revised. | 200901 |
| Oct/14/2003 | The stand pole was changed into an S-letter type. A packing drawing was deleted. | 200902 |
This guide is vital for Nemoto contrast injector calibration methods, Dual Shot Type-C injector troubleshooting guide, and ensuring compliance with safety standards in medical injector error codes Nemoto scenarios. Originally written in Japanese, with English translations.
File Details
- Manual name: Service Manual for Sonic Shot 50
- Models covered: Sonic Shot 50, Dual Shot Type-C
- Year: 2003
- Manual PDF quality: High (clear text, diagrams, and schematics)
- No of pages: 135
