New Holland 1400 1500 Combines Service Repair Manual (40481300) New Holland 1400 1500 – PDF Download

Description

New Holland 1400 1500 Combines Service Repair Manual (40481300) New Holland 1400 1500

FILE DETAILS:

New Holland 1400 1500 Combines Service Repair Manual (40481300) New Holland 1400 1500

• New Holland 1400, 1500 Combine Service Manual_40481300
• Size: 48.9 MB
• Format: PDF
• Language: English
• Number of Pages: 190 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: 1400, 1500 Combine
• Part No: 40481300

NEW HOLLAND 1400 1500 COMBINES SERVICE REPAIR MANUAL (40481300) NEW HOLLAND 1400 1500 – PDF DOWNLOAD:

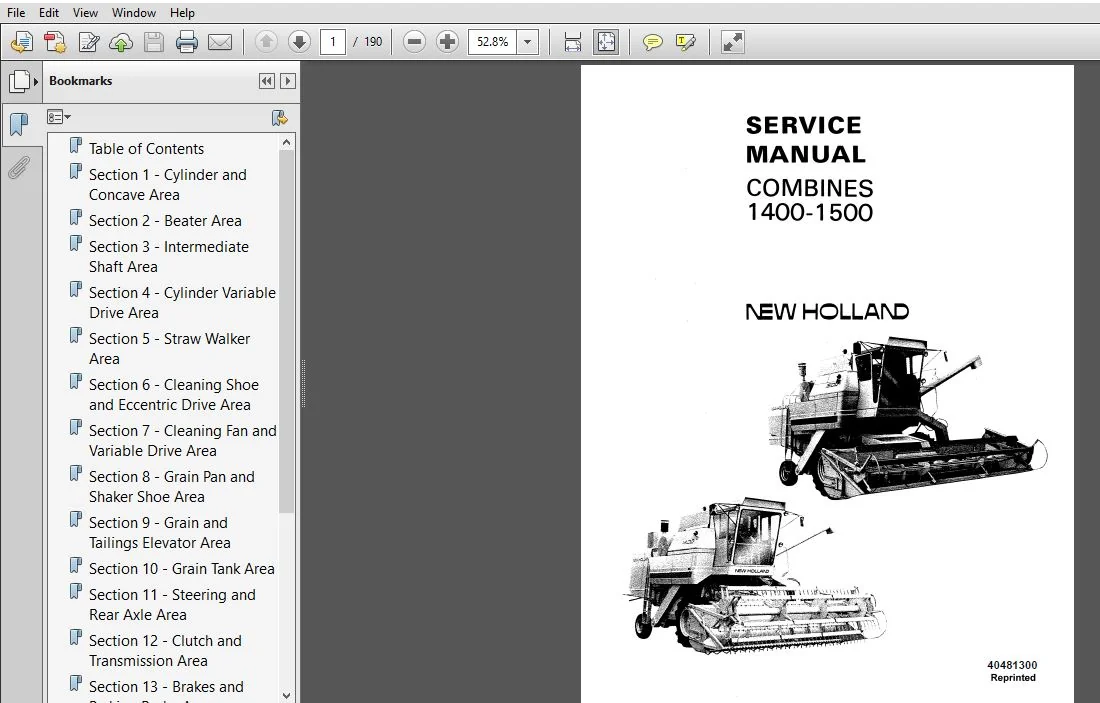

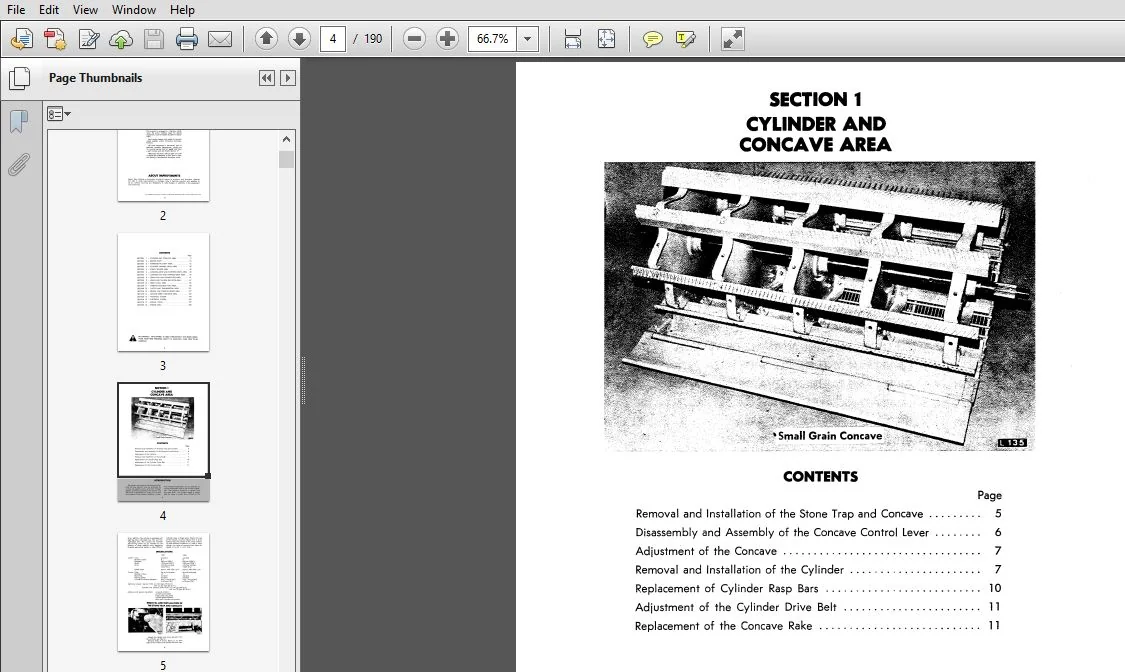

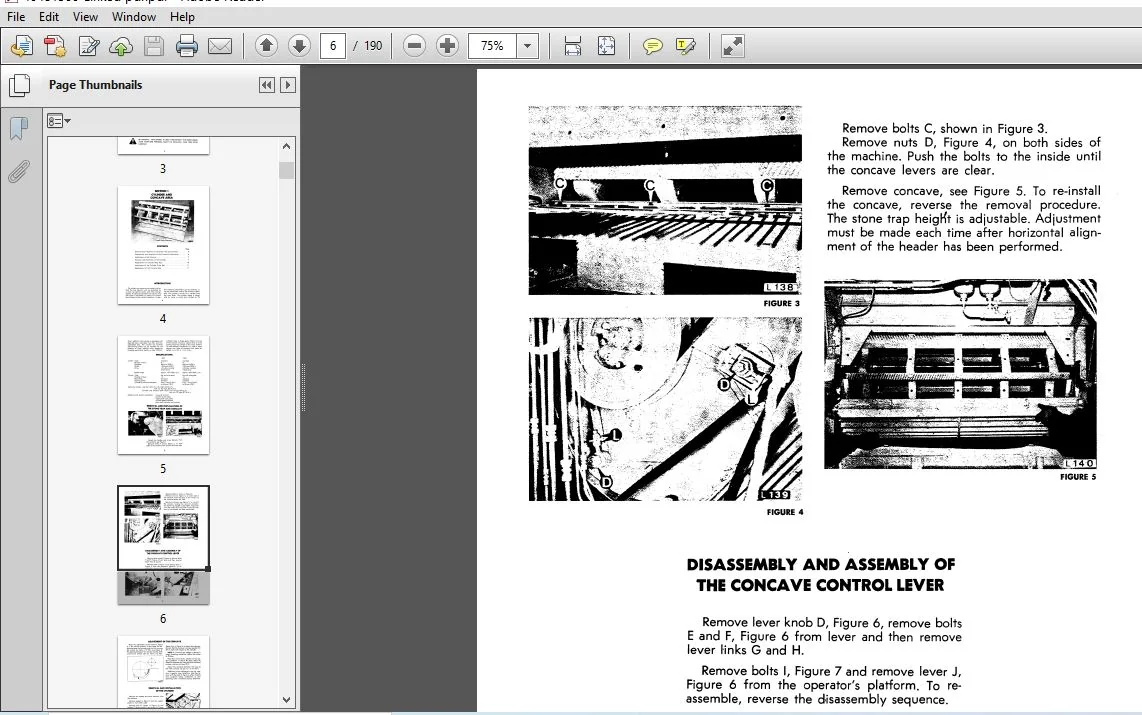

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland 1400 1500 Combines Service Repair Manual (40481300) New Holland 1400 1500

• Knowing that time is of the Utm05t impor- tance during the harvest season, we haVe prepared this manual so you can obtain quick, CIO- tailcd information on servicing the Models 1400 and 1500 Combines. This book is the prime source of information for overhauling und repairing machines in all the maior areas.
• ARRANGEMEN’I’ OF MANUAI. This manual is arranged in 18 Sections which cover the entire machine except for special equipment, such as headers and optional equip- ment.
• Each section begins with a table of contents where needed, a short introduction and speci- ticatlons. All tools mentioned in the manual, such as spanners, punchos, hammers, etc., usually are in & normal service tool kit. Special tools have a part number and are listed In Section 17.
• Whenever the terms “left and right” are used it should be understood to mean from a posi- tion facing in the direction of comblne travel. Sperry New Holland is continually strlving to improve its products, and, therefore, reserves the right to make improvements or changes, when it becomes practical and possible to do so, without incurring any’ obligations to make changes, or additions to the equipment sold previously.
• A drum—type beater provided with four ad- iustable shipper plates is located iust behind the cylinder. The purpose of the beater behind the cylinder is to take the straw from the cylin- der and guide it over the concave rake On the straw walkers.
• The stripper plates throw the straw onto the straw walkers, and prevent the straw from wrapping around the cyllnder. An- other four additional stripper plath can be in— stalled on the beater or, the beater can be pro- vided with four spike bars which are very efficient for crops with long and humid straw.
• The inspoction hole in the graln tank gives easy access to the bester. SPECIFICATIONS Type: drum-type provided with four adiust- able stripper plates. Drive: with a V-belt from the main shaft via a variable drive which also drives the cylinder. Speed range: 425 to 1100 r.p.m. Additional and special equipment: 4 spike tooth bars and 4 Stripper plates.

TABLE OF CONTENTS:

New Holland 1400 1500 Combines Service Repair Manual (40481300) New Holland 1400 1500

SECTION 1 — CYLINDER AND CONCAVE AREA 4
SECTION 2 — BEATER SHAFT 12
SECTION 3 — INTERMEDIATE SHAFT AREA 16
SECTION 4 —- CYLINDER VARIABLE DRIVE AREA . .. . 35
SECTION 5 —- STRAW WALKER AREA 40
SECTION 6 — CLEANING SHOE AND ECCENTRIC DRIVE AREA . 48
SECTION 7 — CLEANING FAN AND VARIABLE DRIVE AREA .. . 50
SECTION 8 — GRAIN PAN AND SHAKER SHOE AREA . . . 61
SECTION 9 -— GRAIN AND TAILINGS ELEVATOR AREA 67
SECTION 10 — GRAIN TANK AREA 80
SECTION 11 — STEERING AND REAR AXLE AREA 92
SECTION 12 — CLUTCH AND TRANSMISSION AREA 101
SECTION 13 — BRAKES AND PARKING BRAKE AREA 127
SECTION 14 — GROUND SPEED VARl-DRIVE AREA 135
SECTION 15 — HYDRAULIC SYSTEM 143
SECTION 16 — ELECTRICAL SYSTEM 169
SECTION 17 — SPECIAL TOOLS 179
SECTION 18 — ENGINE AREA 183

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
