New Holland 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I Engines Service Manual (70699853) – PDF Download

Description

New Holland 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I Engines Service Manual (70699853)

FILE DETAILS:

New Holland 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I Engines Service Manual (70699853)

• Format: PDF
• Language: English
• Type of machine: Engines
• Type of document: Service Manuals
• Model: 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I
• Full Set Form No.: 70699853

NEW HOLLAND 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I ENGINES SERVICE MANUAL (70699853) – PDF DOWNLOAD:

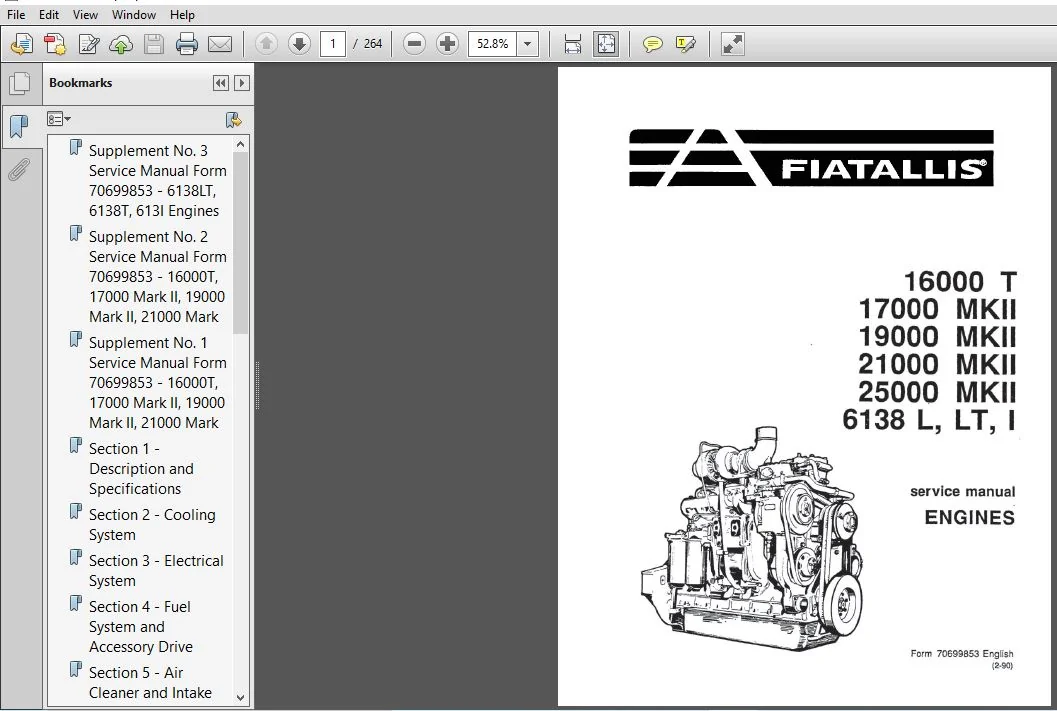

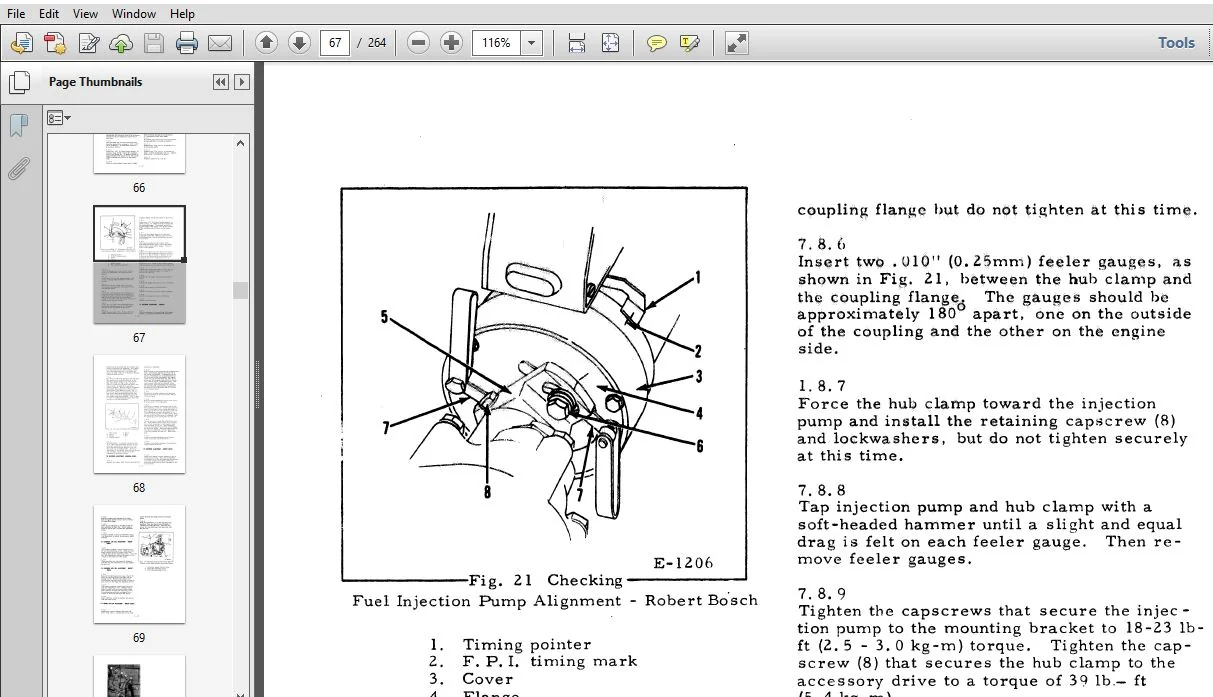

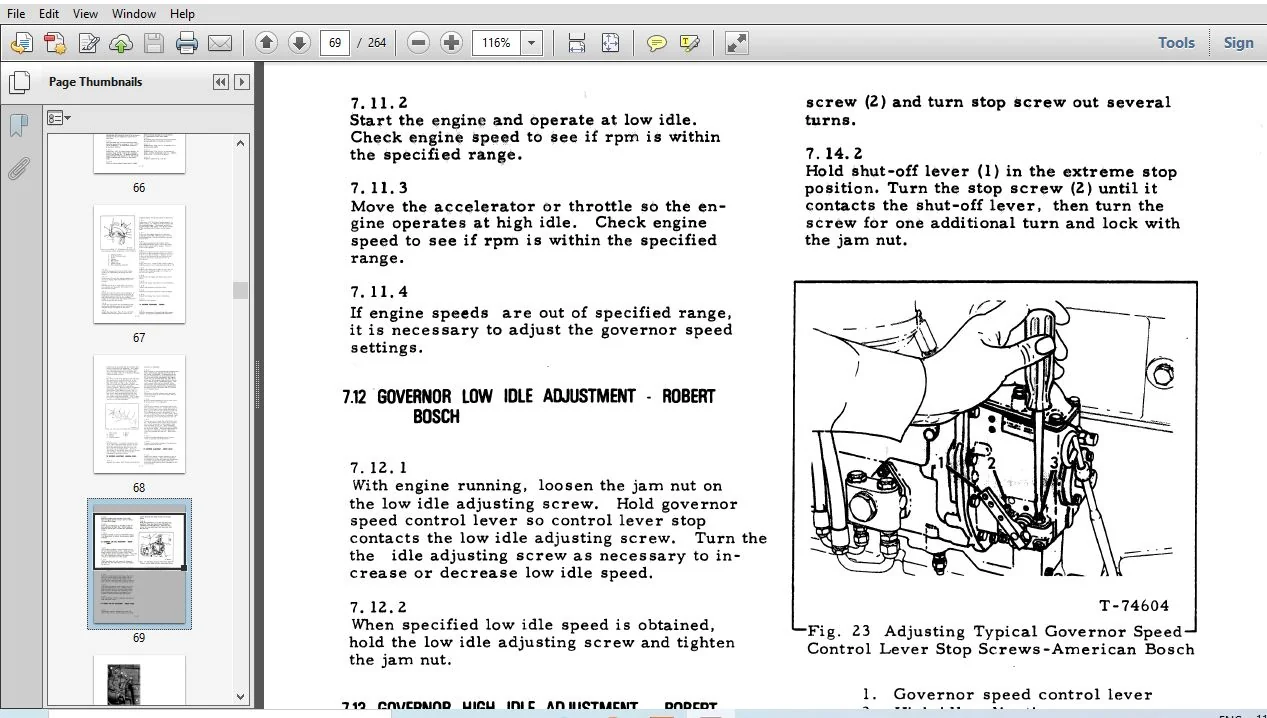

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I Engines Service Manual (70699853)

• GENERAL Study the Operation and Maintenance Instruction Manual before starting. operating, maintaining. fueling. or servic- ing machine. Read and need all machine-munted safety signs beiore starting. Operating. msintaimng, fueling or servicing machine. Machine-mounted safety signs have been color coded vei- low with black border: and lettering {or warning and red wrth white harder; and lettering for danger points.
• No unauthorized personnel should be allowed to some or maintain this machine. Do not perform any work on equip- ment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance instruction Manual heiora starting. operating. maintain- ing. iueiinp or servicing this machine. Always iii-oar safety glasses with side shields.
• Do not wear rings. wrist watches. jewelry. or loose or hang- ing apparel. such as ties. torn clothing. scarves. un- buttoned. or uni-oped jecltets ihal can catch on movrng pane Dn wear mania safety mitipmenr as: authorized tor the too.
• Examples: hard hats. solely shoes. heavy glovcz. ear protectors. solely glasses or goggles. reflector vest-‘1. or respirators. Consult your employnrlor specific safety equip- ment requirements.
• Do not use controls or hoses as handhoIds when climbing on or oil machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inedver~ tertiiy moved causing accidental machine or equipment movement 00 not lump on or all machine.
• Keep two hand: and one loot. or two last and one hand. in contact with step: and green-tits and handles at all times Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment. stepping points, grab-rails and handles clean oi loreign objccm, oil. grease. mud or snow accumulation to minimize the danger of slipping or stumbling.
• Never attempt to operate the machine or its tools from any other position than seated in the operator‘s seat. Keep operator‘s compartment clear oi loose objects.
• If movement of an attachment by means oi the machine’s hydraulic system is required for service or maintenance. do not raise or lower attachmenisirom anyposition other than when seated in the operator’s seaL Belore starting ma- chine or moving attachment or tool, make sure to col brakes. sound horn and call for an all clear. Raise attach- ment slowly.
• Always bloc! vnth external support any linkage or part on machine that requires work under the ratsad linkage. parts. or machine pm OSHA requirements. Neveraliownnyonoto walk under or be near unblocked raised equipment. Avoid nothing or walking tinder raised blocked murpment unions you are ensured oi your salary.

TABLE OF CONTENTS:

New Holland 16000T,17000MKII,19000MKII,21000MKII,25000MKII,6138L,LT,I Engines Service Manual (70699853)

Supplement No. 3 Service Manual Form 70699853 – 6138LT, 6138T, 613I Engines …………………………………………….. 3
Supplement No. 2 Service Manual Form 70699853 – 16000T, 17000 Mark II, 19000 Mark II, 21000 Mark II, 25000 Mark II ………….. 6
Supplement No. 1 Service Manual Form 70699853 – 16000T, 17000 Mark II, 19000 Mark II, 21000 Mark II, 25000 Mark II …………. 7
Section 1 – Description and Specifications ………………………………………………………………………….. 14
Section 2 – Cooling System ………………………………………………………………………………………… 18
Section 3 – Electrical System ……………………………………………………………………………………… 46
Section 4 – Fuel System and Accessory Drive …………………………………………………………………………. 48
Section 5 – Air Cleaner and Intake Manifold …………………………………………………………………………. 82
Section 6 – Exhaust Manifold and Turbocharger ……………………………………………………………………….. 88
Section 7 – Valves, Valve Operating Mechanism and Cylinder Heads ………………………………………………………. 90
Section 8 – Front End and Gear Train ………………………………………………………………………………..112
Section 9 – Flywheel and Ring Gear; Flywheel Housing and Crankshaft Rear Oil Seal ………………………………………..120
Section 10 – Lubricating System …………………………………………………………………………………….134
Section 11 – Camshaft and Camshaft Bearings ………………………………………………………………………….160
Section 12 – Pistons, Piston Rings, Connecting Rods and Connecting Rod Bearings ………………………………………….166
Section 13- Crankshaft and Crankshaft Gear, Main Bearings and Main Bearing Caps ………………………………………….180
Section 14 – Cylinder Block and Cylinder Sleeves ……………………………………………………………………..196
Section 15 – Engine Removal and Installation …………………………………………………………………………206
Section 16 – Engine Disassembly and Assembly …………………………………………………………………………210
Section 17 – Fits and Tolerances; Standard Torque Wrench Specifications and Stud Heights; Specific Application Torque Values ….214
Section 18 – Troubleshooting ……………………………………………………………………………………….250
Section 19 – Fuel and Lubricant Specifications ……………………………………………………………………….262

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
