New Holland 2450 2550 Service Repair Manual (86575157) – New Holland 2450 2550 – PDF Download

Description

New Holland 2450 2550 Service Repair Manual (86575157) – New Holland 2450 2550

File Details:

New Holland 2450, 2550 Repair Manual_86575157
Size: 40.5 MB
Format: PDF
Language: English
Number of Pages: 673 pages
Brand: New Holland
Type of document: Repair Manual
Model: 2450, 2550
Part No: 86575157

NEW HOLLAND 2450 2550 SERVICE REPAIR MANUAL (86575157) – NEW HOLLAND 2450 2550 – PDF DOWNLOAD:

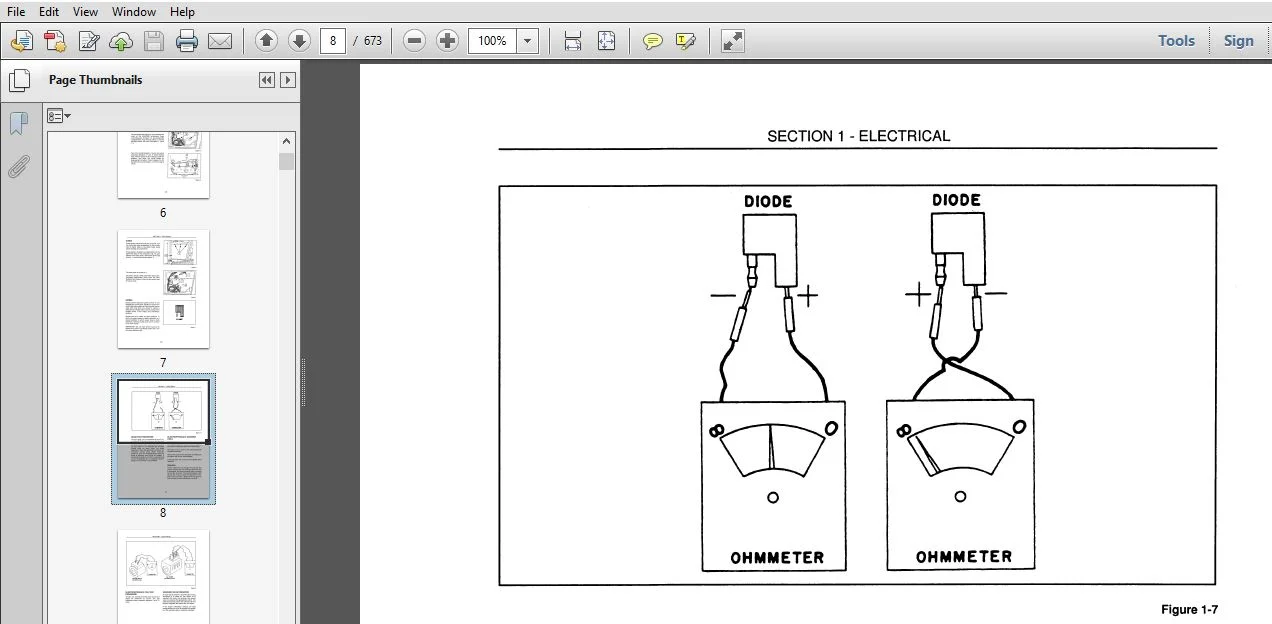

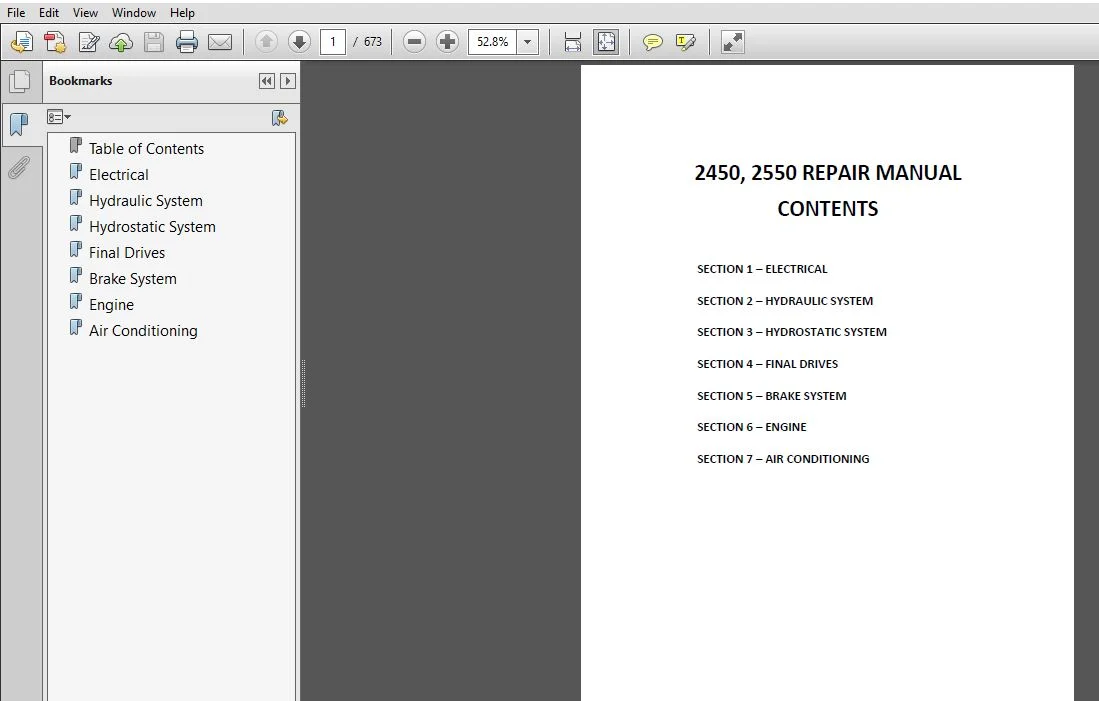

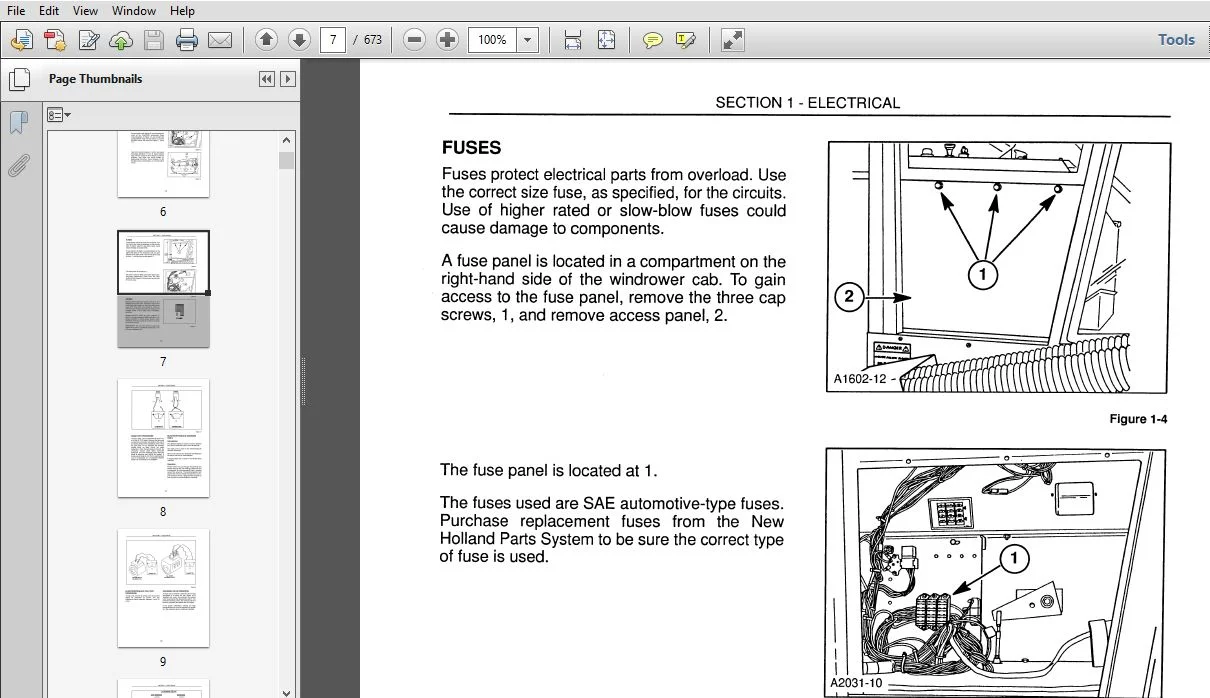

Image Preview:

Description:

New Holland 2450 2550 Service Repair Manual (86575157) – New Holland 2450 2550

• All test procedures assume that all mechanical items such as lllters, en presence, etc., have been checked and vertlled and the problem is elearical.
• Reed all the ‘nlrcductory tntcrmstlon before starting any test procedure. Nan look through the test procedures and locate the symptom bang experienced. Use that test procedure to locate ard correct the problem. Follow the steps as lnstructed. 00 net sk’p steps unless instruxad to do so it the test procedures.
• Prepere the machine for the test by Ic‘lontng the pretest instrualom. Pertorm the test en observe the results Perterm the indcateo corrective action. Continue through the test procedure until the problem Is corrected. then return the system to an operational ocndltton (rapace sHelds. etc.

Table of Contents:

New Holland 2450 2550 Service Repair Manual (86575157) – New Holland 2450 2550

GENERAL ELECTRICAL
ELECTRICAL SYSTEM COMPONENTS
ELECTRONIC INSTRUMENT CLUSTER
EICMAINPOWERCIRCUIT……
GROUNDSPEED
EIC DISPLAY SCROLL MAIN POWER CIRCUIT
AIR CONDITIONING ELECTRICAL SYSTEMS
FAN (PRESSURIZER) MAIN POWER CIRCUIT
FAN (PRESSURIZER) FAN ACTIVATED CIRCUIT
AIR-CONDITIONING MAIN POWER CIRCUIT
AIR-CONDITIONING AIC CLUTCH CIRCUIT
LIGHT ELECTRICAL SYSTEMS
HAZARD/TURN SIGNAL LIGHTS MAIN POWER CIRCUIT
HAZARD LIGHT CIRCUIT ACTIVATED
HAZARD AND RIGHT TURN CIRCUITS ACTIVATED
HAZARD AND LEFT TURN CIRCUITS ACTIVATED
ROAD LIGHTS MAIN POWER CIRCUIT
ROAD LIGHTS CIRCUIT ACTIVATED
WORK LIGHTS MAIN POWER CIRCUIT
WORK LIGHTS CIRCUIT ACTIVATED
ENGINE ELECTRICALSYSTEMS…
AIRFILTERSWITCH
FUELLEVELGAUGE
COOLANTTEMPERATURE
ENGINEFUELSOLENOID
ENGINEOILPRESSURESENDER
HYDRAULIC OIL TEMPERATURE SENDER
HYDRAULIC CHARGE PRESSURE SENDER
ENGINE STARTING MOTOR MAIN POWER CIRCUIT
STARTERENGAGEDCIRCUIT
STARTER EIC NOTIN NEUTRAL CIRCUIT
ENGINEFUELELECTRICCIRCUIT
CHARGING ELECTRICAL SYSTEM
CHARGING SYSTEM EXCITATION MAIN POWER CIRCUIT
ALTERNATORREPAIR
