New Holland 8070 8080 Combine Service Parts Catalog Manual – PDF DOWNLOAD

Description

New Holland 8070 8080 Combine Service Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

New Holland 8070 8080 Combine Service Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 269
Downloadable : Yes
File Type : PDF
Size: 31.4 MB

TABLE OF CONTENTS:

New Holland 8070 8080 Combine Service Parts Catalog Manual – PDF DOWNLOAD

Belts & chains (left-hand and right-hand) 1&3 2&4
Straw elevator drive 5&7 6&8
Straw elevator 9 9
Operators platform 10 10
Operator’s platform ladder 11 11
Seat 12-12А 12-12А
Steering wheel 13 13
Hydrostatic steering valve 14 14
Handbrake оп drive shaft 15 15
Handbrake оп differential shaft 16 16
Pedals and circuit for hydraulic brakes 17 17
C1rcuit for hydraulic brakes 18 18
Clutch pedal and linkage 19 19
Clutch pedal and hydraulic circuit (Mechanical drive) 20 20 Geai shift lever and rods
Header reversing mechanism lever and linkage
Header drive engaging mechanism
Electr1cal e:quipment 24-26 24-26
Hydraulic equipment 27-32 27-32
Hydraulic pump 33 33
Hydraulic valve Three way 34 34
Hydraulic oil reservoir 35 35
Hydraulic horizontal reel adjustment 36 36 Speed raпge control group
Hydrostatic drive group
Hydrostatic motor
37 37
38 38
39 39
Control valve and charge pump 40 40
Hydrostatic pump 41 41
Hydro::tatic filter and reservoir (Hydrost_atic drive) 42 42
Hydrostatic lines 43 43
Traction gearbox 44 44
Brakes 45 45
Gear selector group and gearbox studs 46 46
Drive gears 47 47
Final reduction 48 48
Hydraulic equipment (Mechanical drive) 49 49
Mect1anical dr1ve 50 50
Front axle 51 51
Traction wheels 52 52
Ground speed vari-drive 53 53
Drum and concave 54 54
Stone trap 55 55
Concave adjustment lever 56 56
Drum vari-drive and suspension , nkage 57 57
Rear beater 58 58
Counter shaft and drive group 59 59
IX 8070 – 8080
Rotary separator
Main drive idler
Engaging levers and linkage
Straw walkers
Straw walker shafts and bearings
Grain рап
Excentric shaft group
Shaker shoe
AdjustaЫe sieve and special sieves
Fan vari-drive and bottom plate
Fan casing
Tailings elevator
Drive group for tailings elevator
Grain elevator
Drive group for grain elevator
Grain tank loading auger
Grain tank and discharge auger
Unloading auger pivot
Unloading auger drive
Unloading auger and tube
Accessories tor Mercedes ОМ 401 and ОМ 421 engines
Air filter for Mercedes ОМ 401 and ОМ 421 engines
Throttle control for Mercedes ОМ 401 and ОМ 421 engines
Accessories for Aifo-Fiat 8361 SI & 8361 SI 10 engines
Throttle control for Aifo-Fiat 8361 SI & 8361 SI 10 engines
Air filter (Aifo-Fiat 8361 SI & 8361 SI 10 engines)
Rotary dust screen drive
Accessories for Mercedes ОМ 352 А e11gine
Air filter (Mercedes ОМ 352 А and Ford 2704 ЕТ engines)
Air filter (Aifo-Fiat engine 83611)
Throttle control for Mercedes ОМ 352 А engine
Accessories for Ford 2704 ЕТ engine
AssemЫy parts for Ford 2704 ЕТ engine
Throttle control for Ford 2704 ЕТ engine
Accessories for Aifo-Fiat 8361 1 engine
Accessories hydrostatic drive (Aifo-Fiat engine)
Throttle control Aifo-Fiat type 8361 1
Rotary screen
High air filter Option
Fuel tank
Guards for engine (left-hand & right-hand)
Frame and attaching parts (front & rear)
Steering axle
Steering wheels
Guards (Left-hand and right-hand)
Suppplementary equipment for Germany
Common guards
Decals
Tools
lndex
Recommended initial Service Parts stock

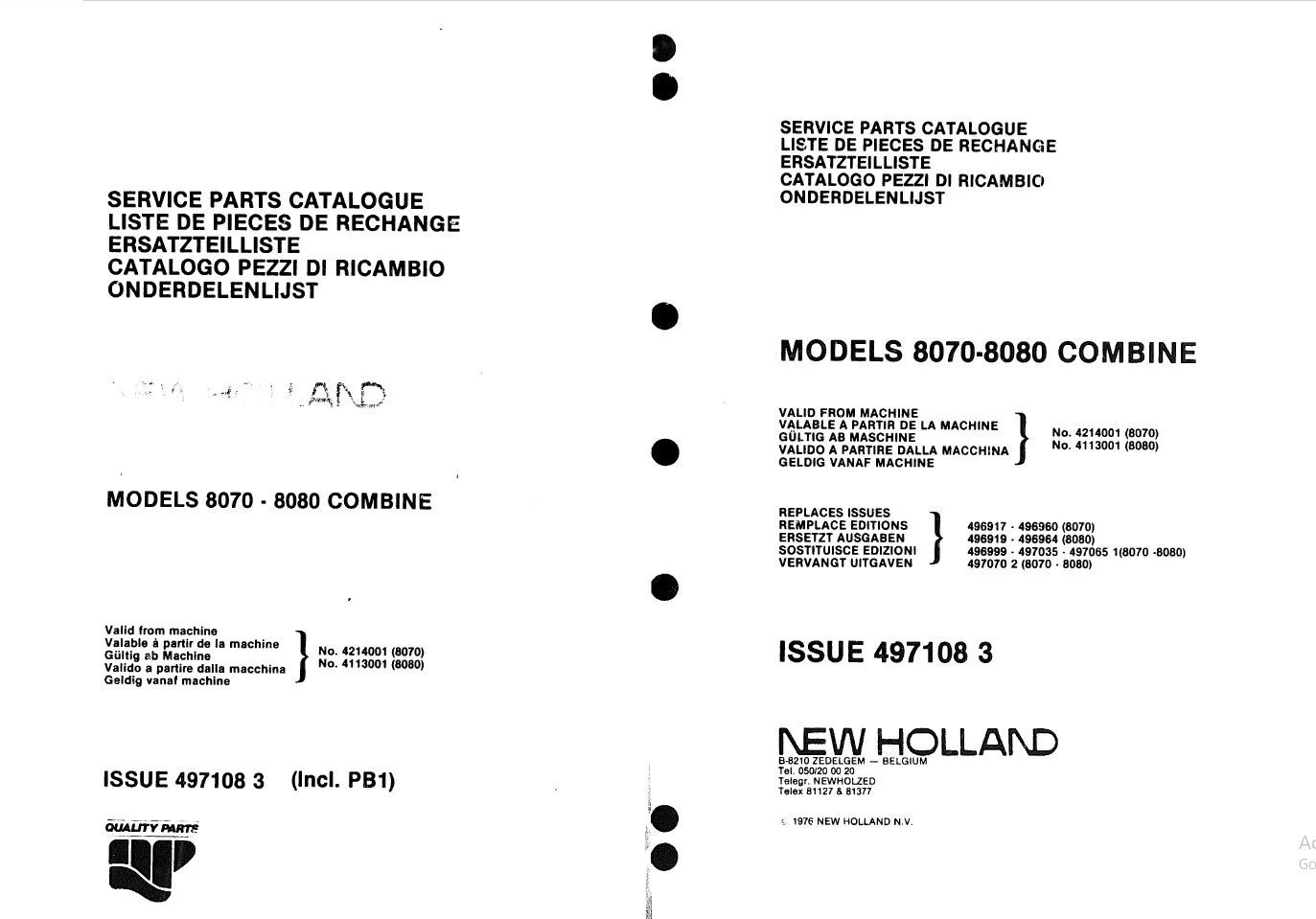

IMAGES PREVIEW OF THE MANUAL:
