New Holland B90B B90B LR B100B TC B110B B110B TC B115B TC Tier 3 Tractor Loader Backhoe Operator’s Manual 47826180 – PDF DOWNLOAD

Description

New Holland B90B B90B LR B100B TC B110B B110B TC B115B TC Tier 3 Tractor Loader Backhoe Operator’s Manual 47826180 – PDF DOWNLOAD

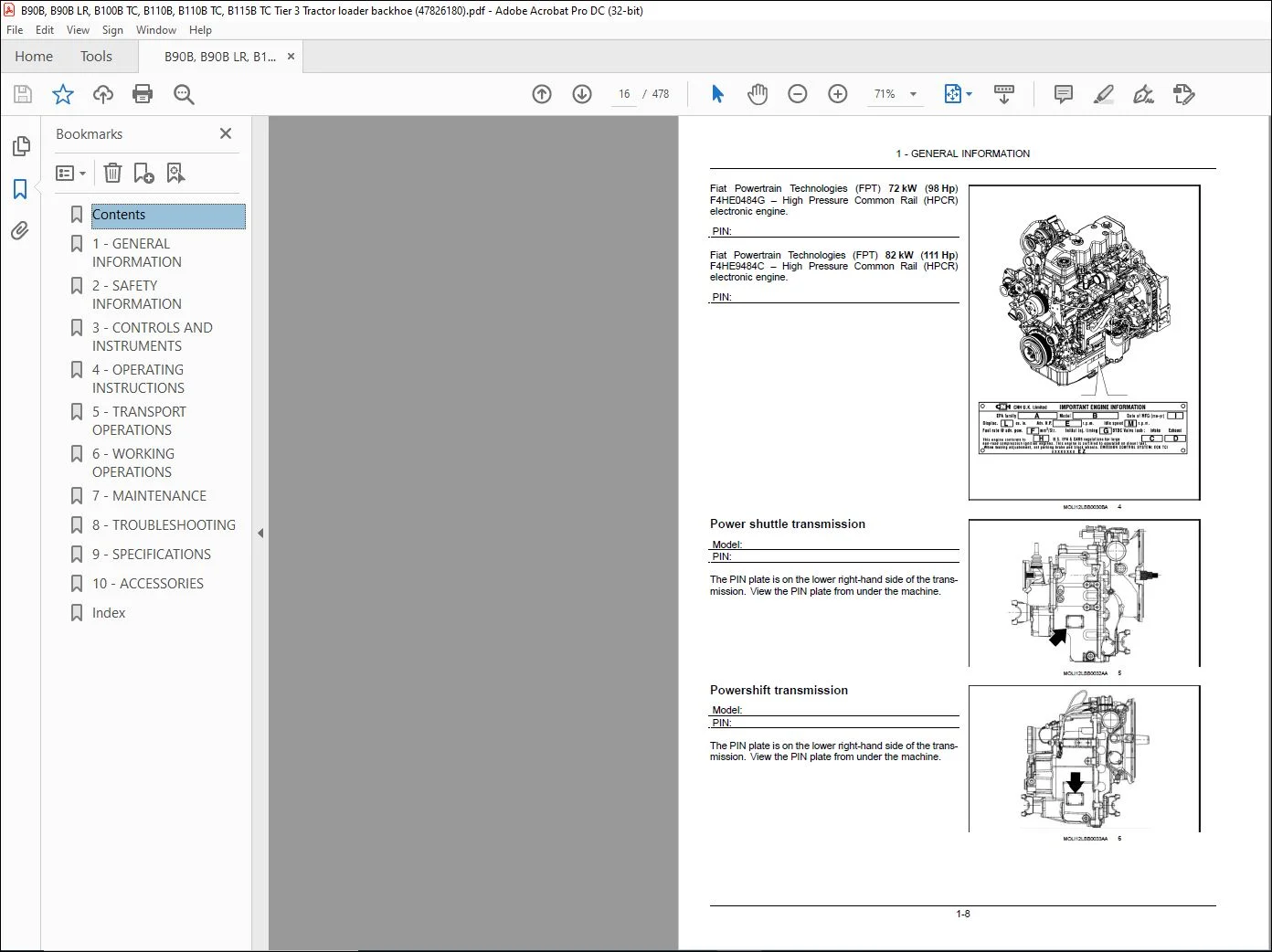

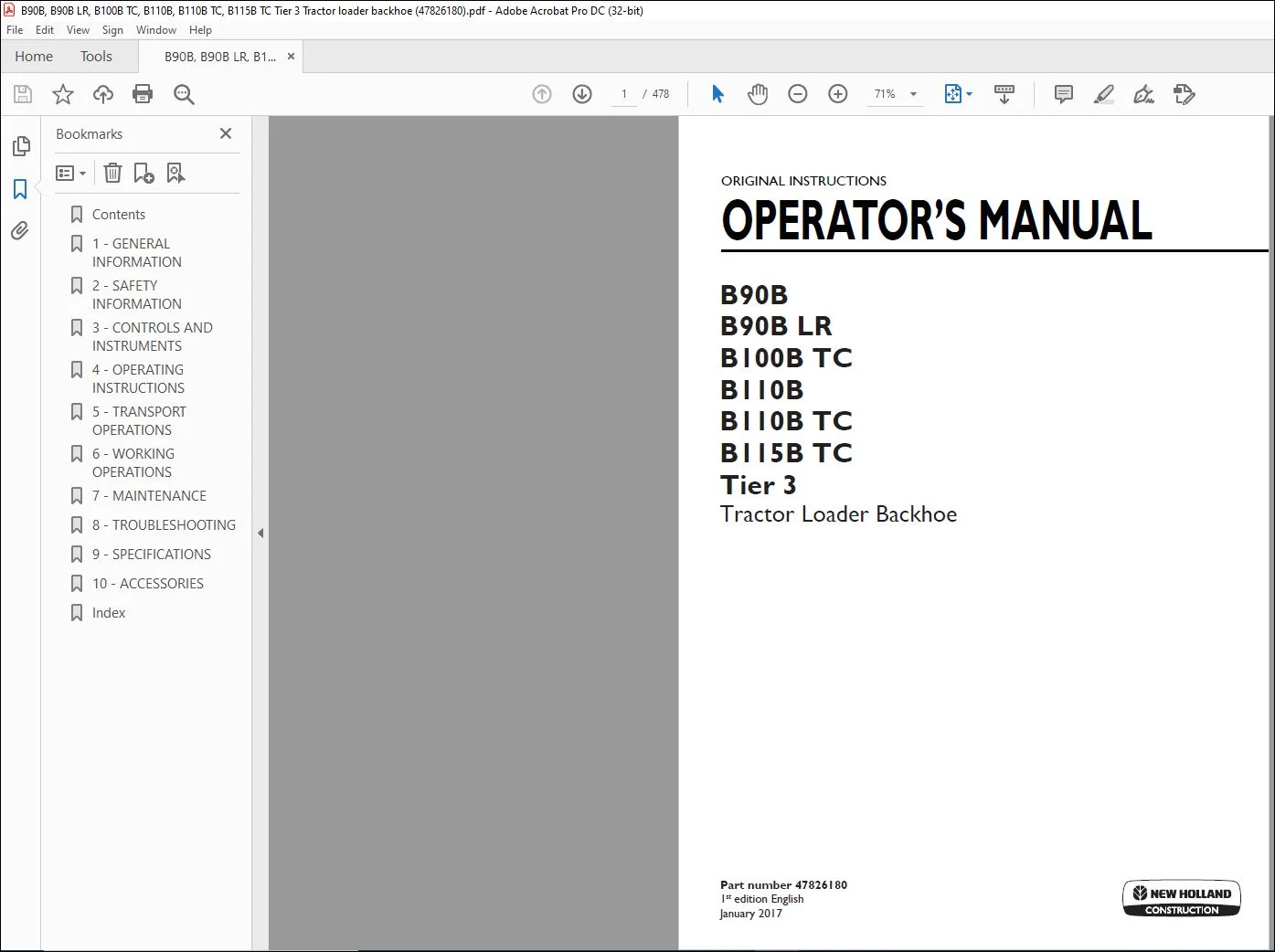

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland B90B B90B LR B100B TC B110B B110B TC B115B TC Tier 3 Tractor Loader Backhoe Operator’s Manual 47826180 – PDF DOWNLOAD

GENERAL INFORMATION:
Note to the Owner:

• Read this manual before you start the engine or operate the machine. If you need more information, see your NEW
  HOLLAND CONSTRUCTION dealer.
• This manual contains important information about the safe operation, adjustment, and maintenance of your loader
  backhoe. This manual is divided into chapters as outlined in the table of contents. Refer to the index at the end of this
  manual for locating specific items about your machine. The loader backhoe conforms to current safety regulations.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and maintenance so as to avoid the risk of injury while operating or servicing the machine. The machine has been designed and manufactured according to the strictest quality standards. However, the risk of accidents can never be completely excluded. That is why it is essential to observe elementary safety rules and precautions.
• DO NOT operate or permit anyone to operate or service this machine until you or the other persons have read and
  understand the safety, operation, and maintenance instructions in this manual. Use only trained operators who have
  demonstrated the ability to operate and service this machine correctly and safely.
• The information in this manual is provided on the basis of information that was available at the time that the manual
  was written. Settings, procedures, part numbers, software, and other items can change. These changes can affect
  the service that is given to the machine. Ensure that you have the complete and most current information from your
  dealer before you start any machine operation.
• Store the operator’s manual in the manual compartment equipped on this machine. Make sure this manual is complete and in good condition. Consult your dealer to obtain additional manuals or manuals in other languages.
• Contact your dealer for any further information or assistance about your machine. Your dealer has NEW HOLLAND
  CONSTRUCTION approved service parts. Your dealer has technicians with special training that know the best methods of repair and maintenance for your machine.

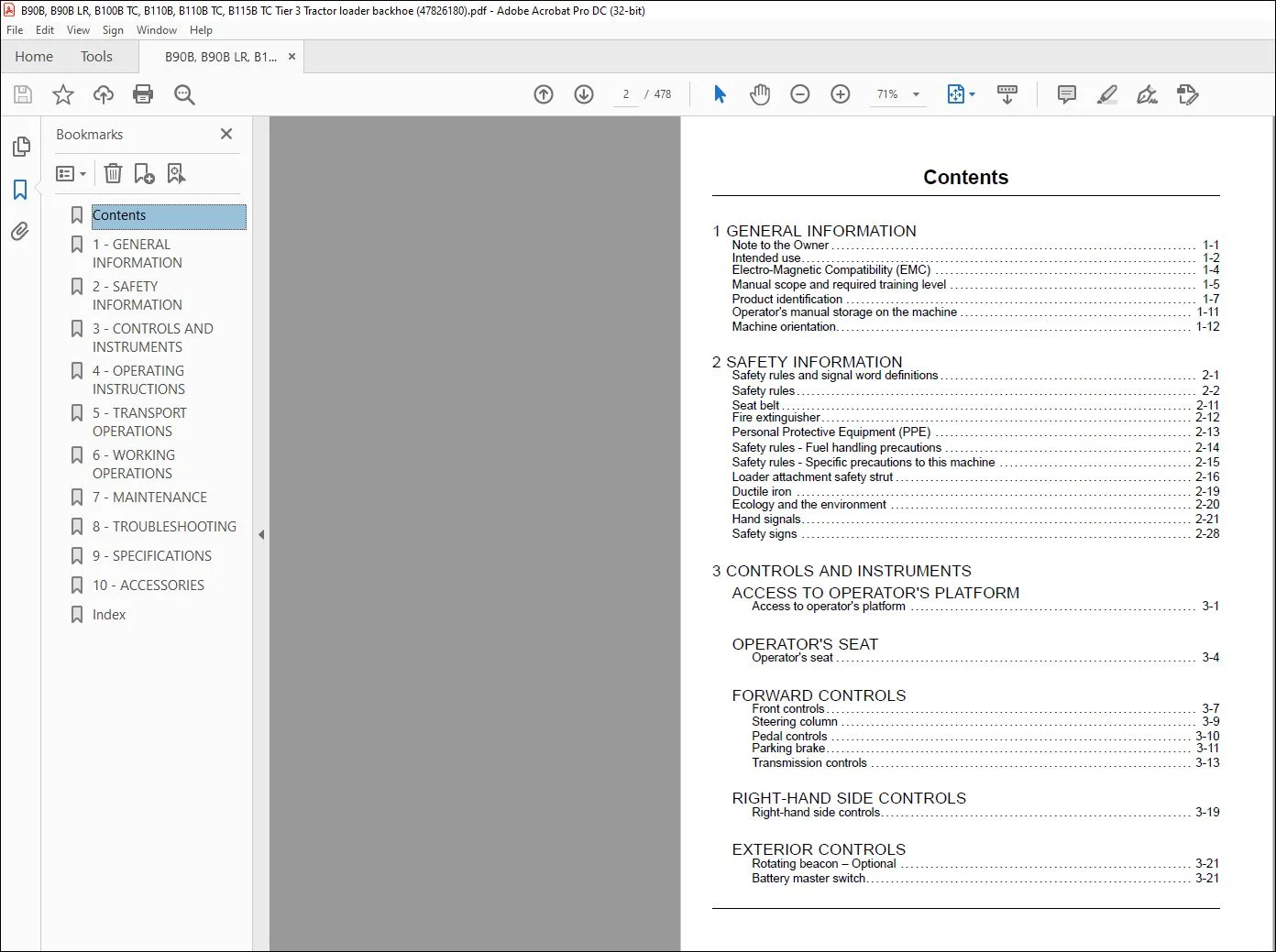

TABLE OF CONTENTS:

New Holland B90B B90B LR B100B TC B110B B110B TC B115B TC Tier 3 Tractor Loader Backhoe Operator’s Manual 47826180 – PDF DOWNLOAD

1 GENERAL INFORMATION
Note to the Owner 1-1
Intended use 1-2
Electro-Magnetic Compatibility (EMC) 1-4
Manual scope and required training level 1-5
Product identification 1-7
Operator’s manual storage on the machine 1-11
Machine orientation 1-12
2 SAFETY INFORMATION
Safety rules and signal word definitions 2-1
Safety rules 2-2
Seat belt 2-11
Fire extinguisher 2-12
Personal Protective Equipment (PPE) 2-13
Safety rules – Fuel handling precautions 2-14
Safety rules – Specific precautions to this machine 2-15
Loader attachment safety strut 2-16
Ductile iron 2-19
Ecology and the environment 2-20
Hand signals 2-21
Safety signs 2-28
3 CONTROLS AND INSTRUMENTS
ACCESS TO OPERATOR’S PLATFORM
Access to operator’s platform 3-1
OPERATOR’S SEAT
Operator’s seat 3-4
FORWARD CONTROLS
Front controls 3-7
Steering column 3-9
Pedal controls 3-10
Parking brake 3-11
Transmission controls 3-13
RIGHT-HAND SIDE CONTROLS
Right-hand side controls 3-19
EXTERIOR CONTROLS
Rotating beacon – Optional 3-21
Battery master switch 3-21
Engine hood 3-22
INSTRUMENT CLUSTER
Instrument cluster – Front 3-23
Instrument cluster panel – Side (mechanical engines) 3-25
Instrument cluster panel – Side (electronic engines) 3-27
Instrument cluster – Side (mechanical engines) 3-32
Instrument cluster – Side (electronic engines) 3-34
CAB CONTROLS AND ADJUSTMENTS
Cab and platform – Control identification 3-36
LOADER ATTACHMENT CONTROLS
Loader attachment controls 3-40
Loader attachment – Operation 3-41
Loader bucket control – 4×1 (If fitted) 3-43
Locking the loader attachment controls – (Specific to certain countries) 3-44
BACKHOE ATTACHMENT CONTROLS
Remove the backhoe from the stowed position 3-45
Place the backhoe in the stowed position 3-50
Backhoe attachment mechanical controls 3-56
Backhoe attachment pilot controls 3-67
CLIMATE CONTROLS
Heating and air-conditioning controls 3-74
Cab air louvers 3-78
4 OPERATING INSTRUCTIONS
COMMISSIONING THE UNIT
Before using the machine 4-1
Operating the machine 4-2
Running-in period 4-4
STARTING THE UNIT
Starting the engine 4-5
Assisted starting (Jump-starting) 4-6
Starting the engine – At temperatures below – 18 °C (– 0 4 °F) (Optional) 4-8
Starting the engine – At low temperatures with “grid heater” (Optional) 4-9
Anti-theft protection 4-10
STOPPING THE UNIT
Stopping the engine 4-11
MOVING THE UNIT
Job site travel 4-11
2WD or 4WD 4-14
Steer selection (4WS) 4-15
Differential lock button 4-18
PARKING THE UNIT
Parking the machine 4-19
5 TRANSPORT OPERATIONS
ROAD TRANSPORT
Requirements for road travel 5-1
Precautions for road travel 5-3
PREPARING FOR ROAD TRANSPORT
Preparing the machine for road travel 5-4
SHIPPING TRANSPORT
Machine transport (on a trailer) 5-11
Lifting the machine 5-14
RECOVERY TRANSPORT
Towing the machine 5-16
6 WORKING OPERATIONS
GENERAL INFORMATION
Operating the machine in cold weather 6-1
Operating the machine in hot weather 6-2
Operating the machine in water 6-3
LOADER ATTACHMENT
Organizing the job site 6-4
Transmission disconnect button 6-5
Operating the loader attachment 6-6
Loader attachment safety strut 6-9
Loader bucket Removal 6-12
Loader bucket Installation 6-13
Loader bucket with forks (optional) 6-14
Lifting loads with the loader attachment 6-16
BACKHOE ATTACHMENT
Personal safety 6-18
Basic instructions 6-19
Backhoe danger area 6-20
Swing lock 6-21
Basic instructions 6-22
Setting the backhoe attachment in working position 6-23
Backhoe attachment position – side shift machines 6-28
Stabilizer pads – side-shift machines 6-30
Stabilizer pads – center pivot machines 6-31
Operating the backhoe attachment 6-33
Backhoe bucket – Remove 6-38
Backhoe bucket – Install 6-39
Backhoe bucket – Digging angle 6-40
Ballasting 6-41
Lifting loads with backhoe attachment 6-44
7 MAINTENANCE
GENERAL INFORMATION
Maintenance safety 7-1
Capacities – B90B and B90B LR 7-4
Capacities – B100B TC, B110B, and B110B TC 7-6
Capacities – B115B TC 7-8
Fuel tank 7-10
General specification – Biodiesel fuels 7-11
Hydraulic oil 7-13
Organic Acid Technology (OAT) coolant 7-15
Diagnostic/Service tool port 7-17
Hydraulic diagnostic test ports 7-18
Work hours and intervals 7-20
MAINTENANCE CHART
Maintenance chart 7-22
Every 10 hours
Checks at start-up and before each workshift (10 hours) 7-24
Drive belt – check 7-25
Hydraulic hoses, tubes, and fittings 7-26
Engine Oil Level 7-27
Hydraulic oil level 7-28
Fuel tank level 7-30
Coolant – level 7-31
Windshield washer fluid level 7-32
Wheels and tires 7-33
Working attachments – greasing 7-37
Every 50 hours
Fuel pre-filter – draining condensation 7-39
Tire pressure and condition 7-40
Door hinges 7-42
Rails – greasing 7-43
Stabilizers (side shift) – Clearance check and adjustment 7-44
Every 250 hours
Roll Over Protective Structure (ROPS) frame – Check 7-45
Seat and seat belt 7-48
Seat suspension and rails – greasing 7-48
Cab air filter 7-49
Heater and evaporator (Air-conditioning system) – Cleaning 7-52
Fuel tank – Drain fluid 7-53
Air-conditioning compressor drive belt 7-54
Air-conditioning compressor seals 7-55
Radiator and condenser – cleaning 7-56
Transmission oil level 7-58
Axle articulations – greasing 7-59
Drive shaft lubrication 7-61
Front and rear axle 7-62
Hydraulic oil tank breather / filler cap – cleaning 7-70
Battery terminals 7-71
Telescopic dipper (Optional) – Adjustment check 7-72
Every 500 hours
Engine oil and oil filter – Change 7-73
Fuel filter 7-75
Fuel prefilter Replacement 7-76
Every 1000 hours
Machine inspection and cleaning 7-77
Fire extinguisher – check 7-78
Engine – valve clearance check – (B90B-B90B LR) 7-79
Engine – valve clearance check – (electronic engines) 7-80
Engine – breather filter replacement 7-81
Air filter – replacing main and safety filter elements 7-82
Powershuttle transmission – oil filter replacement 7-84
Powershuttle transmission – oil change 7-85
Powershuttle transmission – screen filter cleaning 7-86
Powershift transmission – oil filter replacement 7-88
Powershift transmission – oil change 7-89
Front and rear axle oil 7-90
Hydraulic oil filter 7-96
Hydraulic oil 7-98
Hydraulic cylinders 7-100
Alternator – check 7-101
Starter motor – check 7-101
Every 2000 hours
Coolant – change 7-102
As required
Drive belt – replacement 7-105
Turbocharger 7-106
Fuel system bleeding 7-107
Air-conditioning compressor drive belt 7-108
Air prefilter – cleaning 7-109
Air filter elements – check 7-110
Air filter elements – cleaning 7-112
Wheels and tires 7-114
Wheel toe-in – adjustment 7-117
Parking brake – adjustment 7-120
Hydraulic system – pressure release 7-121
Hydraulic fittings and lines – replacement 7-124
Bulbs – replacement 7-125
Fuses and relays – Power shuttle 7-127
Fuses and relays – Powershift 7-136
Telematics system fuses (if equipped) 7-143
Battery – replacement 7-144
Telescopic dipper (if equipped) – draining 7-145
Bucket teeth – replacement 7-146
Loader bucket – self-levelling adjustment 7-147
Disable parking brake 7-150
STORAGE
Machine storage 7-152
Taking the machine back to service 7-154
8 TROUBLESHOOTING
SYMPTOM(S)
Troubleshooting 8-1
Engine 8-2
Starter motor 8-5
Alternator 8-5
Transmission 8-5
Axles 8-8
Steering system 8-12
Hydraulic system 8-12
Loader attachment 8-12
Backhoe attachment 8-13
Swing 8-13
Hydraulic pump 8-14
Electrical system 8-14
Cab 8-15
Air conditioning 8-15
9 SPECIFICATIONS
Capacities – B90B and B90B LR 9-1
Capacities – B100B TC, B110B, and B110B TC 9-3
Capacities – B115B TC 9-5
Specifications 9-7
Noise and vibration levels 9-14
Buckets 9-15
Tires 9-16
Dimensions and performance 9-17
Performance of loader attachment with forks 9-26
Backhoe attachment performance 9-29
Backhoe attachment lifting capacity 9-44
10 ACCESSORIES
Mechanical loader bucket quick coupler 10-1
Mechanical backhoe bucket quick coupler 10-2
Universal backhoe bucket coupler 10-4
Backhoe attachment auxiliary hydraulic tools 10-6
Manual auxiliary hydraulic tools 10-7
Backhoe attachment safety valves 10-8
Reversible stabilizer pads (center pivot) 10-9
Telematics – Overview with New Holland FleetForce™ 10-10

Contact us: [email protected]
