NEW HOLLAND B95BLR LOADER BACKHOE TIER 3 PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

NEW HOLLAND B95BLR LOADER BACKHOE TIER 3 PARTS MANUAL – PDF DOWNLOAD

Size: 26.4 MB
Pages : 1034
Format: PDF
Language: English
Brand: New Holland

DESCRIPTION:

NEW HOLLAND B95BLR LOADER BACKHOE TIER 3 PARTS MANUAL – PDF DOWNLOAD

GENERAL INFORMATION:
PROPRIETARY NOTICE:
The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.
COMPANY POLICY :
Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.
PARTS AND ACCESSORIES :
Genuine par ts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine” parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.
IMPROVEMENTS :
We are continually striving to improve our products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously.
MODEL CODES :
The range of machines listed may not be available in all countries or markets therefore, for the latest information consult your local dealer.
OWNER ASSISTANCE:

We want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer’s Service Department; however, misunderstandings can occur. If your problem has not been handled to your satisfaction, we suggest the following:

1. Contact the owner or General Manager of the dealership, explain the problem, and request assistance. When additional assistance is needed, your dealer has direct access to our office.
2. Provide your dealer with:
● Your Name, Address, and Telephone number
● Machine Model and Serial Number
● Dealership Name and Address
● Machine purchase date and amount of use
● Nature of problem

Be aware that your problem will likely be resolved in the dealership using the dealer’s facilities, equipment, and personnel. So it is important that your initial contact be with the dealer.

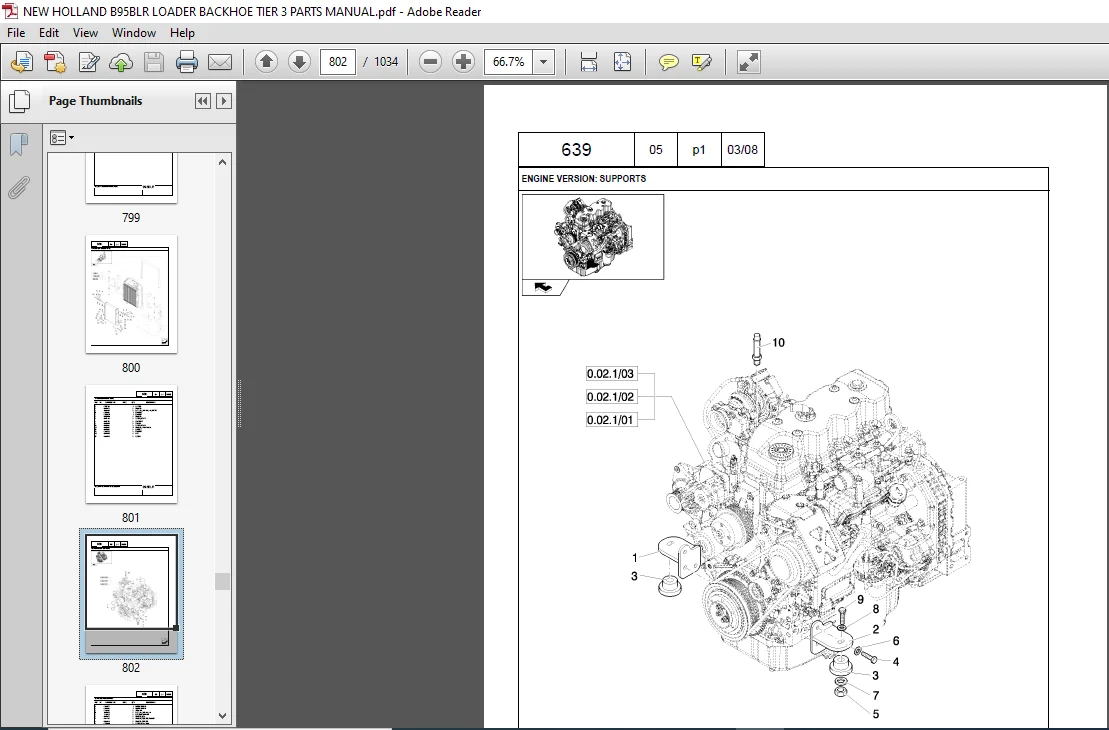

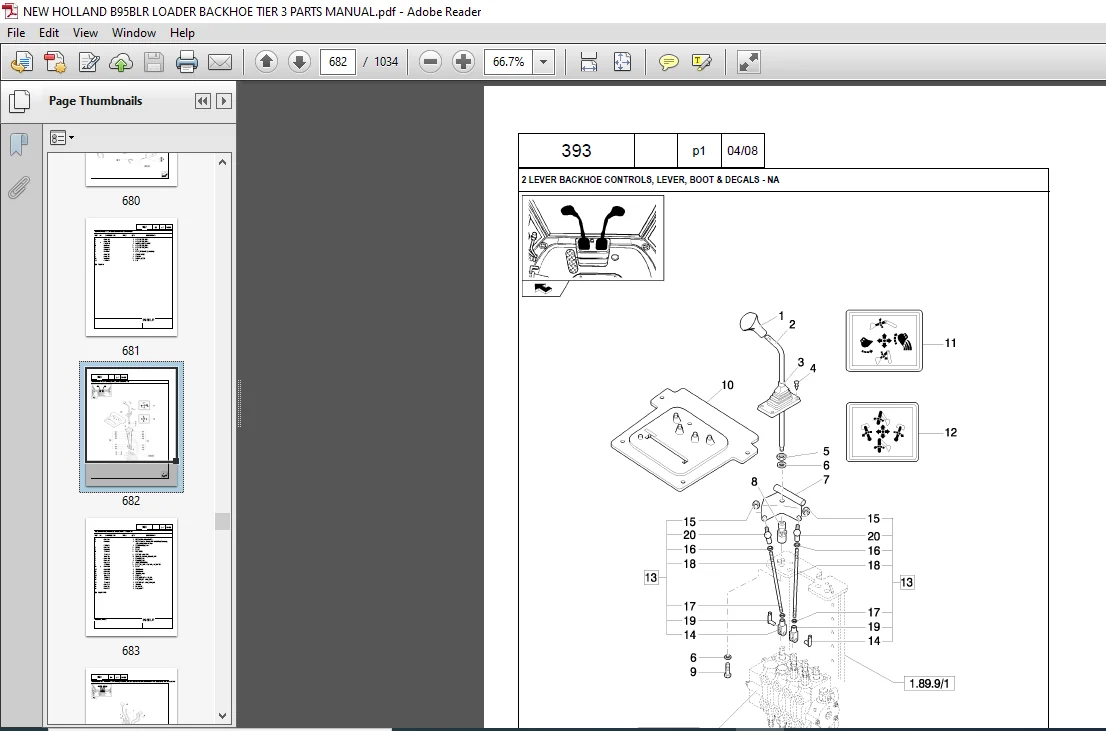

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND B95BLR LOADER BACKHOE TIER 3 PARTS MANUAL – PDF DOWNLOAD

MAIN SECTIONS
MPARTS 00 MAINTENANCE PARTS
SEC. 01 03 ENGINE
SEC. 01 04 ENGINE
SEC. 02 FUEL TANK – MUFFLER – RADIATOR – AIR CLEANER – CHASSIS
SEC. 03 01 TRANSMISSION
SEC. 04 FRONT AXLE
SEC. 05 REAR AXLE
SEC. 06 ELECTRICAL
SEC. 07 SLIDES VALVES
SEC. 08 BODY & HOOD
SEC. 09 01 LOADER
SEC. 09 03 BACKHOE
SEC. 11 WHEELS
SEC. 18 VARIATION
0.0040/01 01 OPTIONAL EQUIPMENT – NA
0.0040/01 02 OPTIONAL EQUIPMENT – NA
0.0040/01 03 OPTIONAL EQUIPMENT – NA
0.02.1/01 ENGINE
0.04.0/01 CRANKCASE
0.04.2 ENGINE OIL SUMP
0.04.3/01 01 CRANKCASE COVERS
0.04.3/01 02 CRANKCASE COVERS
0.04.3/01 03 CRANKCASE COVERS
0.06.0/01 CYLINDER HEAD
0.06.3/01 01 CYLINDER HEAD COVERS
0.06.3/01 02 CYLINDER HEAD COVERS
0.06.6/01 ROCKER SHAFT
0.07.1/01 MANIFOLD – INTAKE
0.07.7/01 EXHAUST MANIFOLD
0.08.0 CRANKSHAFT
0.08.1/01 CONNECTING ROD
0.08.2/01 PISTON – ENGINE
0.08.3 FLYWHEEL – ENGINE
0.08.4 PULLEY – CRANKSHAFT
0.10.5 01 DYNAMIC BALANCER, GEARS & SHAFTS
0.10.5 02 DYNAMIC BALANCER, GEARS & SHAFTS
0.12.0/01 CAMSHAFT – TIMING CONTROL
0.14.0/01 01 INJECTION PUMP
0.14.0/01 02 INJECTION EQUIPMENT – INJECTOR
0.14.0/01A INJECTION PUMP – COMPONENTS
0.14.9/01 INJECTION EQUIPMENT – PIPING
0.17.0 ELECTRONIC INJECTION
0.17.3 MOTOR ELECTRIC INSTALLATION
0.20.0/01 FUEL FILTER
0.20.3/01 PIPING – FUEL
0.20.4/01 INJECTION EQUIPMENT – PIPING
0.24.0/01 TURBOCHARGER
0.27.0/01 ENGINE OIL DIPSTICK
0.30.0 OIL PUMP – ENGINE
0.30.2 OIL FILTERS – ENGINE
TABLE OF CONTENTS
0.30.5/01 PIPING – ENGINE OIL
0.31.5/01 HEAT EXCHANGER – ENGINE
0.32.0 WATER PUMP
0.32.3/01 COOLING SYSTEM – ENGINE
0.32.6/01 THERMOSTAT – ENGINE COOLING SYSTEM
0.34.0/01 WATER PUMP – CONTROL
0.34.5 FAN DRIVE
0.36.0 ACCESSORY ENGINE
0.40.0/01 ALTERNATOR
0.45.0/01 HOOKS – ENGINE
1.14.0 FUEL TANK & RELATED PARTS
1.14.6 FUEL PIPE
1.14.6/ A FILTER FUEL – BREAKDOWN
1.15.0 01 MUFFLER & EXTENSIONS
1.15.0 02 EXHAUST TUBE
1.19.1 AIR CLEANER & HOSES
1.21.5 FRAME (CENTER PIVOT)
1.28.0 TRANSMISSION
1.28.0/ A 01 TORQUE CONVERTER COMPONENTS (2WD POWER-SHUTTLE)
1.28.0/ A 02 GEARSHIFT OUTER COMPONENTS (2WD POWER-SHUTTLE)
1.28.0/ A 03 GEARSHIFT HYDRAULIC COMPONENTS (2WD POWER-SHUTTLE)
1.28.0/ A 04 PARKING BRAKE (2WD POWER-SHUTTLE)
1.28.0/ A 05 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 06 FRONT TRANSMISSION SHAFT (2WD POWER-SHUTTLE)
1.28.0/ A 07 GEARSHIFT GEAR DRIVES (2WD POWER-SHUTTLE)
1.28.0/ B 01 TORQUE CONVERTER COMPONENTS AND GEARSHIFT GEAR DRIVES (4WD
POWER-SHUTTLE)
1.28.0/ B 02 GEARSHIFT OUTER COMPONENTS (4WD POWER-SHUTTLE)
1.28.0/ B 03 GEARSHIFT HYDRAULIC COMPONENTS (4WD POWER-SHUTTLE)
1.28.0/ B 04 PARKING BRAKE (4WD POWER-SHUTTLE)
1.28.0/ B 05 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 06 FRONT TRANSMISSION SHAFT (4WD POWER-SHUTTLE)
1.28.0/ B 07 GEARSHIFT GEAR DRIVES (4WD POWER-SHUTTLE)
1.28.0/ B 08 REAR DRIVE SHAFT GEARS (4WD POWER-SHUTTLE)
1.28.6 OIL DIPSTICK / TOP UP (POWER-SHUTTLE)
1.29.1 TRANSMISSION ESTERNALSHIFTING CONTROLS (POWER-SHUTTLE)
1.38.1 FRONT AND REAR TRANSMISSION SHAFT (POWER-SHUTTLE)
1.39.8 TRANSMISSION OIL COOLING PIPES (POWER-SHUTTLE)
1.40.0 01 FRONT AXLE (2WD)
1.40.0 02 STEERING ASSY AND FRONT HUBS (2WD)
1.42.0 POWER STEERING HYDRAULIC SYSTEM
1.44.0/ B 01 REAR AXLE (POWER-SHUTTLE) (CENTER PIVOT) – NA
1.44.0/ B 02 DIFFERENTIAL LOCK ASSY AND ENGAGEMENT (POWER SHUTTLE) (CENTER
PIVOT): NA
1.44.0/ B 03 REAR AXLE BEVEL GEAR SET ASSY (POWER SHUTTLE) (CENTER PIVOT): NA
1.44.1 DIFFERENTIAL CONTROL (POWER-SHUTTLE)
1.44.1/01 DIFFERENTIAL CONTROL (POWER-SHUTTLE) (CENTER PIVOT) – NA
1.75.2 01 FRAME REAR HARNESS AND GROUND CABLE (POWER SHUTTLE): NA
1.75.2 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE) – NA
1.75.2 04 ENGINE HARNESS (POWER SHUTTLE) – NA
1.82.0 HYDRAULIC OIL RESERVOIR
TABLE OF CONTENTS
1.82.3/01 HYDRAULIC PUMP (35+35-154L/MM)
1.82.6 01 HYDRAULIC SYSTEM PIPES: PUMP OIL DELIVERY
1.82.6 02 HYDRAULIC SYSTEM PIPES: CONTROL VALVE DELIVERY
1.82.6 03 HYDRAULIC SYSTEM PIPES: PRESSURE INTAKE
1.82.6 04 HYDRAULIC SYSTEM PIPES: CONTROL VALVE DISCHARGE
1.82.6 05 HYDRAULIC SYSTEM PIPES: RETURN TO TANK
1.82.6 06 HYDRAULIC SYSTEM PIPES: OIL FILTER AND CHECK VALVE
1.82.6 07 HYDRAULIC SYSTEM PIPES: LOADER ATTACHMENT CYLINDERS
1.82.6 10 HYDRAULIC SYSTEM PIPING
1.82.6 11 HYDRAULIC SYSTEM PIPING
1.82.6 12 HYDRAULIC SYSTEM PIPES 4WS (CENTER PIVOT): NA
1.82.6 13 HYDRAULIC SYSTEM PIPES: SWING CYLINDER
1.82.6 14 HYDRAULIC SYSTEM PIPES: BACKHOE ATTACHMENT CYLINDER
1.82.6 15 HYDRAULIC SYSTEM PIPES: BACKHOE ATTACHMENT BOOM CYLINDER
1.82.6 16 ROTATION PLATE HOSE CLAMPS (CENTER PIVOT)
1.82.6/01 01 FRONT HYDRAULIC PUMP INTAKE & OUTLET HOSES (CENTER PIVOT) – NA
1.82.6/01 02 REAR HYDRAULIC PUMP STABILIZER, LOADER & BACKHOE VALVE HOSES (CP) –
NA
1.82.6/01 03 HYDRAULIC SYSTEM PIPES (CENTER PIVOT): NA: PRESSURE INTAKE
1.82.6/01 04 RETURN MANIFOLD HOSES – NA
1.82.6/01 05 FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT) – NA
1.82.6/01 06 HYDRAULIC SYSTEM PIPES (CENTER PIVOT): NA: RETURN TO TANK
1.82.6/01 07 LOADER LIFT CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/01 08 LOADER BUCKET CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/01 09 BACKHOE SWING CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/01 10 BACKHOE CONTROL VALVE HOSES (CENTER PIVOT) – NA
1.82.6/01 11 ROTATION PLATE HOSE CLAMPS (CENTER PIVOT) – NA
1.82.6/01 12 BACKHOE CONTROL VALVE (CENTER PIVOT) – NA
1.82.6/01 13 DIPPER VALVE SECTION (CENTER PIVOT) – NA
1.82.6/01 14 BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT) – NA
1.83.0 01 GRID AND ACCESSORIES
1.83.0 02 GUARD AND ACCESSORIES
1.83.0 03 DOOR LOCK KIT
1.83.0 04 LOCK PLATE ASSY
1.83.0 05 TIPPING GUARD HINGE KIT
1.83.0 06 TIPPING GUARD ASSY COMPONENTS
1.87.2 CAB SCREEN
1.87.8 CAB FASTENERS
1.88.01 01 REAR ATTACHMENT TRANSPORT LOCK TIE ROD (CENTER PIVOT): NA
1.88.01 02 REAR ATTACHMENT TRANSPORT LOCK CABLE (CENTER PIVOT): NA
1.88.08 01 SWING POST ASSEMBLY, BUSHINGS & PINS
1.88.08 02 SWING POST PINS & TRANSPORT LOCK HOOK
1.88.11 ARMS AND JOINTS
1.88.11/01 LOADER CYLINDER
1.88.11/02 01 LOADER BUCKET CONTROL CYLINDER
1.88.11/02 02 LOADER BUCKET CONTROL CYLINDER
1.88.11/03 LIFT CYLINDER AND BUCKET PIPES
1.88.11/05A 01 SELF-LEVELING LINKAGE, LOADER CONTROLS (CENTER PIVOT MECHANIC) – NA
1.88.11/05A 02 SELF-LEVELING LINKAGE, LOADER ARM (CENTER PIVOT) – NA
1.88.11/06A STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/07A PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT PILOT)
TABLE OF CONTENTS
1.88.11/07C PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT MECHANIC) – NA
1.88.11/08 RETURN TO DIG SENSOR
1.88.11/09 02 SWING CYLINDERS BACKHOE
1.88.11/09A CYLINDERS AND ROTATION PLATE (CENTER PIVOT)
1.88.12/03 FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT – SIDE
SHIFT)
1.88.12/03A FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT) – NA
1.89.9/01 DISTRIBUTOR VALVE SUPPORT HUSCO (CENTER PIVOT) – NA
1.91.1 CAB : CEILING LIGHT
1.91.1/01 SAFETY FRAME: INSTRUMENTS AND GAUGES (ROPS) – NA
1.91.3 BACK-UP ALARM
1.91.4 01 CAB ROOF HARNESS (CAB, POWER SHUTTLE)
1.91.4 02 FUSE BOX CONTROL UNIT (CAB, POWER SHUTTLE)
1.91.4 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
PT)
1.91.4 04 FRONT HARNESS AND CONTROL UNIT (CAB, POWER SHUTTLE)
1.91.4 05 FRONT DASH (CAB POWER SHUTTLE)
1.91.4 06 CAB ELECTRIC SYSTEM COMPONENTS (CAB, POWER SHUTTLE)
1.91.4/02 01 CAB ROOF HARNESS (ROPS POWER SHUTTLE)
1.91.4/02 02 FUSE BOX CONTROL UNIT (ROPS POWER SHUTTLE)
1.91.4/02 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS PT)
1.91.4/02 04 FRONT HARNESS AND CONTROL UNIT (ROPS POWER SHUTTLE)
1.91.4/02 05 RH CONSOLE WITH INSTRUMENTS (ROPS POWER SHUTTLE) – NA
1.91.4/02 06 CAB ELECTRIC SYSTEM COMPONENTS (ROPS POWER SHUTTLE)
1.91.5 01 FRONT AND REAR WINDSCREEN WIPERS
1.91.5 02 WINDSCREEN WIPERS RESERVOIR & NOZZLES
1.91.6 RADIO ANTENNA & SPEAKER COVER
1.91.7/01 LAMPS & LIGHTS – ROPS – NA
1.91.7/02 LAMPS & LIGHTS – CAB – NA
1.92.2 CAB: FRAME-DOOR
1.92.3 FRONT GLASSES AND SEALS
1.92.4 01 DOOR LATERAL GLASS FASTENERS
1.92.4 02 CAB SIDE GLASS FASTENERS
1.92.4 03 SIDE GLASSES
1.92.5 FENDERS, REAR
1.92.6 01 DOOR COMPONENTS
1.92.6 02 DOOR COMPLETION COMPONENTS: LOWER SIDE
1.92.6 03 DOOR CLOSURE HINGE COMPONENTS
1.92.8 FLAME TRAP SEAL, ROPS (POWER SHUTTLE)
1.92.9 01 REAR GLASSES AND COMPONENTS
1.92.9 02 REAR GLASS CLOSURE HINGE
1.92.9 03 HINGES AND REAR GLASS CLOSURE
1.93.0 01 CAB : SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0 02 CAB : SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0 03 CAB / SIDE COVERING AND FRONT FLOOR (POWER SHUTTLE: POWER SHIFT)
1.93.0 04 CAB / REAR CONSOLE AND FLOOR COVERING (POWER SHUTTLE: POWER SHIFT)
1.93.0/01 01 CAB : SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0/01 02 CAB / FLOOR COVERING AND COMPONENTS (POWER SHUTTLE: POWER SHIFT)
1.93.0/02 01 RIGHT SIDE COVERING, REAR CONSOLE ROPS (CENTER PIVOT): NA
1.93.0/03 MACHINES SOFT TRIMS (ROPS) – NA
TABLE OF CONTENTS
1.93.4 CAB: REAR MIRROR – SUN SCREEN
1.93.5 01 CAB / FRONT DASHBOARD
1.93.5 02 CAB / DASHBOARD FASTENERS AND GASKETS
1.93.5/01 01 FRONT CONSOLE – ROPS (POWER SHUTTLE) – NA
1.93.5/01 02 RH SIDE CONSOLE SEAL & CLIPS – ROPS (POWER SHUTTLE) – NA
1.93.7 INNER REAR VIEW MIRROR (POWER SHUTTLE) ROPS
1.94.0/01 CAB / ROPS: ROOF AND INNER COVERING: NA
1.94.2 HEATER WATER HOSES
1.95.0 01 CAB / ROPS : BRAKE PEDAL
1.95.0 02 CAB / ROPS / BRAKE PUMP
1.95.0 03 CAB / ROPS / BRAKE SYSTEM PIPES
1.95.0/ A CAB / ROPS / BRAKE PUMP CYLINDER
1.95.1 CAB / ROPS / PARKING BRAKE LEVER AND CONTROL CABLE
1.95.2 TRANSPORT LOCK CONTROL – NA
1.95.3 HAND/PEDAL ELECTRONIC ACCELERATOR CONTROL
1.95.5 01 STEERING COLUMN AND COVERING: NA
1.95.5 02 STEERING SYSTEM SLEEVES: NA
1.95.5/ A 01 POWER STEERING: NA
1.96.0 FOWARD/REVERSE & MULTI-PURPOSE LEVER
1.96.2 01 STABILIZER CONTROL (SIDE SHIFT – EU) – (CENTER PIVOT – NA)
1.96.2 02 STABILIZER CONTROL (CENTER PIVOT) – NA
1.96.2/01 PILOT CONTROL DIAGNOSTICS
1.96.7/04 CLOSING PINS AND PLUGS ROPS (CENTER PIVOT): NA
1.96.7/05 CAB / VARIOUS COMPONENTS (CENTER PIVOT): NA
1.96.7/06 CAB: VARIOUS COMPONENTS (CENTER PIVOT): NA
1.96.7/07 CLOSING PINS AND PLUGS ROPS (CENTER PIVOT): NA
1.98.0/01 INFORMATION SYMBOL DECALS (POWER SHUTTLE – POWER SHIFT) – NA
1.98.1 08 IDENTIFICATION MODEL: GUARD DECALS
1.98.1 09 MODEL IDENTIFICATION B90B / B90BLR – B959B / B95BLR – B100B / B100BLR
81.00 FRONT WHEELS (2WD) – NA
82.00 01 DRIVING WHEELS(4WD) – NA
83.00 01 REAR WHEELS – NA
095 STABILIZER CONTROL WITHOUT AUTO-UP (CENTER PIVOT)
096 STABILIZER CONTROL WITH AUTO-UP (CENTER PIVOT)
131 SINGLE BATTERY
175 AIR INTAKE CAP & PRE-CLEANER
176 AIR INTAKE CAP & PRE-CLEANER
201 SHOVEL AND REAR LIFTING HOOKS
284 REAR MIRROR (CAB) – NA
290 FRONT COUNTERWEIGHT: 2WS
291 FRONT COUNTERWEIGHT: 2WS
302 01 TWO-SECTION CONTROL VALVE FOR LOADER
302 02 LOADER ATTACHMENT 2-SECTION CONTROL VALVE: INTAKE SECTION
302 03 LOADER ATTACHMENT 2-SECTION CONTROL VALVE: BOOM SECTION
302 04 TWO-SECTION CONTROL VALVE FOR LOADER
321 DOUBLE BATTERY
331 01 TOWER ASSY 6 SECTIONS (CENTER PIVOT)
331 02 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 03 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 04 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 05 PILOT CONTROL VALVE SUPPORT, COMPLETE
TABLE OF CONTENTS
331 06 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331 07 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 08 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 09 PILOT CONTROL VALVE SUPPORT, COMPLETE
331/ A PROPORTIONAL CONTROL VALVE 6 SECTIONS
331/ B 01 BACKHOE CONTROL VALVE, 6 SECTIONS (CENTER PIVOT)
331/ B 02 BACKHOE CONTROL VALVE, INLET SECTION (CENTER PIVOT)
331/ B 03 BACKHOE CONTROL VALVE, BOOM SECTION (CENTER PIVOT)
331/ B 04 BACKHOE CONTROL VALVE, SWING SECTION (CENTER PIVOT)
331/ B 05 BACKHOE CONTROL VALVE, BUCKET SECTION (CENTER PIVOT)
331/ B 06 BACKHOE CONTROL VALVE, DIPPERSTICK SECTION (CENTER PIVOT)
331/ B 07 BACKHOE CONTROL VALVE, STABILIZER SECTION (CENTER PIVOT)
331/ B 08 BACKHOE CONTROL VALVE, BOOM SECTION (CENTER PIVOT)
331/ B 09 BACKHOE CONTROL VALVE, SWING SECTION (CENTER PIVOT)
331/ B 10 BACKHOE CONTROL VALVE, BUCKET SECTION (CENTER PIVOT)
331/ B 11 BACKHOE CONTROL VALVE, DIPPERSTICK SECTION (CENTER PIVOT)
331/ B 12 BACKHOE CONTROL VALVE, STABILIZER SECTION (CENTER PIVOT)
331/ C 01 PILOT VALVE OF HYDRAULIC CONTROL LEVER (RIGHT HAND)
331/ C 02 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
333 01 TOWER ASSY 7 SECTIONS (CENTER PIVOT)
333 02 TOWER ASSY FOR 7-SECTION PILOT CONTROL: CONTROL VALVE HYDRAULIC
SYSTEM, PROPORTIONAL VALVE
333 03 TOWER ASSY FOR 7-SECTION PILOT CONTROL (CENTER PIVOT): CONTROL
VALVE INSTALLATION
333 04 TOWER ASSY FOR 7-SECTION PILOT CONTROL (CENTER PIVOT): TELESCOPIC
CYLINDER SYSTEM
333 05 TOWER ASSY FOR 7-SECTION PILOT CONTROL (CENTER PIVOT): BUCKET
CYLINDER SYSTEM
333/ A PROPORTIONAL CONTROL VALVE 7 SECTIONS
333/ C 01 PILOT VALVE OF HYDRAULIC CONTROL LEVER (RIGHT HANDS) 7 SPOOLS
333/ C 02 PILOT VALVE OF HYDRAULIC CONTROL LEVER (RIGHT HANDS) 7 SPOOLS
333/01B 01 7 SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/01B 02 BACKHOE ATTACHMENT 7-SECTION CONTROL VALVE (CENTER PIVOT): NA:
TELESCOPIC CYLINDER
335 TOWER ASSY 7 SECTIONS (CENTER PIVOT)
336/01 01 TWO SECTION LOADER CONTROL VALVE (CENTER PIVOT) – NA
336/01 02 LOADER CONTROL VALVE, TWO SECTION, CAP & UNLOAD VALVE (CENTER
PIVOT) – NA
336/01 03 LOADER CONTROL VALVE, TWO SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT) – NA
336/01 04 LOADER CONTROL VALVE, TWO SECTION, BY-PASS KIT (CENTER PIVOT) – NA
336/01 05 LOADER CONTROL VALVE, TWO SECTION, UNLOAD KIT OR DUMP VALVE
(CENTER PIVOT) – NA
337 01 LOCKING VALVE ON LOADER ATTACHMENT TIPPING CYLINDERS
337 02 LOCK VALVE ON LOADER LIFT CYLINDERS
338 LOCK VALVE ON LOADER LIFT CYLINDERS
344 01 STABILIZER CONTROL VALVE, TWO SECTION (CENTER PIVOT) – NA
344 02 STABILIZER CONTROL VALVE, LH & RH SECTION (CENTER PIVOT) – NA
346 01 A/C HOUSING & FILTERS
346 02 A/C BLOWER & COILS
346 03 HEATER COIL HOSES
TABLE OF CONTENTS
346 04 A/C & HEATER CONTROL PANEL
346 05 A/C & HEATER CONSOLE DUCTS
347 01 HOUSING & FILTERS
347 02 HEATER BLOWER & COILS
347 03 HEATER COIL HOSES
347 04 A/C & HEATER CONTROL PANEL
347 05 A/C & HEATER CONSOLE DUCTS
347 06 CAB HEATING COATING PLUG
386 12″ (305MM) HD BACKHOE BUCKET WITH PIN TEETH – NA
387 18″ (457MM) HD BACKHOE BUCKET WITH PIN TEETH – NA
388 24″ (610MM) HD BACKHOE BUCKET WITH PIN TEETH – NA
389 30″ (762MM) HD BACKHOE BUCKET WITH PIN TEETH – NA
390 LOADER CONTROL VALVE, TWO SECTION, LEVER – NA
390/01 36″ (910MM) HD BACKHOE BUCKET WITH PIN TEETH – NA
391 LOCK VALVE FOR BUCKET 4X1 / 6X1
392 01 LOCKING VALVE ON BOOM CYLINDER AND BACKHOE ATTACHMENT
392 02 LOCKING VALVE ON CYLINDER AND BACKHOE ATTACHMENT
393 2 LEVER BACKHOE CONTROLS, LEVER, BOOT & DECALS – NA
394 01 4-LEVER BACKHOE ATTACHMENT CONTROLS, CONSOLE, LEVERS AND SQUARE
LEVER (CENTER PIVOT: SIDE SHIFT): CONTROL LEVERS
394 02 4-LEVER BACKHOE ATTACHMENT CONTROLS, UPPER TIE ROD ASSY (CENTER
PIVOT: SIDE SHIFT): UPPER TIE RODS
394 03 4-LEVER BACKHOE ATTACHMENT CONTROLS, LOWER TIE ROD ASSY (CENTER
PIVOT: SIDE SHIFT): LOWER TIE RODS
394/01 01 2-LEVER ISO BACKHOE ATTACHMENT CONTROLS, LEVERS, DUSTPROOF,
DECALS (CENTER PIVOT) – NA -CONTROL LEVERS
402 01 (4WD) FRONT AXLE, HOUSING, BUSHINGS & SUPPORTS – NA
402 02 (4WD) FRONT AXLE, SWIVEL HOUSING & STEERING CYLINDER – NA
402 03 (4WD) FRONT AXLE, HUBS – NA
402 04 (4WD) FRONT AXLE, RING GEAR & PINION ASSEMBLY – NA
402 05 (4WD) FRONT AXLE, DIFFERENTIAL – NA
402 06 FRONT AXLE 4WD, ARTICULATED AXLE SHAFT
416 SYSTEM HAMMER COMPONENTS (CAB – ROPS)
437 GLIDE RIDE VALVE,HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING
471 01 BUCKET 4X1 (1 M³) WITH BLADE “COMMON GREY”
471 02 4X1 BUCKET (1 M3) WITH “COMMON GREY” BLADE: BUCKET BREAKDOWN
471/01 HYDRAULIC CYLINDER (BUCKET 4X1-6X1)
472 01 BUCKET 4X1 (1 M³) WITH TINE “COMMON GREY”
472 02 4X1 BUCKET (1 M3) WITH “COMMON GREY” TEETH: BUCKET BREAKDOWN
473 01 BUCKET 6X1 (1 M³) WITH BLADE “COMMON GREY”
473 02 6X1 BUCKET (1 M3) WITH “COMMON GREY” BLADE: BUCKET BREAKDOWN
474 01 BUCKET 6X1 (1 M³) WITH TINE “COMMON GREY”
474 02 6X1 BUCKET (1 M3) WITH “COMMON GREY” TEETH: BUCKET BREAKDOWN
514 01 SHORT DIPPER
514 02 SHORT DIPPER
514 03 HYDRAULIC LIFTING CYLINDER
514 04 HYDRAULIC DITCHING CYLINDER
515/01 12″ (305MM) BACKHOE BUCKET WITH PIN TEETH – NA
516/01 18″ (457MM) BACKHOE BUCKET WITH PIN TEETH – NA
517/01 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH – NA
518/01 30″ (762MM) BACKHOE BUCKET WITH PIN TEETH – NA
TABLE OF CONTENTS
519/01 36″ (910MM) BACKHOE BUCKET WITH PIN TEETH – NA
520 (0.88 M³) BUCKET WITHOUT TINES
520/01 18″ (457MM) BACKHOE BUCKET WITH PIN TEETH (EXTRA HD) – NA
521 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH (EXTRA HD) – NA
522 (1 M³) BUCKET WITHOUT TINES
522/01 STANDARD (1 M³) BUCKET WITH FORKS
525 STANDARD (1 M³) BUCKET WITH FORKS AND REVERSIBLE BLADE
527 (0.88 M³) BUCKET AND EXTRA REVERSIBLE BLADE
535 STABILIZER FOOT GROUND (CENTER PIVOT)
536 STANDARD (1 M³) BUCKET WITH TINE
536/02 REVERSIBLE STABILIZER FOOT (CENTER PIVOT)
537 STANDARD (1 M³) BUCKET WITH EXTRA REVERSIBLE BLADE
548 DITCH CLEANING BUCKET
622 INTERNAL FAN – CAB
636 07 ENGINE VERSION: STARTER MOTOR
636 08 ACCESSORY ENGINE – ALTERNATOR
638 01 RADIATOR GUARDS
638 02 COOLANT RADIATOR, HYDRAULIC FLUID AND TRANSMISSION OIL
638 03 AFTER-COOLER COOLING PIPING
638 04 PARKEERREM (CABINE: ROPS)
638 05 ENGINE VERSION: SUPPORTS
638 06 ENGINE OUTFIT: FAN WITH VISCOUS JOINT: EU
638 07 ACCESSORY ENGINE – STARTER
638 08 ACCESSORY ENGINE: ALTERNATOR
639 01 RADIATOR GUARDS
639 02 COOLANT RADIATOR, HYDRAULIC FLUID AND TRANSMISSION OIL
639 03 AFTER-COOLER COOLING PIPING
639 04 PARKEERREM (CABINE: ROPS)
639 05 ENGINE VERSION: SUPPORTS
639 06 ENGINE OUTFIT: FAN WITH VISCOUS JOINT
639 07 ENGINE VERSION: STARTER MOTOR
639 08 ACCESSORY ENGINE
646 01 MACHINE PART AIR CONDITIONING SET
646 02 A/C COMPRESSOR ATTACHING GROUP
646 03 A/C COMPRESSOR
646 04 A/C FILTER & CONDENSER ATTACHING GROUP
650 STEERING COLUMN, FIXED & ADJUSTABLE
698 GLIDE RIDE VALVE,HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING &
ON/OFF SWITCH
699 HAND HAMMER SWITCH
700 01 4X1 AND 6X1 BUCKET ARM HYDRAULIC DUCTS (POWER SHIFT, POWER SHUTTLE)
700 02 4X1 AND 6X1 BUCKET MACHINE HYDRAULIC DUCTS (POWER SHIFT, POWER
SHUTTLE)
700 03 THREE-SECTION CONTROL VALVE FOR LOADER (POWER SHIFT , POWER
SHUTTLE)
721 01 TELESCOPIC DIPPER AT PEDAL CONTROL (CENTER PIVOT): CONTROL VALVE: NA
721 02
721 03 HED TELESCOPIC CONTORL VALVE, SECTION HOSES(CENTER PIVOT) – NA
721 04 TELESCOPIC DIPPER AT PEDAL CONTROL (CENTER PIVOT): TELESCOPIC
DIPPER SYSTEM: TELESCOPIC CYLINDER: NA
TABLE OF CONTENTS
721 05 TELESCOPIC DIPPER AT PEDAL CONTROL (CENTER PIVOT): TELESCOPIC
DIPPER SYSTEM: BUCKET CYLINDER: NA
721 06 TELESCOPIC DIPPER AT PEDAL CONTROL (CENTER PIVOT): NA
724/ A REAR HAMMER CONTROL VALVE
724/01 01 MACHINE HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/01 02 HAMMER ARM HYDRAULIC SYSTEM (CENTER PIVOT)
724/02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
725 HAMMER KIT FROM LIFTING ARM TO DEMOLITION ARM
725/01 01 4X1 AND 6X1 BUCKET ARM ASSY HYDRAULIC SYSTEM (POWER SHUTTLE): NA
725/01 02 4X1 AND 6X1 BUCKET MACHINE HYDRAULIC DUCT ASSY (POWER SHUTTLE): NA
725/01 03 LOADER CONTROL VALVE, THREE SECTION (CENTER PIVOT) – NA
725/01 04 LOADER CONTROL VALVE, THREE SECTION, CAP & UNLOAD VALVE (CENTER
PIVOT) – NA
725/01 05 LOADER CONTROL VALVE, THREE SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT) – NA
725/01 06 THREE-SECTION CONTROL VALVE FOR LOADER – BUCKET SECTION 4X1 –
6X1(CENTER PIVOT) – NA
727/01 HED FOOT PEDAL, CABLE & DECALS (CENTER PIVOT) – NA
728 01 HAND HAMMER SYSTEM: DELIVERY
728 02 HAND HAMMER SYSTEM: RETURN
728 03 MANUAL HAMMER VALVE
733 REAR MECHANICAL QUICK-COUPLING
734 FRONT MECHANICAL QUICK-COUPLING
758 ROTATING BEACON
787 FRONT CONSOLE WITHOUT SPEEDOMETER (POWER SHUTTLE, ROPS)
787/01 FRONT CONSOLE WITHOUT SPEEDOMETER (POWER SHUTTLE, CAB)
788 FRONT CONSOLE WITH SPEEDOMETER (ROPS)
788/01 FRONT CONSOLE WITH SPEEDOMETER (CAB) (POWER SHUTTLE)
789 SPEED SENSOR(P.SHUTTLE)
793 FRONT WORKING LIGHT – CAB
793/01 FRONT WORKING LIGHT (ROPS)
794 LAMPS & LIGHTS – CAB
794/01 LAMPS & LIGHTS (ROPS)
796 ANTITHEFT
803 FENDERS, FRONT
835 REAR MUDGUARD AND ROOF (ROPS: CAB): NA
851 CLOTH SEAT & ATTACHING HARDWARE – CABINE
851/01 01 CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
851/01 02 CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
851/01 03 CLOTH SEAT UPPER SUSPENSION PARTS
851/01 04 CLOTH SEAT LOWER SUSPENSION PARTS
855 AIR RIDE CLOTH SEAT & ATTACHING HARDWARE – CABINE
855/01 01 AIR RIDE CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
855/01 02 AIR RIDE CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
855/01 03 AIR RIDE CLOTH SEAT UPPER SUSPENSION PARTS
855/01 04 AIR RIDE CLOTH SEAT LOWER SUSPENSION PARTS
855/01 05 AIR RIDE CLOTH SEAT COMPRESSOR & TUBING
856 VINYL SEAT CUSHIONS, ARMRESTS & RELATED PARTS (ROPS)
856/01 01 VINYL SEAT WITH ARMRESTS & MOUNTING HARDWARE (ROPS)
856/01 02 VINYL SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT (ROPS)
856/01 03 VINYL SEAT UPPER SUSPENSION PARTS (ROPS)
TABLE OF CONTENTS
856/01 04 VINYL SEAT LOWER SUSPENSION PARTS (ROPS)
879 CAB RIGHT REAR MIRROR
888 GUARD AND DIPPER DECAL
900 01 LONG DIPPER: ASSY
900 02 BOOM – LONG DIPPER
900 03 LONG DIPPER
900 04 LONG/SHORT DIPPER – BUCKET MOTION
900 05 DIPPER: DIPPER SYSTEM, BOOM AND DIPPER CYLINDER
900 06 DIPPER: BUCKET CYLINDER HYDRAULIC SYSTEM
900 07 DIPPER: BOOM CYLINDER HYDRAULIC SYSTEM
900 08 DIPPER – HYDRAULIC SYSTEM
900 09 HYDRAULIC LIFTING CYLINDER – TELESCOPIC DIPPER LONG
900 10 HYDRAULIC DITCHING CYLINDER
900 11 HYDRAULIC BUCKET CYLINDER
901 01 LONG TELESCOPIC DIPPER: ASSY
901 02 TELESCOPIC DIPPER LONG
901 03 TELESCOPIC DIPPER – HYDRAULIC SYSTEM
901 04 LONG TELESCOPIC DIPPER: TELESCOPIC HYDRAULIC CYLINDER
902 01 SHORT TELESCOPIC DIPPER: ASSY
902 02 TELESCOPIC DIPPER SHORT
902 03 SHORT TELESCOPIC DIPPER: TELESCOPIC HYDRAULIC CYLINDER
990 TOOL KIT
993 01 PLATES – NA
993 02 PLATES – NA
995 COLD START

NEW HOLLAND B95BLR LOADER BACKHOE TIER 3 PARTS MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

  • This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
  • The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
  • Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...

🌟 Related Products

Discover more professional manuals for your equipment

-55% OFF
New Holland H8040 Self Propelled Windrower Shop Manual - PDF Download
-58% OFF
New Holland Super 66 Twine Tie Baler Operators Manual - PDF Download
-55% OFF
New Holland T4020 T4030 T4040 T4050 Tractor Operators Manual - PDF Download
-61% OFF
New Holland Bb940a Bb950a Bb960a Baler Operators Manual

New Holland Bb940a Bb950a Bb960a Baler Operators Manual

★★★★★ (217 reviews)
$89.00 $34.95
DOWNLOAD
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    🛒
    Recently Purchased
    🕒 verified order
