New Holland Backhoe Loader B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B Service Repair Manual 84428663A – PDF DOWNLOAD

Description

New Holland Backhoe Loader B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B Service Repair Manual

FILE DETAILS:

New Holland Backhoe Loader B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B Service Repair Manual

Language : English
Pages : 1197
Downloadable : YES
Format : PDF
Size : 108 MB
Part No : 84428663A

DESCRIPTION:

New Holland Backhoe Loader B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B Service Repair Manual

TO READER :

This manual has been printed for a skilful engineer to supply necessary technical information to carry out service operations on this machine. Read carefully this manual to collect correct information relevant to repair procedures.

REFERENCE:

Beyond this Service Manual, also refer to documents hereunder listed:

• Operator’s Manual
• Parts Catalogue

COMPLETE HANDBOOK FOR INSTRUCTIONS AND REPAIRS :

The complete Service Manual consists of two volumes:
LB90.B – LB95.B – LB110.B – LB115.B Service Manual “LOADER BACKHOE”
LB90.B – LB95.B – LB110.B – LB115.B Service Manual “Engine”

The Service Manuals for “Loader backhoe” and “Engine” contain the necessary technical information to carry out service and repair on machine and on engine, necessary tools to carry out those operations and information on service standard, on procedures for connection, disconnection, disassembly and assembly of parts.

TABLE OF CONTENTS:

New Holland Backhoe Loader B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B Service Repair Manual

SECTION 00 – SAFETY RULES
FOREWORD 4
SAFETY INSTRUCTIONS 6
PREVENTION OF FIRE OR EXPLOSIONS 8
PREVENTION OF BURNS 9
PRECAUTIONS FOR WASTE DISPOSAL 10
SECTION 01 – MAINTENANCE
SECTION 02 – TECHNICAL SPECIFICATIONS
MODELS 3
IDENTIFICATION OF MAIN COMPONENTS 4
TECHNICAL SPECIFICATIONS 7
DIESEL ENGINE 7
TRANSMISSION 10
AXLES 11
BRAKES 11
STEERING 12
HYDRAULIC SYSTEM 12
FRONT COUNTERWEIGHT 13
NOISE AND VIBRATION LEVELS 13
BUCKETS 13
TYRES 14
DIMENSIONS AND PERFORMANCE 15
DIMENSIONS – 2WS SIDESHIFT 15
DIMENSIONS – 2WS CENTER PIVOT 16
DIMENSIONS – 2WS TC – SIDESHIFT 17
DIMENSIONS – 4WS SIDESHIFT 18
DIMENSIONS – 4WS CENTER PIVOT 19
LOADER ATTACHMENT PERFORMANCE 20
PERFORMANCE OF LOADER ATTACHMENT WITH FORKS 30
BACKHOE ATTACHMENT PERFORMANCE 35
BACKHOE ATTACHMENT LIFTING CAPACITY 55
MAXIMUM LIFTING LOADS 61
LOADER ATTACHMENT MAXIMUM LIFTING LOAD TABLE 61
BACKHOE ATTACHMENT MAXIMUM LIFTING LOAD TABLE 62
SUPPLY SUMMARY TABLE 63
INDEX
SECTION 21 – TRANSMISSION
POWERSHUTTLE TRANSMISSION 3
TECHNICAL SPECIFICATIONS 4
CONTROLS 9
LUBRICATION 13
GREASING 16
REMOVAL FROM MACHINE 18
DISASSEMBLY AND ASSEMBLY 19
TROUBLESHOOTING 144
REPAIR TIMES 148
SPECIAL TOOLS 149
POWERSHIFT TRANSMISSION 150
TECHNICAL SPECIFICATIONS 150
CONTROLS 161
LUBRICATION 163
GREASING 165
REMOVAL FROM MACHINE 166
DISASSEMBLY AND ASSEMBLY 167
TROUBLESHOOTING 331
REPAIR TIMES 335
SPECIAL TOOLS 336
SECTION 25 – FRONT AXLES
2WD – 2WS FRONT AXLE 3
TECHNICAL SPECIFICATIONS 3
LUBRICATION AND GREASING 4
REMOVAL FROM MACHINE 6
DISASSEMBLY AND ASSEMBLY 7
TROUBLESHOOTING 7
4WD – 2WS FRONT AXLE 10
TECHNICAL SPECIFICATIONS 10
LUBRICATION AND GREASING 11
REMOVAL FROM MACHINE 13
DISASSEMBLY AND ASSEMBLY 14
TROUBLESHOOTING 57
SPECIAL TOOLS 61
4WS FRONT AXLE 62
TECHNICAL SPECIFICATIONS 62
LUBRICATION AND GREASING 63
REMOVAL FROM MACHINE 65
SECTION 27 – REAR AXLE
2WS REAR AXLE (B90B – B100B – B100BTC) 3
TECHNICAL SPECIFICATIONS 3
LUBRICATION AND GREASING 5
REMOVAL FROM MACHINE 7
INDEX
DISASSEMBLY AND ASSEMBLY 8
TROUBLESHOOTING 61
REPAIR TIMES 67
SPECIAL TOOLS 68
2WS REAR AXLE (B110B – B110BTC) 69
TECHNICAL SPECIFICATIONS 69
LUBRICATION AND GREASING 71
REMOVAL FROM MACHINE 73
DISASSEMBLY AND ASSEMBLY 74
TROUBLESHOOTING 127
REPAIR TIMES 133
SPECIAL TOOLS 134
4WS REAR AXLE (B115B) 135
TECHNICAL SPECIFICATIONS 135
LUBRICATION AND GREASING 138
REMOVAL FROM MACHINE 140
DISASSEMBLY AND ASSEMBLY 141
TROUBLESHOOTING 219
REPAIR TIMES 225
SPECIAL TOOLS 227
SECTION 33 – BRAKE SYSTEM
PARKING BRAKE 3
TECHNICAL SPECIFICATIONS 3
OPERATION 3
ADJUSTMENT 4
DISASSEMBLY AND ASSEMBLY 5
SERVICE BRAKE 14
TECHNICAL SPECIFICATIONS 14
OPERATION 14
SECTION 35 – HYDRAULIC SYSTEM
HYDRAULIC DIAGRAMS 3
HYDRAULIC DIAGRAM – 2WS SIDESHIFT MECHANICAL MODELS 3
HYDRAULIC DIAGRAM – 2WS SIDESHIFT PILOT MODELS 5
HYDRAULIC DIAGRAM – 2WS CENTER PIVOT PILOT MODELS 7
HYDRAULIC DIAGRAM – 4WS SIDESHIFT MECHANICAL MODELS 9
HYDRAULIC DIAGRAM – 4WS SIDESHIFT PILOT MODELS 11
HYDRAULIC DIAGRAM – 4WS CENTER PIVOT PILOT MODELS 13
HYDRAULIC PUMP 15
HYDRAULIC FIXED-FLOW-RATE GEAR PUMP 15
HYDRAULIC VARIABLE-FLOW-RATE PISTON PUMP 26
CONTROL VALVES 40
LOADER CONTROL VALVE 49
BACKHOE ATTACHMENT CONTROL VALVE 53
RELIEF VALVES 65
INDEX
BACKHOE ATTACHMENT CONTROL VALVE PILOT SOLENOID VALVE 74
ACCUMULATOR “GLIDE RIDE” PARKER 77
TECHNICAL SPECIFICATIONS 77
MAINTENANCE 77
SAFETY 77
CHECKING AND ADJUSTING THE PRECHARGE PRESSURE 78
HYDRAULIC SWING SYSTEM 80
OPERATION 80
HYDRAULIC CYLINDERS 83
LOADER ATTACHMENT BOOM CYLINDER 84
LOADER BUCKET CYLINDER 91
4X1 LOADER BUCKET CYLINDER 97
BACKHOE BOOM CYLINDER 100
BACKHOE ATTACHMENT DIPPER CYLINDER 104
BACKHOE BUCKET CYLINDER 108
TELESCOPIC CYLINDER 112
STABILIZER CYLINDER – CENTER PIVOT 116
STABILIZER CYLINDER – SIDESHIFT 120
SWING CYLINDER 124
BACKHOE ATTACHMENT LOCK CYLINDER – SIDESHIFT 128
SPECIAL TOOLS 129
HYDRAULIC CONTROL LEVERS 130
TECHNICAL SPECIFICATIONS 130
CONTROLS AND OPERATION 131
COMPONENTS 132
DISASSEMBLY AND ASSEMBLY 134
CONTROL LEVER VALVE 137
TROUBLESHOOTING 139
PRELIMINARY CHECKS 139
TROUBLESHOOTING (WITH “REXROTH” CONTROL VALVES) 140
SWING 142
HYDRAULIC PUMP 143
SECTION 39 – CHASSIS
DESCRIPTION 3
REMOVAL AND INSTALLATION OF COMPONENTS 6
COMPONENTS WITHIN THE CHASSIS 6
COMPONENTS OF THE LOWER PART OF THE CHASSIS 7
COMPONENTS ATTACHED OUTSIDE THE CHASSIS 11
COMPONENTS OF THE UPPER PART 12
SECTION 41 – STEERING SYSTEM
DESCRIPTION 3
2WS STEERING SYSTEM 4
4WS STEERING SYSTEM 7
INDEX
POWER STEERING 11
TECHNICAL SPECIFICATIONS 11
COMPONENTS 13
DISASSEMBLY 15
ASSEMBLY 18
SECTION 50 – CAB HEATING AND AIR CONDITIONING
TECHNICAL SPECIFICATIONS 3
GENERAL 3
CAB HEATING 5
CONTROLS 5
OPERATION 6
OVERHAUL 9
TROUBLESHOOTING 11
AIR CONDITIONING 12
PRINCIPLES OF AIR CONDITIONING 12
CONTROLS 17
OPERATION 18
TROUBLESHOOTING AND TESTING 25
FLUSHING THE SYSTEM 43
DRAINING THE SYSTEM 45
CHARGING THE SYSTEM 46
OVERHAUL 47
COMPRESSOR 52
TECHNICAL SPECIFICATIONS 52
REMOVAL AND INSTALLATION 53
DISASSEMBLY AND ASSEMBLY 56
TROUBLESHOOTING 65
SECTION 55 – ELECTRIC SYSTEM
ELECTRIC DIAGRAMS 3
ELECTRIC DIAGRAMS – POWERSHUTTLE ROPS (B90B) 3
ELECTRIC DIAGRAMS – POWERSHUTTLE CAB (B90B) 19
ELECTRIC DIAGRAMS – POWERSHUTTLE CAB (B100B – B100BTC – B110B – B110BTC) 36
ELECTRIC DIAGRAMS – POWERSHIFT CAB (B110B – B110BTC) 52
ELECTRIC DIAGRAMS – 4WS POWERSHIFT CAB (B115B) 70
CONTROLS AND INSTRUMENTS 88
FRONT INSTRUMENT PANEL 88
SIDE INSTRUMENT CLUSTER PANEL (B90B) 91
SIDE INSTRUMENT CLUSTER PANEL (B100B – B100BTC – B110B – B110BTC – B115B) 93
SIDE INSTRUMENT CLUSTER (B90B) 95
SIDE INSTRUMENT CLUSTER (B100B – B100BTC – B110B – B110BTC – B115B) 97
ANTI-START SYSTEM 99
DIAGNOSTIC DISPLAY (B100B – B100BTC – B110B – B110BTC – B115B) 100
SYMBOLS 102
SETUP MENU 103
INDEX
PROCEDURE ABOUT SELF TEST 104
ON BOARD ERROR CODE RETRIEVAL 105
BACKLIGHTING AND DIMMING 106
WORK HOURS 107
OPERATION 108
WARNING SYSTEM 112
MAINTENANCE 113
WARNING MESSAGES 114
STARTING SYSTEM 120
OPERATION 120
STARTER MOTOR 123
TROUBLESHOOTING 128
ALTERNATOR 130
TECHNICAL SPECIFICATIONS 130
OPERATION 130
COMPONENTS 132
REMOVAL 133
PRELIMINARY CHECKS AND TESTS 134
TROUBLESHOOTING 143
BATTERY 144
TECHNICAL SPECIFICATIONS 144
OPERATION 144
REPLACEMENT 145
CHARGE AND ELECTROLYTE LEVEL CHECK 146
CONNECTING A BOOSTER BATTERY 147
BATTERY MASTER SWITCH 147
TROUBLESHOOTING 148
SECTION 82 – LOADER
LOADER ATTACHMENT CONTROLS 4
LOADER ATTACHMENT OPERATION 4
4×1 LOADER BUCKET CONTROL (Optional) 7
LOADER ATTACHMENT CONTROL LOCK (Specific to certain countries) 8
LOADER BUCKET SELF-LEVELLING 9
LOADER ATTACHMENT SAFETY STRUT 12
LOADER ATTACHMENT SAFETY STRUT (B90B – B100B – B110B) 12
LOADER ATTACHMENT SAFETY STRUT (B100BTC – B110BTC – B115B) 14
REMOVAL AND INSTALLATION OF LOADER BUCKET 15
LOADER BUCKET (B90B – B100B – B110B) 15
LOADER BUCKET (B100BTC – B110BTC – B115B) 16
LOADER BUCKET WITH FORKS (Optional) 17
BUCKET TEETH REPLACEMENT 18
LOADER REMOVAL 19
LOADER ATTACHMENT (B90B – B100B – B110B) 19
LOADER ATTACHMENT (B100BTC – B110BTC – B115B) 21
INDEX
SECTION 84 – BACKHOE
DESCRIPTION AND OPERATION 3
BACKHOE ATTACHMENT CONTROLS 6
BACKHOE ATTACHMENT MECHANICAL CONTROLS 7
BACKHOE ATTACHMENT HYDRAULIC CONTROLS 17
BACKHOE ATTACHMENT SIDESHIFT (Sideshift version) 23
BACKHOE ATTACHMENT DISASSEMBLY 25
CENTER PIVOT BACKHOE ATTACHMENT DISASSEMBLY 25
SIDESHIFT BACKHOE ATTACHMENT DISASSEMBLY 28
BACKHOE BUCKET REPLACEMENT 30
BUCKET TEETH REPLACEMENT 31
DIPPER REMOVE 32
TELESCOPIC DIPPER REVISION 35
OVERHAUL 35
BACKHOE ATTACHMENT HYDRAULIC HANDLING 38
CONTROLS 38
HYDRAULIC DIAGRAM 38
DISASSEMBLY AND ASSEMBLY

NEW HOLLAND BACKHOE LOADER B90B B90BLR B100B B100BLR B100BTC B110B B110BTC B115B SERVICE REPAIR MANUAL 84428663A – PDF DOWNLOAD:

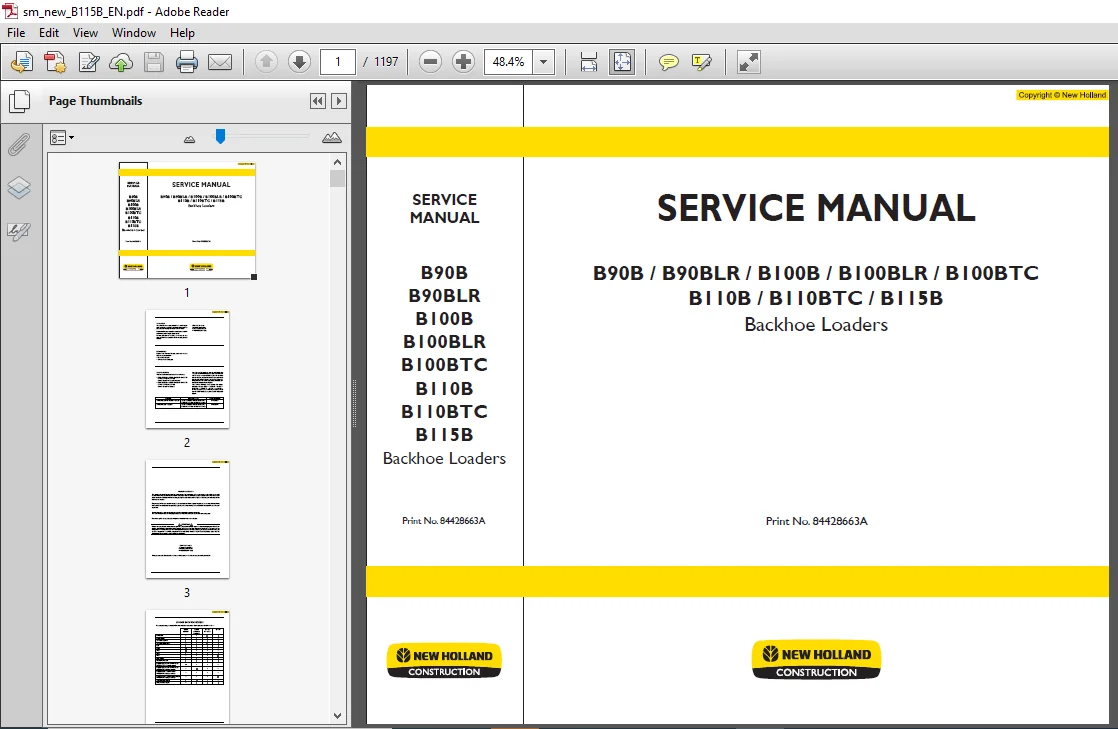

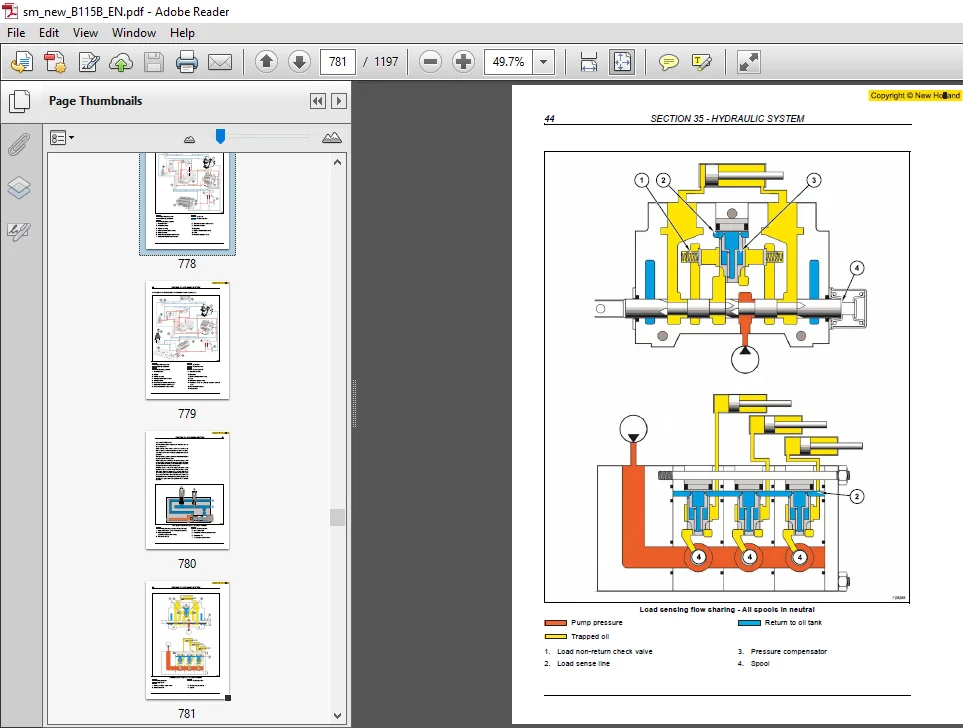

IMAGES PREVIEW OF THE MANUAL:
