New Holland Backhoe loader B95 B95TC B95LR B110 B115 Service Manual 60367230NAR0 – PDF DOWNLOAD

Description

New Holland Backhoe loader B95 B95TC B95LR B110 B115 Service Manual

FILE DETAILS:

New Holland Backhoe loader B95 B95TC B95LR B110 B115 Service Manual

Size: 261 MB
Format: PDF
Language: English
Number of Pages: 1067 pages
Brand: New Holland
Type of document: Service Manual
Model: Backhoe loader B95 B95TC B95LR B110 B115
Part No: 60367230NAR0

DESCRIPTION:

New Holland Backhoe loader B95 B95TC B95LR B110 B115 Service Manual

Carefully follow specified repair and maintenance procedures. 1′ Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get hold into moving parts. We advise to use approved safety clothing such as anti-slipping footwear, gloves, safety goggles, helmets. etc. 0 Never carry out any repair on the machine if some- one is sitting on the operator‘s seat, except if they are certified operators to assist in the operation to be carried out.

• Never operate the machine or use attachments from a place other than sitting at the operator‘s seat ‘ Never carry out any operation on the machine when the engine IS running, except when specifically indicated. – Stop the engine and ensure that all pressure is relieved from hydraulic Circuits before removing caps, covers. valves. etc.
• All repair and maintenance operations should be carried out WiIh the greatest care and attention. 1 Service stairs and platforms used in a workshop or in the field should be built in compliance with the safety rules in force ‘ Disconnect the batteries and label all controls to warn that the Machine is being serviced. Block the machine and all equipment which should be raised.
• Never check or fill fuel tanks and accumulator bat- teries. nor use starting liquid if you are smoking or near open flames as such fluids are flammable. – Brakes are inoperative when they are manually re- leased for maintenance purposes.
• In such cases. the machine should be kept constantly under con- trol using blocks or similar devices – The fuel filling gun should remain always in contact with the filler neck Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity buildup. – Use exclusively specified towing points for towing the machine. Connect parts carefully. Ensure that foreseen pins andlor locks are steadily fixed before applying traction. Do not stop near towing bars, cables or chains working under load. ‘ To transfer a failed machine.
• use a trailer or a low loading platform trolley if available. ‘ To load and unload the machine from the transportation mean, select a flat area providing a firm sup. port to the trailer or truck wheels. Firmly tie the machine to the truck or trailer platform and block wheels as required by the forwarder.
• For electrical heaters, battery-chargers and similar equipment use exclusive auxiliary power supplies with a efficient ground to avoid electrical shock hazard. ° Always use lifting equipment and similar of appropriate capacity to lift or move heavy components. – Pay special attention to bystanders. – Never pour gasoline or desei oil into open, wide and low containers. – Never use gasoline, diesel oil or other flammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents. – Wear protection goggles with side guards when cleaning parts using compressed air. ‘ Do not exceed a pressure of 2.1 bar. in accordance with local regulations.
• – Do not run the engine in a closed buriding without proper ventilation. – Do not smoke, use open flames, cause sparks in the nearby area when filiirg fuel or handling highly flammable liquids. – Do not use flames as light sources when working on a machine or checking for leaks.
• Move with caution when working under a Machine. and also on or near a Machine. Wear proper safety accessories: helmets, goggles and spezial footwear. ‘ During checks which should be carried outwith the engine running. ask an assistant to sit at the operator’s seat and keep the service technician under visual control at any moment. in case of operations outside the workshop, drive the machine to a flat area and block it. if working on an incline cannot be avoided, first block the Ma- chine carefully. Move it to a flat area as soon as possible with a certain extent of safety.
• Ruined or plied cables and chains are unreliable. Do not use them for lifting or trailing. Always handle hem wearing gloves 0‘ proper thickness. – Chains should always be safely fastened. Ensure that fastening device is st‘ong enough to hold the load foreseen. No persons should stop near the fastening point, trailing chains or cables. – The working area should be always kept CLEAN and DRY. immediately clean any spillage of water or oil.
• Do not pile up grease or oil soaked rags, as they constitute a great fire hazard. Always place them into a metal container. Before starting the Machine or its attachments, check, adjust and block the op. erator‘s seat. Also ensure that there are no per- sons within the Machine or attachment operating range. ‘ Do not keep in your pockets any object which might fall unobserved into the Machine’s inner compartments.

TABLE OF CONTENTS:

New Holland Backhoe loader B95 B95TC B95LR B110 B115 Service Manual

• Section 00 – Safety Precautions
• Section 01 – Maintenance
• Section 02 – Technical Specifications
• Section 17 – Torque Converters
• Section 21 – Transmission
• Section 25 – Front Axles
• Section 27 – Rear Axle
• Section 33 – Brakes System
• Section 35 – Hydraulic System
• Section 39 – Chassis
• Section 41 – Steering System
• Section 50 – Cab Heating and Air Conditioning
• Section 55 – Electrical System
• Section 82 – Loader
• Section 84 – Backhoe

NEW HOLLAND BACKHOE LOADER B95 B95TC B95LR B110 B115 SERVICE MANUAL 60367230NAR0 – PDF DOWNLOAD:

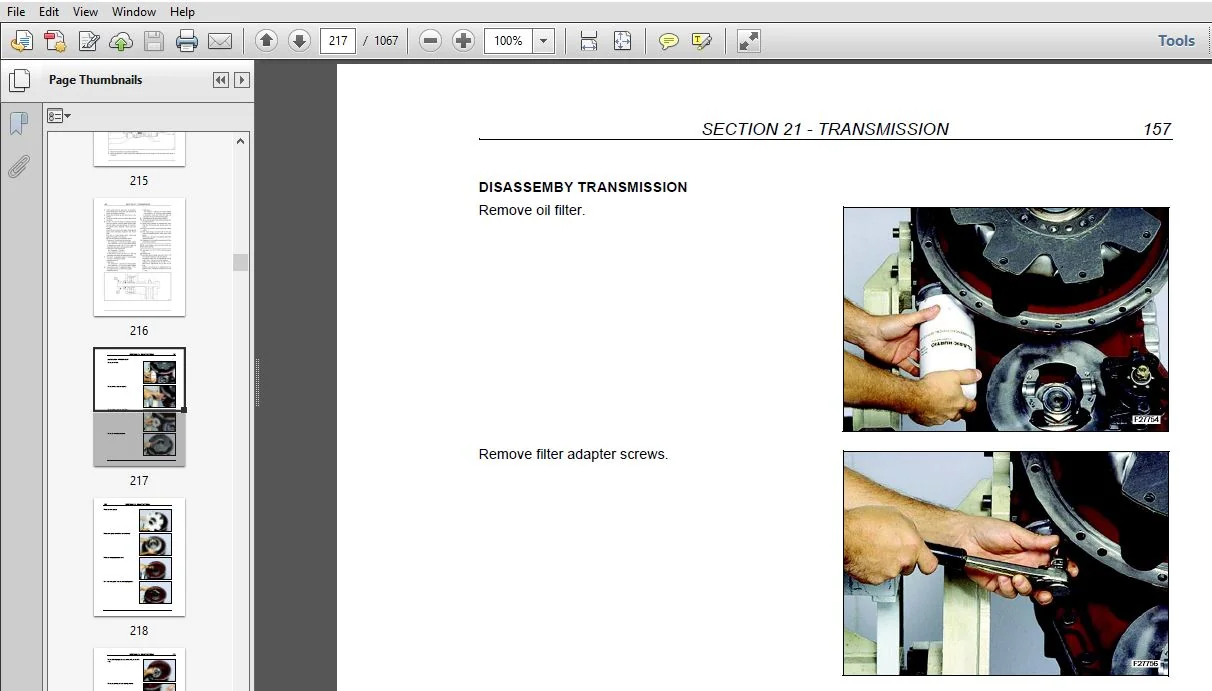

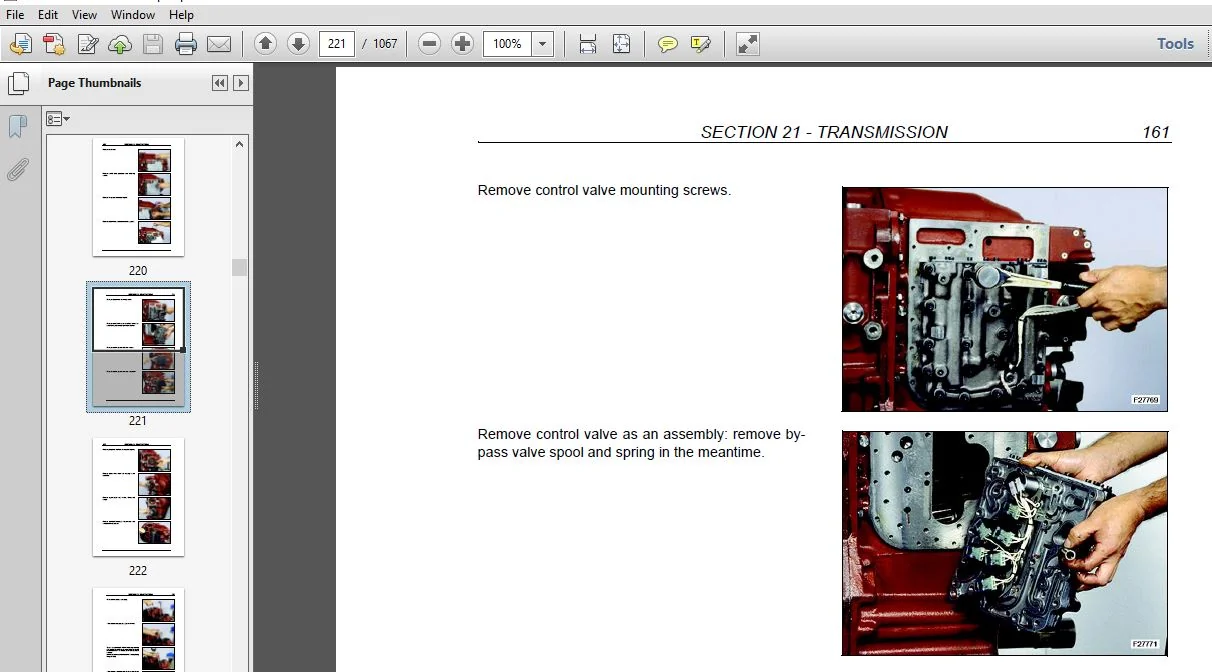

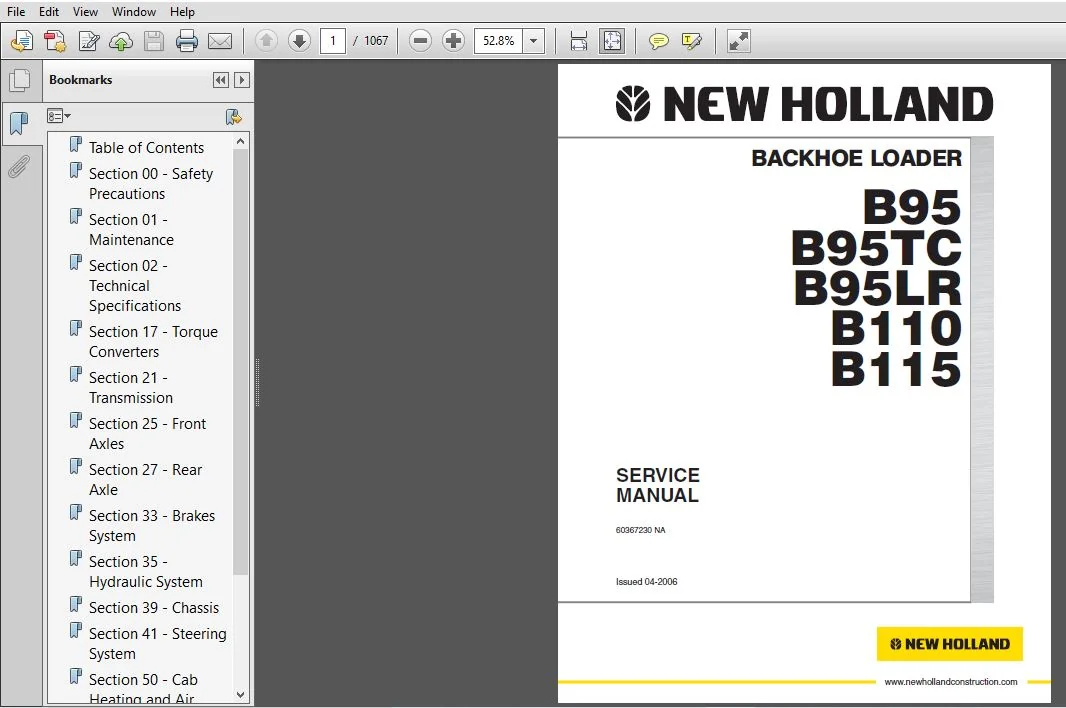

IMAGES PREVIEW OF THE MANUAL:
