New Holland Boomer 40D CVT 45D CVT 50D CVT Tier 3 Compact Tractor Service Manual 47975091 – DOWNLOAD

Description

New Holland Boomer 40D CVT 45D CVT 50D CVT Tier 3 Compact Tractor Service Manual

FILE DETAILS:

New Holland Boomer 40D CVT 45D CVT 50D CVT Tier 3 Compact Tractor Service Manual

Format: PDF
Language: English
Pages: 1885
Number: 47975091
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

DESCRIPTION:

New Holland Boomer 40D CVT 45D CVT 50D CVT Tier 3 Compact Tractor Service Manual

FOREWORD:

• This repair manual provides the technical information needed to properly service the NEW HOLLAND Boomer 40D, Boomer 45D, and Boomer 50D CVT (Constant Velocity Transmission) model tractors. Use this manual in conjunction with the operator’s manual for complete operation, adjustment, and maintenance information.
• On NEW HOLLAND equipment, left and right are determined by standing behind the unit, looking in the direction of travel.

SAFETY RULES:

• A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so.

THE TRACTOR :

• 1. Read the Operator’s Manual carefully before using the tractor. Lack of operating knowledge can lead to accidents.
• 2. Use an approved roll bar and seat belt for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar and seat belt, see your New Holland Dealer.
• 3. Always use the seat belt. The only instancewhen the seat belt should not be used is if the roll bar has been removed from the tractor.
• 4. If a front end loader is to be installed, always use a FOPS (Falling Object Protective Structure) canopy to avoid injury from falling objects.
• 5. Use the handholds and step plates when getting on and off the tractor to prevent falls. Keep steps and platform cleared of mud and debris.
• 6. Do not permit anyone but the operator to ride on the tractor. There is no safe place for extra riders.
• 7. Keep all safety decals clean of dirt and grime, and replace all missing, illegible, or damaged safety decals. See the list of decals in the Decal section of this manual.

SERVICING THE TRACTOR:

• 1. The cooling system operates under pressure which is controlled by the radiator cap. It is dangerous to remove the cap while the system is hot. Always turn the cap slowly to the first stop and allow pressure to escape before removing the cap entirely.
• 2. Keep any type of open flame away from the tractor and do not smoke while refueling.Wait for the engine to cool before refueling.
• 3. Keep the tractor and equipment, particularly brakes and steering, maintained in a reliable and satisfactory condition to ensure your safety and comply with legal requirements.
• 4. Keep open flame or cold weather starting aids away from the battery to prevent fires or explosions. Use jumper cables according to instructions to prevent sparks which could cause explosion. 5. Stop the engine before performing any service on the tractor.

TABLE OF CONTENTS:

New Holland Boomer 40D CVT 45D CVT 50D CVT Tier 3 Compact Tractor Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
[10101] Cylinder heads 102
[10102] Pan and covers 103
[10103] Crankshaft and flywheel104
[10105] Connecting rods and pistons 105
[10106] Valve drive and gears 106
[10110] Balancer and damper 107
[10114] Pump drives 108
[10218] Fuel injection system 109
[10254] Intake and exhaust manifolds and muffler 1010
[10304] Engine lubrication system 1011
[10400] Engine cooling system1012
[10414] Fan and drive 1013
Transmission 21
[21504] Continuously Variable Transmission (CVT) 211
Four-Wheel Drive (4WD) system 23
[23101] Mechanical control231
Front axle system 25
[25100] Powered front axle251
[25102] Front bevel gear set and differential252
[25310] Final drives 253
Rear axle system 27
[27100] Powered rear axle271
[27106] Rear bevel gear set and differential 272
47975091_ 06/07/2016
Power Take-Off (PTO) 31
[31104] Rear electro-hydraulic control 311
[31110] One-speed rear Power Take-Off (PTO) 312
[31120] Central Power Take-Off (PTO)313
Brakes and controls 33
[33110] Parking brake or parking lock 331
[33120] Mechanical service brakes 332
Hydraulic systems 35
[35000] Hydraulic systems351
[35104] Fixed displacement pump 352
[35204] Remote control valves 353
[35300] Reservoir, cooler, and filters 354
Steering 41
[41200] Hydraulic control components411
[41206] Pump 412
[41216] Cylinders 413
Cab climate control 50
[50100] Heating501
[50104] Ventilation 502
[50200] Air conditioning 503
Electrical systems 55
[55000] Electrical system 551
[55010] Fuel injection system 552
[55024] Transmission control system 553
[55100] Harnesses and connectors 554
[55201] Engine starting system 555
[55301] Alternator 556
[55302] Battery557
47975091_ 06/07/2016
[55404] External lighting 558
[55408] Warning indicators, alarms, and instruments 559
[55518] Wiper and washer system 5510
[55640] Electronic modules 5511
[55DTC] FAULT CODES5512
Platform, cab, bodywork, and decals 90
[90100] Engine hood and panels901
[90116] Fenders and guards 902
[90124] Pneumatically-adjusted operator seat 903
[90150] Cab 904
[90151] Cab interior 905
[90154] Cab doors and hatches 906

NEW HOLLAND BOOMER 40D CVT 45D CVT 50D CVT TIER 3 COMPACT TRACTOR SERVICE MANUAL 47975091 – DOWNLOAD:

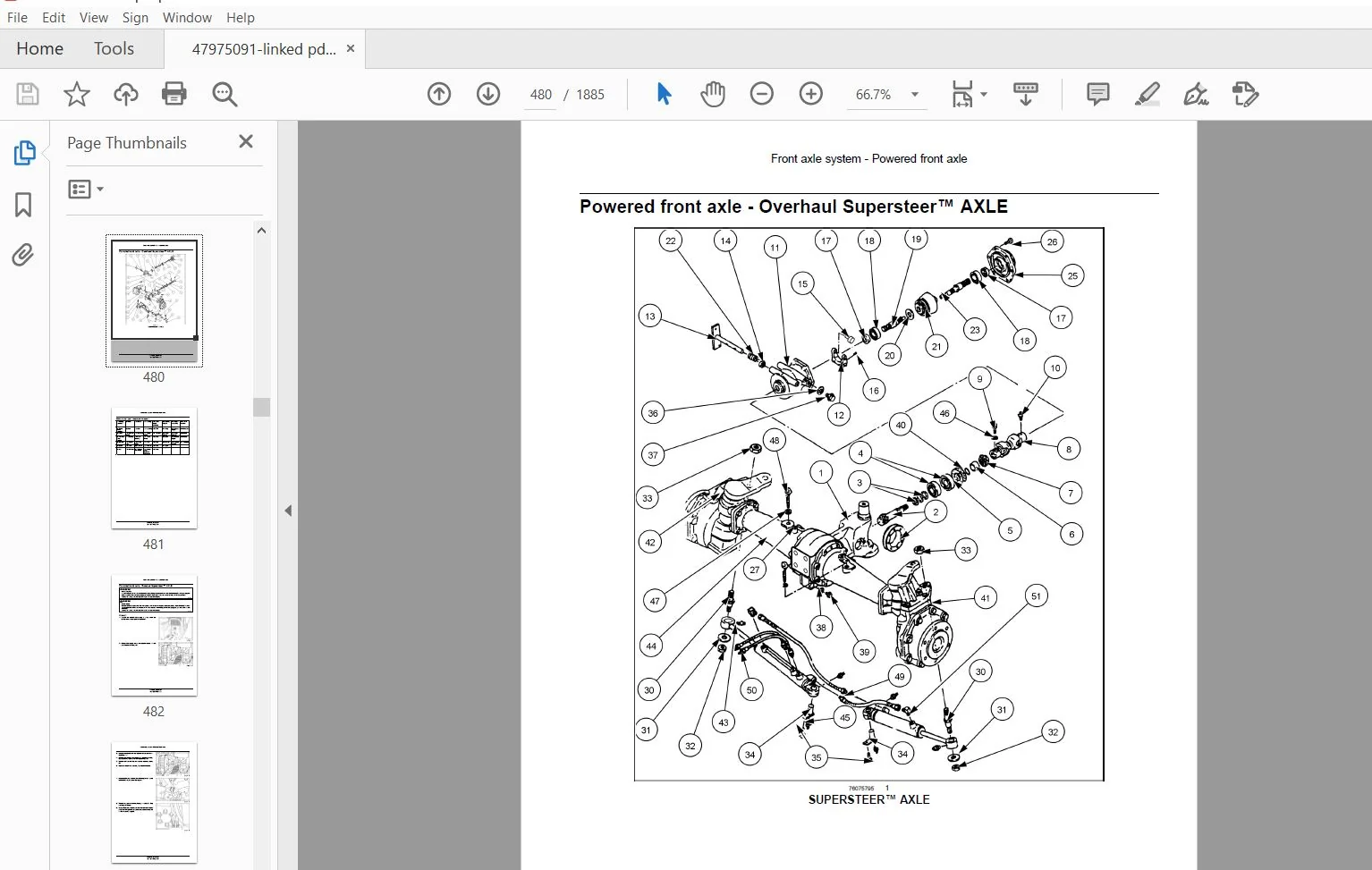

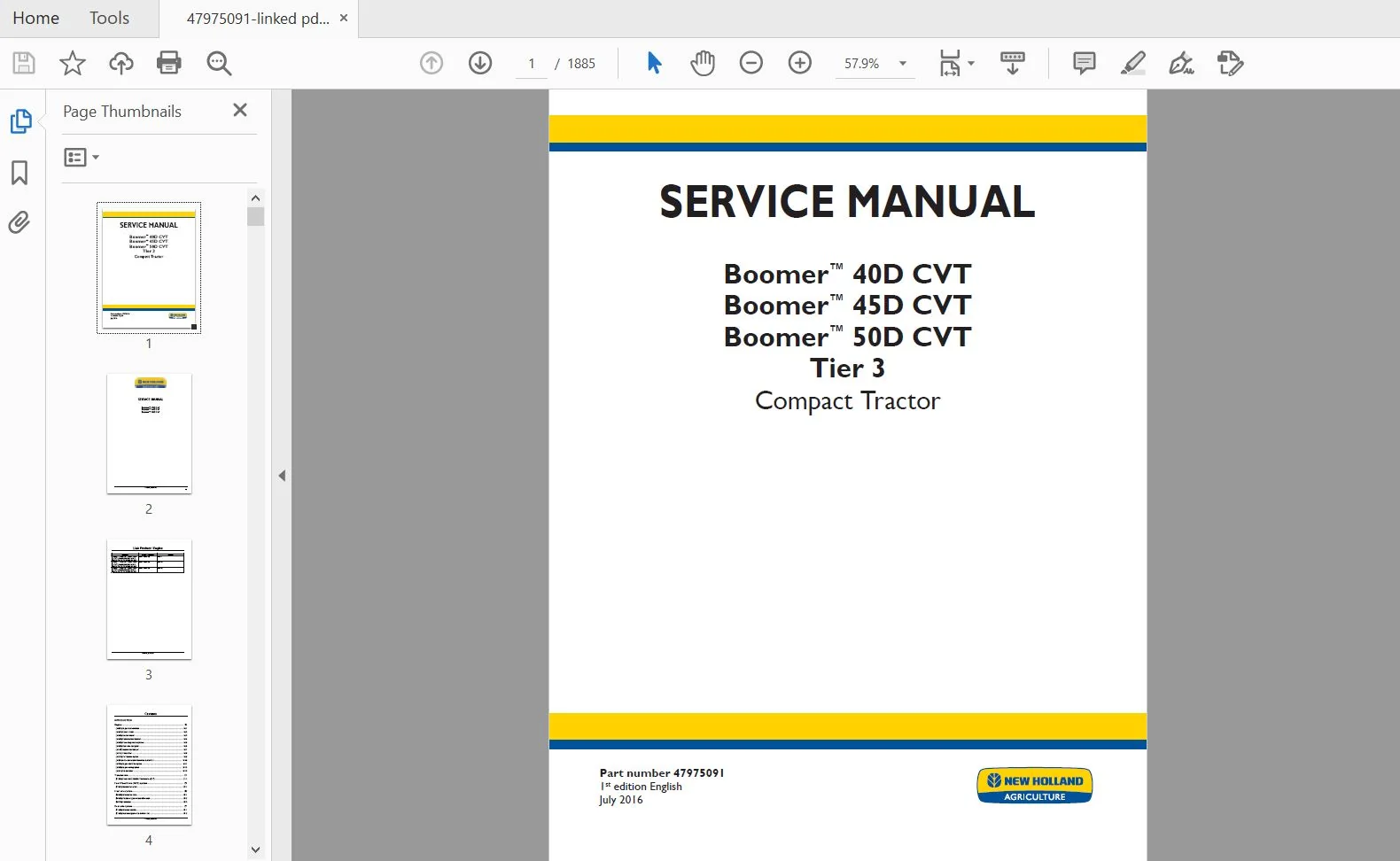

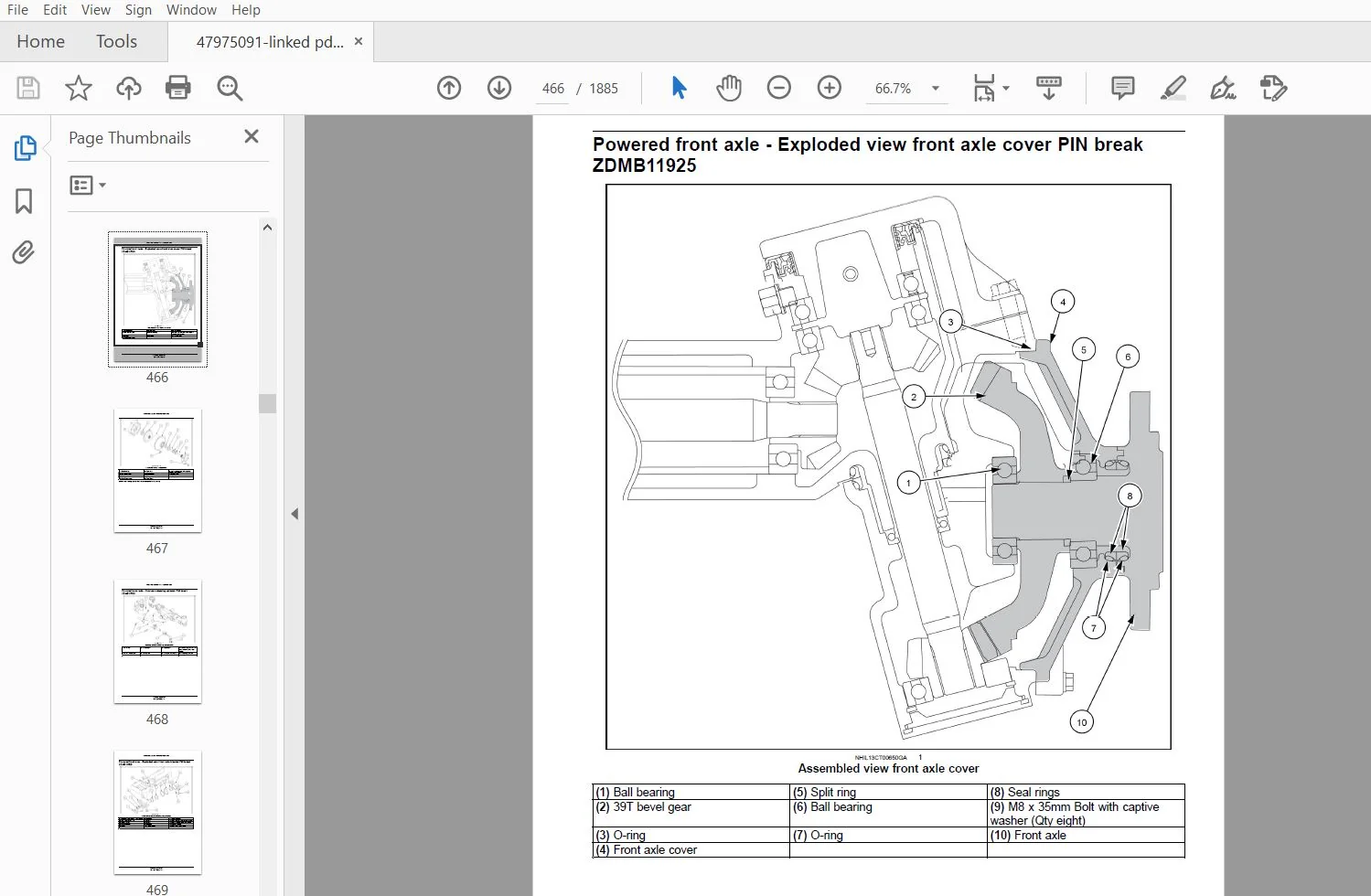

IMAGES PREVIEW OF THE MANUAL:
