New Holland Braud SB65 Service Repair Manual (6048228100) New Holland Braud SB65 – PDF Download

Description

New Holland Braud SB65 Service Repair Manual (6048228100) New Holland Braud SB65

FILE DETAILS:

New Holland Braud SB65 Service Repair Manual (6048228100) New Holland Braud SB65

• Item Number:6048228100
• Description:SB65 GRAPE HARVESTER
• Language:English
• Type:Service Manual
• Model:SB65

NEW HOLLAND BRAUD SB65 SERVICE REPAIR MANUAL (6048228100) NEW HOLLAND BRAUD SB65 – PDF DOWNLOAD:

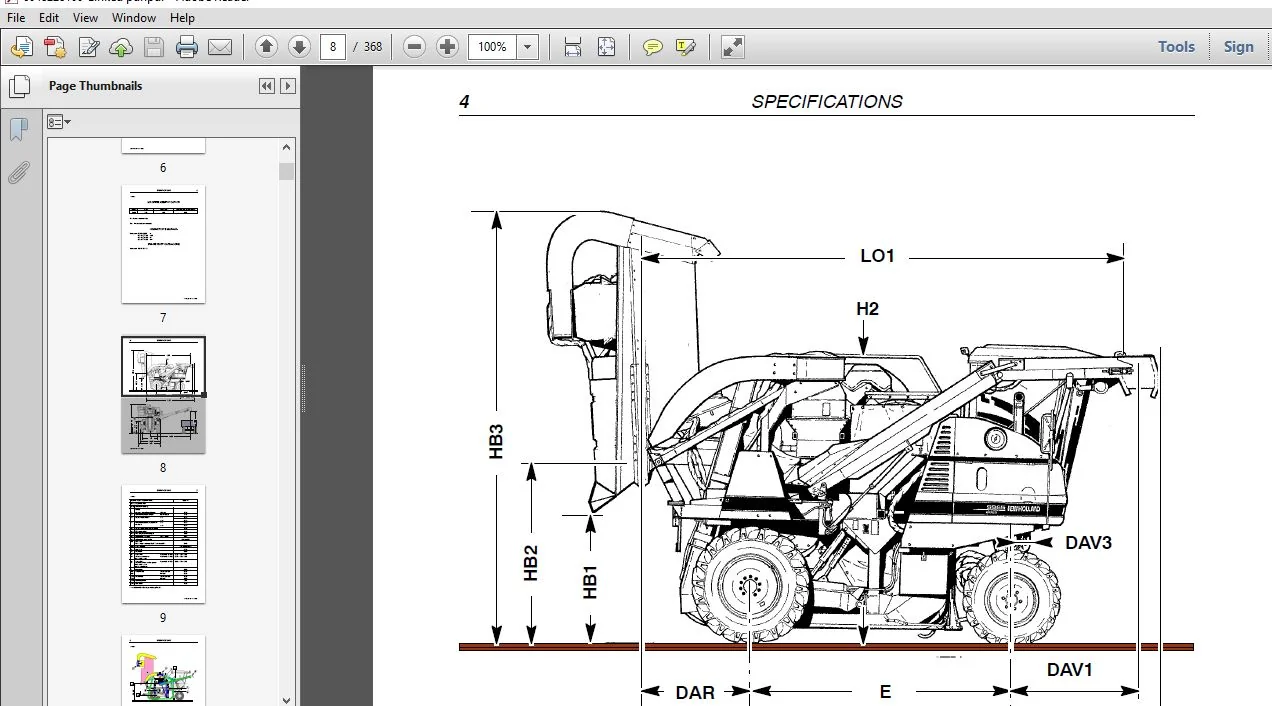

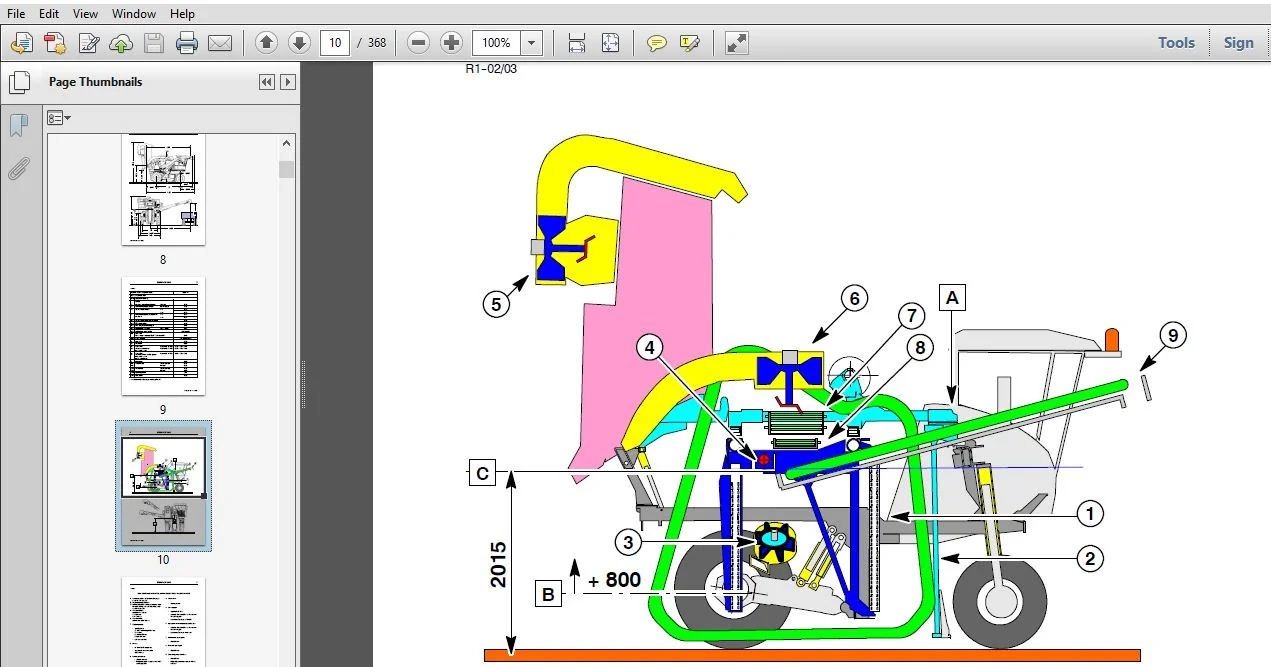

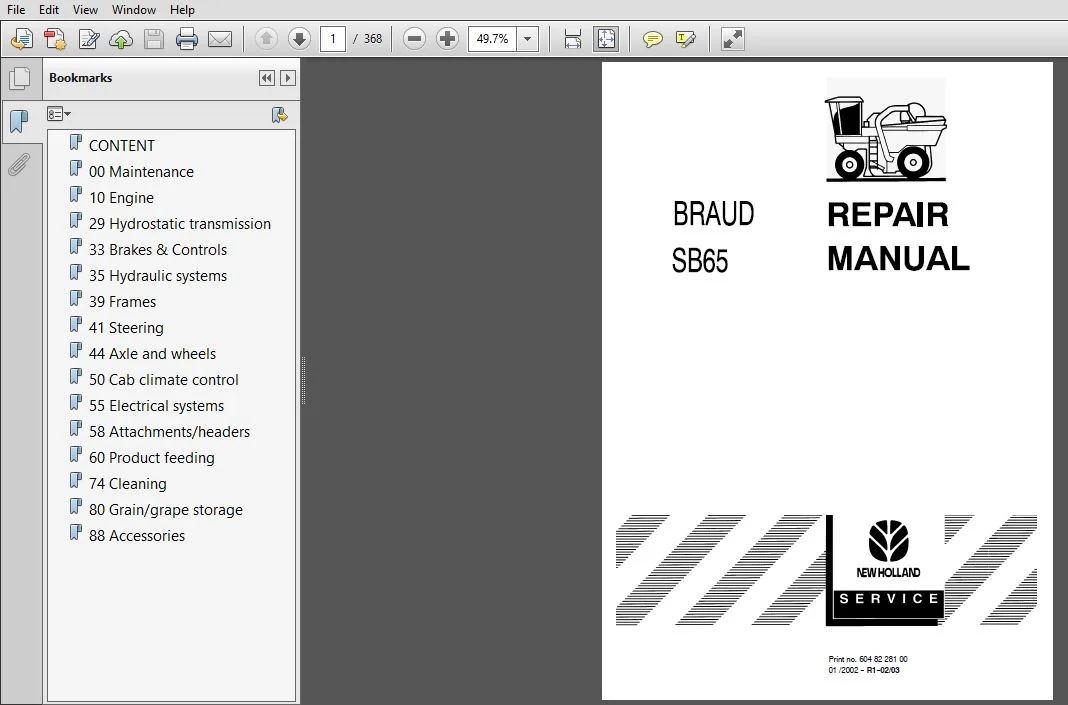

SCREENSHOTS OF THE MANUAL:

SAMPLE PAGE FROM THE MANUAL:

New Holland Braud SB65 Service Repair Manual (6048228100) New Holland Braud SB65

• After entering the washing area, lower the machine to 10 cm from the ground and tilt the containers fully. Make sure the inching lever is in neutral, engage the hand brake, stop the thermal engine, get off the tractor and position the hopper safety stops.
• Place the ladder at the rear of the machine and climb onto the rear arch. Using the hook, pull off any vine shoots built up or sticking to and around the plastic safety cover. — Shift the ladder and lay it against the pipe where the side plates are fastened, so as to release the elastics holding the plates and make the residues behind fall down.
• Make sure the plate upper part folds correctly against the lower one, to prevent it from being trapped in the hoppers during the tilting.
• This operation must be carried out on both machine sides. — Remove the ladder and the hopper stops. — Detach the elastics from the rear sealing plates and remove any debris trapped behind. — Remove any plastic plugs sealing the lower rear part of the norias.
• Climb onto the driver’s seat and operate the engine at medium speed, lower the hoppers, engage the extractors and conveyors, then place the norias in the washing position. — Get off from the tractor, leaving the harvesting machine working parts in operation.
• CAUTION: this is anyway a departure fromthe general safety requirements specified in the manual. — Open the water supply valve, pick up the hose without the nozzle and climb onto the harvesting machine operating platform located behind the driving position.
• From here, thoroughly wash the top of the machine, the conveyors, the hopper levelling augers, norias, etc. for about 10 minutes. — Get off the machine and, starting from the ground, clean the inside of the tunnel from the front of the harvesting machine: S plates, shaking frame, shakers; S then, inject water into the front LH and RH baffles through the holes provided.
• Now go to the back of the machine, remove the saloon doors and clean the rear part of the harvesting machine tunnel: S shaker frame assembly, paying special attention to the shaker link rods. S the plates and the lower sealing sheets.
• Inject water through the side openings in the conveyor housings. — Spray a lot of water in the hoods of the lower extractors, remaining at a sufficient distance from the stalk choppers.

TABLE OF CONTENTS:

New Holland Braud SB65 Service Repair Manual (6048228100) New Holland Braud SB65

00 Maintenance
05 Machine completion and equipment
10 Engine
14 Live PTO
29 Hydrostatic transmission
33 Brakes & Controls
35 Hydraulic systems
36 Pneumatic systems
37 Towing hooks and ballasting
39 Frames
41 Steering
44 Axle and wheels
50 Cab climate control
55 Electrical systems
58 Attachments/headers
60 Product feeding
74 Cleaning
80 Grain/grape storage
88 Accessories
90 Platform, cab, bodywork and decals
