New Holland Compact Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849A) – NH – PDF Download

Description

New Holland Compact Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849A) – NH

File Details:

New Holland Compact Tractor Boomer 3040 3045 3050 CVT Service Manual_84126849A
Size: 41.9 MB
Format: PDF
Language: English
Number of Pages: 1229 pages
Brand: New Holland
Type of document: Service Manual
Model: Boomer 3040 3045 3050 CVT
Part No: 84126849A

NEW HOLLAND COMPACT TRACTOR BOOMER 3040 3045 3050 CVT SERVICE REPAIR MANUAL (84126849A) – NH – PDF DOWNLOAD:

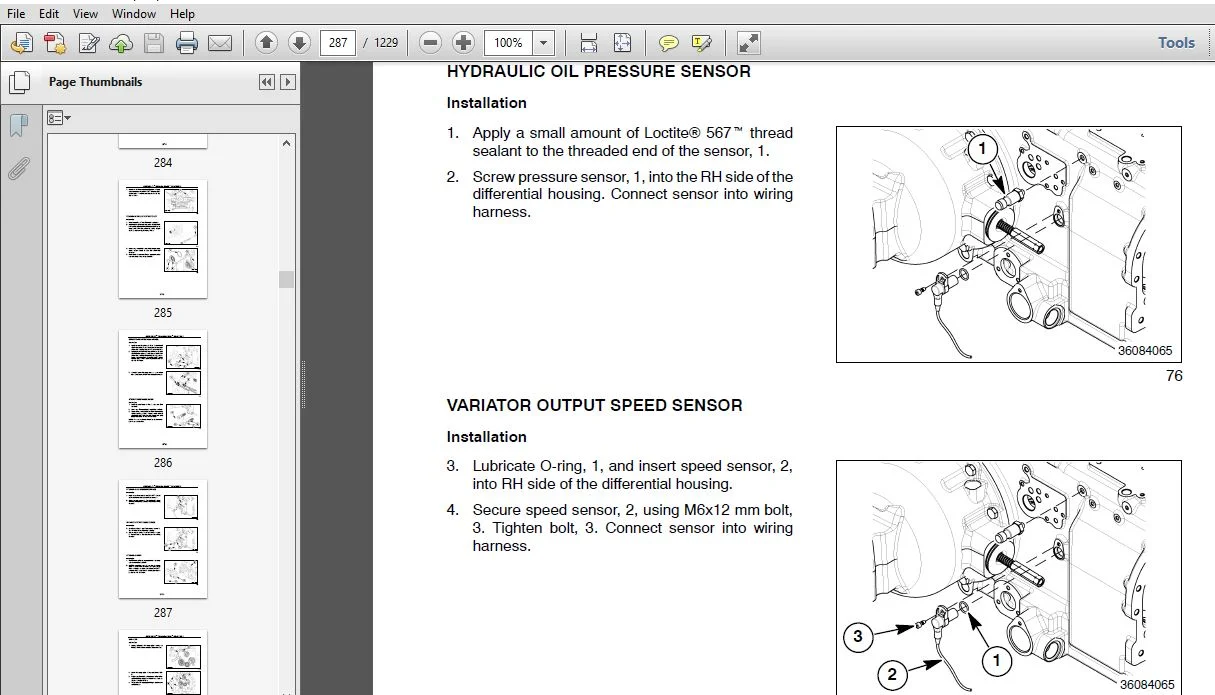

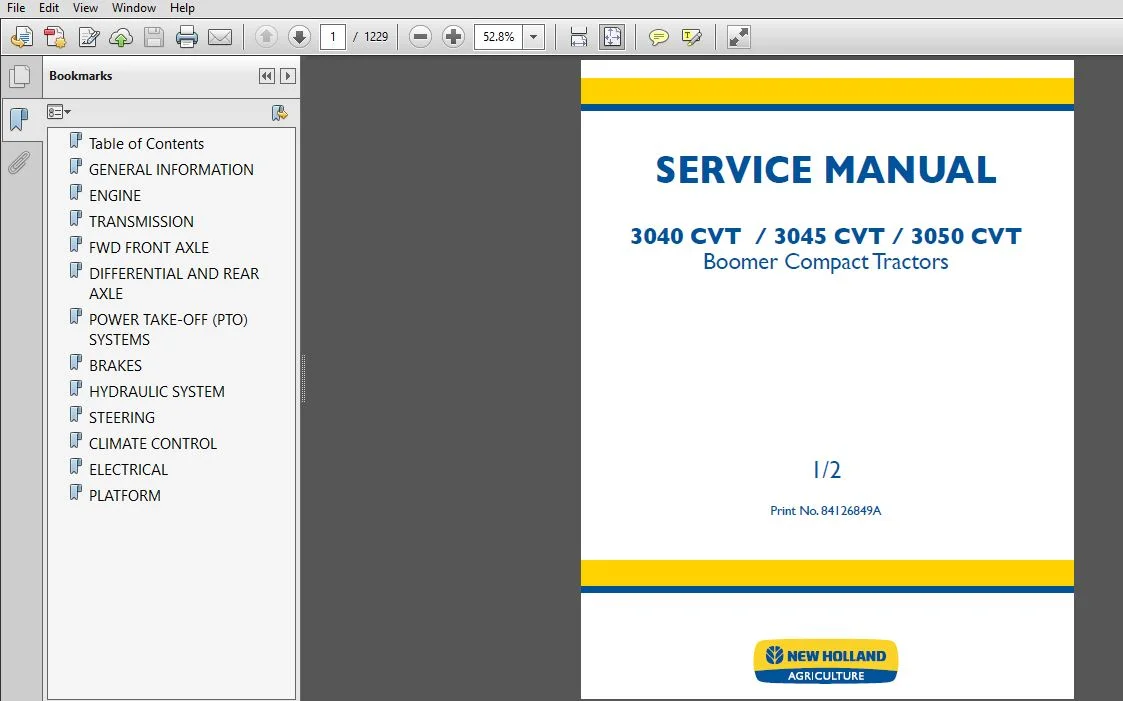

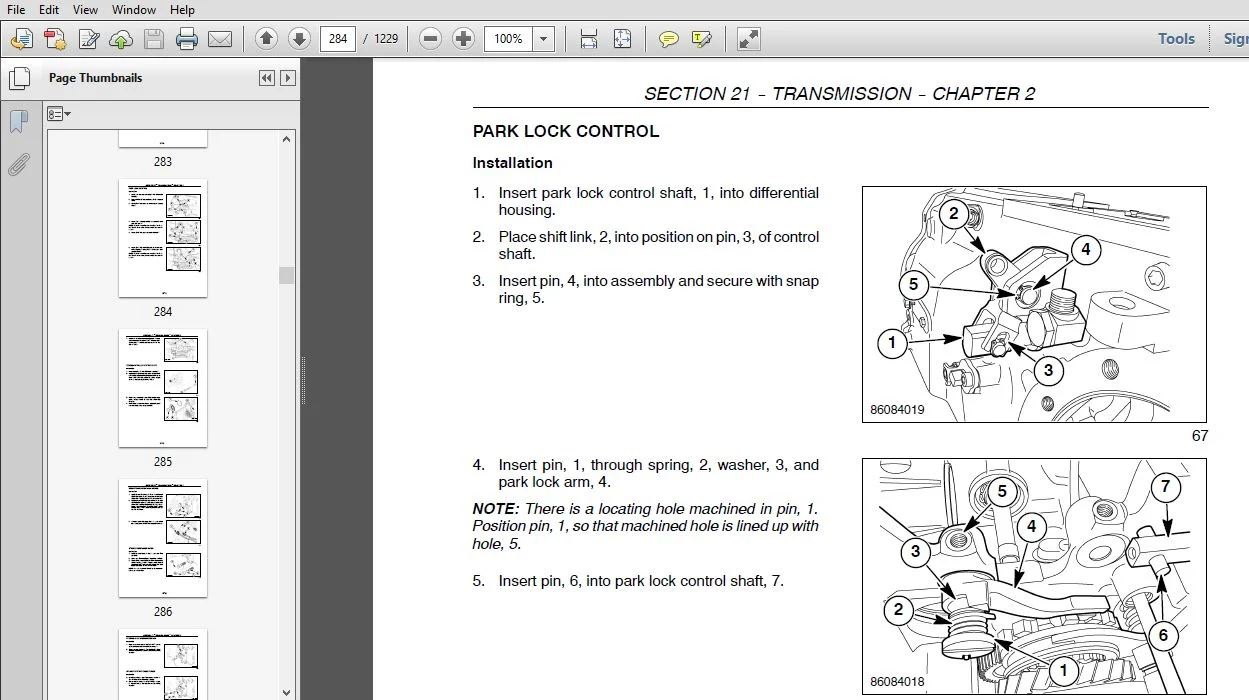

Image Preview:

Description:

New Holland Compact Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849A) – NH

• GENERAL
  The Boomer 3040, 3045, and 3050 series tractors have been built using metric hardware.
  NOTE: Be sure to use the hardware specified when using tapped holes, as trying to install ametric bolt in an inch thread, or an inch bolt in a metric thread, will damage the thread.
  Certain hardware must be tightened to specific torque specifications. If specific torque specifications are not noted, tighten the hardware to the standard torque chart specification listed in this manual.
• PLATING
  Hardware used on New Holland tractors is plated with zinc chromate (gold color). Gold colored hardware has different torquing requirements from unplated or zinc plated (silver color) hardware because of the difference in the coefficient of friction of the plating material. The torque charts in this manual list the correct specifications for gold, silver, and unplated bolts.
• NUT TIGHTENING
  Whenever possible, the nut should be tightened, not the head of the bolt. When tightening using the bolt head, the clamp load can be lost because some of the torque applied twists the bolt instead of tensioning (stretching) it. The tension on the bolt is what holds the joint together.
  Approximately 90% of the torque applied during assembly goes to overcoming friction between the parts. The other 10% is used to tension (stretch) the bolt. After assembly, the frictional forces disappear, which is the basis for the saying “If it does not fail during assembly, it will not fail in service.” The bolt may later fail due to other factors, but not from being over tightened.
• LOCKNUTS
  Most locknuts are coated with a special lubricant that is dry to the touch. Anytime a locknut is used, a lower than normal torque is required. Refer to the torque charts in this manual for specific values.
• JAM NUTS
  When using a jam nut to lock a regular nut, the jam nut should be installed first and tightened to one half the recommended torque, then held in place while installing a regular nut to the recommended torque.
• THREAD LUBRICATION
  The addition of antiseize compound, Molykote, oil, graphite, or any other lubricant to a bolt decreases the friction between it and a nut. This makes it necessary to reduce the recommended torque to prevent over tensioning of the bolt. When using the torque charts in this manual, decrease the value by 20% whenever a lubricant is used.

Table of Contents:

New Holland Compact Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849A) – NH

SECTION 00 – GENERAL INFORMATION 2
SECTION 10 – ENGINE 4
SECTION 21 – TRANSMISSION 11
SECTION 25 – FWD FRONT AXLE 15
SECTION 27 – DIFFERENTIAL AND REAR AXLE 18
SECTION 31 – POWER TAKE-OFF (PTO) SYSTEMS 19
SECTION 33 – BRAKES 22
SECTION 35 – HYDRAULIC SYSTEM 23
SECTION 41 – STEERING 27
SECTION 50 – CLIMATE CONTROL 30
SECTION 55 – ELECTRICAL 34
SECTION 90 – PLATFORM 47

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you.
• The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY. This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
