New Holland Compact Tractor Boomer 4055, 4060 Service Manual – PDF DOWNLOAD

Description

New Holland Compact Tractor Boomer 4055, 4060 Service Manual

FILE DETAILS:

New Holland Compact Tractor Boomer 4055, 4060 Service Manual

Size: 42.6 MB
Format: PDF
Language: English
Number of Pages: 5 Folder
Brand: New Holland
Type of machine: Compact Tractor
Type of document: Service Manual
Model: Boomer 4055, 4060

DESCRIPTION:

New Holland Compact Tractor Boomer 4055, 4060 Service Manual

SAFETY:

PRECAUTIONARY STATEMENTS:

A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so. Carefully review the procedures given in thismanual with all operators. It is important that all operators be familiar with and follow safety precautions.

THE TRACTOR:

• 1. Read the Operator’s Manual carefully before using the tractor. Lack of operating knowledge can lead to accidents.
• 2. Use an approved roll bar and seat belt for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar and seat belt, see your New Holland Dealer.
• 3. Always use the seat belt. The only instance when the seat belt should not be used is if the roll bar has been removed from the tractor.
• 4. If a front end loader is to be installed, always use a FOPS (Falling Object Protective Structure) canopy to avoid injury from falling objects.
• 5. Use the handholds and step plates when getting on and off the tractor to prevent falls. Keep steps and platform cleared of mud and debris.
• 6. Do not permit anyone but the operator to ride on the tractor. There is no safe place for extra riders.
• 7. Keep all safety decals clean of dirt and grime, and replace allmissing, illegible, or damaged safety decals. See the list of decals in the Decal section of this manual.

SERVICING THE TRACTOR:

• 1. The cooling system operates under pressure which is controlled by the radiator cap. It is dangerous to remove the cap while the system is hot. Always turn the cap slowly to the first stop and allow pressure to escape before removing the cap entirely.
• 2. Keep any type of open flame away from the tractor and do not smoke while refueling. Wait for the engine to cool before refueling.
• 3. Keep the tractor and equipment, particularly brakes and steering, maintained in a reliable and satisfactory condition to ensure your safety and comply with legal requirements.
• 4. Keep open flame or cold weather starting aids away from the battery to prevent fires or explosions. Use jumper cables according to instructions to prevent sparks which could cause explosion.
• 5. Stop the engine before performing any service on the tractor.

TABLE OF CONTENTS:

New Holland Compact Tractor Boomer 4055, 4060 Service Manual

• SECTION 00 – GENERAL INFORMATION
• SECTION 10 – ENGINE
• SECTION 18 – CLUTCH
• SECTION 21 – TRANSMISSION
• SECTION 23 – FWD DRIVELINE
• SECTION 25 — FWD FRONT AXLE
• SECTION 27 — DIFFERENTIAL, REAR AXLE
• SECTION 31 — POWER TAKE-OFF (PTO)
• SECTION 33 – BRAKES
• SECTION 35 – HYDRAULIC SYSTEM
• SECTION 41 – STEERING
• SECTION 44 — WHEELS AND TIRES
• SECTION 50 – CLIMATE CONTROL
• SECTION 55 – ELECTRICAL SYSTEM
• SECTION 90 – PLATFORM

NEW HOLLAND COMPACT TRACTOR BOOMER 4055, 4060 SERVICE MANUAL – PDF DOWNLOAD:

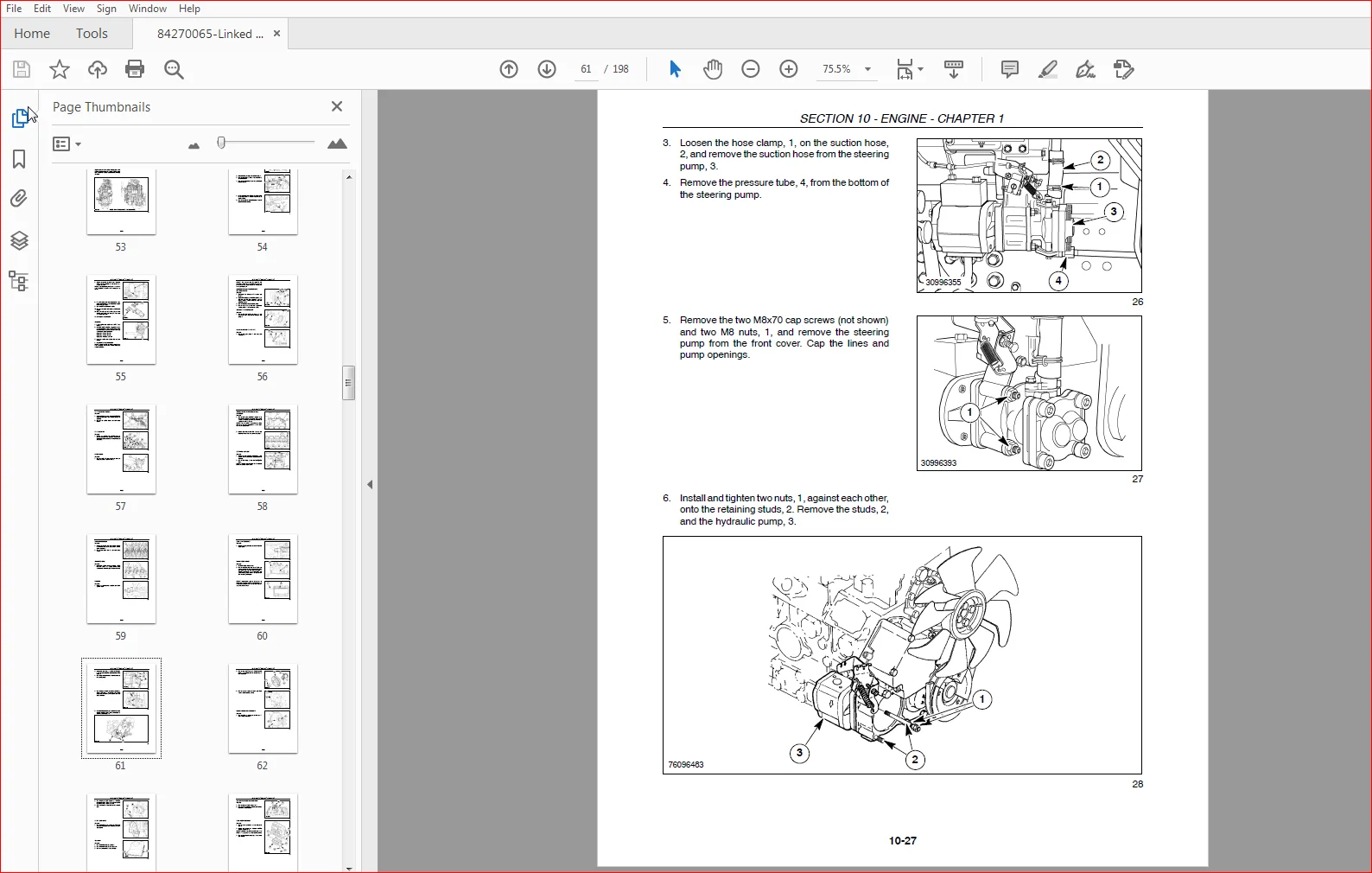

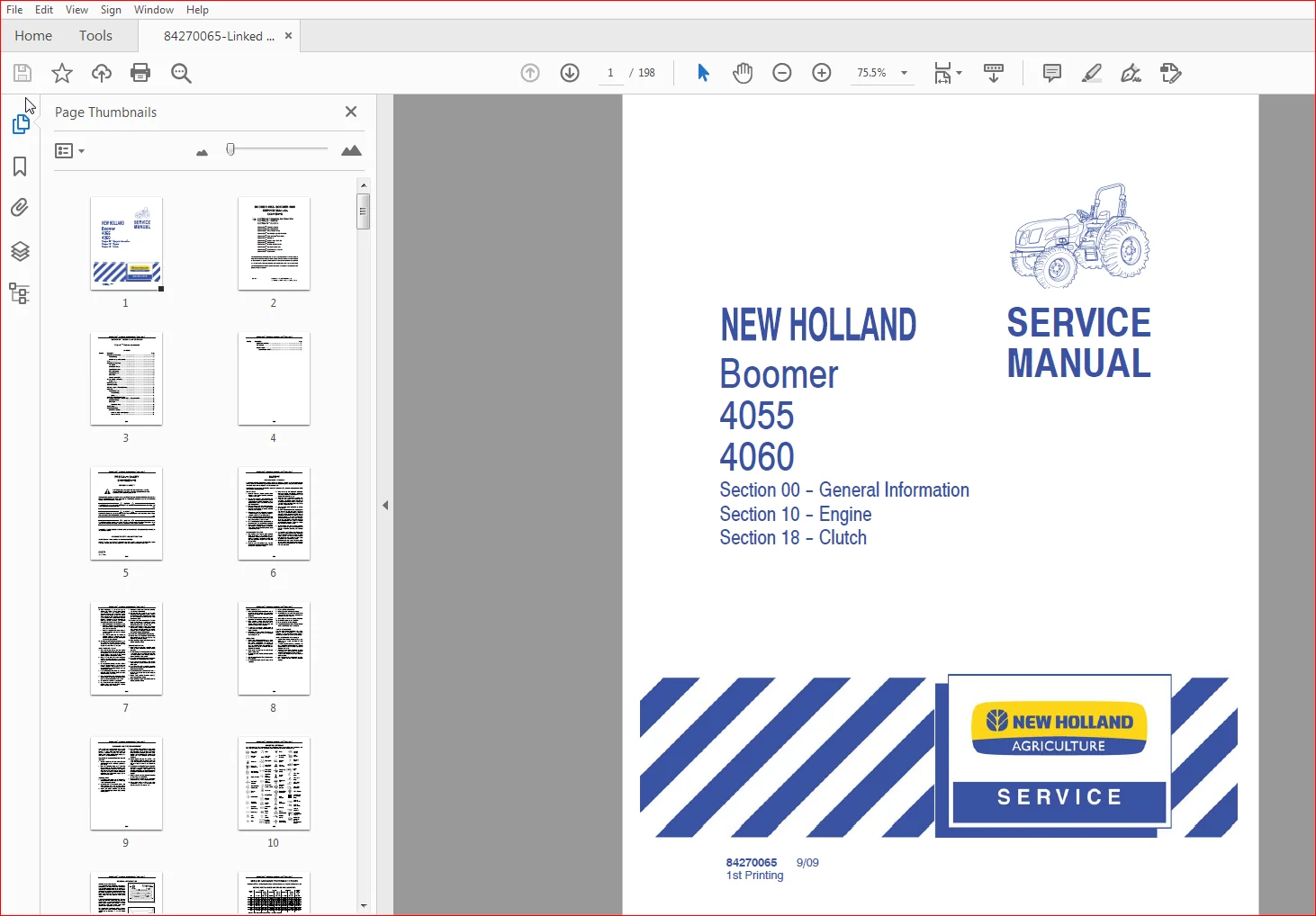

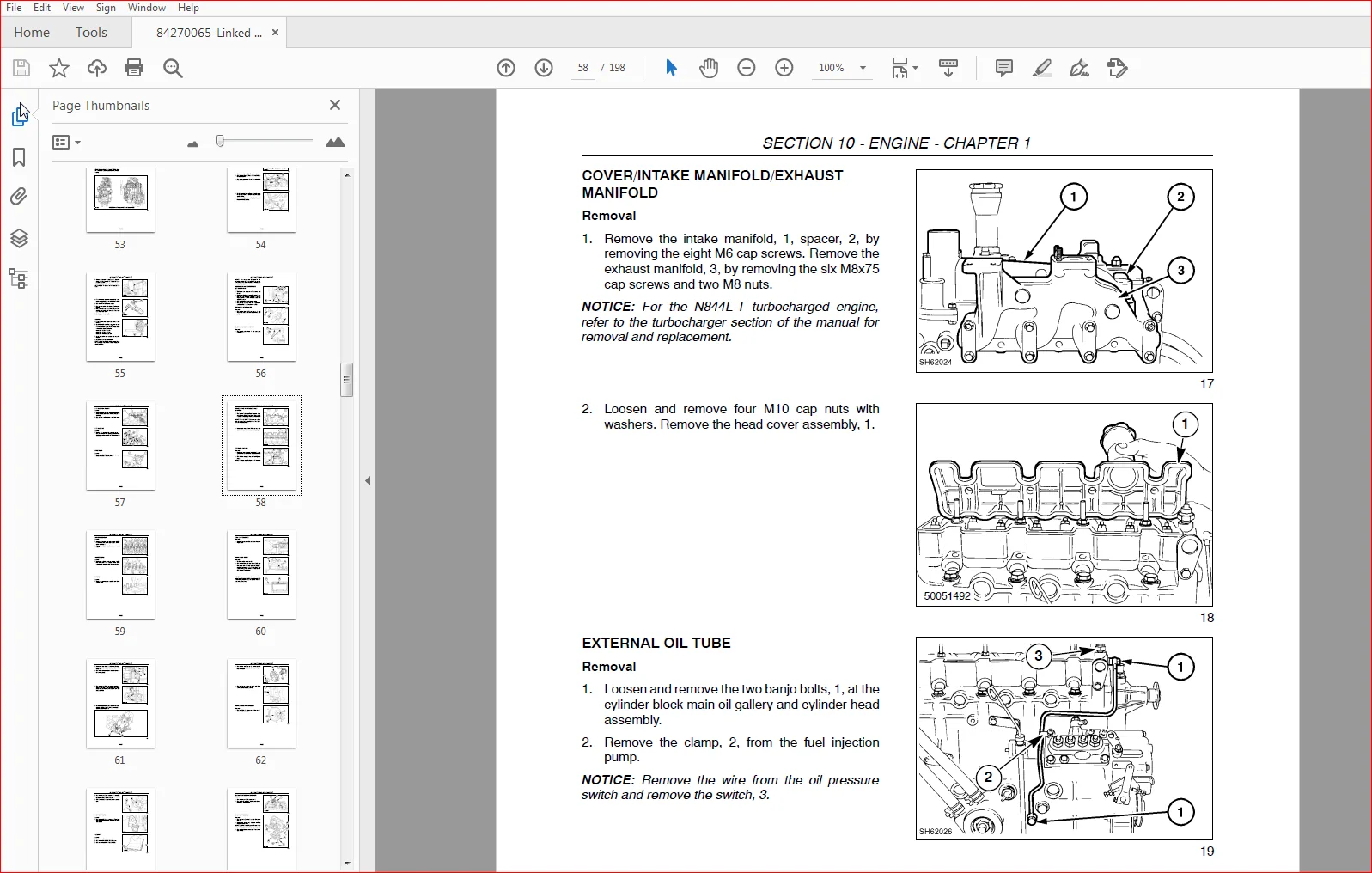

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
