New Holland Compact Tractor Boomer 46D, Boomer 54D Tier 4B Service Manual 47851943 – PDF DOWNLOAD

Description

New Holland Compact Tractor Boomer 46D, Boomer 54D Tier 4B Service Manual

FILE DETAILS:

New Holland Compact Tractor Boomer 46D, Boomer 54D Tier 4B Service Manual

Size: 280 MB
Format: PDF
Language: English
Number of Pages: 1841 pages
Brand: New Holland
Type of document: Service Manual
Model: Boomer 46D, Boomer 54D Tier 4B
Part No: 47851943

DESCRIPTION:

New Holland Compact Tractor Boomer 46D, Boomer 54D Tier 4B Service Manual

FOREWORD:

• This repair manual provides the technical information needed to properly service the NEW HOLLAND Boomer 46D, 54D CVT (Constant Velocity Transmission) model tractors. Use this manual in conjunction with the operator’s manual for complete operation, adjustment, and maintenance information .
• On NEW HOLLAND equipment, left and right are determined by standing behind the unit, looking in the direction of travel.

SAFETY RULES:

• A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so.

THE TRACTOR :

• 1. Read the Operator’s Manual carefully before using the tractor. Lack of operating knowledge can lead to accidents.
• 2. Use an approved roll bar and seat belt for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar and seat belt, see your New Holland Dealer.
• 3. Always use the seat belt. The only instancewhen the seat belt should not be used is if the roll bar has been removed from the tractor.
• 4. If a front end loader is to be installed, always use a FOPS (Falling Object Protective Structure) canopy to avoid injury from falling objects.
• 5. Use the handholds and step plates when getting on and off the tractor to prevent falls. Keep steps and platform cleared of mud and debris.
• 6. Do not permit anyone but the operator to ride on the tractor. There is no safe place for extra riders.
• 7. Keep all safety decals clean of dirt and grime, and replace all missing, illegible, or damaged safety decals. See the list of decals in the Decal section of this manual.

SERVICING THE TRACTOR:

• 1. The cooling system operates under pressure which is controlled by the radiator cap. It is dangerous to remove the cap while the system is hot. Always turn the cap slowly to the first stop and allow pressure to escape before removing the cap entirely.
• 2. Keep any type of open flame away from the tractor and do not smoke while refueling.Wait for the engine to cool before refueling.
• 3. Keep the tractor and equipment, particularly brakes and steering, maintained in a reliable and satisfactory condition to ensure your safety and comply with legal requirements.
• 4. Keep open flame or cold weather starting aids away from the battery to prevent fires or explosions. Use jumper cables according to instructions to prevent sparks which could cause explosion. 5. Stop the engine before performing any service on the tractor.

TABLE OF CONTENTS:

New Holland Compact Tractor Boomer 46D, Boomer 54D Tier 4B Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
[10110] Balancer and damper 102
[10202] Air cleaners and lines 103
[10400] Engine cooling system 104
[10501] Exhaust Gas Recirculation (EGR) exhaust treatment 105
Transmission 21
[21504] Continuously Variable Transmission (CVT) 211
Four-Wheel Drive (4WD) system 23
[23101] Mechanical control 231
Front axle system 25
[25100] Powered front axle 251
[25102] Front bevel gear set and differential252
[25310] Final drives 253
Rear axle system 27
[27100] Powered rear axle 271
[27106] Rear bevel gear set and differential 272
Power Take-Off (PTO) 31
[31104] Rear electro-hydraulic control 311
[31110] One-speed rear Power Take-Off (PTO) 312
[31120] Central Power Take-Off (PTO) 313
Brakes and controls 33
[33110] Parking brake or parking lock 331
[33120] Mechanical service brakes 332
Hydraulic systems 35
47851943 03/02/2016
[35000] Hydraulic systems 351
[35104] Fixed displacement pump 352
[35204] Remote control valves 353
[35300] Reservoir, cooler, and filters354
Steering 41
[41200] Hydraulic control components 411
[41206] Pump412
[41216] Cylinders413
Cab climate control 50
[50100] Heating 501
[50104] Ventilation 502
[50200] Air conditioning 503
Electrical systems 55
[55000] Electrical system551
[55024] Transmission control system552
[55100] Harnesses and connectors 553
[55201] Engine starting system 554
[55301] Alternator 555
[55302] Battery 556
[55404] External lighting 557
[55408] Warning indicators, alarms, and instruments 558
[55518] Wiper and washer system 559
[55640] Electronic modules5510
[55DTC] FAULT CODES 5511
Platform, cab, bodywork, and decals 90
[90100] Engine hood and panels901
[90116] Fenders and guards 902
[90124] Pneumatically-adjusted operator seat 903
47851943 03/02/2016
[90150] Cab 904
[90151] Cab interior 905
[90154] Cab doors and hatches 906

NEW HOLLAND COMPACT TRACTOR BOOMER 46D, BOOMER 54D TIER 4B SERVICE MANUAL 47851943 – PDF DOWNLOAD:

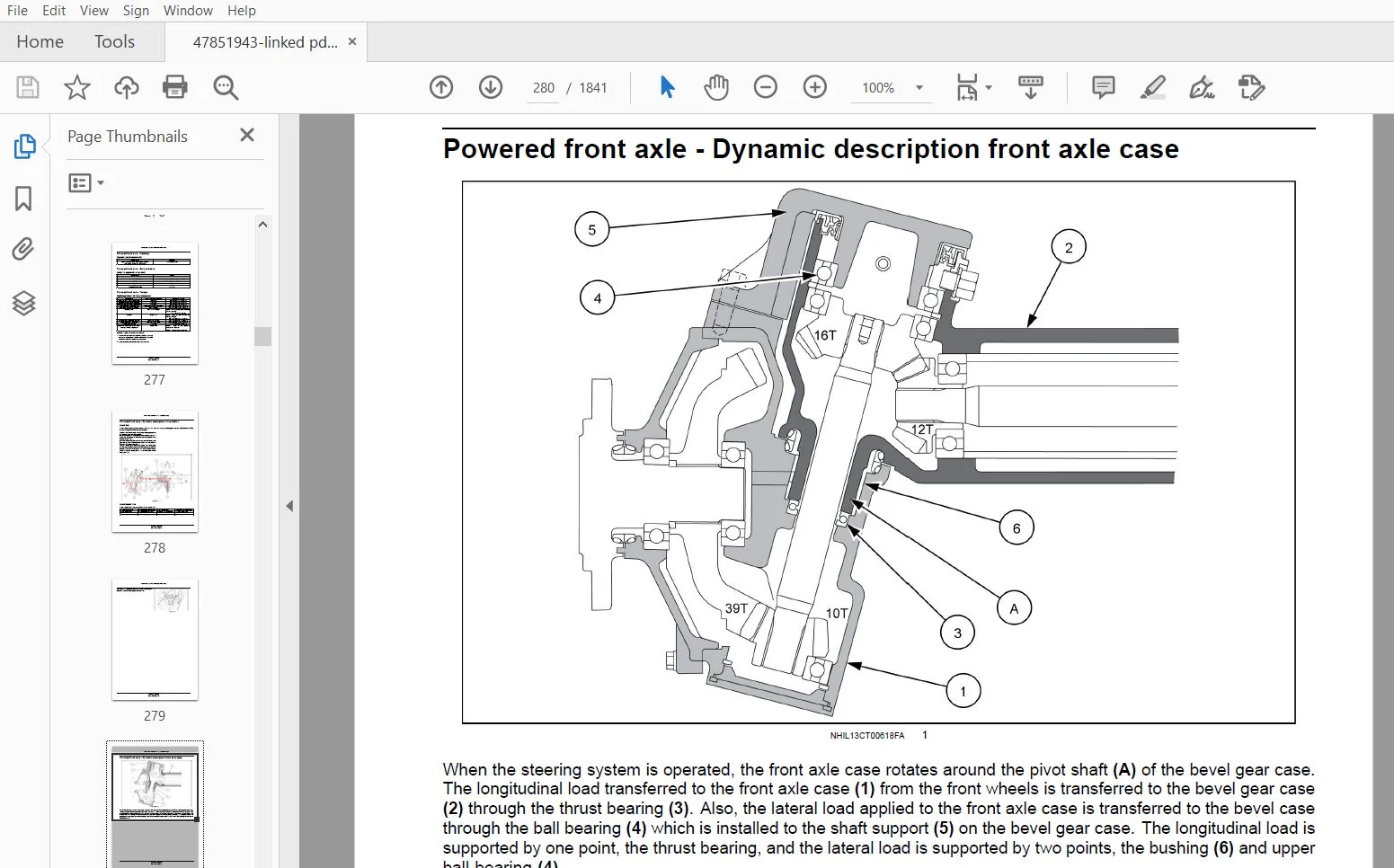

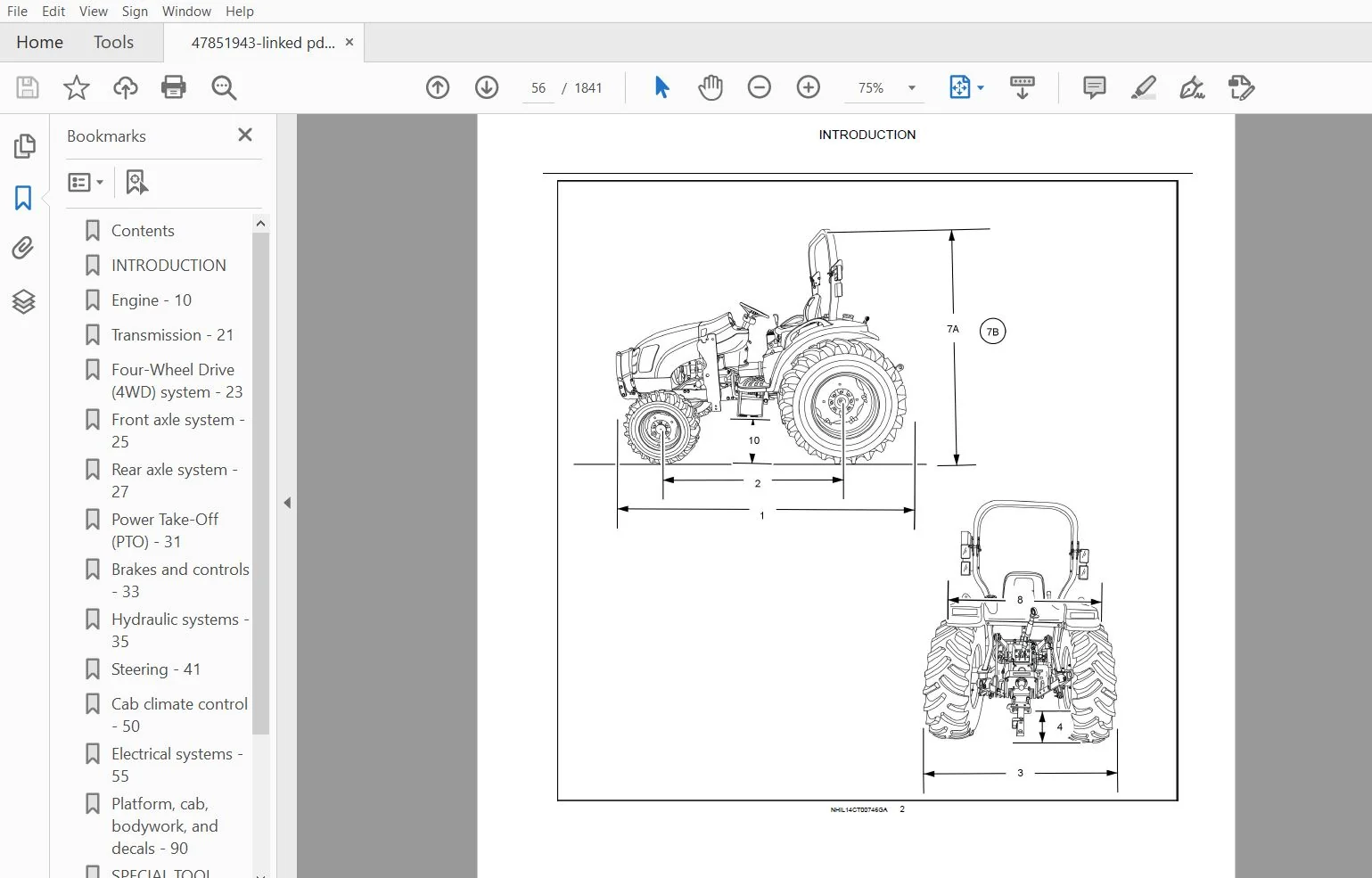

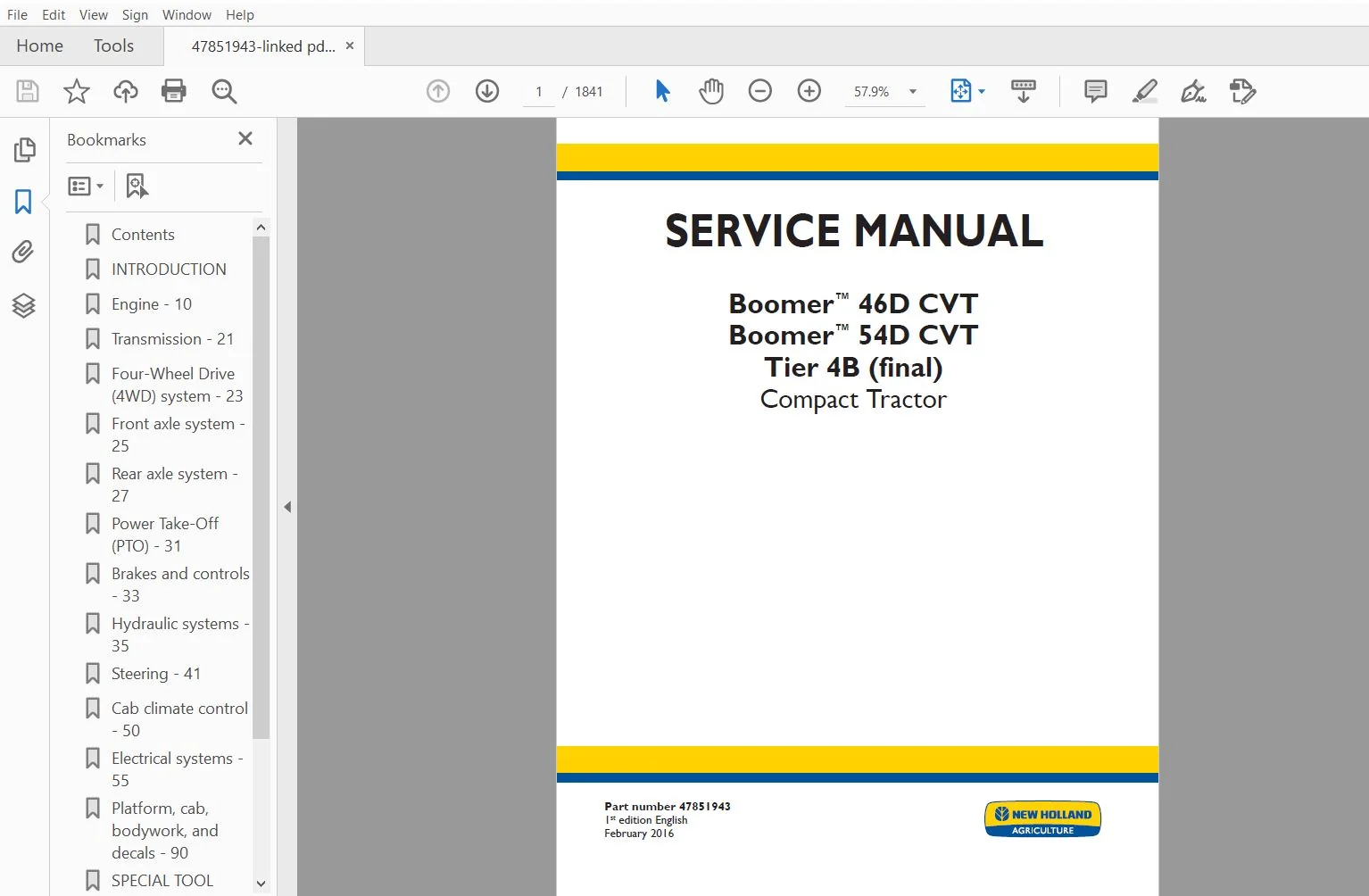

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
