New Holland LW90 Wheel Loader Service Repair Manual PDF Download

Description

New Holland CONSTRUCTION LW90 WHEEL LOADER Service Manual

FILE DETAILS:

New Holland CONSTRUCTION LW90 WHEEL LOADER Service Manual

Size: 121 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Tractor Loader Backhoe
Type of document: Service Manual
Model: Fiat Allis FT110 Tractor Loader Backhoe
Number of Pages: 554 pages
Print No.: 75128707

DESCRIPTION:

New Holland CONSTRUCTION LW90 WHEEL LOADER Service Manual

FOREWORD:

• This manual has been prepared to provide the customer and the maintenance personnel with information and instructions on the maintenance and repair of the SPICER OFF-HK3HWAYPRODUCTS product. Extreme care has been exercised in the design, selection of materials, and manufacturing of these units.
• The slight outlay in personal attention and cost required to provide regular and proper lubrication, inspection at stated intervals, and such adjustments as may be indicated will be reimbursed many times in low cost operation and trouble free service.
• In order to become familiar with the various parts of the product, its principle of operation, troubleshooting and adjustments, it is urged that the mechanic studies the instructions in this manual carefully and uses it as a reference when performing maintenance and repair operations.
• Whenever repair or replacement of component parts is required, only SPICEROFF-HIQHWAYPRODUCTS approved parts as listed in the applicable parts manual should be used. Use of “will-fit” or non-approved parts may endanger proper operation and performance of the equipment. S
• PICER OFF-MQHWA YPRODUCTS does not warrant repair or replacement parts, nor failures resulting from the use of parts which are not supplied by or approved by SPICER OFF-tSQHWAYPRODUCTS.
•  Oil Seals, Gaskets, Etc. Replacement of spring bad oil seals, “0”-rings, metal sealing rings, gaskets, and snap rings is more economical when unit is disassembled than premature overhaul to replace these parts at a future time. Further loss of lubricant through a worn seal may result in failure of other more expensive parts of the assembly. Sealing members should be handled carefully, particularly when being installed. Cutting, scratching, or curling under of lip of seal seriously impairs its efficiency.
• When assembling new metal type sealing rings, these should be lubricated with coat of chassis grease to stabilize rings in their grooves for ease of assembly of mating members. Lubricate all “0”-rings and seals with recommended type Automatic Transmission Fluid before assembly.
• Gears and Shafts If magna-flux process is available, use process to check parts. Examine teeth on all gears carefully for wear, pitting, chipping, nicks, cracks, or scores. If gear teeth show spots where case hardening is worn through or cracked, replace with new gear.
• Small nicks may be removed with suitable hone. Inspect shafts and quills to make certain they are not sprung, bent, or splines twisted, and that shafts are true. Housing, Covers, etc. Inspect housings, covers and bearing caps to ensure that they are thoroughly clean and that mating surfaces, bearing bores, etc…, are free from nicks or burrs. Check all parts carefully for evidence of cracks or conditions which would cause subsequent oil leaks or failures.

NEW HOLLAND CONSTRUCTION LW90 WHEEL LOADER SERVICE MANUAL 75131004 – PDF DOWNLOAD:

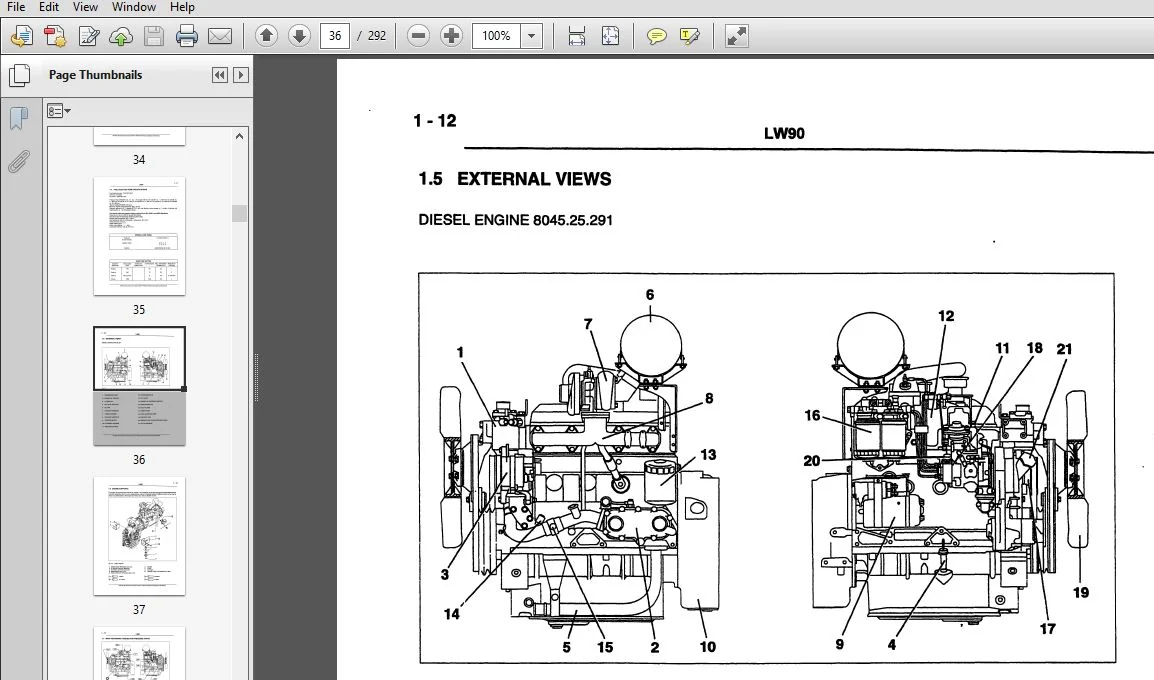

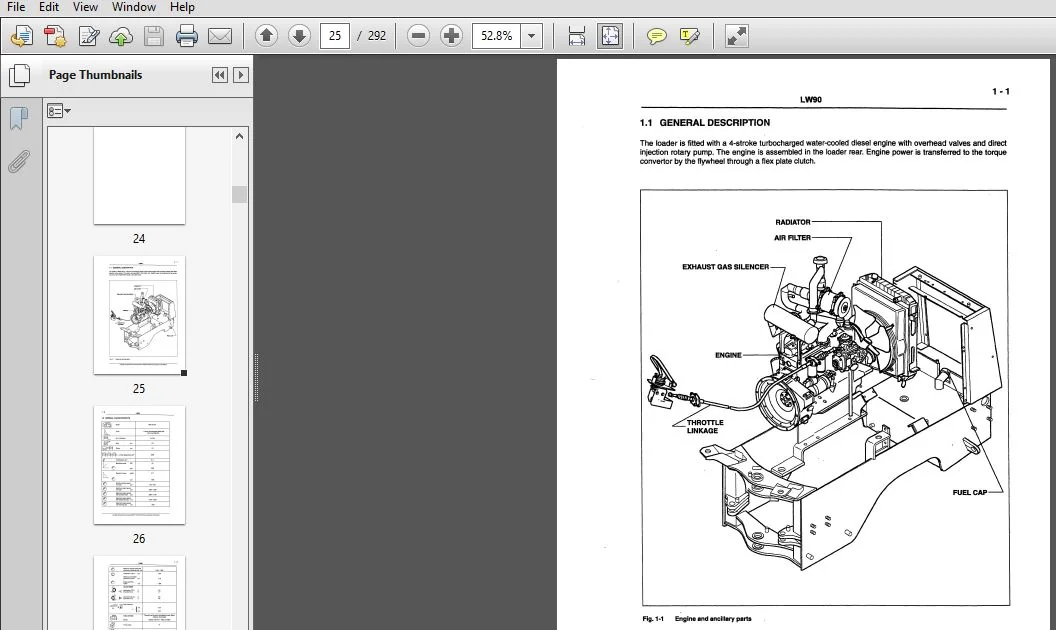

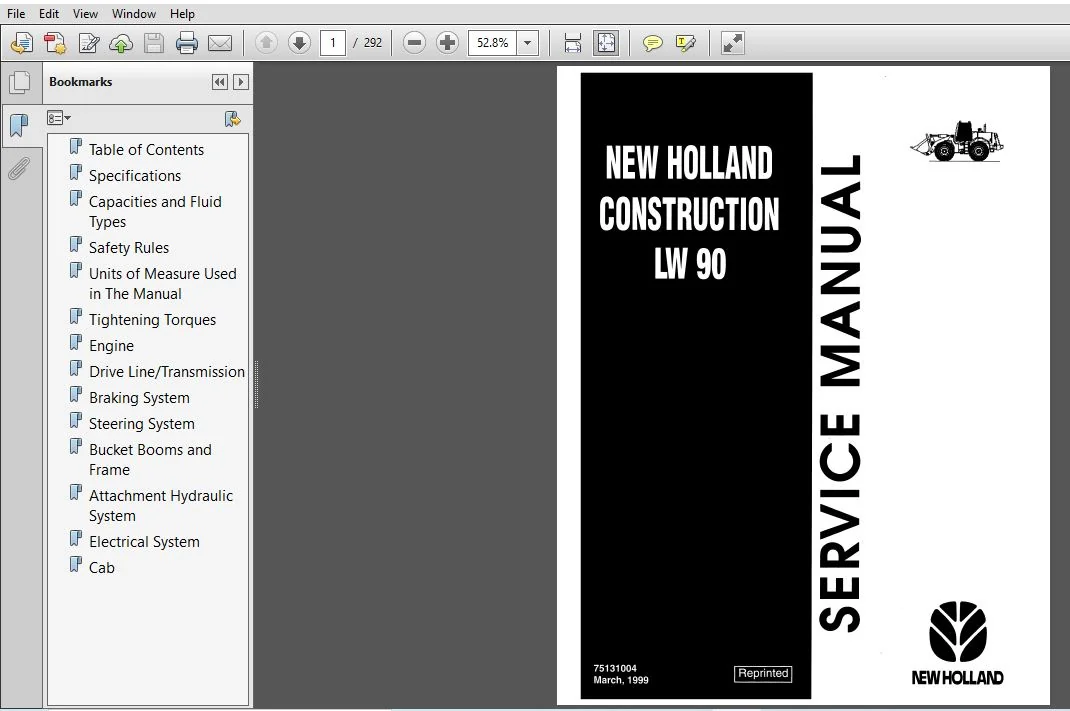

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland CONSTRUCTION LW90 WHEEL LOADER Service Manual

Table of Contents 255
Group 00 – General Specifications 257
Group 01 – Maintenance 267
Group 02 – Engines 285
Group 03 – Transmission 391
75128708-Transmission 0
Table of Contents 6
1 Safety Precautions 9
2 Cleaning, Inspection and Legend Symbols 10
3 Technical Specifications 12
4 Maintenance 17
5 Installation Details 22
6 Operation of The Transmission 27
7 Troubleshooting Guide For The T12000 Transmission 86
8 Sectional Views and Parts Identification 97
9 Assembly Instructions 132
10 Disassembly and Reassembly of T12000 ID Transmission 139
11 Options 224
Group 04 – Axle 419
Group 05 – Brakes 455
Group 06 – Hydraulic 471
Group 07 – Electric 537
Group 08 – Schematics 548

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
