New Holland Crawler Excavators E70BSR Service Repair Manual (84365679) – NH Crawler Excavators E70BSR – PDF Download

Description

New Holland Crawler Excavators E70BSR Service Repair Manual (84365679) – NH Crawler Excavators E70BSR

File Details:

New Holland Crawler Excavators E70BSR Service Manual_84365679
Size: 52.6 MB
Format: PDF
Language: English
Number of Pages: 939 pages
Brand: New Holland
Type of document: Service Manual
Model: E70BSR
Part No:84365679

Description:

New Holland Crawler Excavators E70BSR Service Repair Manual (84365679) – NH Crawler Excavators E70BSR

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components,the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ;
  SPECIFICATIONS.
• The following is a list of basic precautions that must always be observed.
• (1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
• (2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• (3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
• (4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
• (5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.
• (6) Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.

Table Of Contents:

New Holland Crawler Excavators E70BSR Service Repair Manual (84365679) – NH Crawler Excavators E70BSR

OUTLINE 1
SPECIFICATIONS 2
ATTACHMENT DIMENSIONS 3
TOOLS 11
STANDARD MAINTENANCE TIME TABLE 12
MAINTENANCE STANDARDS AND TEST PROCEDURES 13
MECHATRO CONTROL SYSTEM 21
HYDRAULIC SYSTEM 22
ELECTRICAL SYSTEM 23
COMPONENTS SYSTEM 24
AIR-CONDITIONER SYSTEM 25
DISASSEMBLING & ASSEMBLING 31
ATTACHMENTS 32
UPPER SWING BODY 33
TRAVEL SYSTEM 34
BY ERROR CODE 46
BY TROUBLE 47
ENGINE 51

NEW HOLLAND CRAWLER EXCAVATORS E70BSR SERVICE REPAIR MANUAL (84365679) – NH CRAWLER EXCAVATORS E70BSR – PDF DOWNLOAD:

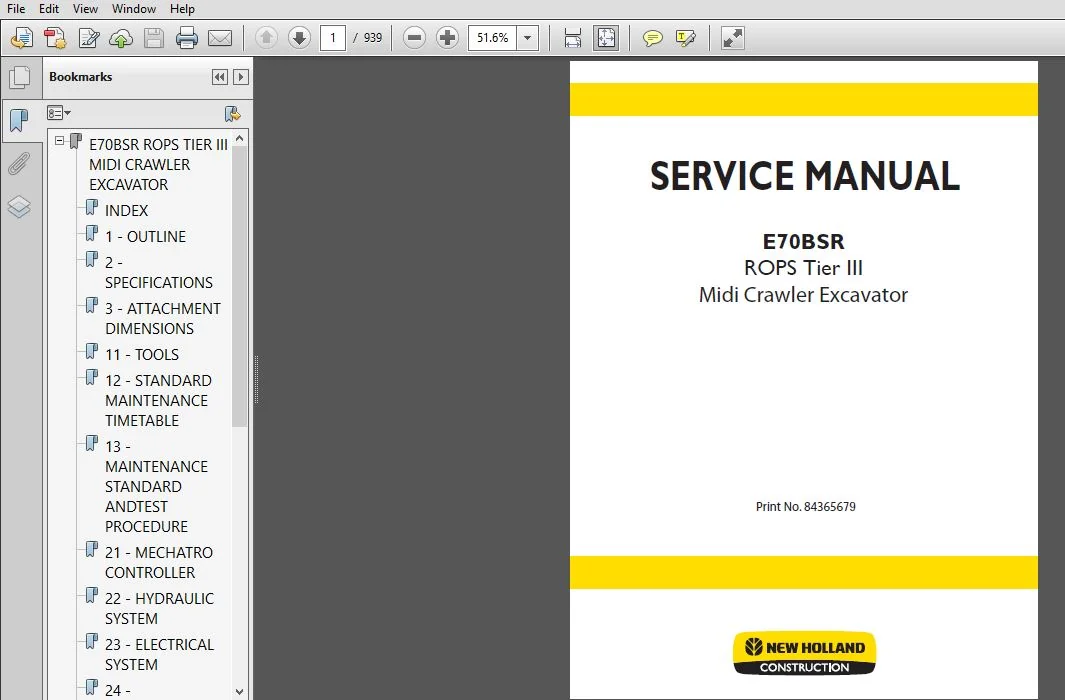

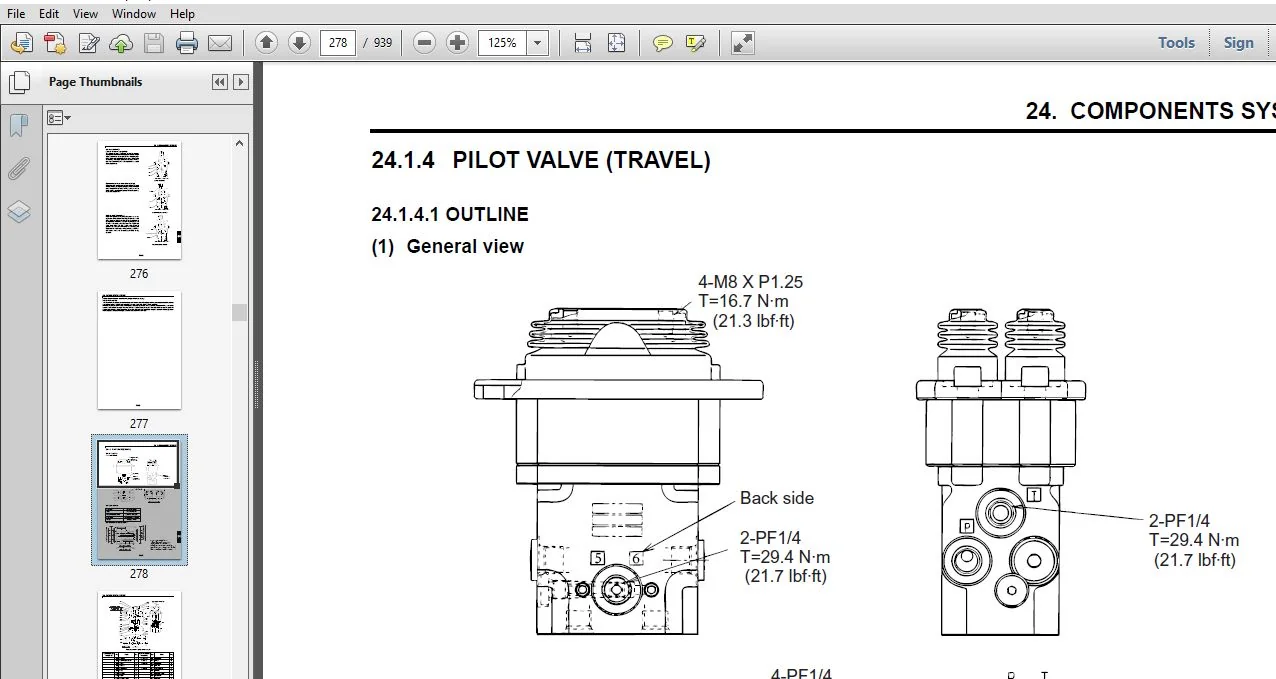

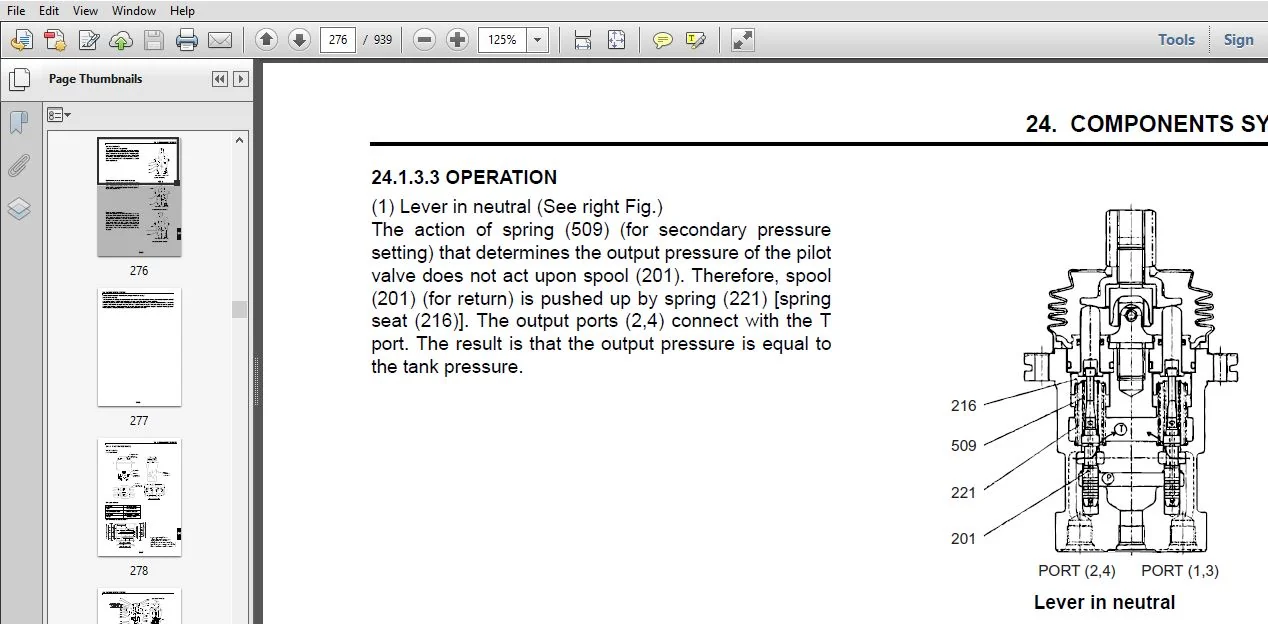

Image Preview:

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
